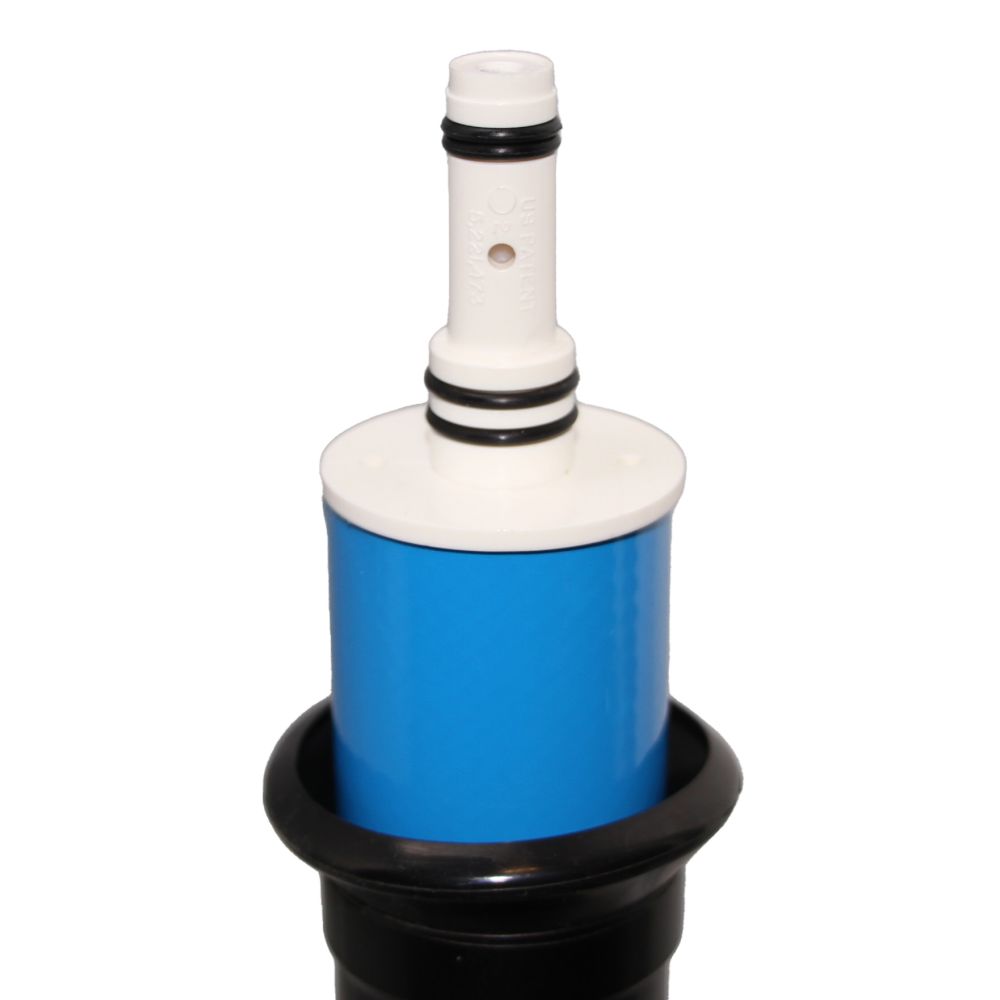

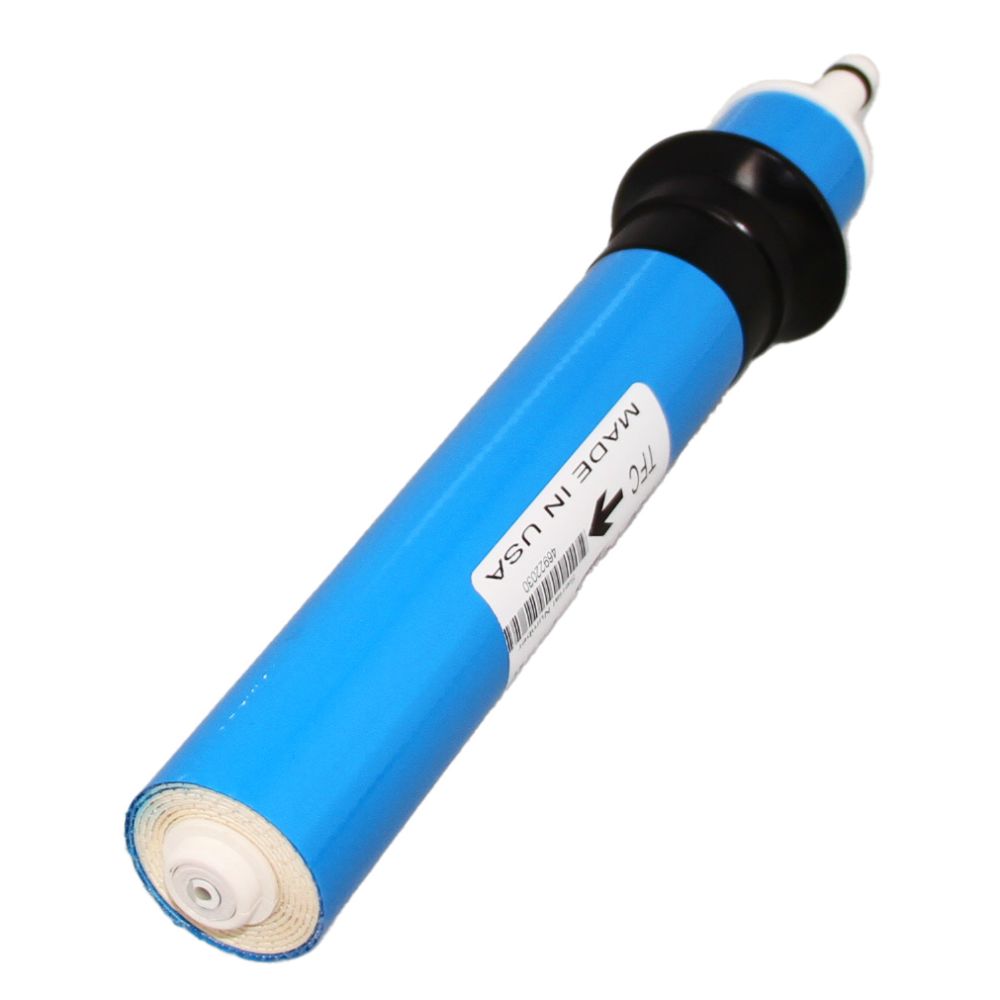

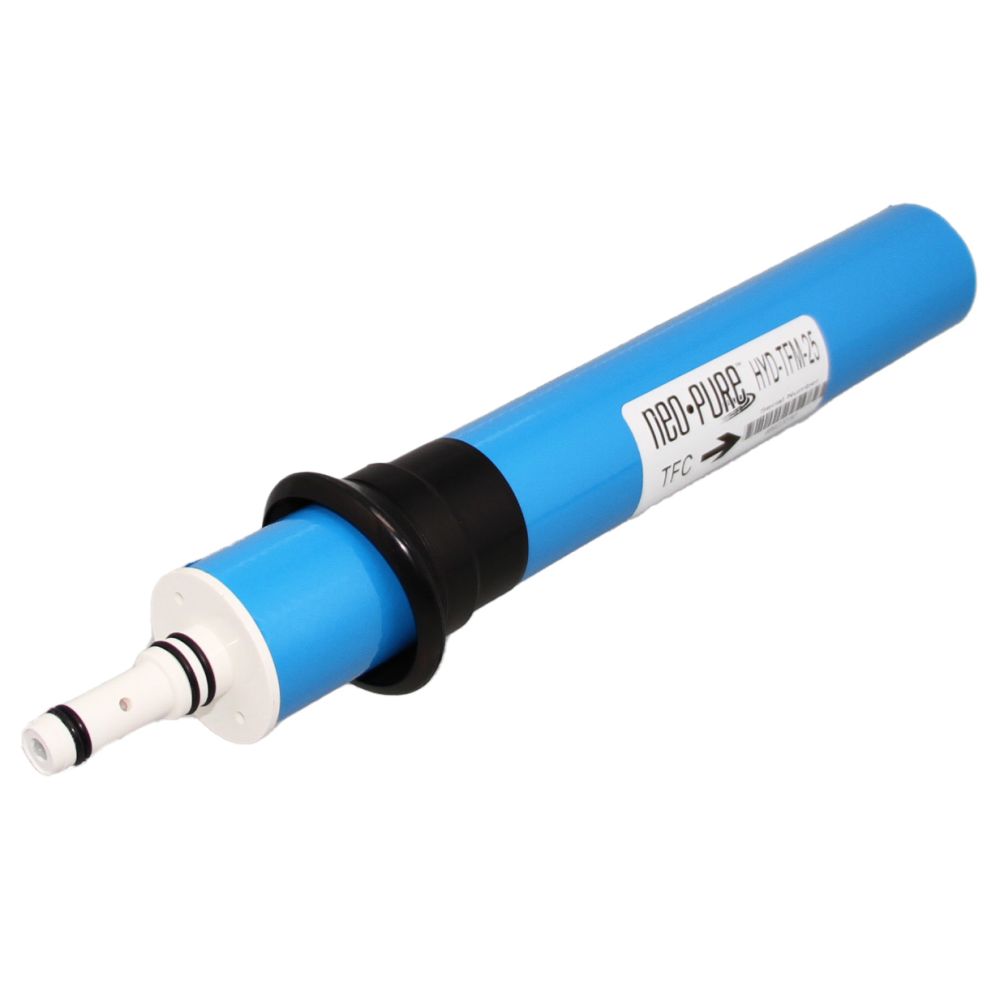

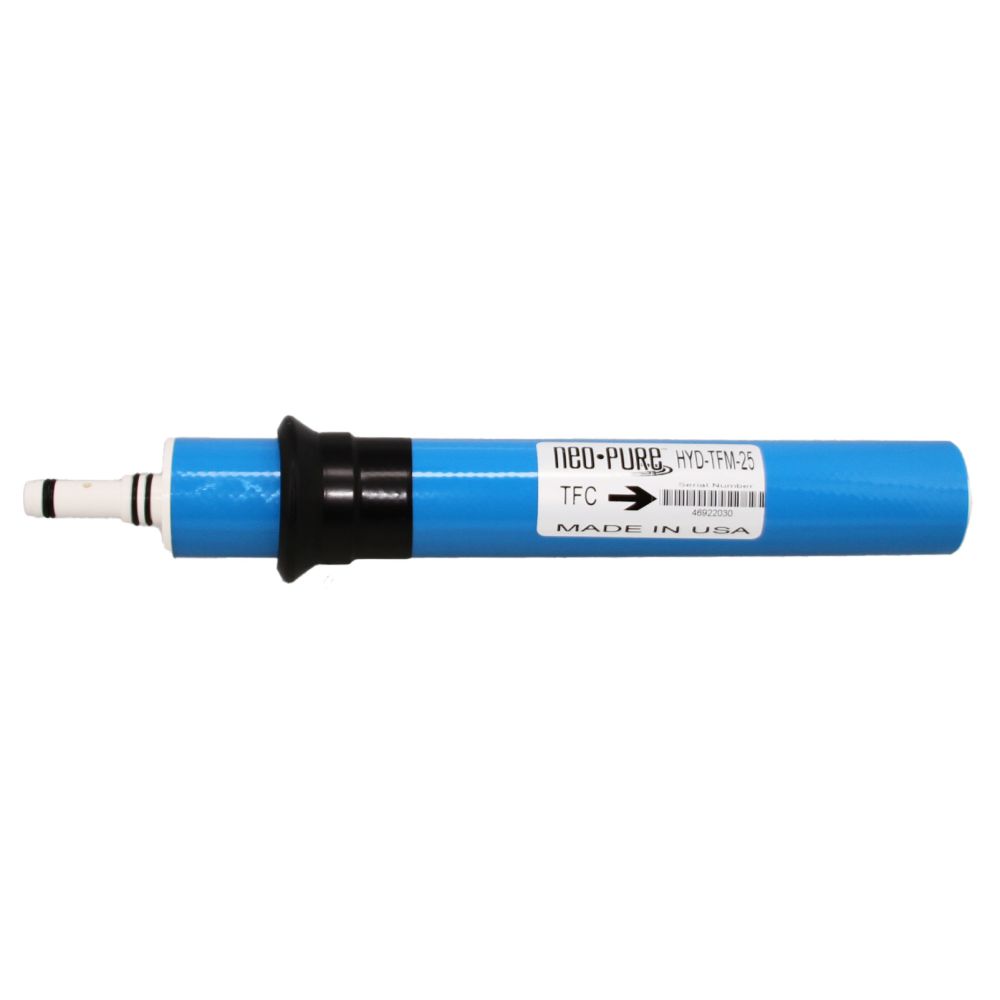

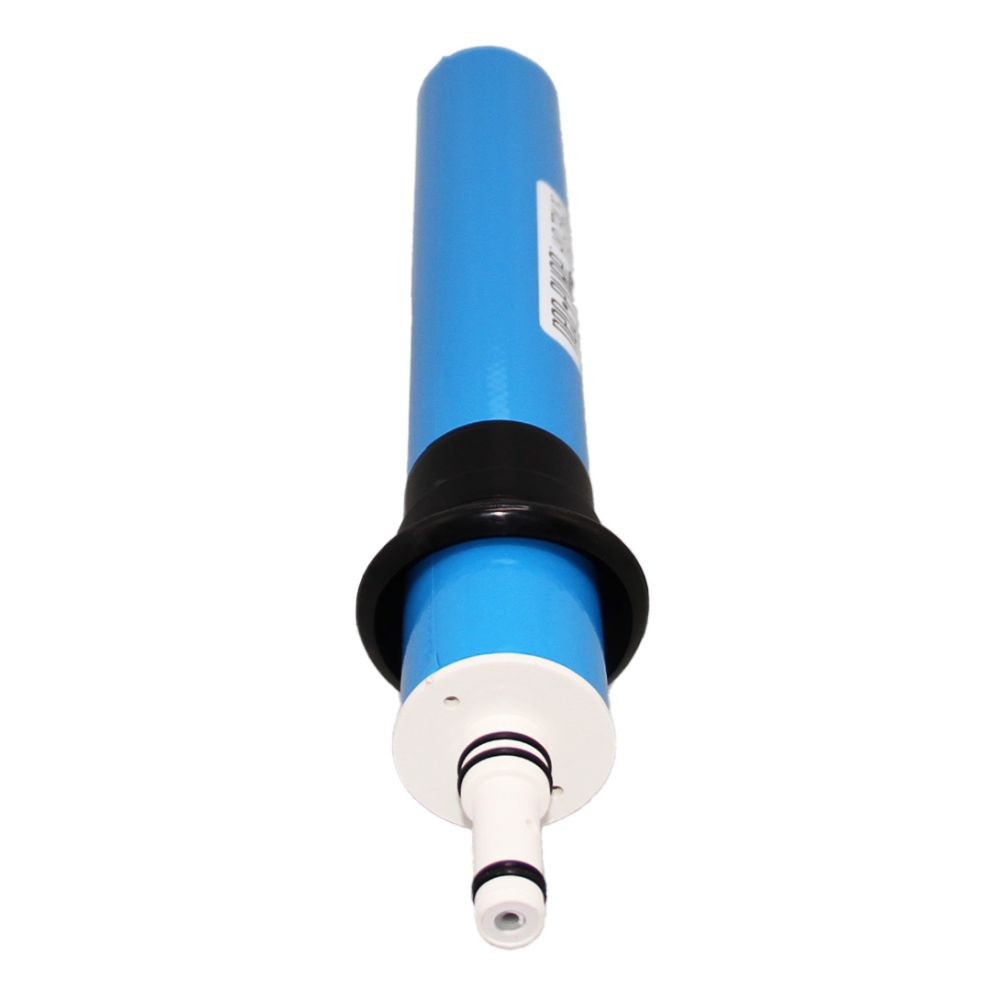

The Neo-Pure HYD-TFM-25 Reverse Osmosis Membrane is a 25 gallon per day TFC membrane. It is compatible with a wide variety of RO systems, including the 1240 Series, E, M & Pro Systems, HT101, HT102, F-HT-25 and F-HTF-25 Series.
The HYD-TFM-25 uses pressure to force water molecules through the semi permeable thin film composite membrane the undesirable contaminants are washed away.
Specifications:
- TFC (Thin Film Composite)
- Flow Rate: 25 gallons per day
- Easily identified by yellow and green tape band
- Also known as Hydrotech S-FS-09 membrane
- Packaged dry to extend shelf life indefinitely
- NOTE: Do not freeze (store between 35 - 50˚F)
Neo-Pure HYD-TFM-25 Membrane is compatible with the following Hydrotech RO systems:
- 101 Series
- 102 Series
- 1240 Series
- 1240 E Series
- 1240 M Series
- 1240 Pro Series
- F-HT-25
- F-HTF-25

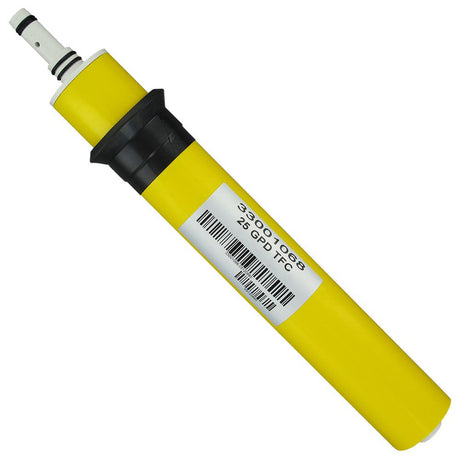

Compatible with: Hydrotech | S-FS-07, 33001068, Sierra Springs | S-FS-07, US Pure Water Products | S-FS-07
Weight & Dimensions
Approx Length (Inches) | 12-3/4 Inches |
Details
Capacity | 24 - 36 months |
Cartridge Style | Drop-in Element |
Diameter | 1-3/4 Inches |
Flow Rate | 25 gpd |
Inner/Outer Wraps | Tape |
Material Of Construction | TFC (Thin Film Composite) |
Max Operating Pressure | 30-120 PSI |
Max Operating Temperature | 40-110°F |
Chlorine Tolerance | <2.0 Parts per Million |
Direction | Outside - In |
Max Feed Silt Density Index | 5 SDI |
Membrane Type | Spiral Wound |
Ph Range | 4.0-11.0 |
Max Tds Content | 94% Rejection |
Max Feed Water Turbidity | 5 NTU |
