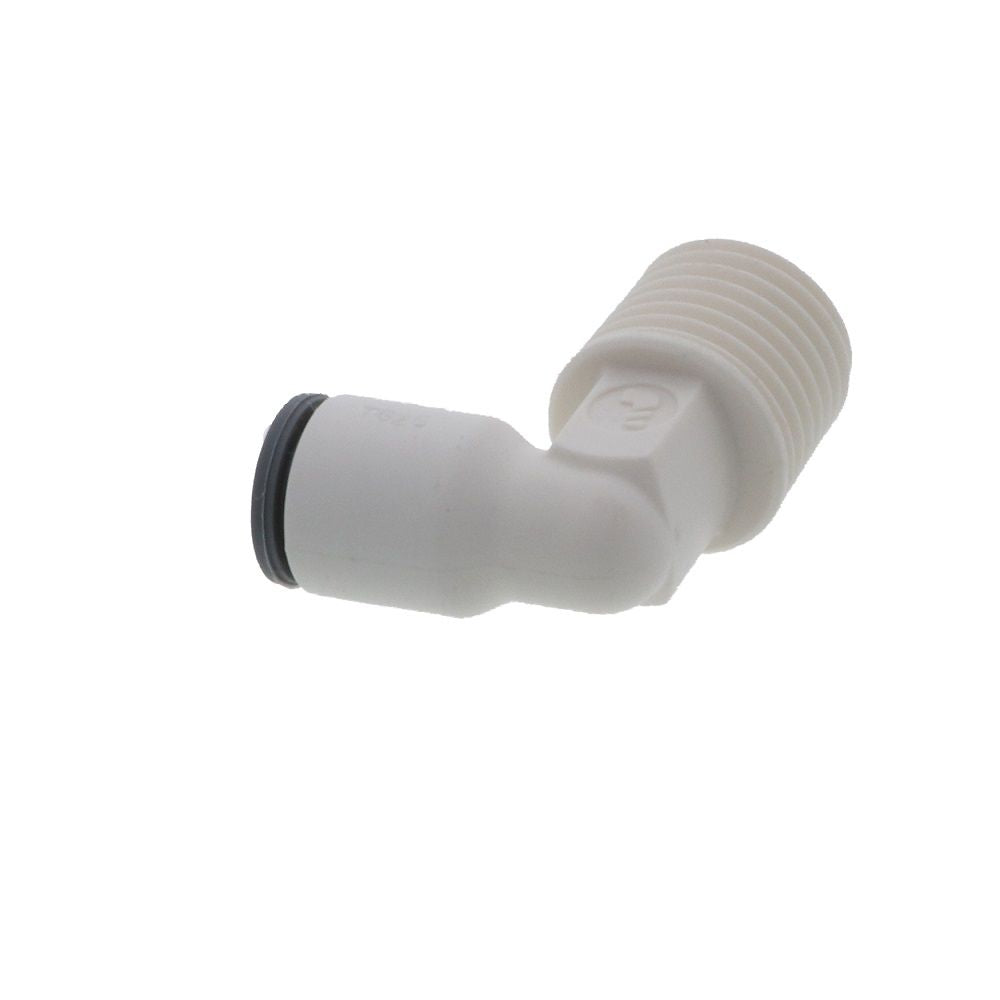

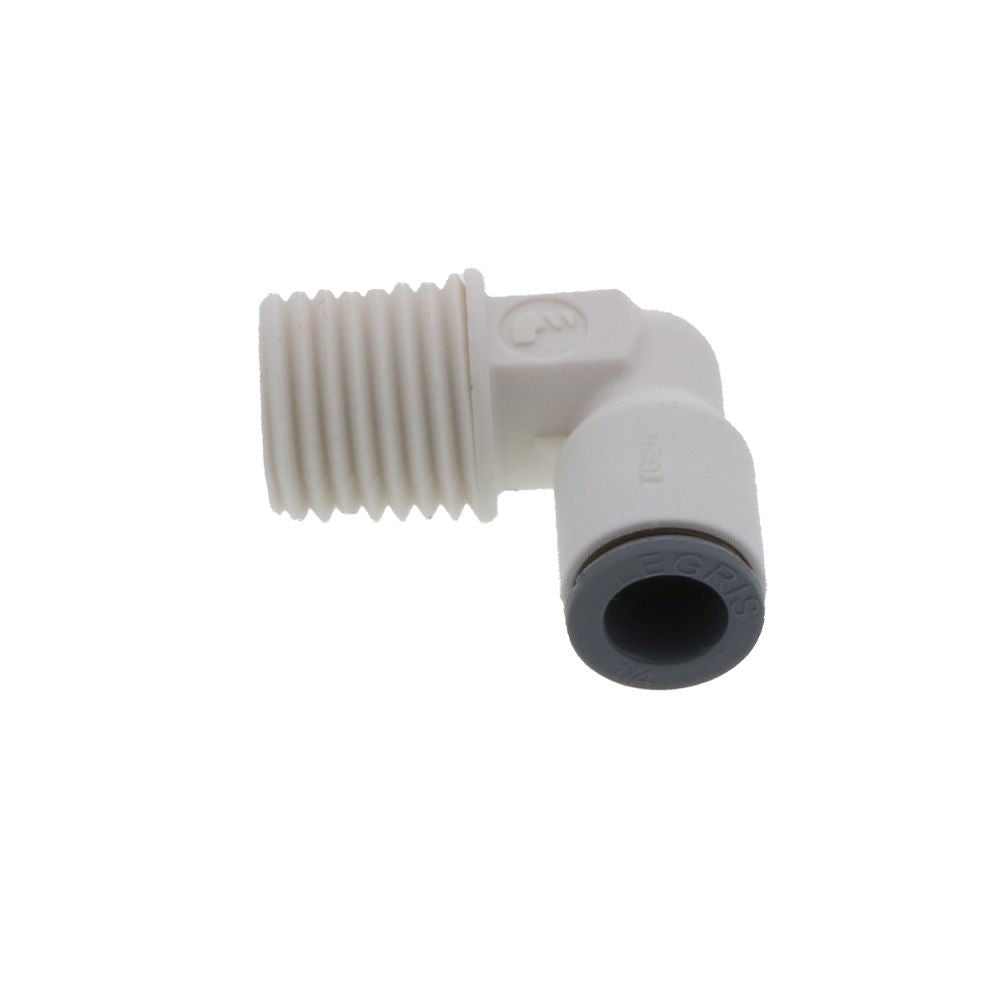

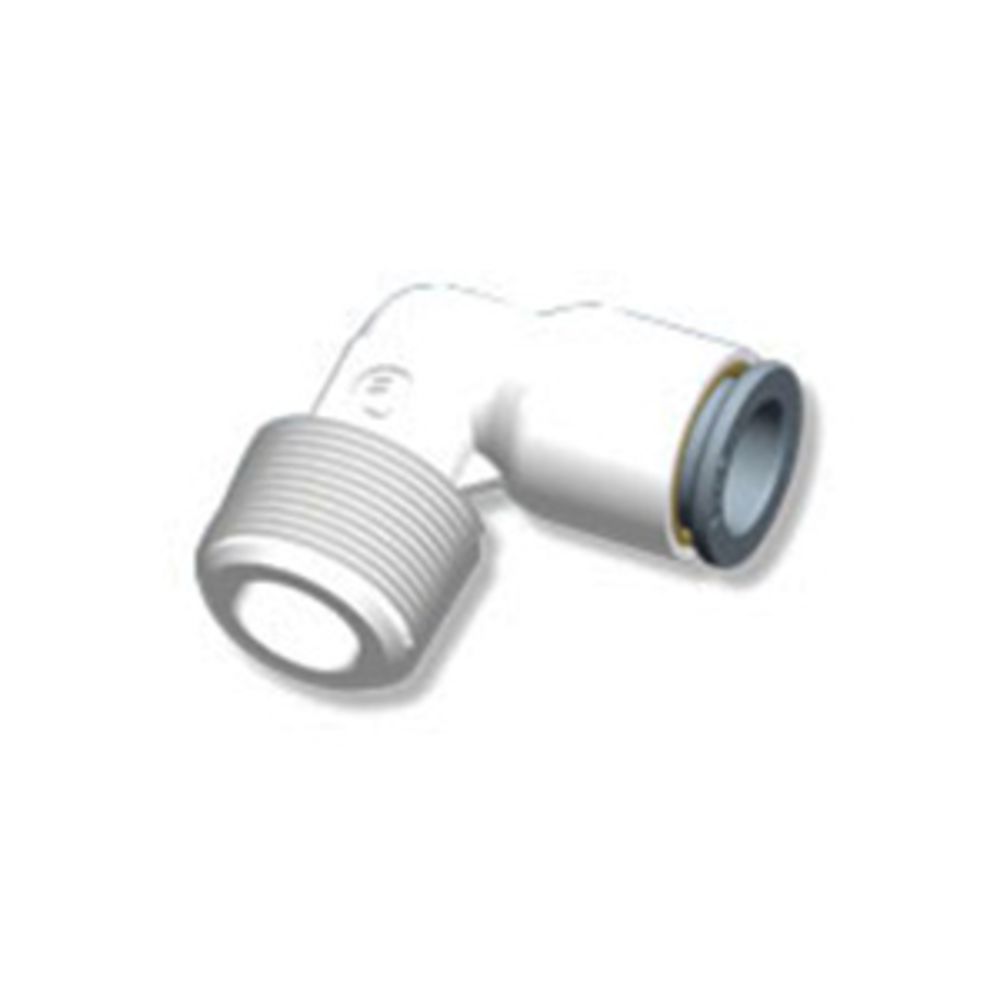

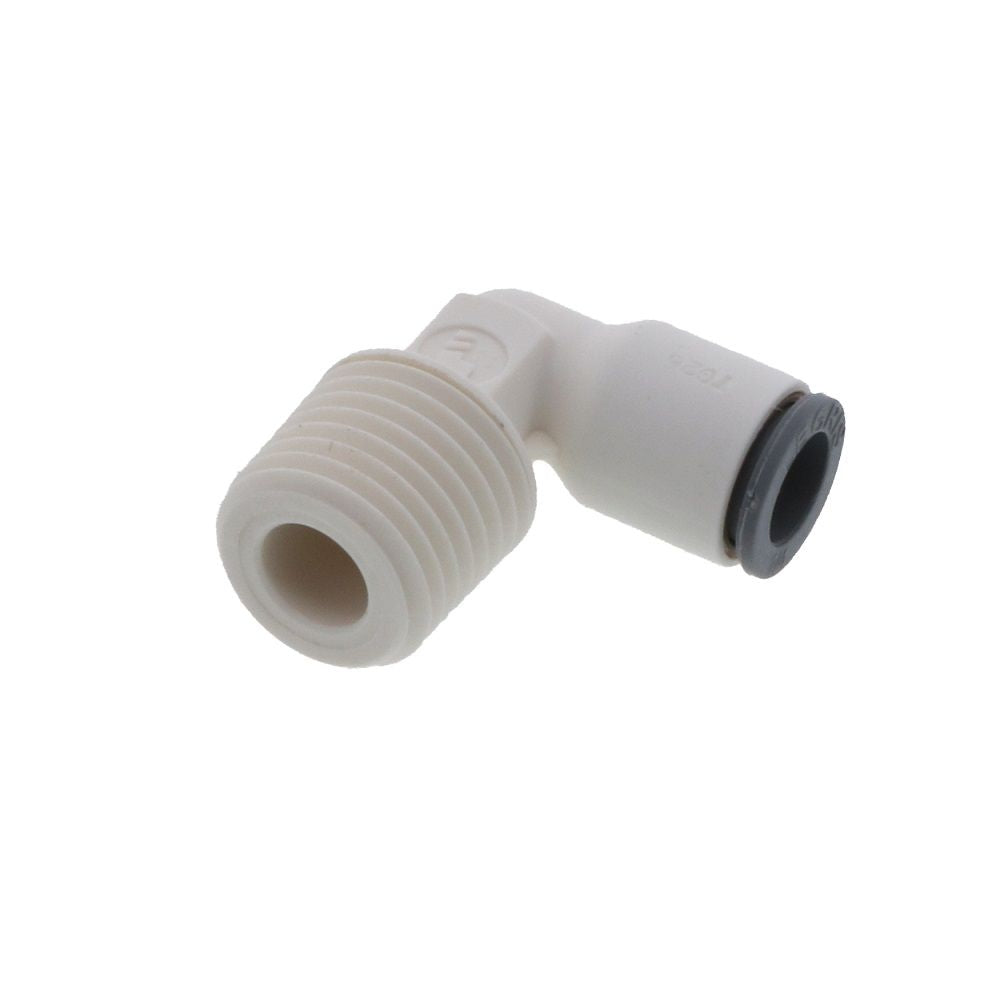

Parker LIQUIfit Fixed Elbow - 1/4 x 1/4 NPTF

5.0

(2 reviews)

Part Number: 6579-56-14WP2

1 4

Parker

Parker LIQUIfit Fixed Elbow - 1/4 x 1/4 NPTF

5.0

(2 reviews)

Part Number: 6579-56-14WP2

MSRP: $6.23

$2.01

Quantity

Unit Price

Price

Savings

$2.01

—

100

$1.95

$195.78

1000

$1.90

$1,907.60

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed

Specifications:

Engineered Hi-Performance Nylon
High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F
Suitable for potable liquids and food applications

Specifications

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Series	LIQUIFit
Shape	Elbow
Size	1/4"
Color / Finish	White
Connection Type	Male (MPT)
Origin	Mexico
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.22 in.
Shipping Width	0.94 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Height	1 in.
Product Length	1.22 in.
Product Width	0.94 in.
Product Weight (lbs)	0.1

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Series	LIQUIFit
Shape	Elbow
Size	1/4"
Color / Finish	White
Connection Type	Male (MPT)
Origin	Mexico
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.15

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Series	LIQUIFit
Shape	Elbow
Size	1/4"
Color / Finish	White
Connection Type	Male (MPT)
Origin	Mexico
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	11 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	7

Downloads

Parker LIQUIfit Fixed Elbow - 1/4 x 1/4 NPTF Manual

Reviews (2)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

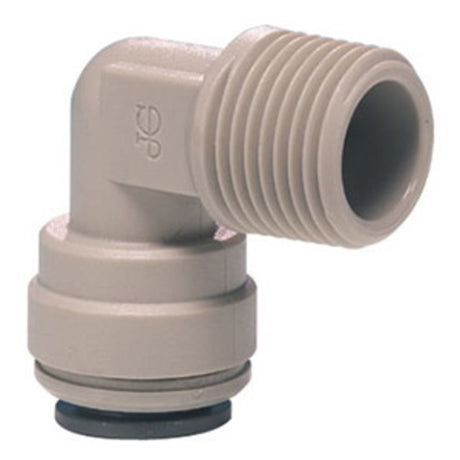

Facet	Parker Parker LIQUIfit Fixed Elbow - 1/4 x 1/4 NPTF 5.0 Regular price From $2.01 Part #: 6579-56-14WP2 Save up to 5% with bulk pricing Current Product	NeoFit NeoFit - Acetal Natural White Male Elbow- 1/4"tube OD x 1/4"NPTF Regular price From $1.62 Part #: AME4-N2-W Save up to 9% with bulk pricing View details	John Guest John Guest Fixed Elbow NPTF - 1/4 x 1/4 NPTF Regular price From $2.02 Part #: PI480822S-US Save up to 12% with bulk pricing View details
Price
Price	Regular price From $2.01	Regular price From $1.62	Regular price From $2.02
Part #
Part #	6579-56-14WP2	AME4-N2-W	PI480822S-US
Description
Description	Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs...	The NeoFit male elbows are used to connect OD tubing sizes to female NPTF threads. Manufactured in acetal with food grade EPDM O-ring, these fittings...	The John Guest fixed elbow makes connecting OD tubing sizes to female NPT threads quick and easy. Manufactured in gray acetal with food grade nitrile...
