Parker

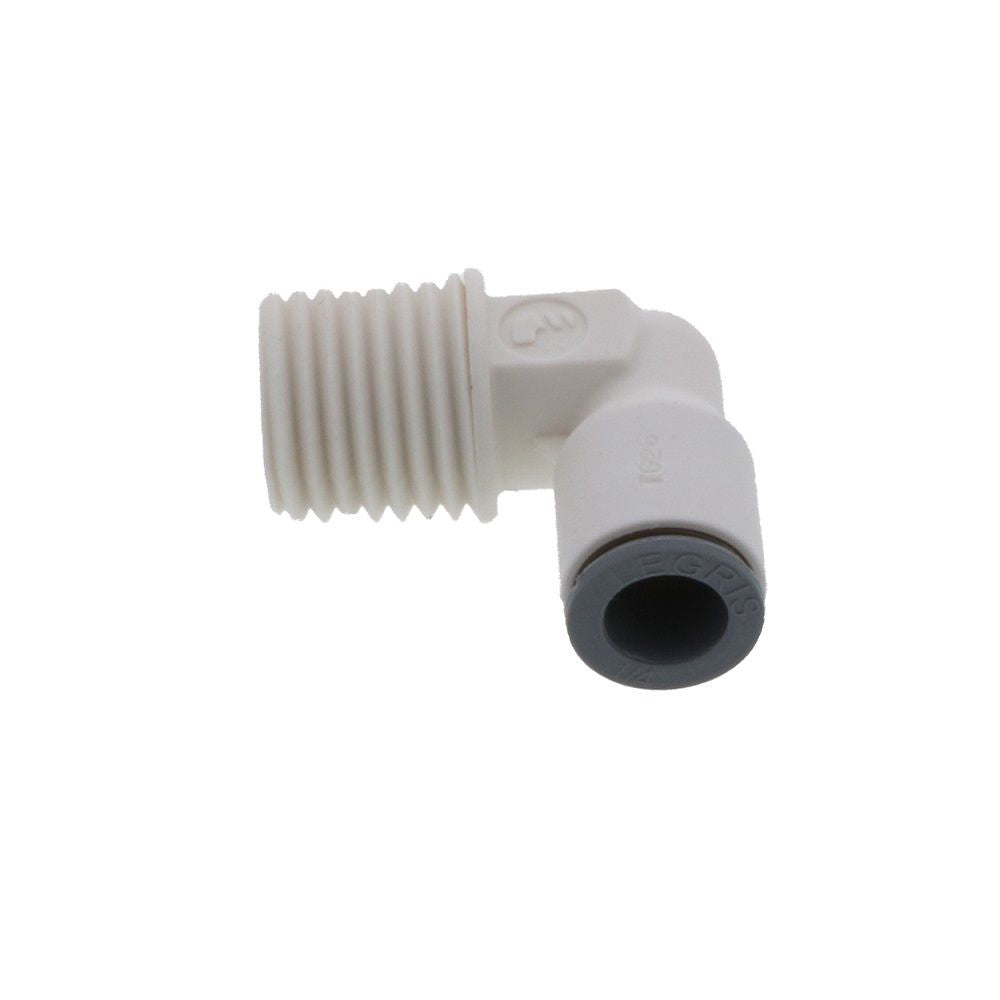

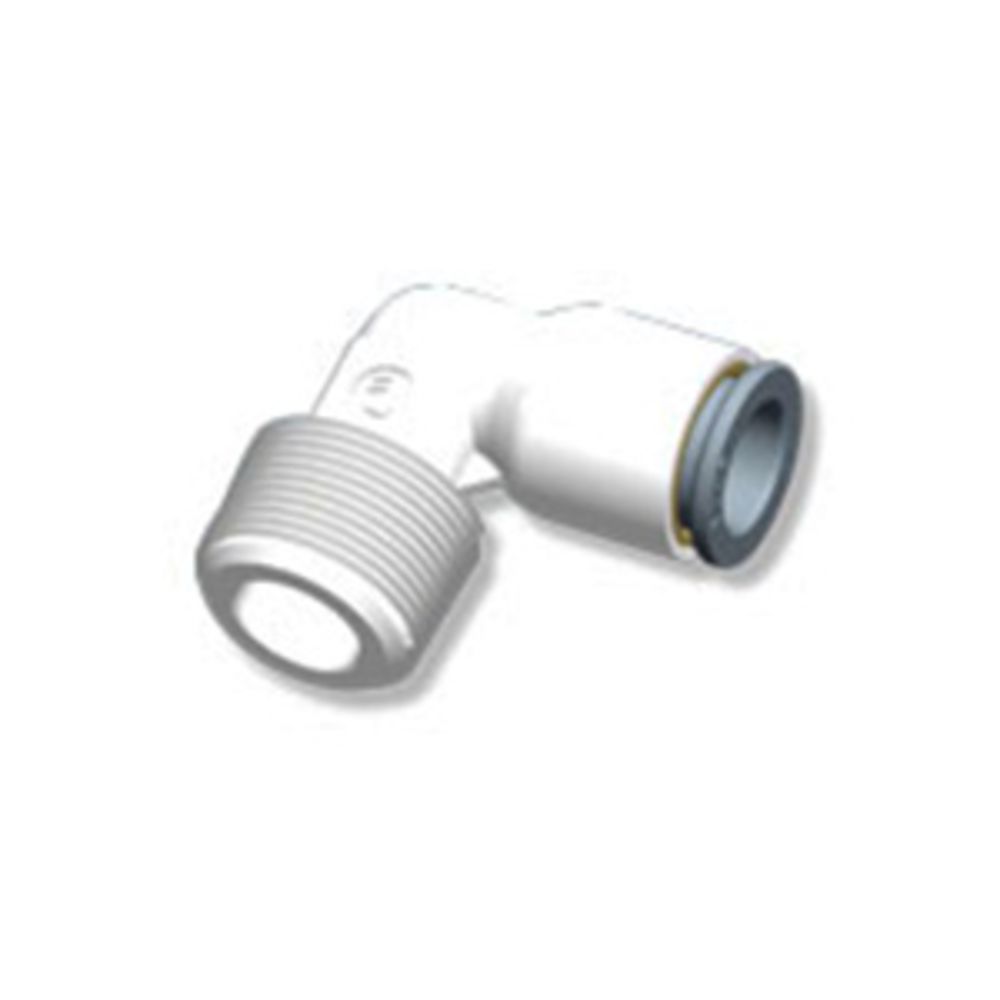

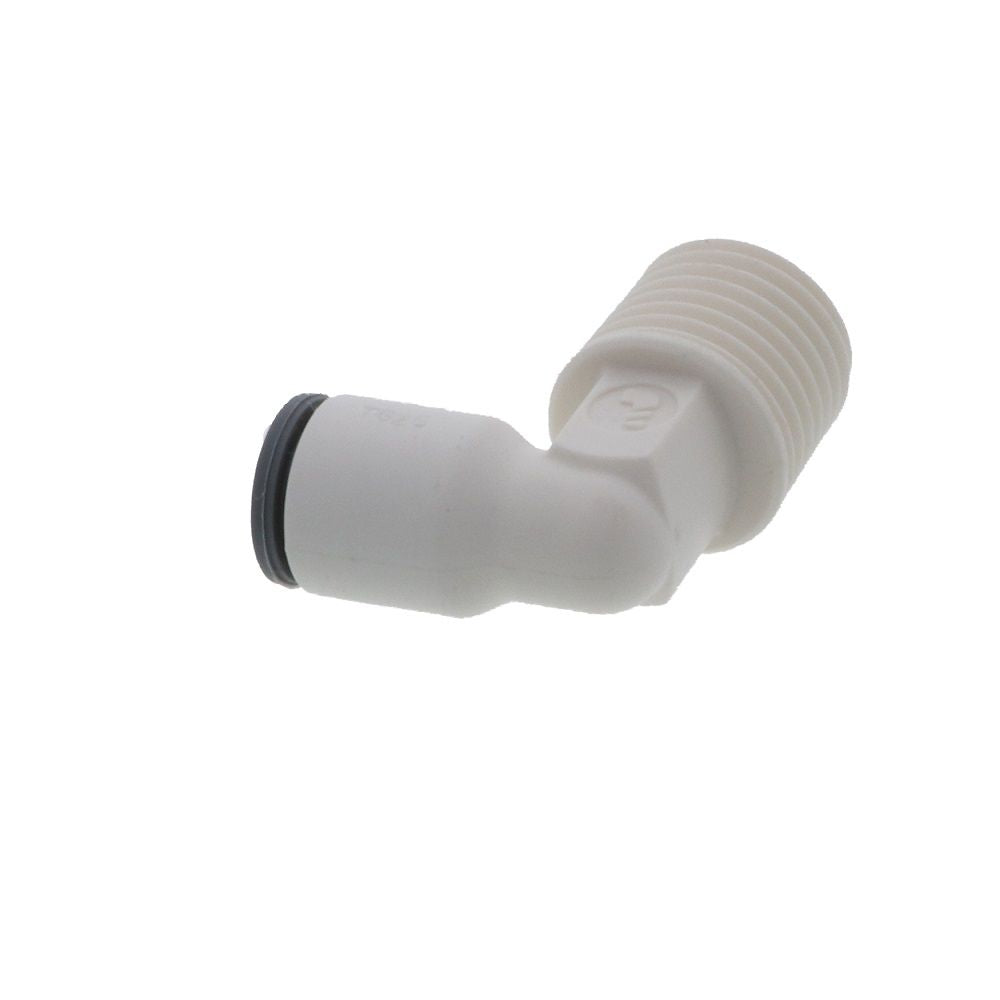

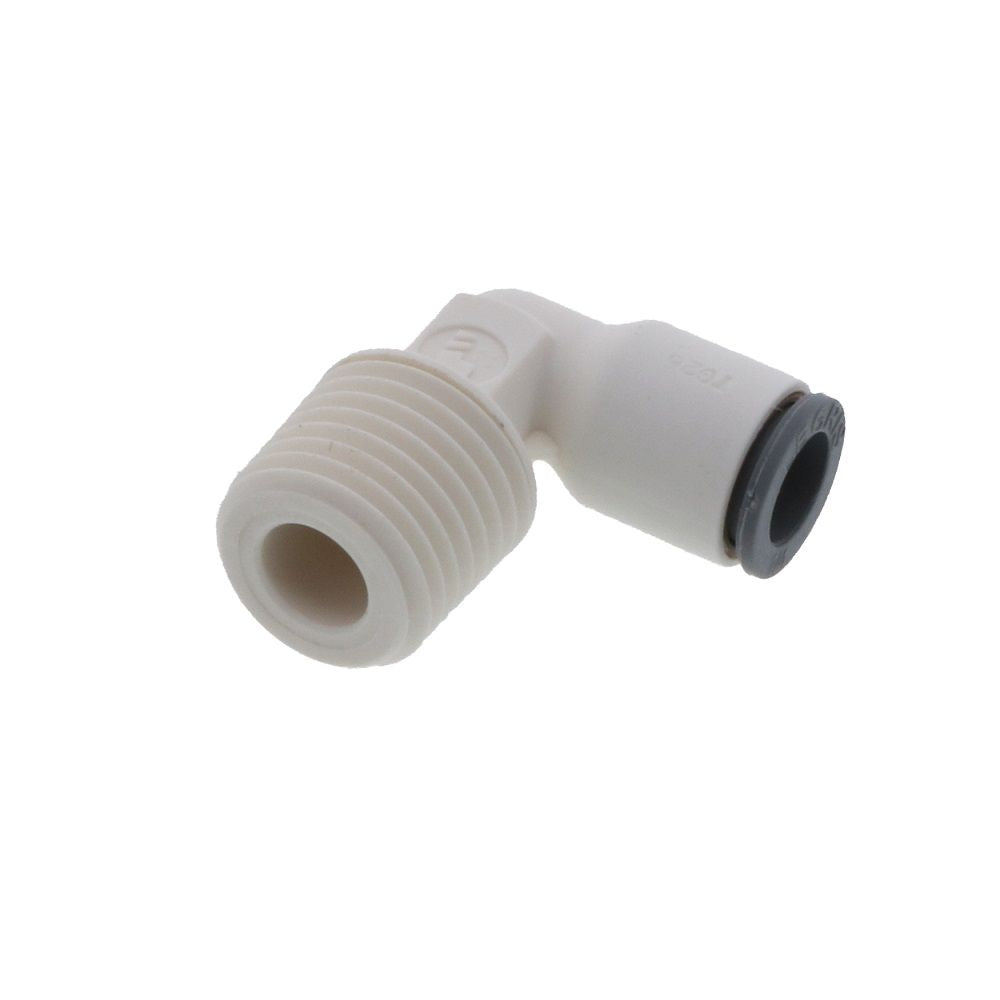

Parker LIQUIfit Fixed Elbow - 1/4 x 1/4 NPTF

Part Number: 6579-56-14WP2

In Stock

out of stock

In Stock

$3.57

Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed

Specifications:
  • Engineered Hi-Performance Nylon
  • High chemical resistance
  • EPDM O-ring
  • FDA Approved material
  • NSF Standard 51 & 61 Certified
  • Temperature rated up to 200º F
  • Suitable for potable liquids and food applications




Weight & Dimensions

Bag Quantity

10

Box Quantity

100

Height (inches)

1

Length (inches)

1.22

Weight (lbs)

0.000625

Width (inches)

0.94

Details

Application

Water, Food, Beverage, Air, Carbonation

Body Material

Nylon

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

230

Max Temp (°F)

200

Min Pressure (Psi)

Vacuum

Min Temp (°F)

35

Mounting Options

Thread

Push-In Size

1/4" OD

Seal Material

EPDM

Series

LIQUIFit

Size

1/4"

Color / Finish

White

Connection Type

Male (MPT)

Origin

Mexico

Sub-Type

Male Elbow

Type

Elbow

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved


Parker




Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed

Specifications:
  • Engineered Hi-Performance Nylon
  • High chemical resistance
  • EPDM O-ring
  • FDA Approved material
  • NSF Standard 51 & 61 Certified
  • Temperature rated up to 200º F
  • Suitable for potable liquids and food applications



Weight & Dimensions

Bag Quantity

10

Box Quantity

100

Height (inches)

1

Length (inches)

1.22

Weight (lbs)

0.000625

Width (inches)

0.94

Details

Application

Water, Food, Beverage, Air, Carbonation

Body Material

Nylon

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

230

Max Temp (°F)

200

Min Pressure (Psi)

Vacuum

Min Temp (°F)

35

Mounting Options

Thread

Push-In Size

1/4" OD

Seal Material

EPDM

Series

LIQUIFit

Size

1/4"

Color / Finish

White

Connection Type

Male (MPT)

Origin

Mexico

Sub-Type

Male Elbow

Type

Elbow

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved
