Watts

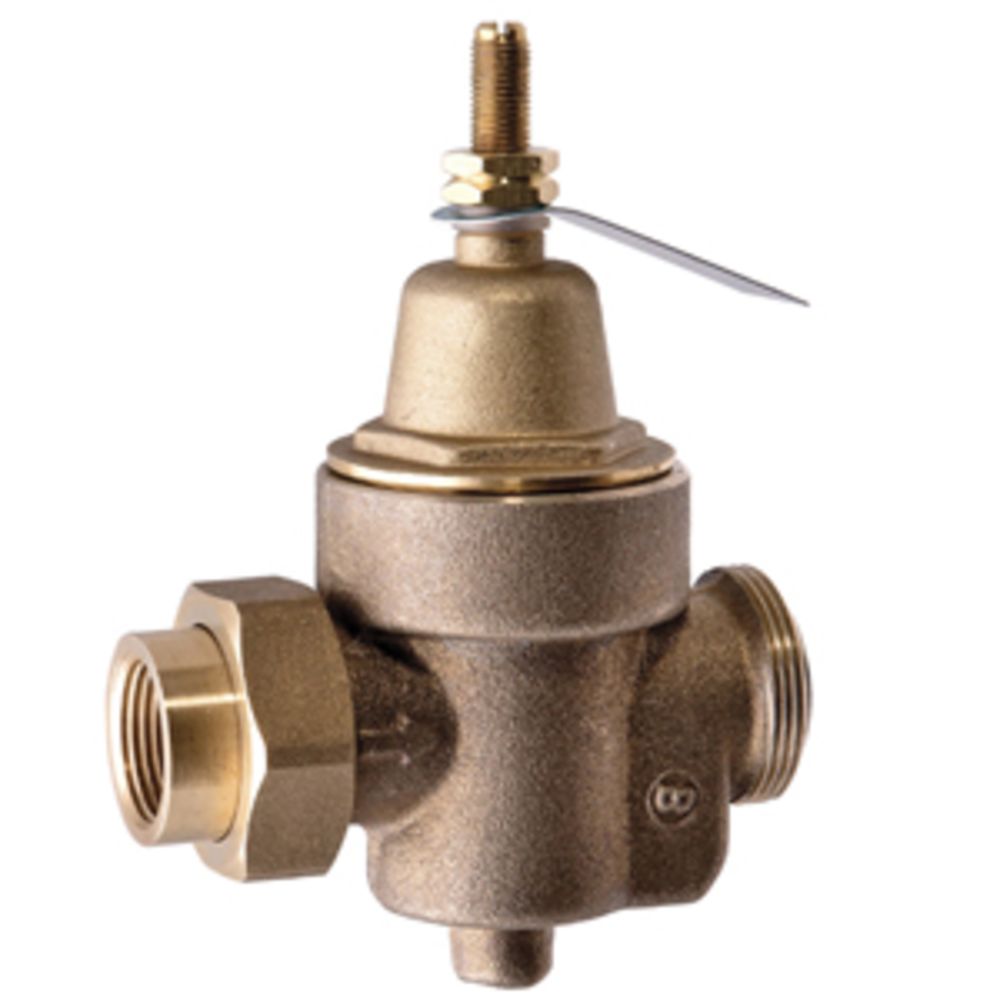

Watts N55BU Pressure Regulator 1" FNPT Union

Part Number: PRV-10-N55BUM1

Alt. Part Number: 0007713, PRV1.00-SU-IPS-C, 1-500, 1KBZ2, 366126

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Zurn PRV-10-LF-NR3XL Lead Free Pressure Regulator 1" FPT Union as a substitute.

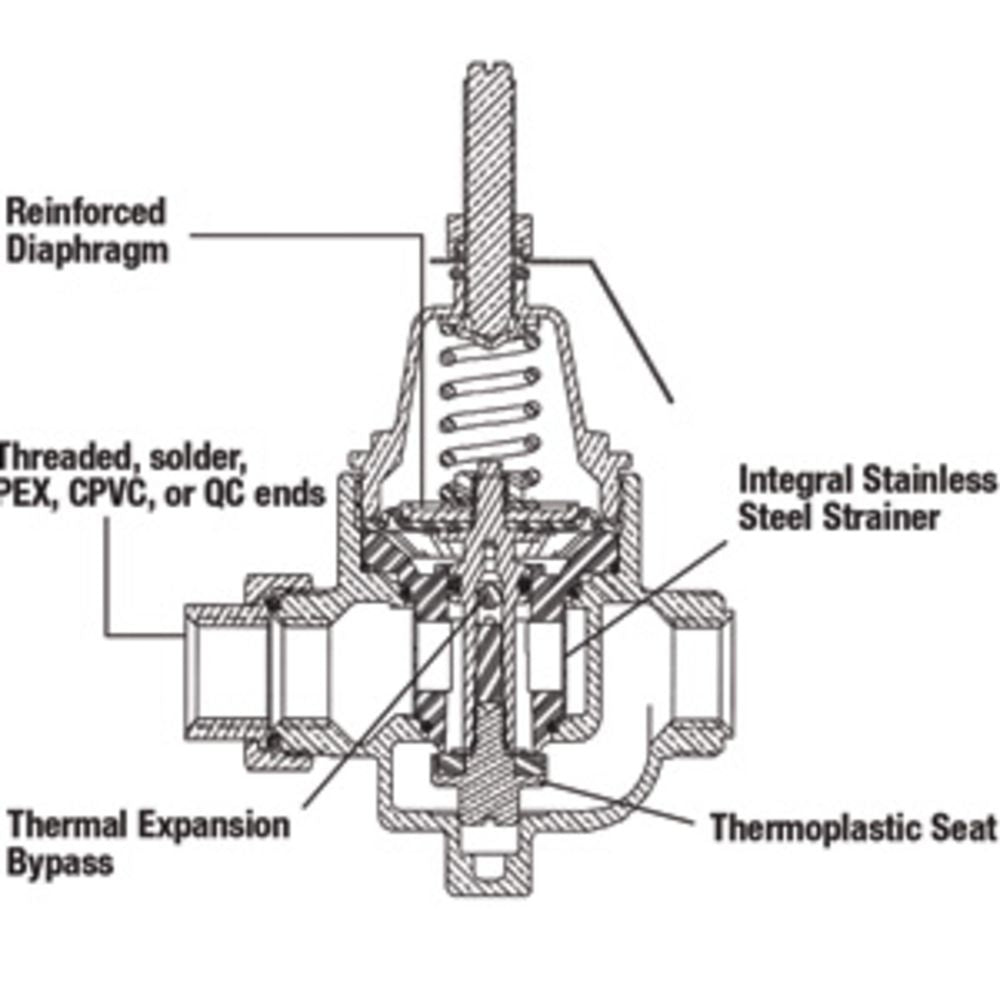

Features:
  • Commercial & Residential Applications
  • Reduces incoming water pressure for protection of plumbing system components and to reduce water consumption
  • Integral stainless steel strainer
  • Thermoplastic seat
  • Bronze body construction
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • Sealed spring cage on all models for accessible outdoor or pit installations

Specifications:
  • Size: 1"
  • FIP Union x NPT Connection
  • Max Working Pressure: 400 PSI
  • Adjustable Range: 25 To 75 PSI
  • Pressure Setting: 50 PSI
  • Max Temp: 180 degrees F
  • Height: 5.75", Width: 4"
  • Standards: ASSE 1003, ANSI A112.26.2 & CSA Standard B356
  • This item has been restricted from sale in the State of California






Weight & Dimensions

Weight (lbs)

3.5

Details

Max Temp (°F)

180

Min Temp (°F)

33

Max Inlet Pressure

25 psi (1.7 Bar)

Max Outlet Pressure

75 PSI


Watts

Watts

Watts




Features:
  • Commercial & Residential Applications
  • Reduces incoming water pressure for protection of plumbing system components and to reduce water consumption
  • Integral stainless steel strainer
  • Thermoplastic seat
  • Bronze body construction
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • Sealed spring cage on all models for accessible outdoor or pit installations

Specifications:
  • Size: 1"
  • FIP Union x NPT Connection
  • Max Working Pressure: 400 PSI
  • Adjustable Range: 25 To 75 PSI
  • Pressure Setting: 50 PSI
  • Max Temp: 180 degrees F
  • Height: 5.75", Width: 4"
  • Standards: ASSE 1003, ANSI A112.26.2 & CSA Standard B356
  • This item has been restricted from sale in the State of California





NOTE: This item is discontinued. We recommend the Zurn PRV-10-LF-NR3XL Lead Free Pressure Regulator 1" FPT Union as a substitute.

Weight & Dimensions

Weight (lbs)

3.5

Details

Max Temp (°F)

180

Min Temp (°F)

33

Max Inlet Pressure

25 psi (1.7 Bar)

Max Outlet Pressure

75 PSI
