Zurn Industries

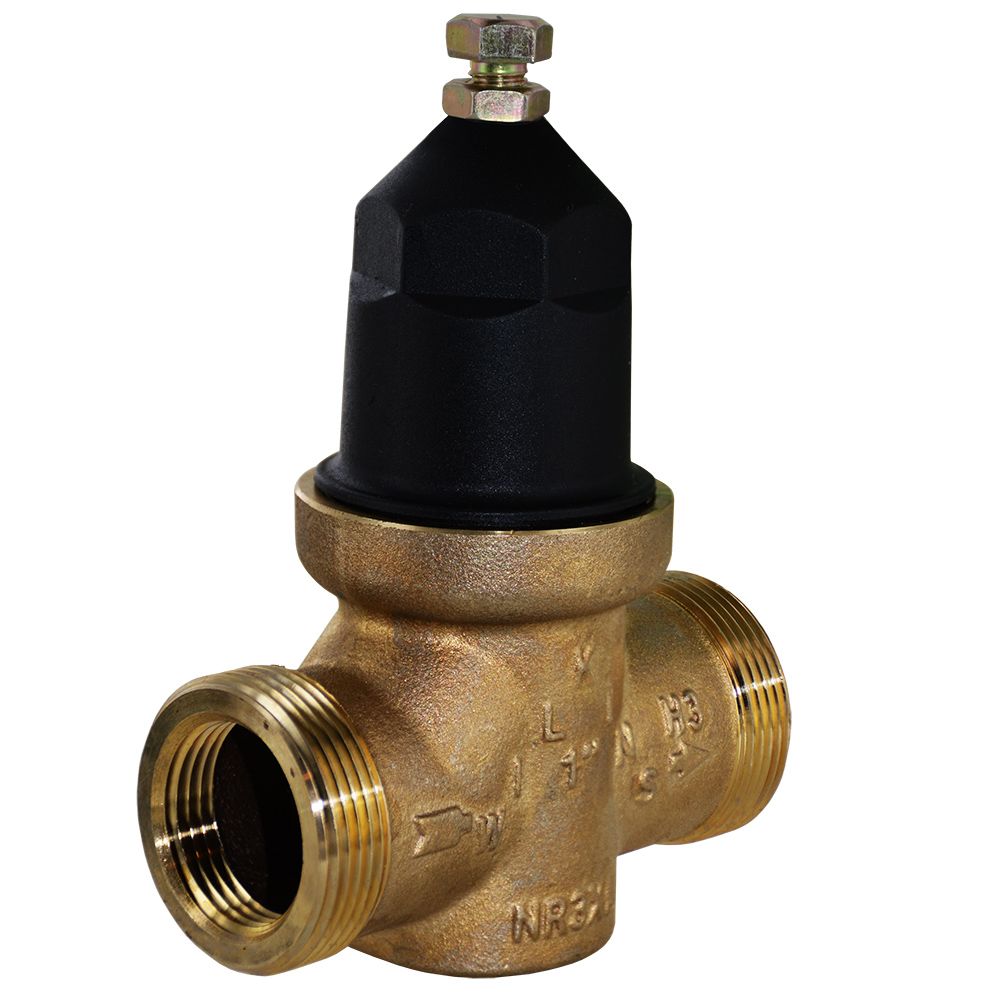

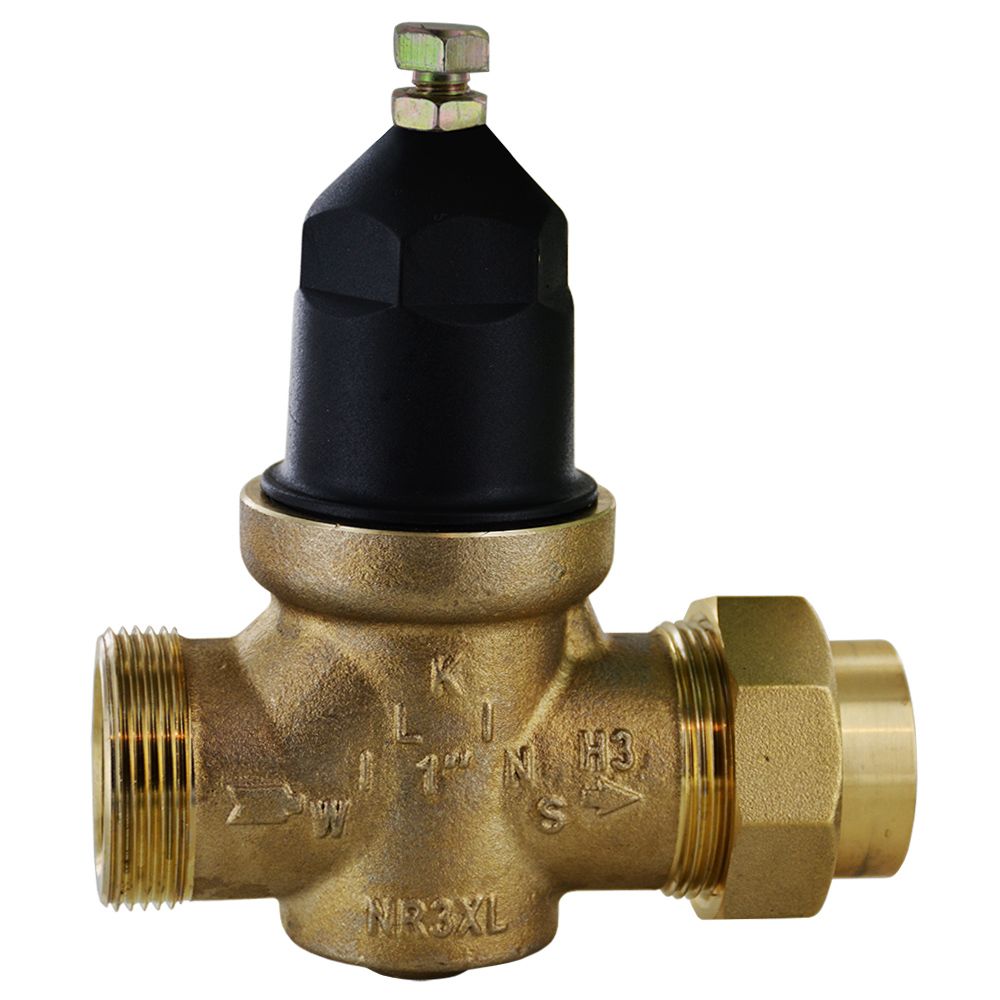

Zurn PRV-10-LF-NR3XL Lead Free Pressure Regulator 1" FPT Union

Part Number: PRV-10-LF-NR3XL

Alt. Part Number: PRV-10-LFX65BU, 0009970, 1 LFX65BU

In Stock

out of stock

In Stock

$71.95

The Zurn PRV-10-LF-NR3XL Pressure Regulator is ideal for use in applications where a lead-free valve is required. This regulator has been designed for installation on water lines to reduce high inlet pressure to a lower outlet pressure, and features an integral strainer that makes it perfect for residential and commercial systems requiring frequent cleaning of sediment and debris.

Application:
Buildup of excessive system pressure caused by thermal expansion is prevented by the direct acting integral by-pass design. The regulator's balance piston design ensures it will react in a smooth and responsive manner to changes in system flow demand, while providing protection from inlet pressure changes at the same time.
Features:
  • Protects Plumbing System. The Watts LFX65BU reduces incoming water pressure for protection of plumbing system components and to reduce water consumption.
  • Trusted & Certified. This product is ASSE® Listed 1003, IAPMO® Listed, CSA® Certified, NSF® Listed - Standard 61, Annex G*, and Certified to NSF/ANSI 372* by IAPMO R&T.
Specifications:

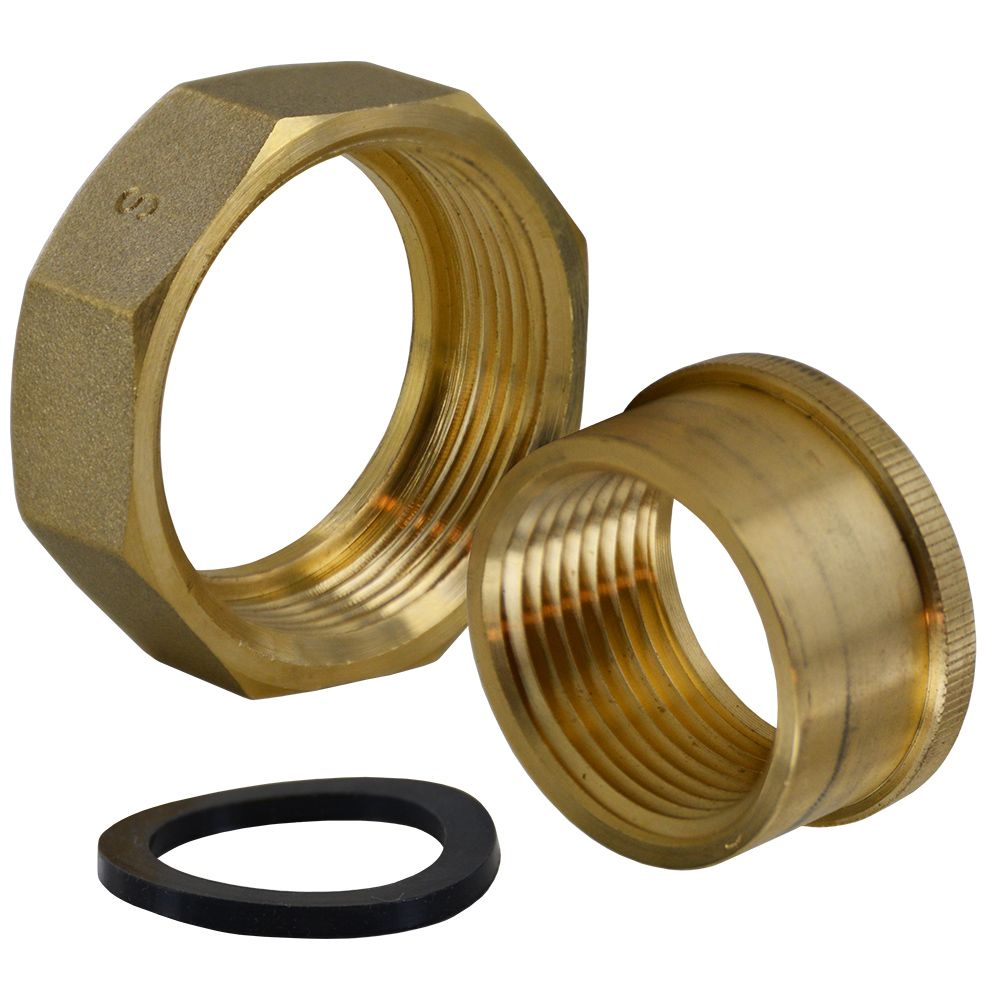

  • Size: 1" FNPT (Single Union)
  • Maximum Inlet Pressure: 80 PSI as per UPC Code
  • Maximum Working Water Pressure: 400 PSI
  • Maximum Working Water Temperature: 140°F
  • Reduced Pressure Range: 15 to 75 PSI
  • Factory Preset: 50 PSI
  • Cold Water Rated Temperature: 73.4°F @ 400 PSI
Materials:
  • Main Valve Body: Cast bronze ASTM B 584, UNS C84400
  • Bell Housing: UV resistant polymer composite
  • Internals: Stainless steel, 300 Series
  • Stem: Brass ASTM B 16
  • Elastomers: EPDM (FDA approved), Buna nitrile (FDA approved)
  • Cartridge: Delrin (NSF Listed)
  • Springs: Oil temp wire, ASTM A 229
  • Strainer Screen: 300 Series Stainless Steel
*This product contains a weighted average lead content less than 0.25% for wetted surface.



Weight & Dimensions

Length (inches)

6

Height (inches)

3

Width (inches)

6

Weight (lbs)

2.3

Details

Max Temp (°F)

140

Max Inlet Pressure

80 psi (5.5 Bar)

Outlet Pressure

15 to 75 PSI



The Zurn PRV-10-LF-NR3XL Pressure Regulator is ideal for use in applications where a lead-free valve is required. This regulator has been designed for installation on water lines to reduce high inlet pressure to a lower outlet pressure, and features an integral strainer that makes it perfect for residential and commercial systems requiring frequent cleaning of sediment and debris.

Application:
Buildup of excessive system pressure caused by thermal expansion is prevented by the direct acting integral by-pass design. The regulator's balance piston design ensures it will react in a smooth and responsive manner to changes in system flow demand, while providing protection from inlet pressure changes at the same time.
Features:
  • Protects Plumbing System. The Watts LFX65BU reduces incoming water pressure for protection of plumbing system components and to reduce water consumption.
  • Trusted & Certified. This product is ASSE® Listed 1003, IAPMO® Listed, CSA® Certified, NSF® Listed - Standard 61, Annex G*, and Certified to NSF/ANSI 372* by IAPMO R&T.
Specifications:
  • Size: 1" FNPT (Single Union)
  • Maximum Inlet Pressure: 80 PSI as per UPC Code
  • Maximum Working Water Pressure: 400 PSI
  • Maximum Working Water Temperature: 140°F
  • Reduced Pressure Range: 15 to 75 PSI
  • Factory Preset: 50 PSI
  • Cold Water Rated Temperature: 73.4°F @ 400 PSI
Materials:
  • Main Valve Body: Cast bronze ASTM B 584, UNS C84400
  • Bell Housing: UV resistant polymer composite
  • Internals: Stainless steel, 300 Series
  • Stem: Brass ASTM B 16
  • Elastomers: EPDM (FDA approved), Buna nitrile (FDA approved)
  • Cartridge: Delrin (NSF Listed)
  • Springs: Oil temp wire, ASTM A 229
  • Strainer Screen: 300 Series Stainless Steel
*This product contains a weighted average lead content less than 0.25% for wetted surface.


Weight & Dimensions

Length (inches)

6

Height (inches)

3

Width (inches)

6

Weight (lbs)

2.3

Details

Max Temp (°F)

140

Max Inlet Pressure

80 psi (5.5 Bar)

Outlet Pressure

15 to 75 PSI
