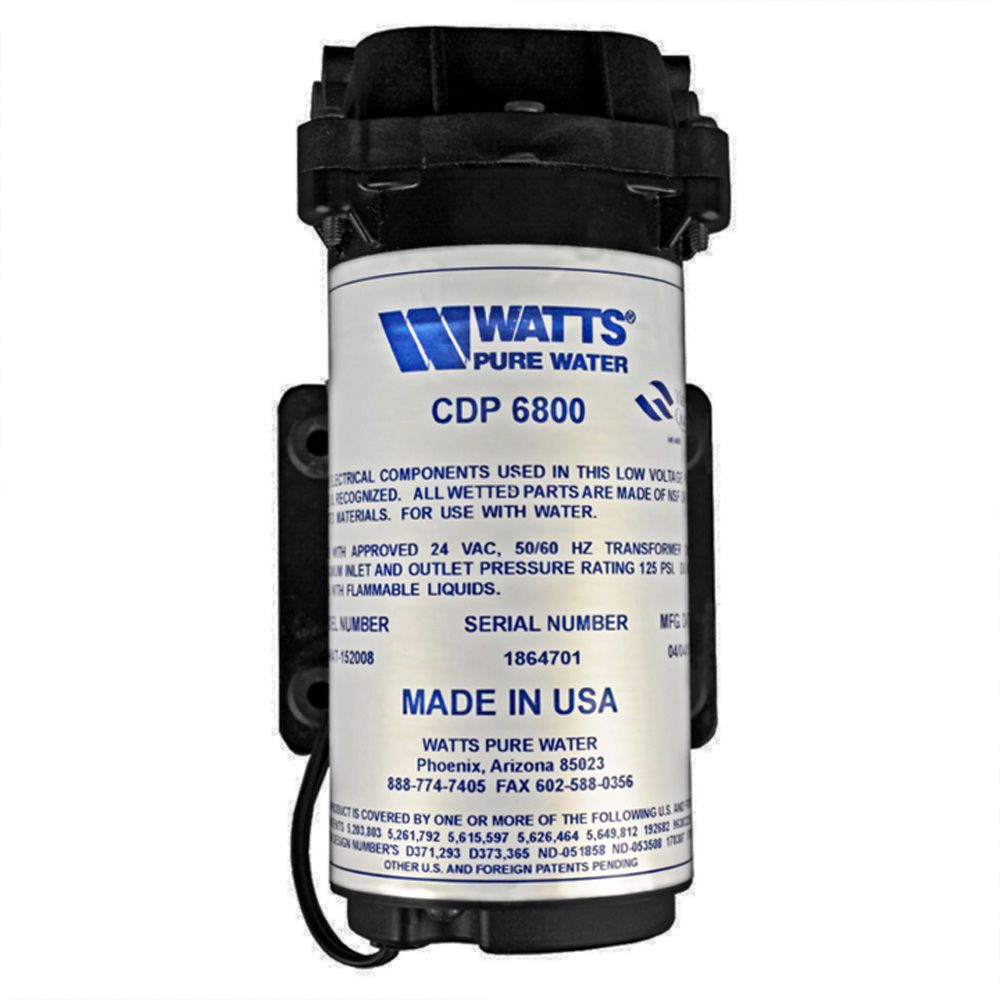

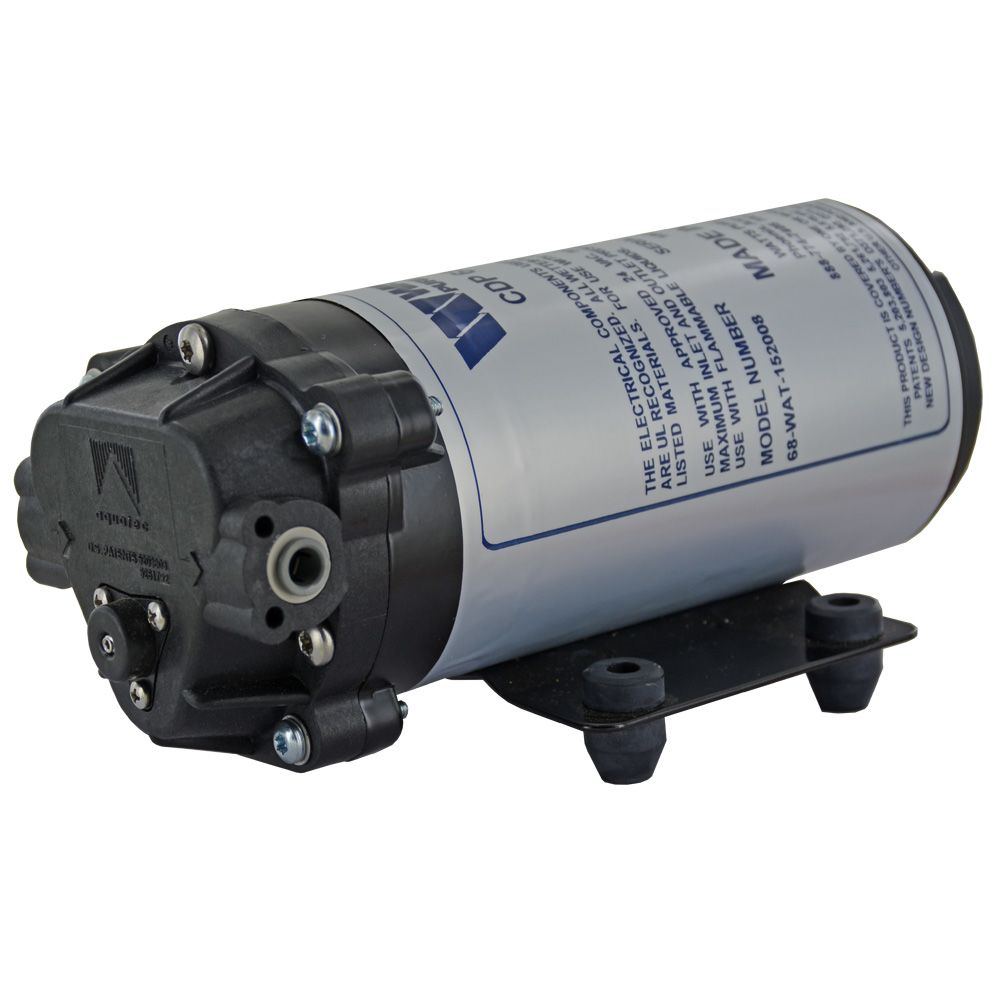

Watts CDP6800 RO Booster Pump for up to 50 GPD, 1/4"JG, 24 VAC
This item is discontinued. We recommend the SHURflo 8075-111-313 Gold Series RO Booster Pump 50 GPD 90 PSI 24V as a...
The Watts CDP6800 is designed for use in RO systems with flow rates up to 50 gallons per day. Reverse osmosis systems require pressure to work properly. A booster pump is suggested for applications where the feed water pressure is below 40 psi, and where there are high levels of Total Dissolved Solids (TDS) in the water. The CDP6800 is designed to be used with a tank shut-off switch (PSW), which shuts off the RO booster pump when the storage tank becomes full. In under-counter RO systems the PSW can be coupled with an Electronic Shut-Off valve (ESO) in order to shut off the feed supply so the system does not waste water.
Additional Specifications:
For the best experience, the following accessories are recommended for purchase with your RO booster pump: 6800 Series transformer - (required) connects pump to electrical outlet to provide power Tank pressure shut-off switch w/wire harness - shuts off booster pump when RO tank is full Electronic shut-off solenoid - connects to tank pressure shut-off switch to close off the feed water source when the RO tank is full Wire harness assembly - required when using electronic shut-off solenoid valve
*These pumps are new old stock with a manufacture date of 2005. Fresh Water Systems offers a one year warranty on this pump.
Compatible with:
Additional Specifications:
- Inlet/Outlet: 1/4" quick connect
- Corrosion resistant exterior
- Expels trapped air, eliminates "air locks"
- Pump head can be mounted up or down
- Max Liquid Temperature: 170°
- Designed for 30,000+ operating hours
- Extremely quiet operation
- Runs dry without damage
- Prime: 60 inch lift
- Voltage: 24VAC
- One year warranty
- Power supply NOT included
For the best experience, the following accessories are recommended for purchase with your RO booster pump: 6800 Series transformer - (required) connects pump to electrical outlet to provide power Tank pressure shut-off switch w/wire harness - shuts off booster pump when RO tank is full Electronic shut-off solenoid - connects to tank pressure shut-off switch to close off the feed water source when the RO tank is full Wire harness assembly - required when using electronic shut-off solenoid valve
*These pumps are new old stock with a manufacture date of 2005. Fresh Water Systems offers a one year warranty on this pump.
Compatible with:
| Watts Premier | 152008 |
Weight & Dimensions
Weight (lbs) | 5.35 |
Approx Height (Inches) | 3-1/2" |
Approx Length (Inches) | 7.28" |
Approx Width (Inches) | 3.38 Square Feet |
Details
Series | 6800 |
Max Pressure (Psi) | 125 |
Push-In Size | 1/4" OD |
Diaphragm Materials | Santoprene |
Flow Rate | 50 GPD |
Housing Material | Nylon |
Liquid Temperature | 170 °F |
Origin | Made in USA |
Voltage | 24VAC |

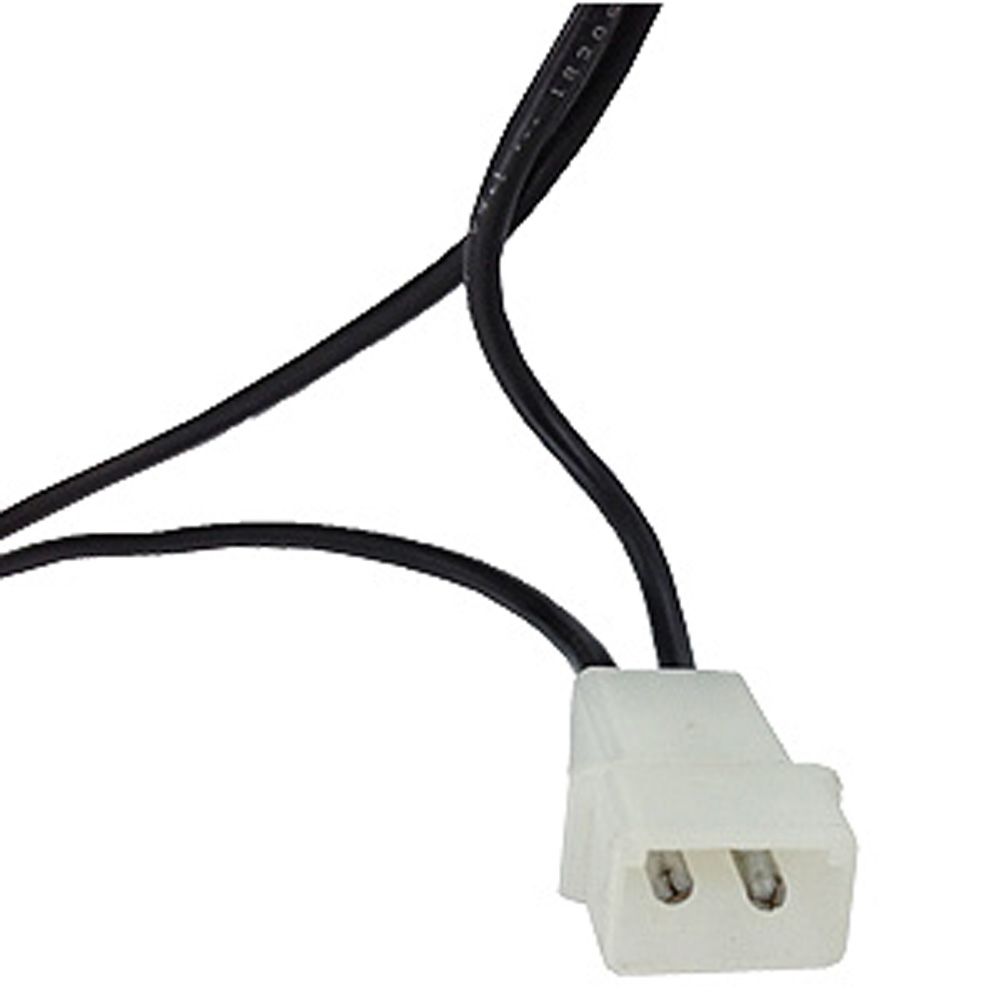

Wire Option | Bare Wire |
Warranty & Certifications
Warranty | 1 Year |
The Watts CDP6800 is designed for use in RO systems with flow rates up to 50 gallons per day. Reverse osmosis systems require pressure to work properly. A booster pump is suggested for applications where the feed water pressure is below 40 psi, and where there are high levels of Total Dissolved Solids (TDS) in the water. The CDP6800 is designed to be used with a tank shut-off switch (PSW), which shuts off the RO booster pump when the storage tank becomes full. In under-counter RO systems the PSW can be coupled with an Electronic Shut-Off valve (ESO) in order to shut off the feed supply so the system does not waste water.
Additional Specifications:
- Inlet/Outlet: 1/4" quick connect
- Corrosion resistant exterior
- Expels trapped air, eliminates "air locks"
- Pump head can be mounted up or down
- Max Liquid Temperature: 170°
- Designed for 30,000+ operating hours
- Extremely quiet operation
- Runs dry without damage
- Prime: 60 inch lift
- Voltage: 24VAC
- One year warranty
- Power supply NOT included
For the best experience, the following accessories are recommended for purchase with your RO booster pump: 6800 Series transformer - (required) connects pump to electrical outlet to provide power Tank pressure shut-off switch w/wire harness - shuts off booster pump when RO tank is full Electronic shut-off solenoid - connects to tank pressure shut-off switch to close off the feed water source when the RO tank is full Wire harness assembly - required when using electronic shut-off solenoid valve
*These pumps are new old stock with a manufacture date of 2005. Fresh Water Systems offers a one year warranty on this pump.
Compatible with:
| Watts Premier | 152008 |
NOTE: This item is discontinued. We recommend the SHURflo 8075-111-313 Gold Series RO Booster Pump 50 GPD 90 PSI 24V as a substitute.
Weight & Dimensions
Weight (lbs) | 5.35 |
Approx Height (Inches) | 3-1/2" |
Approx Length (Inches) | 7.28" |
Approx Width (Inches) | 3.38 Square Feet |
Details
Series | 6800 |
Max Pressure (Psi) | 125 |
Push-In Size | 1/4" OD |
Diaphragm Materials | Santoprene |
Flow Rate | 50 GPD |
Housing Material | Nylon |
Liquid Temperature | 170 °F |
Origin | Made in USA |
Voltage | 24VAC |
Wire Option | Bare Wire |
Warranty & Certifications
Warranty | 1 Year |
