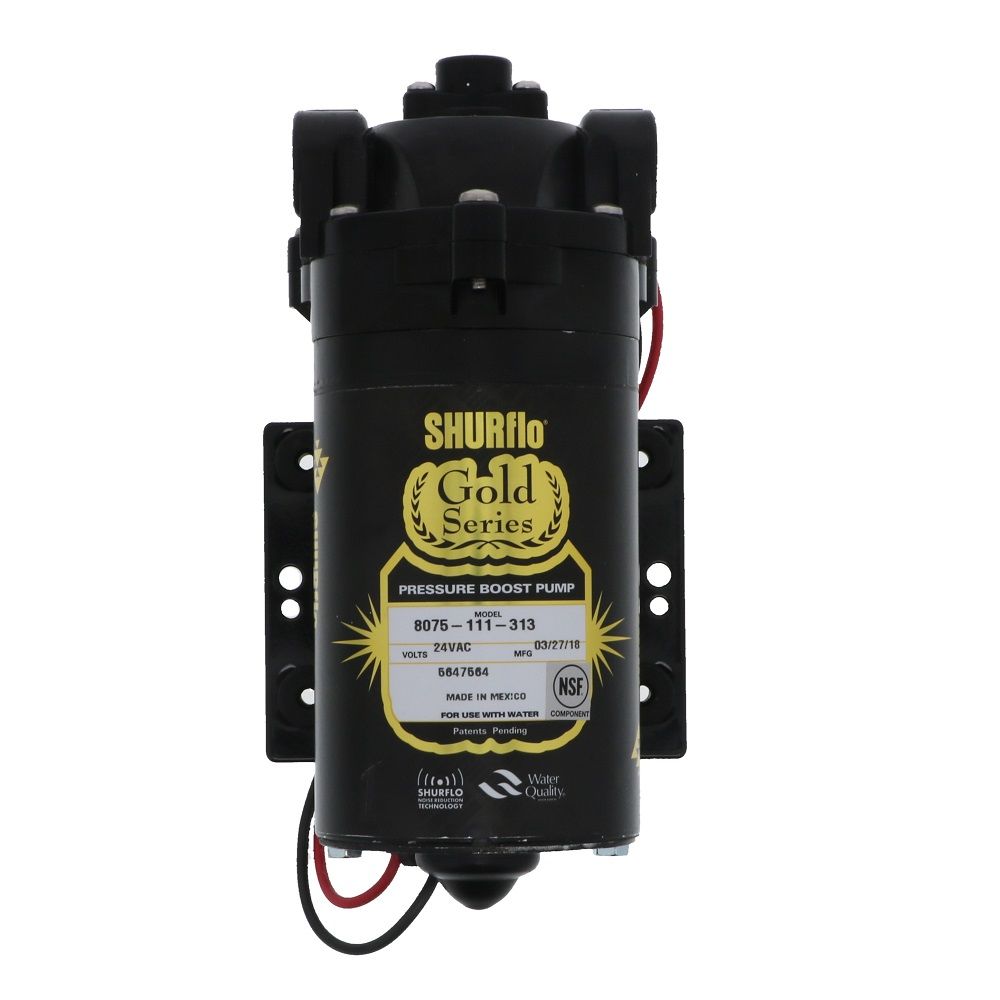

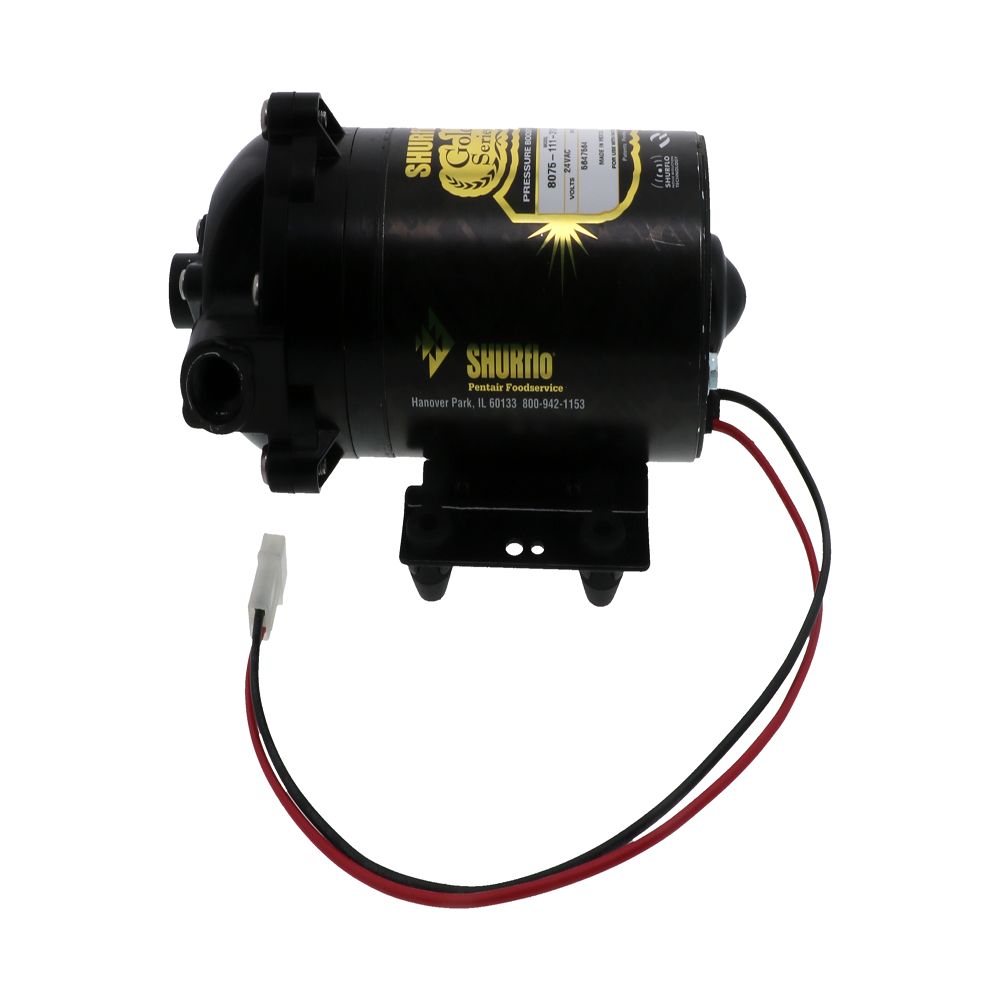

SHURflo 8075-111-313 Gold Series RO Booster Pump 50 GPD 90 PSI 24V
Part Number: 8075-111-313
Alt. Part Number: 6840-2J03-B224
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Ultra Quiet operation
- Longest life pump in the industry
- One-piece solid diaphragm reduces leak points
- Corrosion resistant motor
- Built in bypass
- Operates 24V AC power
- NSF listed

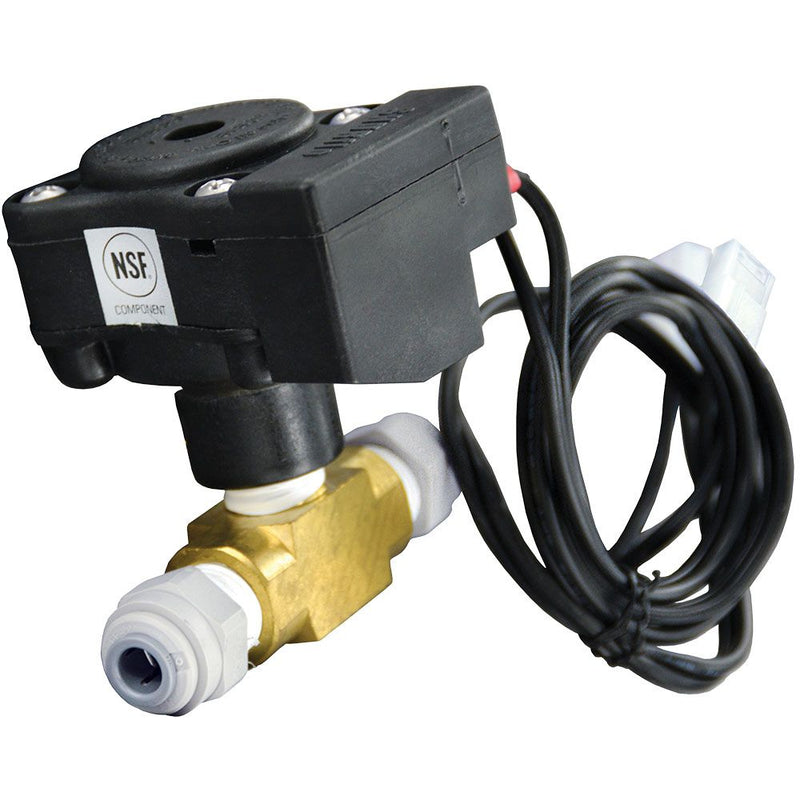

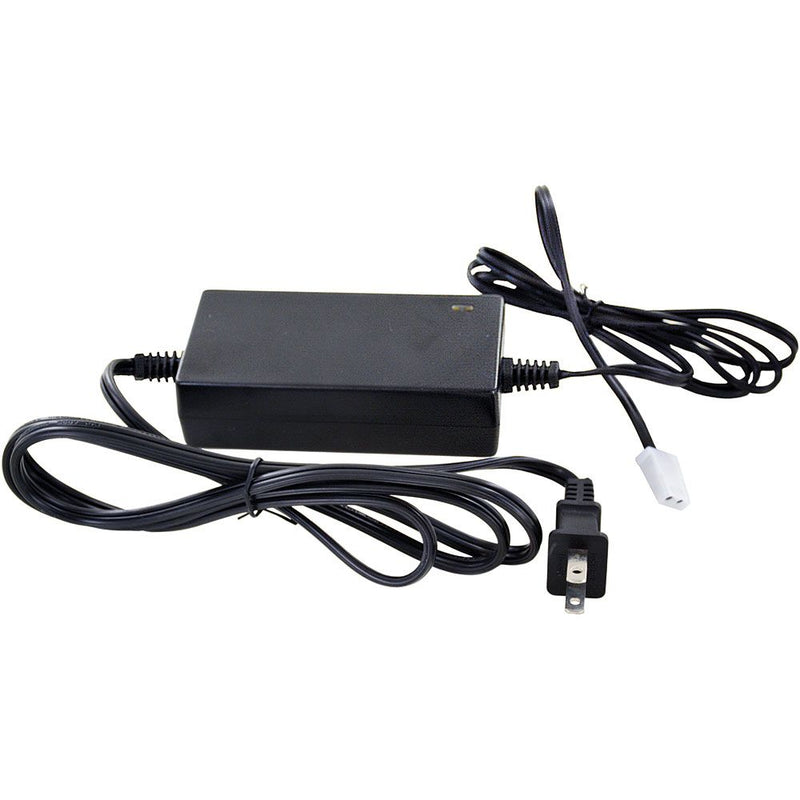

Power Supply/Transformer (required):The SHURflo 60-044-00 Power Supply/Transformer plugs into a standard wall outlet and converts to the voltage (24v) required by the pump. Tank Pressure Switch:Turns the pump on or off in response to the storage tank pressure. The SHURflo Tank Pressure Switches have wire harnesses, and either 1/4" QC Fittings or 1/4" FPT. Low Pressure Shut-Off Switch:The SHURflo 94-080-01 Low Pressure Switch ensures the pump is shut off if the feed water is interrupted.
Compatible with:
Aquatec | 6840-2J03-B221 |
Watts | CDP-6800 |
Product Details | |
---|---|
Amps | 0.25-0.70 Amps @ 0-90 PSI |
Inlet Connection | 3/8" FPT |
Inlet Pressure | 80 PSI |
Liquid Temperature | 180 °F |
Outlet Connection | 3/8" FPT |
Psi Bypass | 105 PSI |
Pump Max Flow Rate (Gpm) | 50 |
Series | Gold |
Size | 3/8" |
Voltage Type | DC |
Wire Option | Bare Wire |
Connection Type | Female (FPT) |
Type | Diaphragm Pump |
Voltage | 24VDC 24VAC |
Shipping Dimensions | |
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
Product Weight & Dimensions | |
Product Height | 4.5 |
Product Length | 8 |
Product Width | 4 |
Product Weight (lbs) | 5.5 |
Product Details | |
---|---|
Amps | 0.25-0.70 Amps @ 0-90 PSI |
Inlet Connection | 3/8" FPT |
Inlet Pressure | 80 PSI |
Liquid Temperature | 180 °F |
Outlet Connection | 3/8" FPT |
Psi Bypass | 105 PSI |
Pump Max Flow Rate (Gpm) | 50 |
Series | Gold |
Size | 3/8" |
Voltage Type | DC |
Wire Option | Bare Wire |
Connection Type | Female (FPT) |
Type | Diaphragm Pump |
Voltage | 24VDC 24VAC |
Shipping Dimensions | |
Shipping Length | 23.75 in. |
Shipping Width | 18 in. |
Shipping Height | 6.25 in. |
Product Weight & Dimensions | |
Product Height | 6.25 |
Product Length | 23.75 |
Product Width | 18 |
Product Weight (lbs) | 30.608 |
Features:
- Ultra Quiet operation
- Longest life pump in the industry
- One-piece solid diaphragm reduces leak points
- Corrosion resistant motor
- Built in bypass
- Operates 24V AC power
- NSF listed
Power Supply/Transformer (required):The SHURflo 60-044-00 Power Supply/Transformer plugs into a standard wall outlet and converts to the voltage (24v) required by the pump. Tank Pressure Switch:Turns the pump on or off in response to the storage tank pressure. The SHURflo Tank Pressure Switches have wire harnesses, and either 1/4" QC Fittings or 1/4" FPT. Low Pressure Shut-Off Switch:The SHURflo 94-080-01 Low Pressure Switch ensures the pump is shut off if the feed water is interrupted.
Compatible with:
Aquatec | 6840-2J03-B221 |
Watts | CDP-6800 |
Product Details | |
---|---|
Amps | 0.25-0.70 Amps @ 0-90 PSI |
Inlet Connection | 3/8" FPT |
Inlet Pressure | 80 PSI |
Liquid Temperature | 180 °F |
Outlet Connection | 3/8" FPT |
Psi Bypass | 105 PSI |
Pump Max Flow Rate (Gpm) | 50 |
Series | Gold |
Size | 3/8" |
Voltage Type | DC |
Wire Option | Bare Wire |
Connection Type | Female (FPT) |
Type | Diaphragm Pump |
Voltage | 24VDC 24VAC |
Shipping Dimensions | |
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
Product Weight & Dimensions | |
Product Height | 4.5 |
Product Length | 8 |
Product Width | 4 |
Product Weight (lbs) | 5.5 |
Product Details | |
---|---|
Amps | 0.25-0.70 Amps @ 0-90 PSI |
Inlet Connection | 3/8" FPT |
Inlet Pressure | 80 PSI |
Liquid Temperature | 180 °F |
Outlet Connection | 3/8" FPT |
Psi Bypass | 105 PSI |
Pump Max Flow Rate (Gpm) | 50 |
Series | Gold |
Size | 3/8" |
Voltage Type | DC |
Wire Option | Bare Wire |
Connection Type | Female (FPT) |
Type | Diaphragm Pump |
Voltage | 24VDC 24VAC |
Shipping Dimensions | |
Shipping Length | 23.75 in. |
Shipping Width | 18 in. |
Shipping Height | 6.25 in. |
Product Weight & Dimensions | |
Product Height | 6.25 |
Product Length | 23.75 |
Product Width | 18 |
Product Weight (lbs) | 30.608 |
