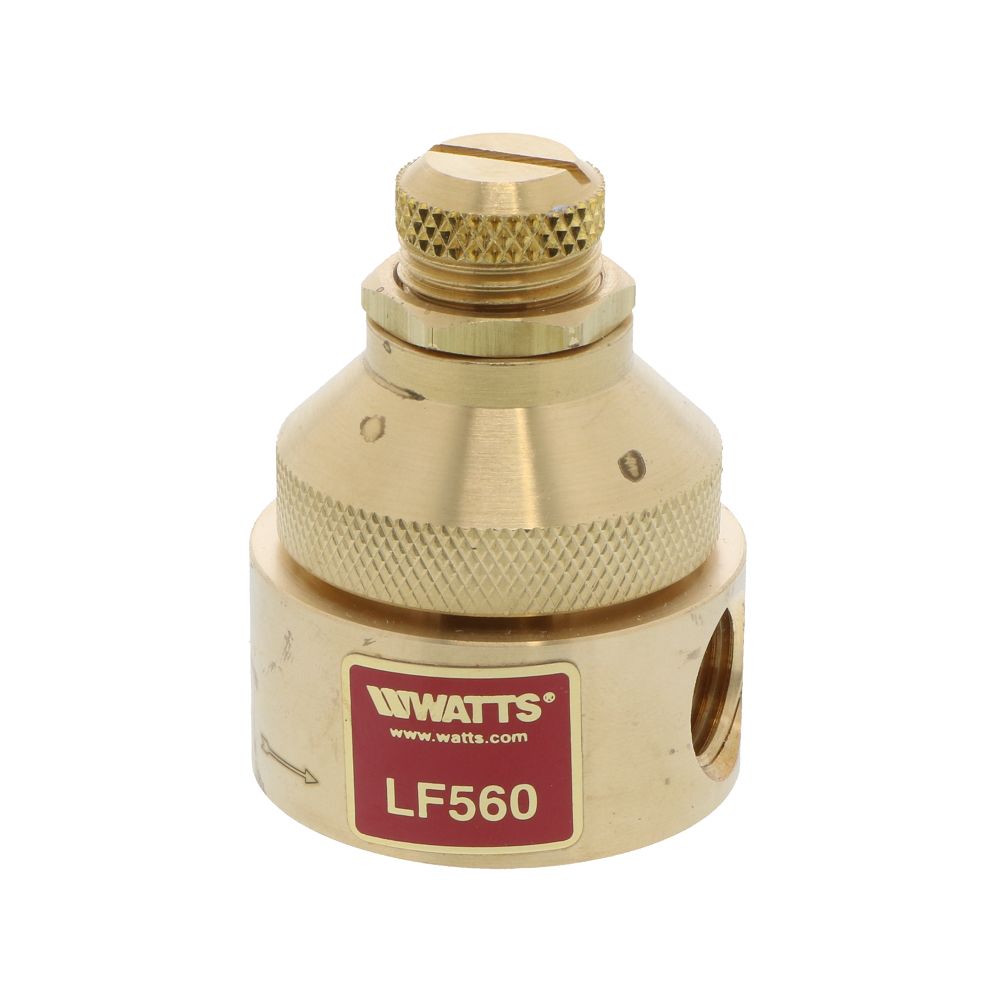

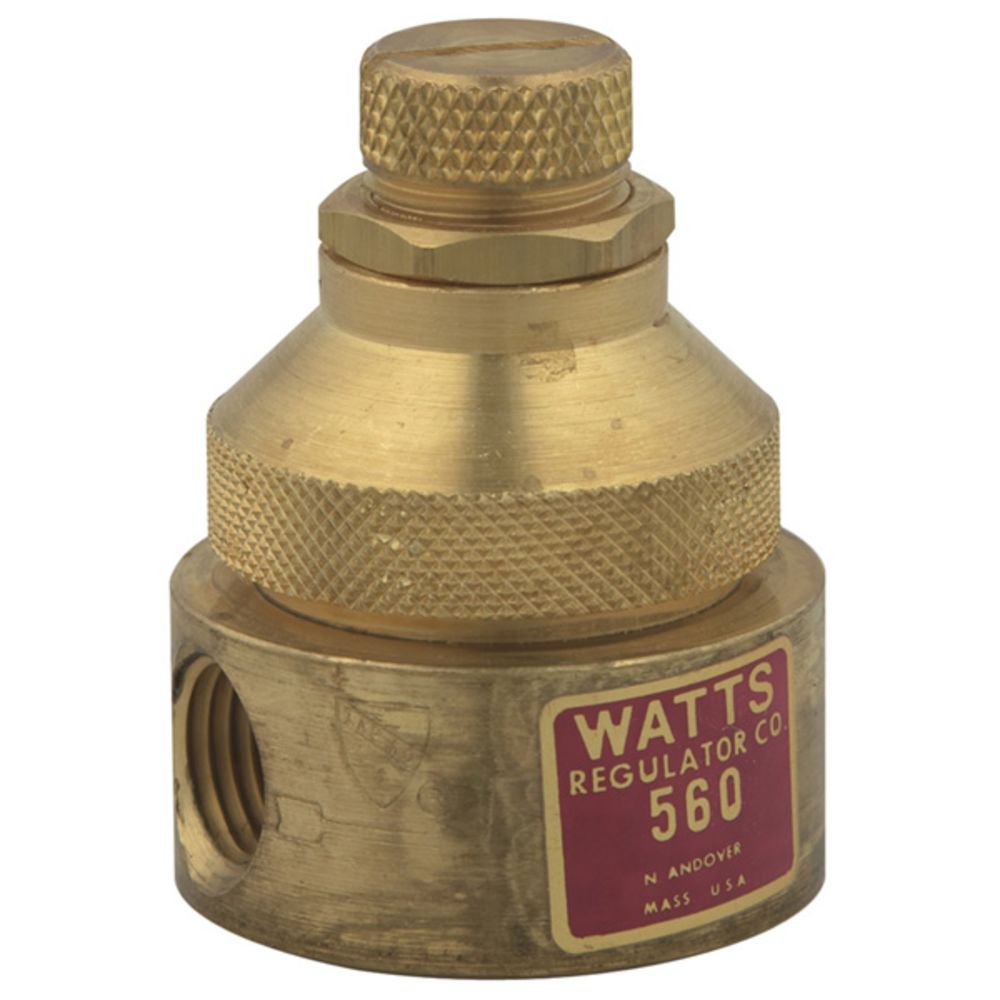

Watts 560 Water Pressure Regulator Brass

Part Number: PRV-560-1/4-025

In Stock

out of stock

In Stock

$39.95


Watts Series 560 Mini Water Pressure Regulators (aka Pressure Reducing Valve or Pressure Limiting Valve) are used in industrial process applications to regulate water pressure in systems requiring a small economical regulator package. They are ideal for use in miscellaneous plumbing applications and OEM equipment such as travel trailers.

Features:
  • Brass body construction
  • Female threaded inlet and outlet connections
  • 1/8" FNPT Gauge Port (plugged in 560B & C)
  • Stainless steel stem and spring
  • Buna-N seat and diaphragm
  • Heavy duty adjusting screw (slotted and knurled)
  • Oversized orifice
Note: This pressure regulator contains more than 0.25% lead and is illegal to use in any plumbing system providing water for human consumption anywhere in the United States.

Disclaimer: Watts® is a registered trademark of Watts Water Technologies, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc acknowledges and confirms that it has not been granted any license or authority from Watts Water Technologies, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Watts Water Technologies, Inc. and Fresh Water Systems, Inc. of any nature whatsoever.


Weight & Dimensions

Approx Height (Inches)

2 Inches

Approx Length (Inches)

1.5 Inches

Details

Body Material

Brass

Diaphragm Materials

Buna-N

Material Of Construction

Stainless Steel

Operating Temperature Range

33 - 140 Degrees Fahrenheit

Spring

Stainless Steel

Port Size

1/8" FNPT with Plug Inches, 1/4" FNPT, 1/8" FNPT

Seat

Buna-N

Max Inlet Pressure

300 PSI

Outlet Pressure

0 - 125 PSI


Watts





Watts Series 560 Mini Water Pressure Regulators (aka Pressure Reducing Valve or Pressure Limiting Valve) are used in industrial process applications to regulate water pressure in systems requiring a small economical regulator package. They are ideal for use in miscellaneous plumbing applications and OEM equipment such as travel trailers.

Features:
  • Brass body construction
  • Female threaded inlet and outlet connections
  • 1/8" FNPT Gauge Port (plugged in 560B & C)
  • Stainless steel stem and spring
  • Buna-N seat and diaphragm
  • Heavy duty adjusting screw (slotted and knurled)
  • Oversized orifice
Note: This pressure regulator contains more than 0.25% lead and is illegal to use in any plumbing system providing water for human consumption anywhere in the United States.

Disclaimer: Watts® is a registered trademark of Watts Water Technologies, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc acknowledges and confirms that it has not been granted any license or authority from Watts Water Technologies, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Watts Water Technologies, Inc. and Fresh Water Systems, Inc. of any nature whatsoever.

Weight & Dimensions

Approx Height (Inches)

2 Inches

Approx Length (Inches)

1.5 Inches

Details

Body Material

Brass

Diaphragm Materials

Buna-N

Material Of Construction

Stainless Steel

Operating Temperature Range

33 - 140 Degrees Fahrenheit

Spring

Stainless Steel

Port Size

1/8" FNPT with Plug Inches, 1/4" FNPT, 1/8" FNPT

Seat

Buna-N

Max Inlet Pressure

300 PSI

Outlet Pressure

0 - 125 PSI
