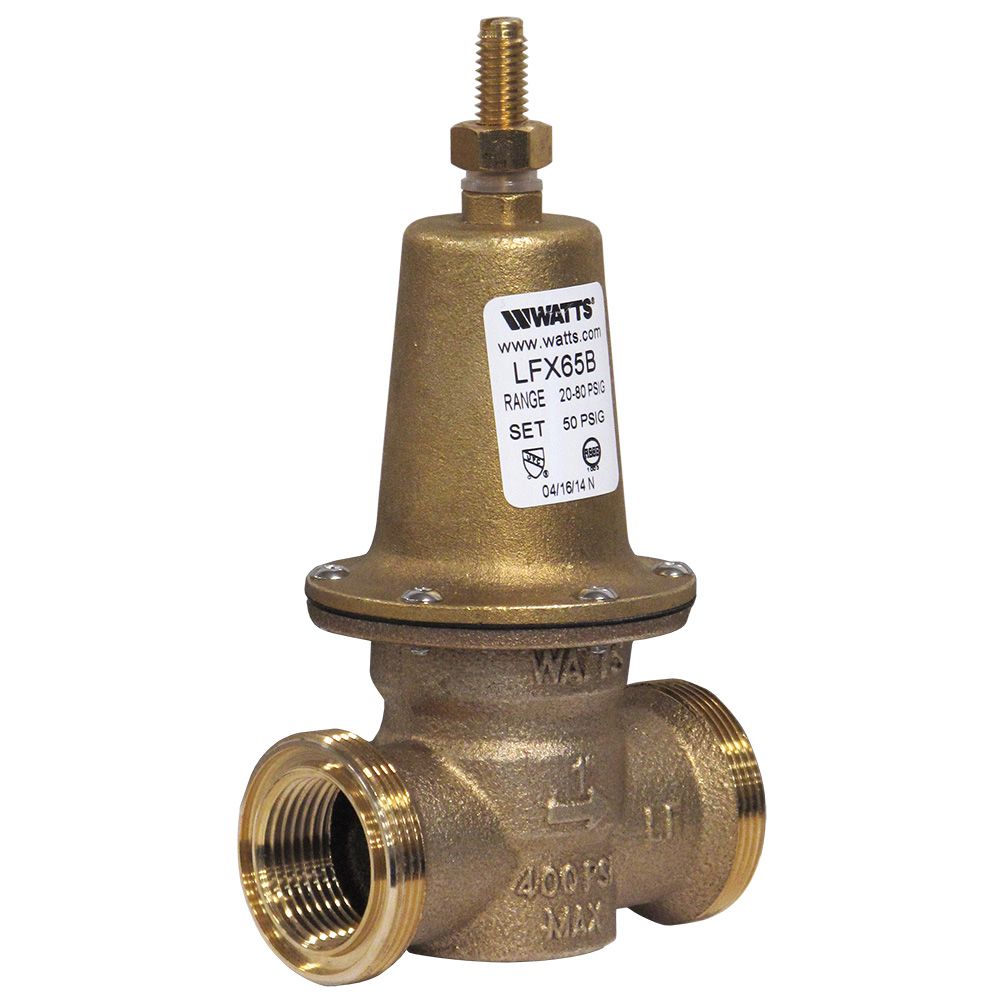

The Watts LFX65B Lead Free Pressure Regulator is designed to reduce the incoming water pressure to protect plumbing system components and to reduce water consumption. The LFX65B has a 100% balanced valve which is unique to Watts and provides reliable flow performance.

Features:

• Commercial & Residential Applications

• Reduces incoming water pressure for protection of plumbing system components and to reduce water consumption

• Integral stainless steel strainer

• Thermoplastic seat

• Lead Free Brass body construction

• Serviceable in line

• Bypass feature controls thermal expansion pressure

• Sealed spring cage on all models for accessible outdoor or pit installations

• Does NOT include a port for a pressure gauge


 Specifications:

• Size: 1"

• FNPT Connection

• Max Working Pressure: 400 PSI

• Adjustable Range: 20 To 80 PSI

• Pressure Setting: 50 PSI

• Max Temp: 180 degrees F

• Height: 6-3/16", Width: 4-15/16"

• Standards: ASSE 1003, IAPMO, NSF 61-G


Note: If you are replacing an N55B or LFN55B series regulator, please verify the dimensions of the regulator as as installing an LFX65B may require modifications to your existing plumbing.
Disclaimer: Watts® is a registered trademark of Watts Water Technologies, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc acknowledges and confirms that it has not been granted any license or authority from Watts Water Technologies, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Watts Water Technologies, Inc. and Fresh Water Systems, Inc. of any nature whatsoever.

Compatible with:

Watts

PRV-10-LFX65BU, 0009970, 1 LFX65BU
