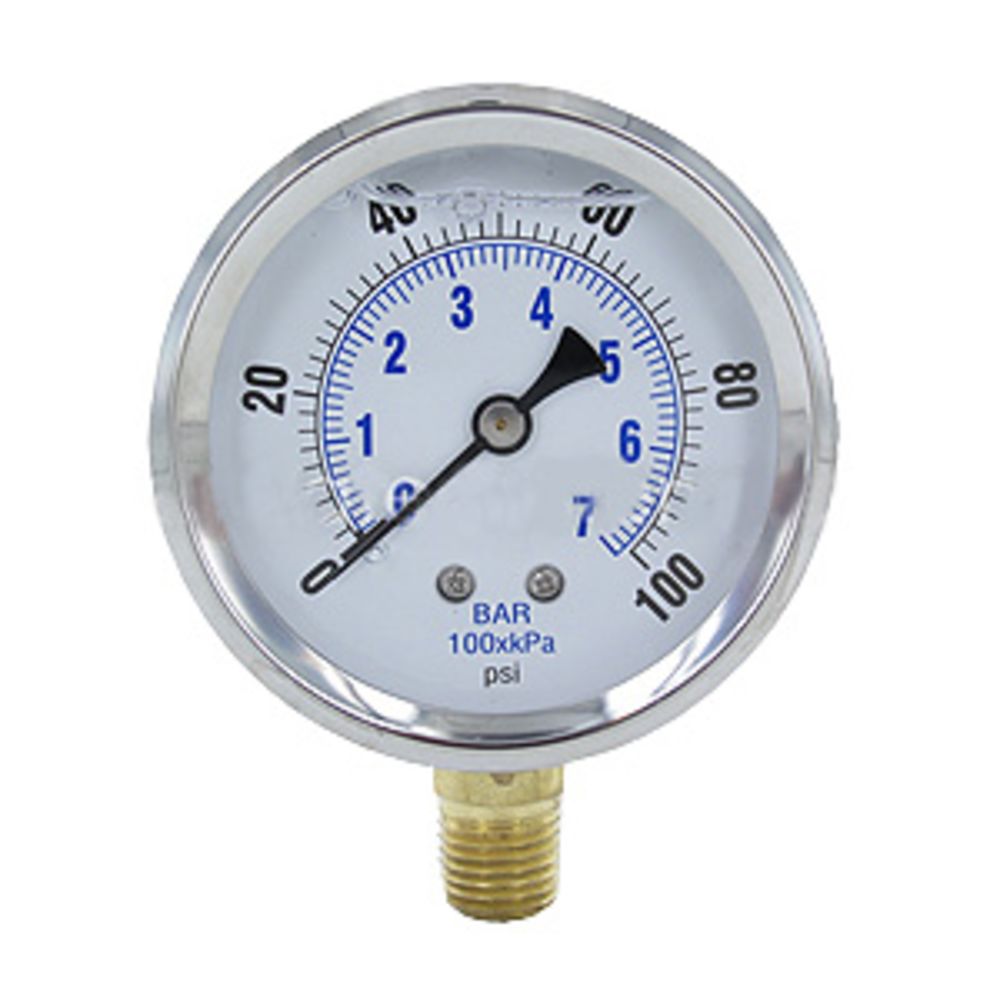

Water Pressure Gauge 100 PSI, 1/4" MPT, 2.5" Plastic Dial, Lower Mount, SS Case

Bottom Mount Pressure Gauges have easy-to-read two-tone dials for ease of legibility. Every gauge is tested for accuracy and leakage. Bottom Mount Pressure Gauges are designed for demanding applications internationally such as Reverse Osmosis, Oil Refining, Chemical, Food Processing plants, Water Treatment, just to name a few.

Specifications:

Stem: Brass
Lens: Plastic
Face Diameter: 2.5"
Connection: 1/4" MPT
Mount Type: Bottom mount
Case: 304 Stainless steel
Pressure Rating: 0 - 100 PSI
Temperature Rating: 0 - 140º F
Connection: center bottom mount
Internals: Brass

Compatible with:

AXEON/RO Ultratec	200903

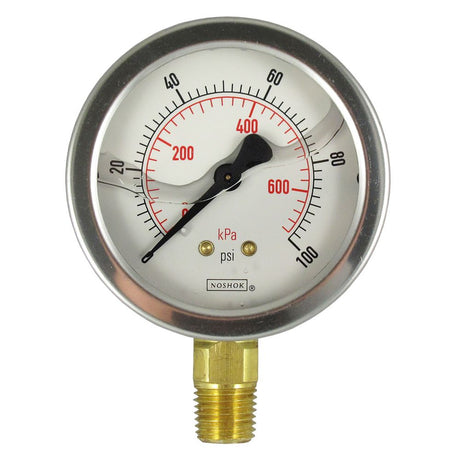

Noshok	25-901-100

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Accuracy	A (2-1-2%)
Dial Size	2-1/2" (63 mm)
Face	White Aluminum with Black/Blue Print
Fluid	Glycerine and water
Housing Material	Stainless Steel
Internal Component Material	Brass
Material Of Construction	Brass
Max Pressure (Psi)	100
Min Pressure (Psi)	0
Pointer	Aluminum - Black
Units Of Measure (Psi, Bars, Hgvac)	PSI/Bars
Accuracy Grade	A Grade: 2-1-2%
Case Filling	Glycerine
Case Type	Stainless Steel
Connection Type	1/4" MPT
Gauge Bezel	Plastic Fixed
Gauge Lens	Plastic
Mounting Style	Lower Mount
Pressure Rating	100 PSI
Type	Lower Mount
Wetted Parts	Lead Free Brass
Shipping Dimensions
Shipping Length	3.34 in.
Shipping Width	2.75 in.
Shipping Height	1.25 in.
Product Weight & Dimensions
Product Height	1.25 in.
Product Length	3.34 in.
Product Width	2.75 in.
Product Weight (lbs)	0.03125
