NOSHOK

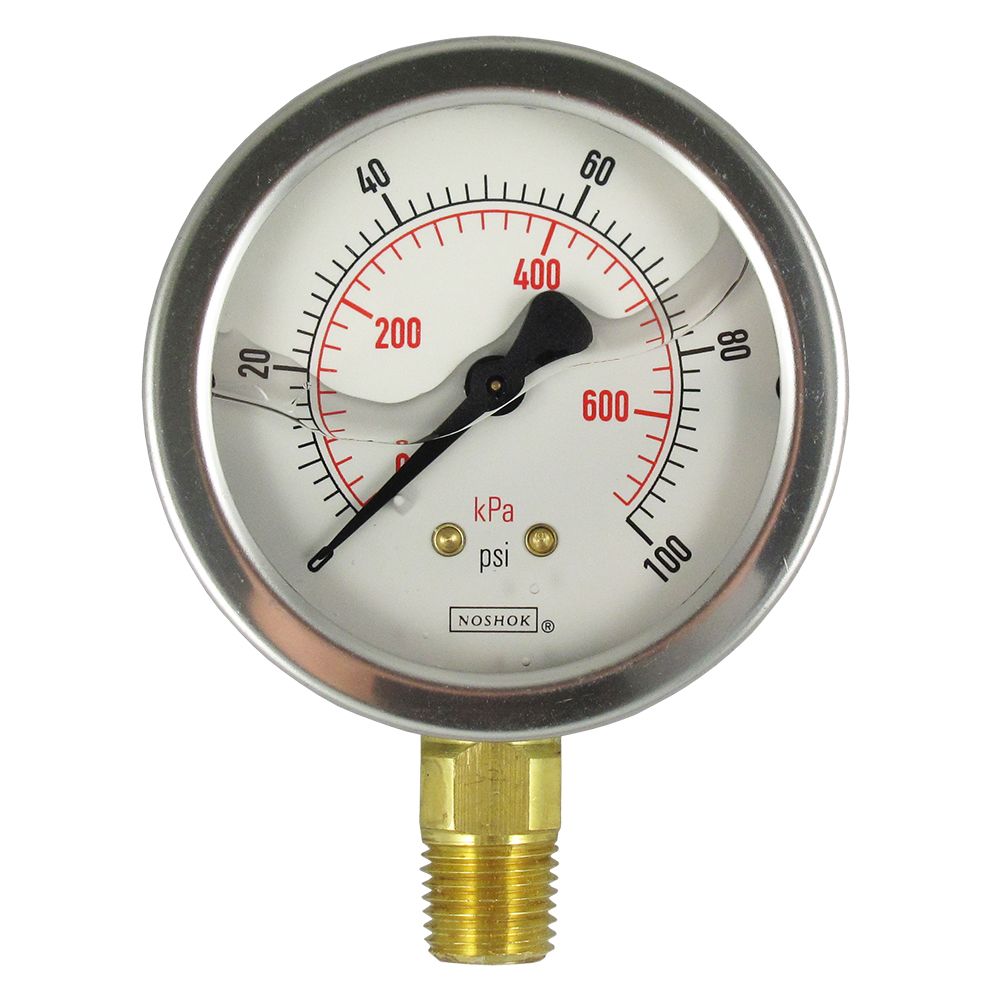

NOSHOK Bottom Mount 2.5" Water Pressure Gauge 0-100 PSI, SS, 1/4" NPT

Part Number: 25-901-100

In Stock

out of stock

In Stock

$22.53


The NOSHOK 25-901-100 gauges are a high quality gauge that incorporates unique design features aimed at extended service life and reliability. The are used world wide where pulsation, vibration, and shock are present and the media is not corrosive to brass.

Features:
  • Extremely high quality pressure gauges
  • Liquid filled for extended service life and shock resistance
  • Stainless Steel case with polycarbonate lens
  • Unique o-ring case and connection seals guard against leakage and protect against shock and vibration
  • Relief disc on top and back provides positive case relief
  • High grade glycerine fill dampens the effects of pulsation, vibration and shock loads, and provides lubrication of the movement
  • Three Year Warranty
  • Applications: Chemical Plants, Petro Chemical Refineries, Pharmaceutical, Food & Beverage Processing, Fertilizer Plants, Off-Shore Oil Platforms, Paper Mills, Salt Mines, On Shipboard

Compatible with: AXEON/RO Ultratec | 200903


Details

Bezel

Stainless Steel, fixed

Connections

1/4" MPT

Dial Size

2.5" (63 mm)

Face

Molded Plastic with Black/Red Print

Housing Material

304 Stainless Steel

Internal Component Material

Brass

Lens

Polycarbonate

Material Of Construction

Brass

Mounting Options

Lower Bottom

Operating Pressure Range

0 - 100 psi

Pointer

Molded Plastic

Accuracy

A (2-1-2%)

Wetted Materials

Brass; Copper Alloy

Fluid

Glycerine and water

Units Of Measure (Psi, Bars, Hgvac)

PSI/kPa


NOSHOK





The NOSHOK 25-901-100 gauges are a high quality gauge that incorporates unique design features aimed at extended service life and reliability. The are used world wide where pulsation, vibration, and shock are present and the media is not corrosive to brass.

Features:
  • Extremely high quality pressure gauges
  • Liquid filled for extended service life and shock resistance
  • Stainless Steel case with polycarbonate lens
  • Unique o-ring case and connection seals guard against leakage and protect against shock and vibration
  • Relief disc on top and back provides positive case relief
  • High grade glycerine fill dampens the effects of pulsation, vibration and shock loads, and provides lubrication of the movement
  • Three Year Warranty
  • Applications: Chemical Plants, Petro Chemical Refineries, Pharmaceutical, Food & Beverage Processing, Fertilizer Plants, Off-Shore Oil Platforms, Paper Mills, Salt Mines, On Shipboard

Compatible with: AXEON/RO Ultratec | 200903

Details

Bezel

Stainless Steel, fixed

Connections

1/4" MPT

Dial Size

2.5" (63 mm)

Face

Molded Plastic with Black/Red Print

Housing Material

304 Stainless Steel

Internal Component Material

Brass

Lens

Polycarbonate

Material Of Construction

Brass

Mounting Options

Lower Bottom

Operating Pressure Range

0 - 100 psi

Pointer

Molded Plastic

Accuracy

A (2-1-2%)

Wetted Materials

Brass; Copper Alloy

Fluid

Glycerine and water

Units Of Measure (Psi, Bars, Hgvac)

PSI/kPa
