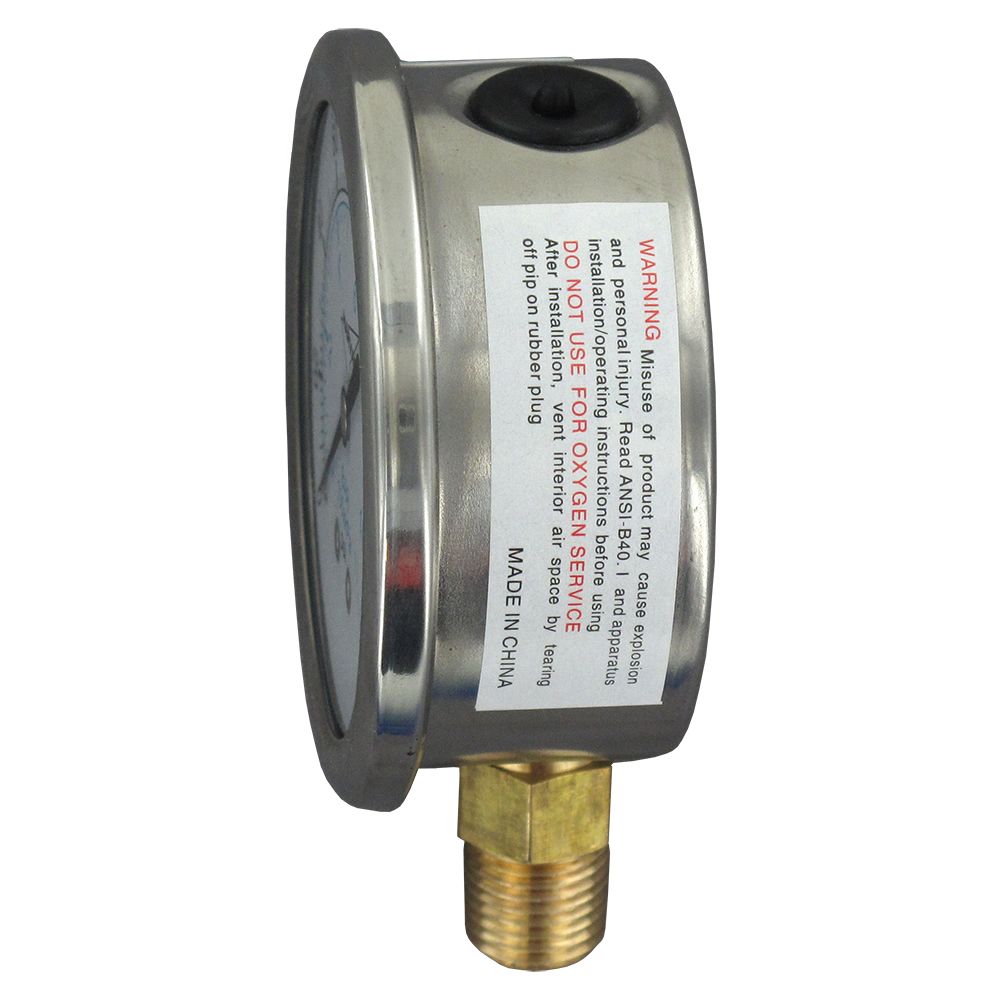

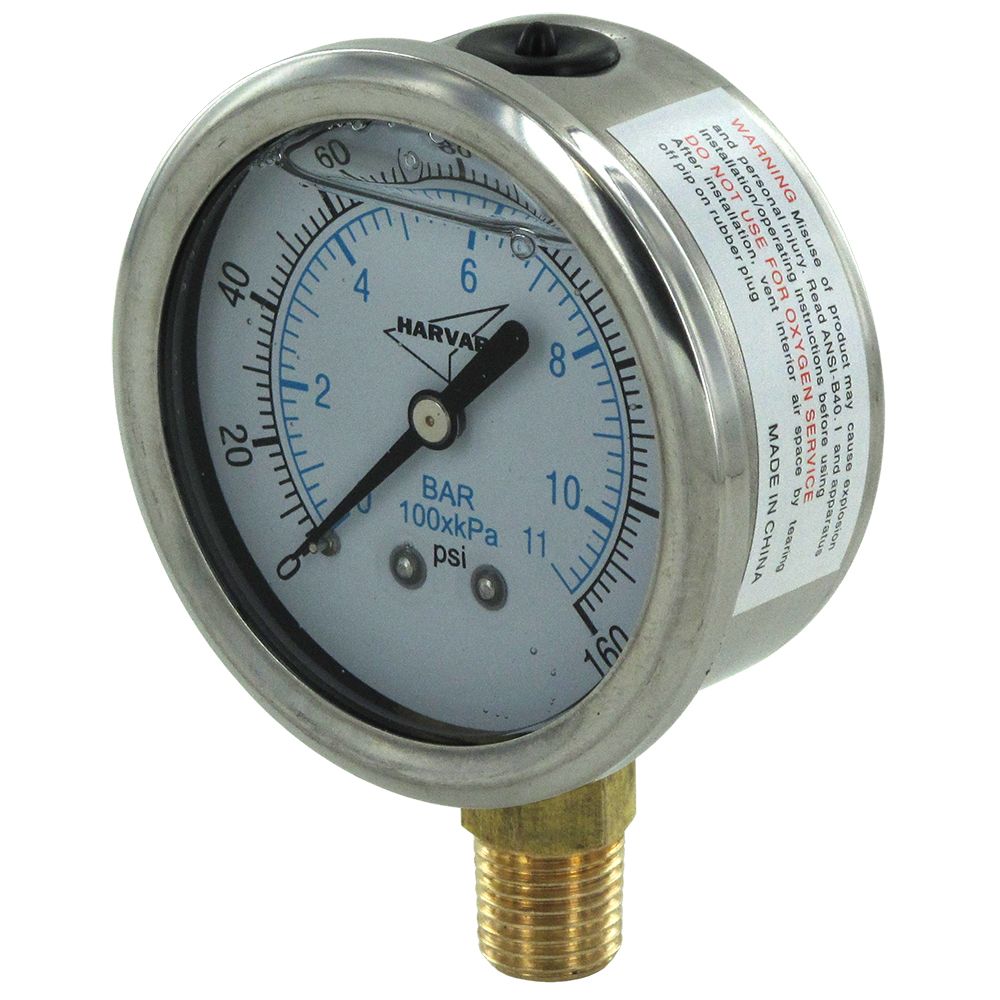

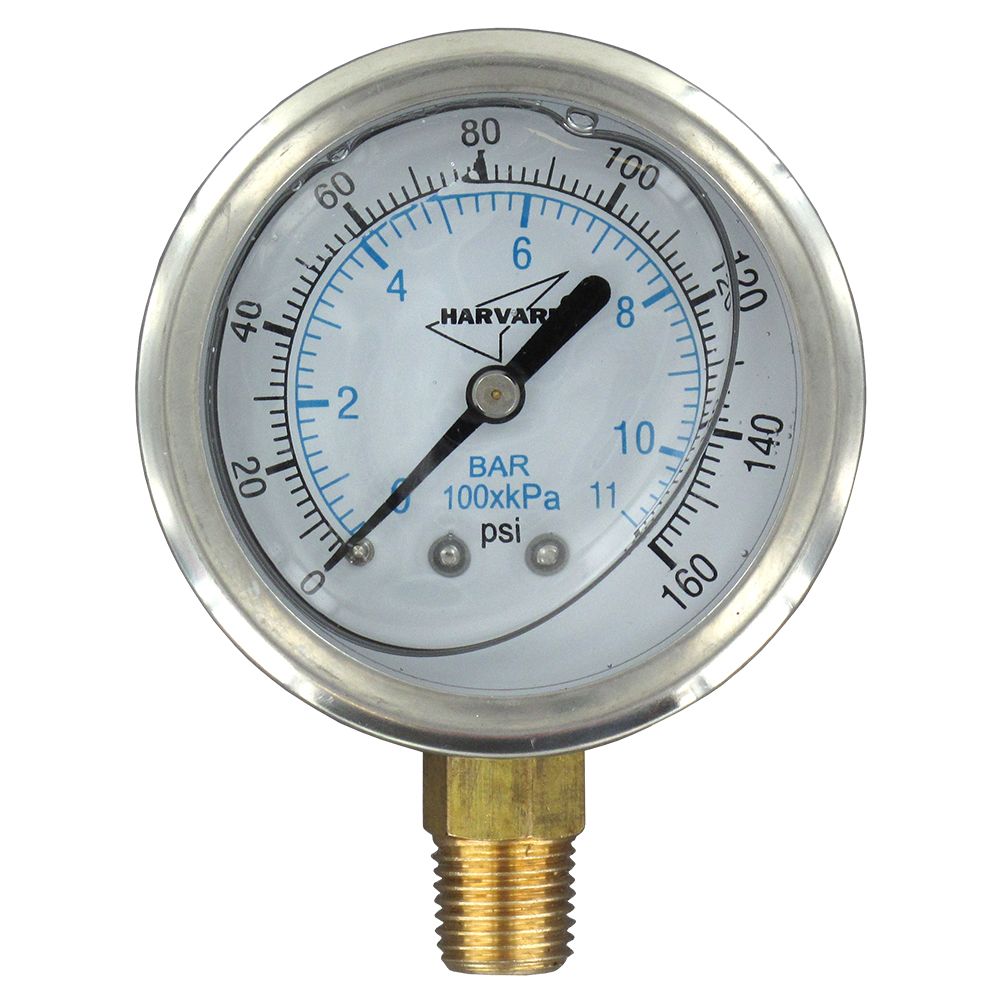

Water Pressure Gauge 160 PSI, 1/4" MPT, 2.5" Plastic Dial, Lower Mount, SS Case

Part Number: 91A25-L4-43NL-160P

Alt. Part Number: ILPG16025-4LNL

In Stock

out of stock

In Stock

$16.73

This bottom mount pressure gauge is glycerin filled and features a stainless steel case, making it suitable for use in applications where vibration or corrosion are a concern. The 1/4" MPT brass thread is lead free so the gauge can be used in potable water systems.

Features:
  • Stem: Brass
  • Lens: Clear acrylic
  • Face Diameter: 2.5"
  • Connection: 1/4" MPT
  • Mount Type: Lower Mount
  • Case: 304 Stainless steel
  • Pressure Rating: 0 - 160 PSI
  • Temperature Rating: 0 - 140º F
  • Internals: Brass
  • Suitable for use in high vibration and high corrosion applications



Compatible with:
Noshok25-901-160

Weight & Dimensions

Height (inches)

1.19

Length (inches)

3.38

Weight (lbs)

0.028125

Width (inches)

2.75

Details

Accuracy

B (3-2-3%)

Application

Water, Air

Bezel

Stainless Steel

Dial Size

2-1/2" (63 mm)

Face

White Aluminum with Black/Blue Print

Fluid

Glycerine and water

Housing Material

304 Stainless Steel

Internal Component Material

Brass and 316SS

Lens

Clear Acrylic

Material Of Construction

Brass

Max Pressure (Psi)

160

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

0

Mounting Options

Lower Bottom

Pointer

Aluminum - Black

Units Of Measure (Psi, Bars, Hgvac)

PSI/Bars

Wetted Materials

Brass, Phosphor Bronze


Water




This bottom mount pressure gauge is glycerin filled and features a stainless steel case, making it suitable for use in applications where vibration or corrosion are a concern. The 1/4" MPT brass thread is lead free so the gauge can be used in potable water systems.

Features:
  • Stem: Brass
  • Lens: Clear acrylic
  • Face Diameter: 2.5"
  • Connection: 1/4" MPT
  • Mount Type: Lower Mount
  • Case: 304 Stainless steel
  • Pressure Rating: 0 - 160 PSI
  • Temperature Rating: 0 - 140º F
  • Internals: Brass
  • Suitable for use in high vibration and high corrosion applications



Compatible with:
Noshok25-901-160

Weight & Dimensions

Height (inches)

1.19

Length (inches)

3.38

Weight (lbs)

0.028125

Width (inches)

2.75

Details

Accuracy

B (3-2-3%)

Application

Water, Air

Bezel

Stainless Steel

Dial Size

2-1/2" (63 mm)

Face

White Aluminum with Black/Blue Print

Fluid

Glycerine and water

Housing Material

304 Stainless Steel

Internal Component Material

Brass and 316SS

Lens

Clear Acrylic

Material Of Construction

Brass

Max Pressure (Psi)

160

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

0

Mounting Options

Lower Bottom

Pointer

Aluminum - Black

Units Of Measure (Psi, Bars, Hgvac)

PSI/Bars

Wetted Materials

Brass, Phosphor Bronze
