Viqua

Viqua VH200-F10 Cobalt Series UV System Powered By Sterilight 9 gpm

Part Number: VH200-F10

In Stock

out of stock

In Stock

$635.00

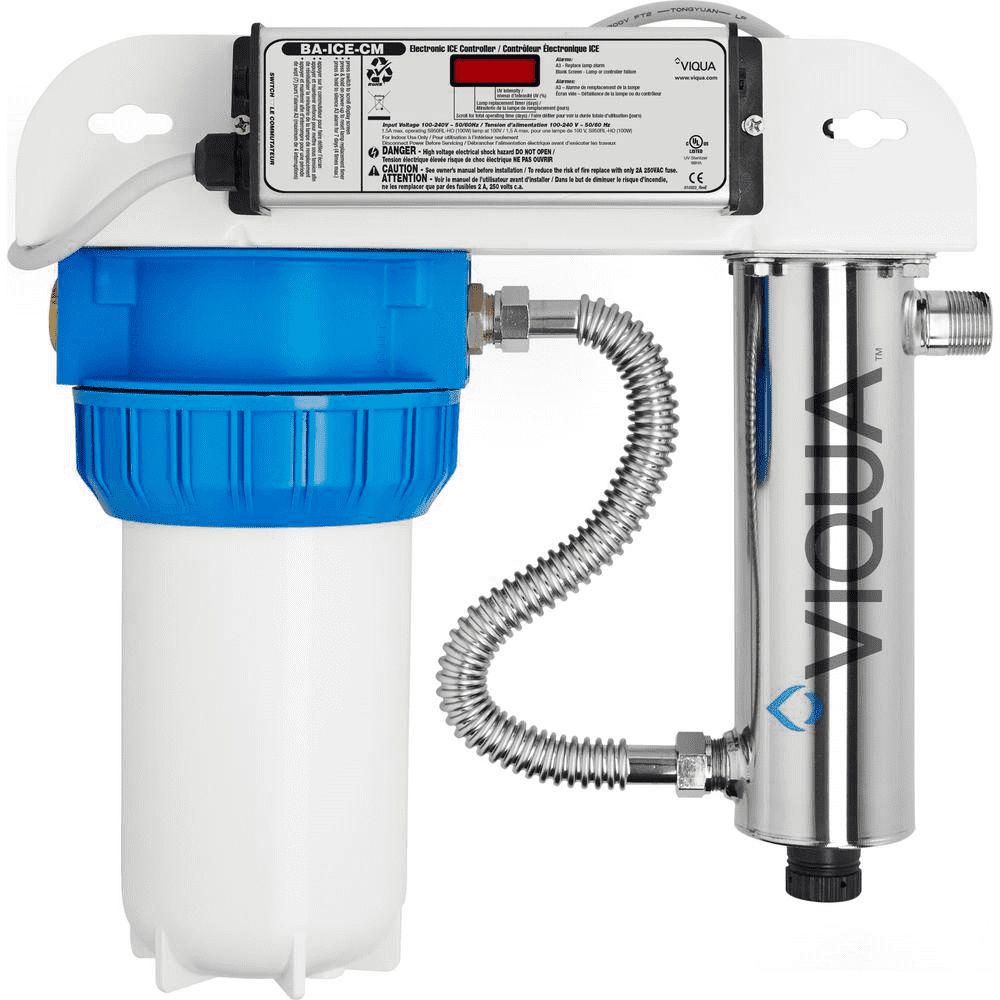

The Viqua VH200-F10 Cobalt Series Ultraviolet System incorporates high-output UV lamp technology coupled with the redesigned Cobalt series chamber, moving the inlet/outlet ports from an axial to S-shaped configuration making it more compact and easier to install. This system adds an integral 5 micron pre-filter to the VH200 system, that is mounted to a steel bracket.

Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space

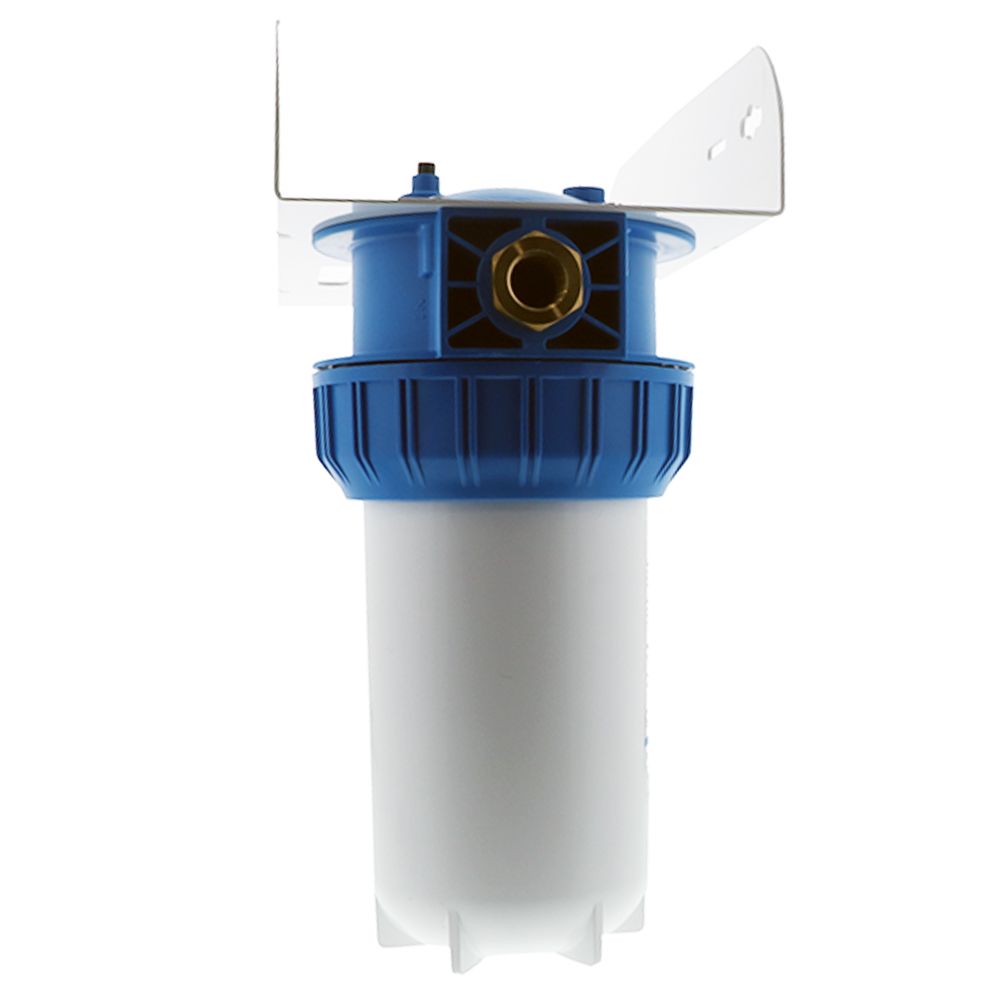

  • Systems adds an integral 5 micron prefilter to the VH200 system
  • 4-log (99.99%) reduction of most bacteria, viruses and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input
  • Controller alerts user with alarm if UV lamp fails
  • Sealed case on the controller helps to prevent damage from accidental water intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes up less space
  • Lamp can be changed without interruption of water flow
NOTE: This system is compatible with the S200RL-HO Sterilight Lamp and the QS-001 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VH200-F10 includes:

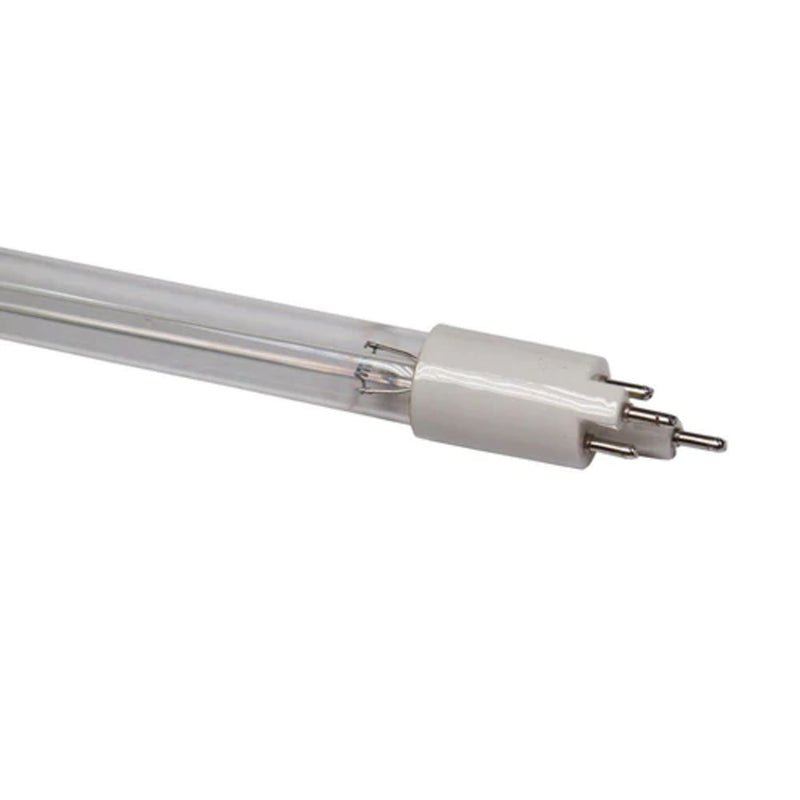

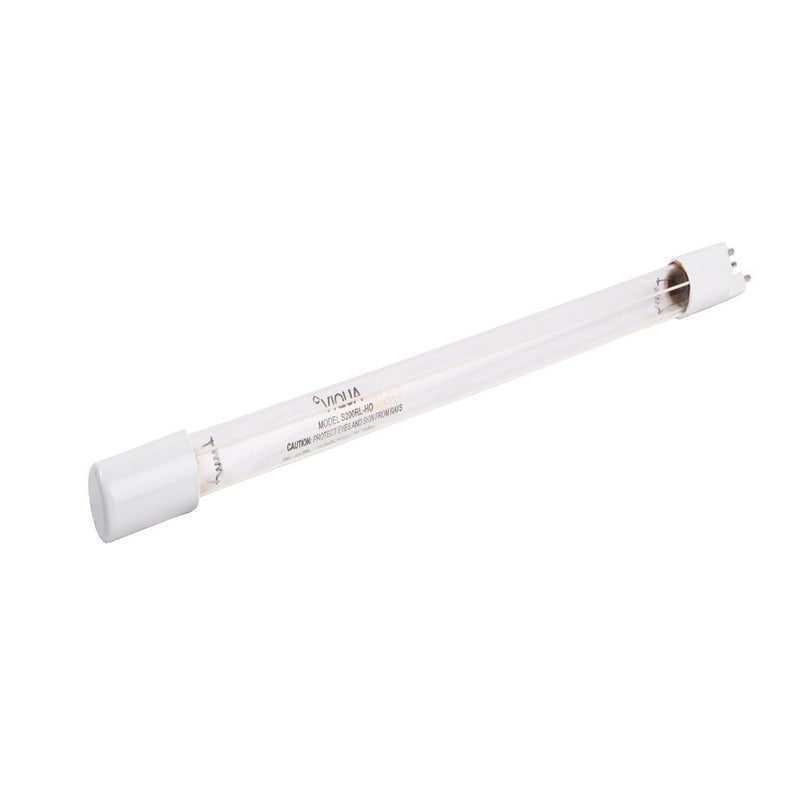

  • Sterilight Lamp (1): S200RL-HO

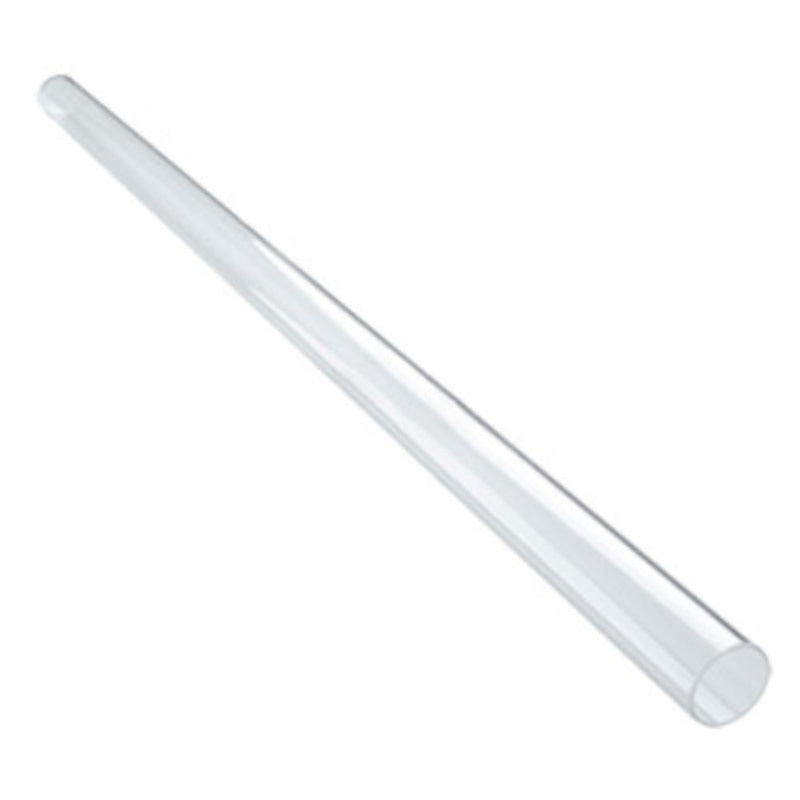

  • Sterilight Quartz Sleeve (1): QS-001

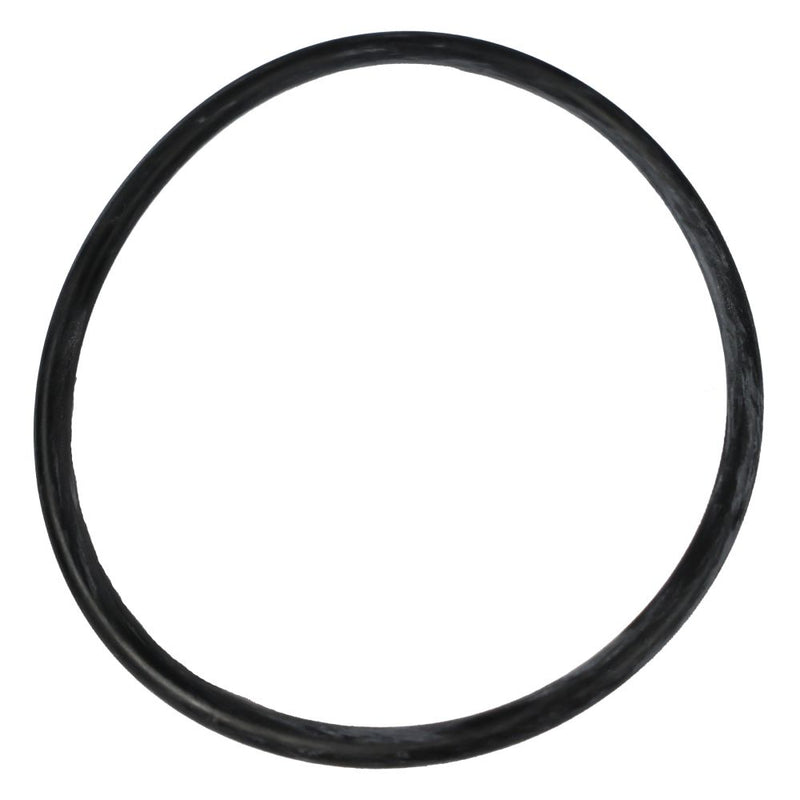

  • Sterilight O-Rings (2): 410867
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


Weight & Dimensions

Approx Length (Inches)

17.75 Inches

Dimensions

17" x 10.5" x 18" inches

Power Supply Dimensions

7.3"x3.2"x2.5"

Details

Ambient Temperature Range

32-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

3.5 Inches

Features

Audible Lamp Failure; Visual Power On; Lamp Timer; Flow Restrictor

Flow Rate

16 Gallons Per Minute (16mJ/cm2 Dose); 9 Gallons Per Minute (30mJ/cm2 Dose); 7 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet Size

1" MPT

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Outlet Size

1" MPT x 3/4" MPT (combo) Inches

Power

35 Watts

Type

Sterilume - HO (UVC)

Voltage

100-240 V


Viqua
