Neo-Pure

Neo-Pure 10" BB Graded Density Polypropylene Sediment Filter 50/5 mic

Part Number: MB-45098-05

Alt. Part Number: SGD-45-1005, C155357-43, DGD-5005, VX05-10BB, CMMF109875-45W1

In Stock

out of stock

In Stock

$9.45

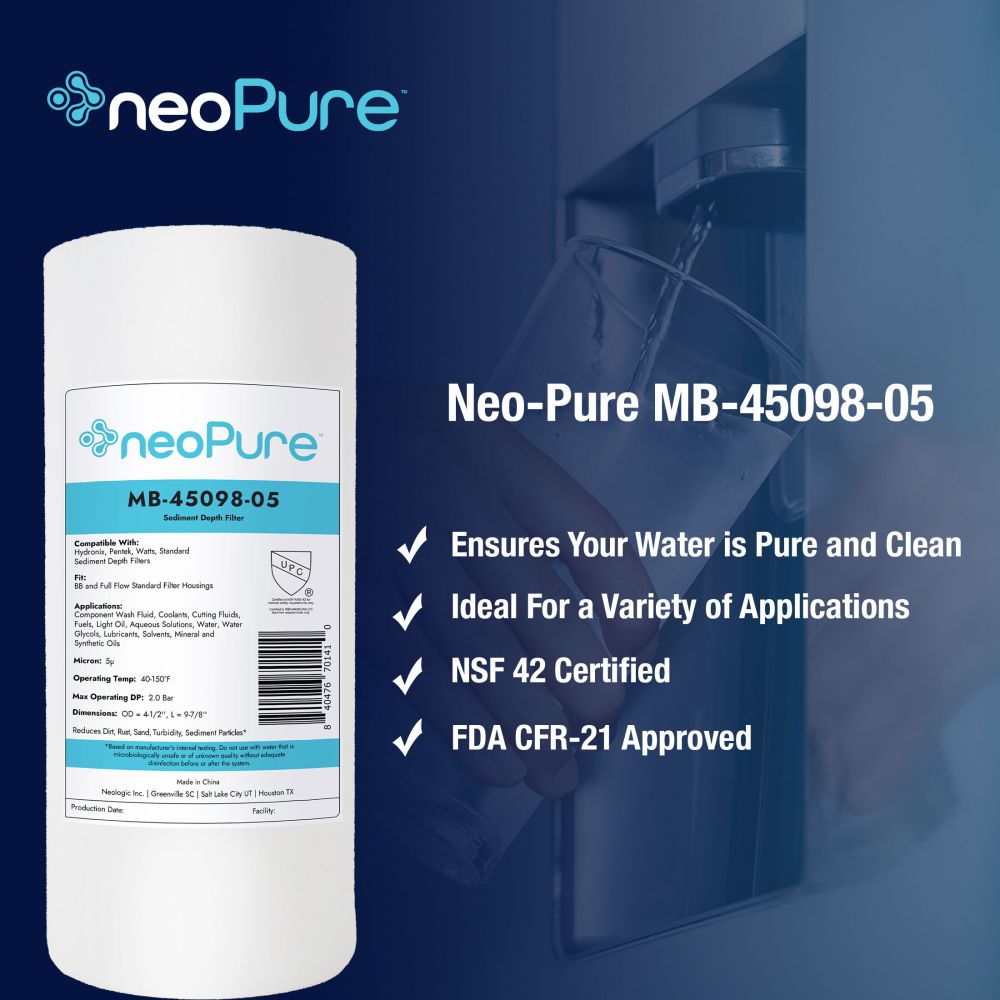

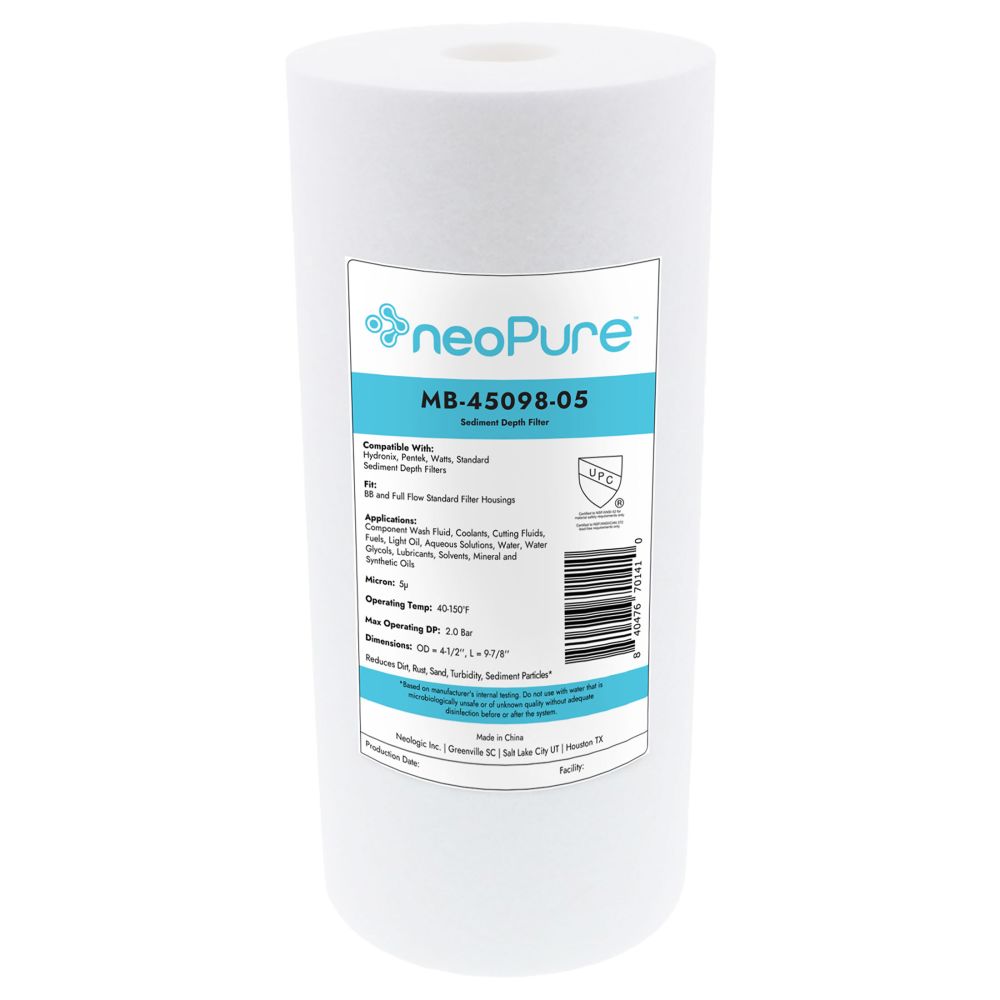

The Neo-Pure MB-45098-05 is a High Efficiency 4.5" x 9-7/8" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 4.5" x 9-7/8" sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-45098-05 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Features:

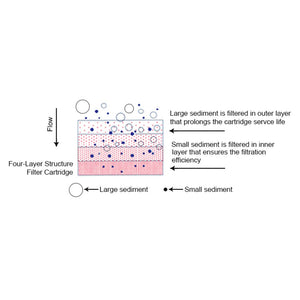

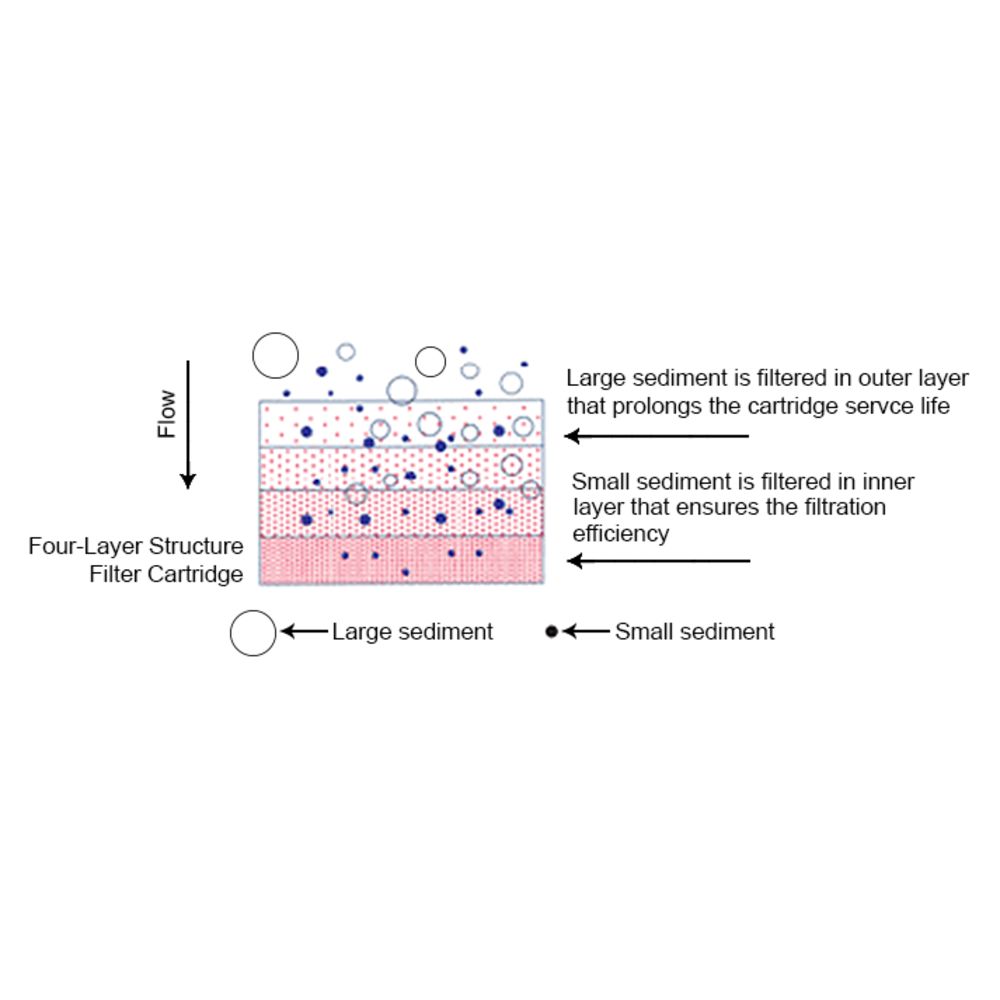

  • Ideal For a Variety of Applications. The unique design and dual density performance characteristics of the MB Series cartridges make this filter an excellent choice for all residential, rural, municipal and commercial applications.
  • High Dirt-Holding Capacity. The MB-45098-05 filter has three times the dirt-holding capacity of similar sized water filter cartridges, reducing extra-fine dirt, sand, sediment, silt, and rust & scale particles.
  • Ensures Your Water is Pure and Clean. The Dual Gradient Density filter will not add taste, odor, or color to the liquid being filtered. The polypropylene filter media is designed for purity, corrosion resistance, and bacterial & chemical resistance.
Additional Specifications:
  • Length: 9-7/8"
  • Diameter: 4-1/2"
  • Micron Rating: Pre 50 μm / Post 5 μm
  • NSF 42 Certified
  • FDA CFR-21 Approved

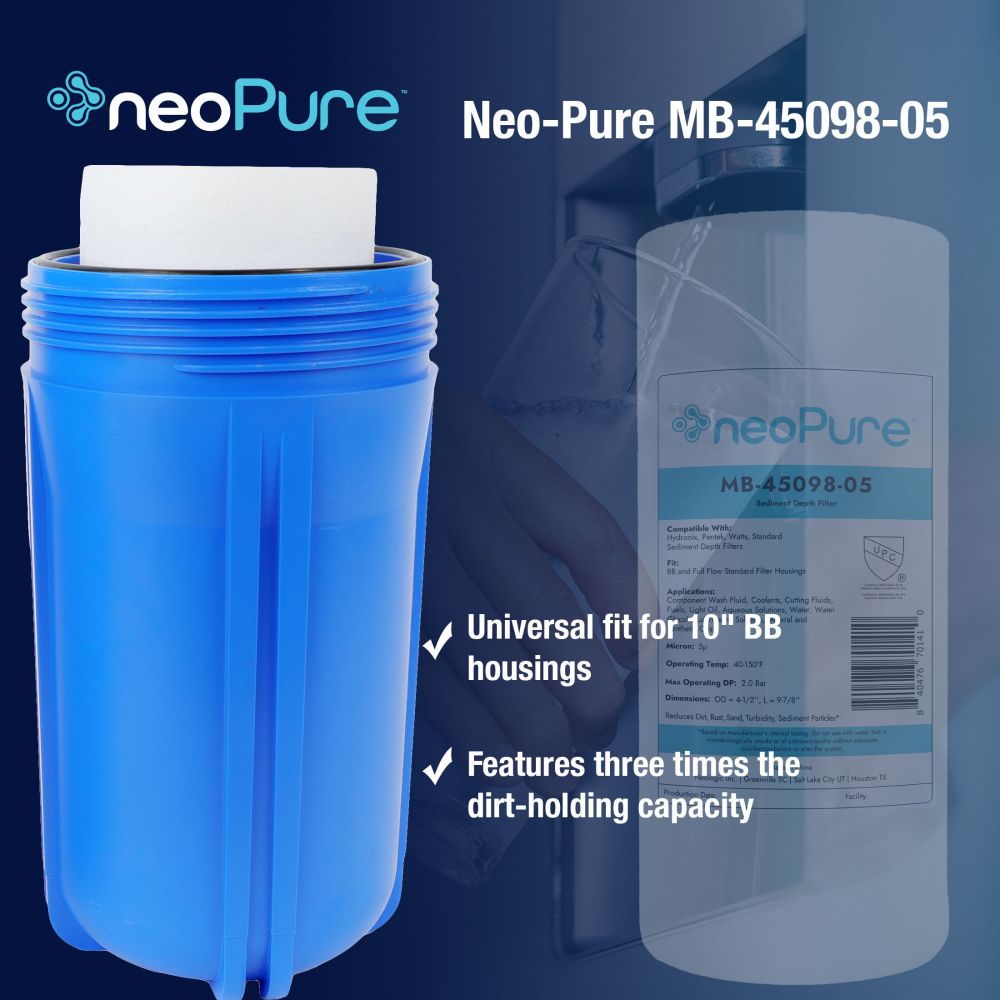

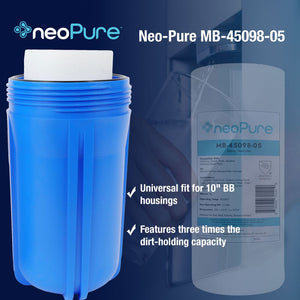

NOTE: Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 10" Big Blue Housings.


Compatible with:
American PlumberWDGD-5005, 155357-51
AXEON Membranes200635
EverpureDEV9108-44, EV9108-44, EV9108-37, EC104, EV910844
Filter SpecialistCMMF05975-45W1
Flexeon200635
HydronixSDC-45-1005
Ideal H2O™738356
LiquatecSDF-45-1005
PentekDGD-5005, 155357-43
Replacement Water FiltersAmerican Water Products CMB-510-HF
Shurflo15-052-01, 15-054-01
Valuetrex1227867-V-BB, VX05-10BB
WattsFPMB-BB5-10

Weight & Dimensions

Length (inches)

10

Height (inches)

4.5

Width (inches)

4.5

Weight (lbs)

0.866

Details

Max Temp (°F)

145

Min Temp (°F)

40

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

12

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 GPM

Media Type

Polypropylene

Micron Rating (Nominal)

5 µm

Origin

China

Outer Diameter

4-1/2"

Warranty & Certifications

Certifications

NSF 42; FDA CFR-21


Neo-Pure




The Neo-Pure MB-45098-05 is a High Efficiency 4.5" x 9-7/8" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 4.5" x 9-7/8" sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-45098-05 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Features:
  • Ideal For a Variety of Applications. The unique design and dual density performance characteristics of the MB Series cartridges make this filter an excellent choice for all residential, rural, municipal and commercial applications.
  • High Dirt-Holding Capacity. The MB-45098-05 filter has three times the dirt-holding capacity of similar sized water filter cartridges, reducing extra-fine dirt, sand, sediment, silt, and rust & scale particles.
  • Ensures Your Water is Pure and Clean. The Dual Gradient Density filter will not add taste, odor, or color to the liquid being filtered. The polypropylene filter media is designed for purity, corrosion resistance, and bacterial & chemical resistance.
Additional Specifications:
  • Length: 9-7/8"
  • Diameter: 4-1/2"
  • Micron Rating: Pre 50 μm / Post 5 μm
  • NSF 42 Certified
  • FDA CFR-21 Approved
NOTE: Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 10" Big Blue Housings.


Compatible with:
American PlumberWDGD-5005, 155357-51
AXEON Membranes200635
EverpureDEV9108-44, EV9108-44, EV9108-37, EC104, EV910844
Filter SpecialistCMMF05975-45W1
Flexeon200635
HydronixSDC-45-1005
Ideal H2O™738356
LiquatecSDF-45-1005
PentekDGD-5005, 155357-43
Replacement Water FiltersAmerican Water Products CMB-510-HF
Shurflo15-052-01, 15-054-01
Valuetrex1227867-V-BB, VX05-10BB
WattsFPMB-BB5-10

Weight & Dimensions

Length (inches)

10

Height (inches)

4.5

Width (inches)

4.5

Weight (lbs)

0.866

Details

Max Temp (°F)

145

Min Temp (°F)

40

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

12

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 GPM

Media Type

Polypropylene

Micron Rating (Nominal)

5 µm

Origin

China

Outer Diameter

4-1/2"

Warranty & Certifications

Certifications

NSF 42; FDA CFR-21
