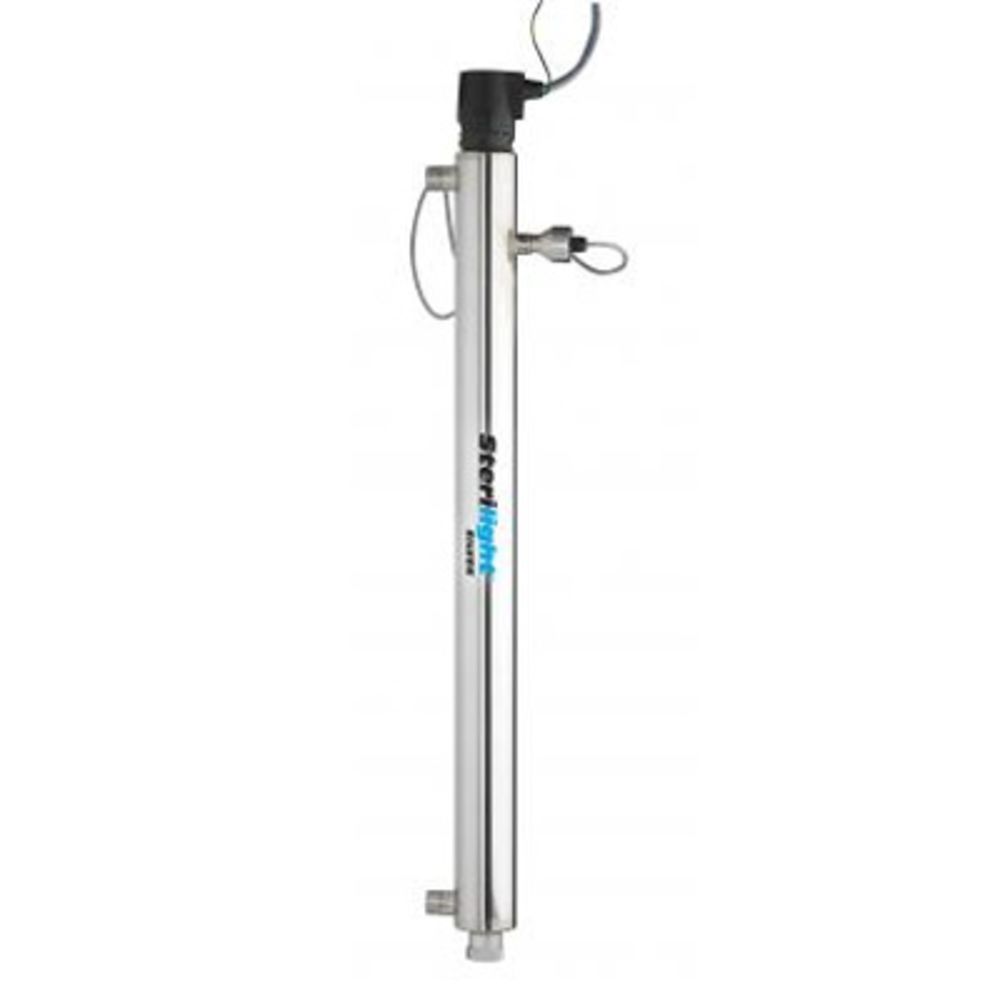

Viqua Sterilight SSM-37 Silver Plus UV System 10 gpm

Part Number: SSM-37

In Stock

out of stock

In Stock

$675.75

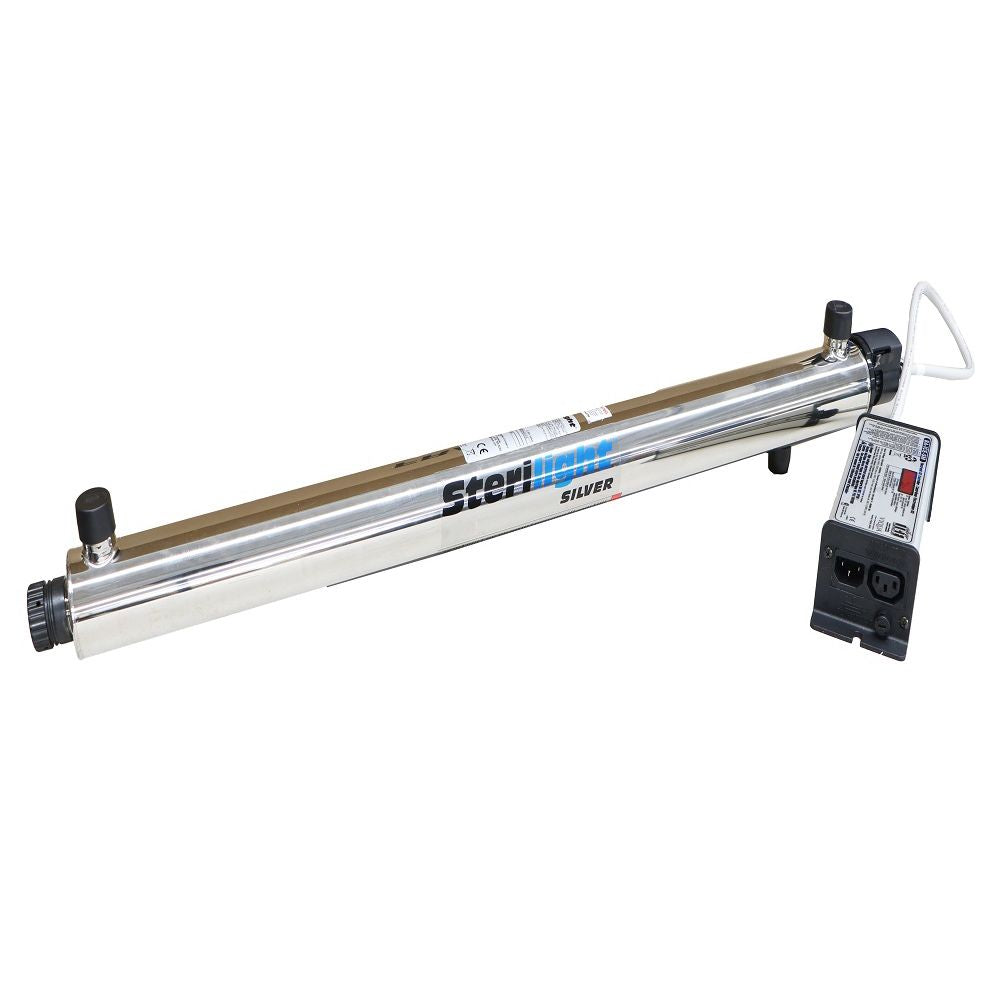

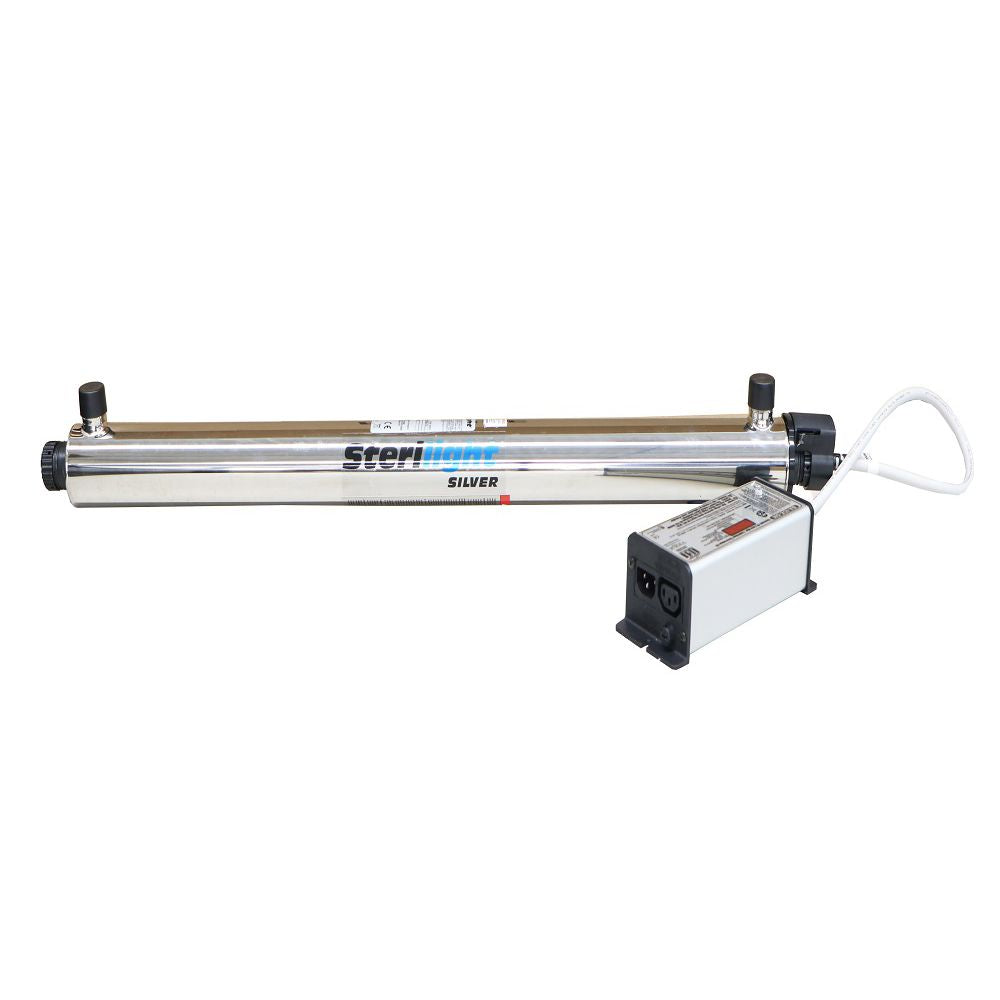

The Viqua Sterilight SSM-37 UV System provides point-of-use disinfection with a flow rate of 10 gpm. This modular system, incorporating Sterilight's new Silver Plus controller, is ideal for small POU applications such as post filtration, or as a pre or post application on a residential RO System.

Features:

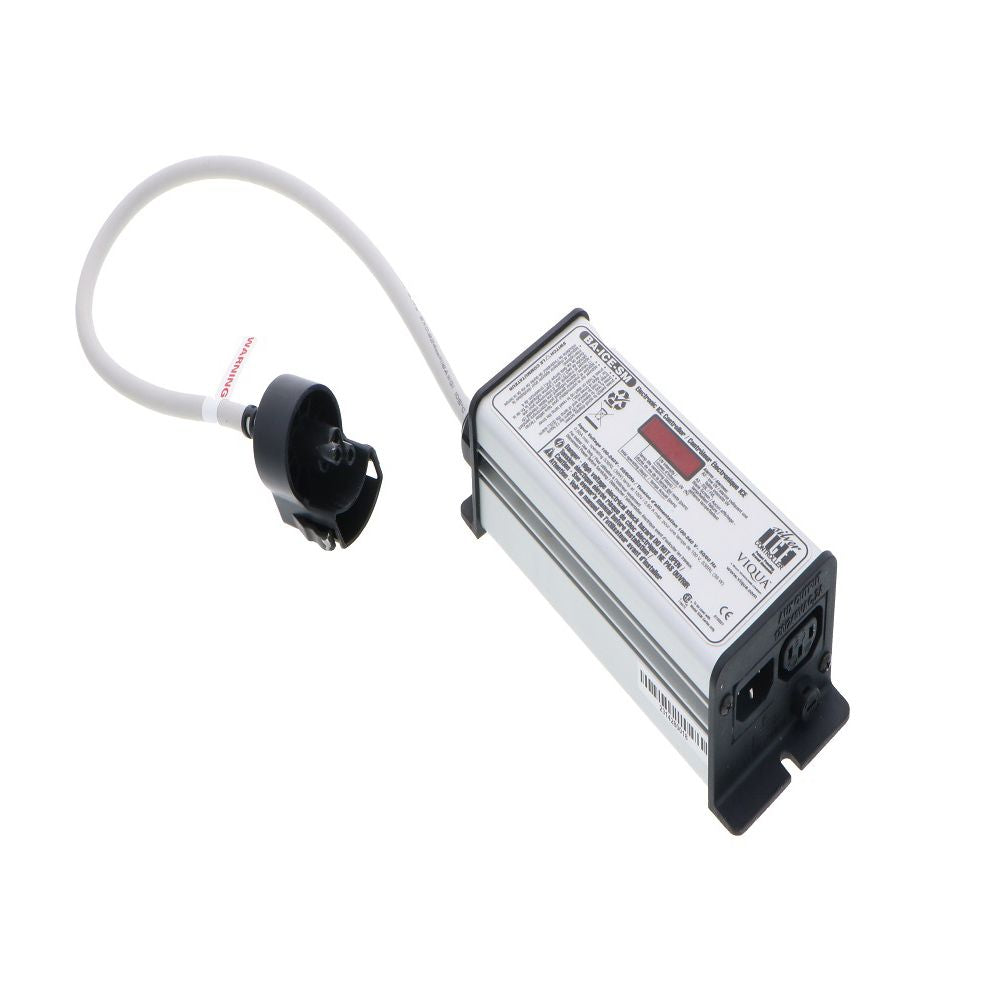

  • Silver Plus controller provides constant output current and a universal power input, and also displays % UV intensity, remaining lamp life, and total days of operation

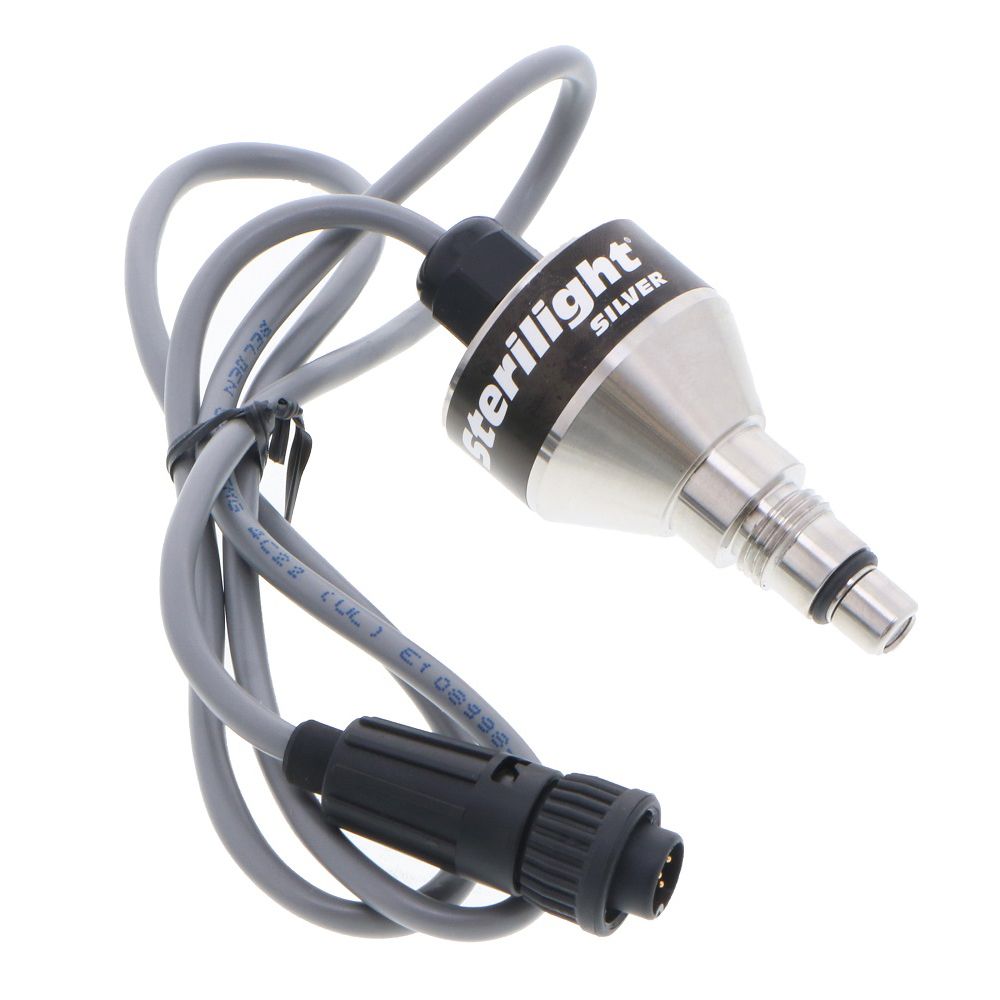

  • 254nm UV intensity monitor allows the SSM-37 to continuously monitor the system and warn you of any changes in water quality
  • A powered solenoid output allows you to hook a normally closed solenoid valve (sold separately) directly into the controller.
  • Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses

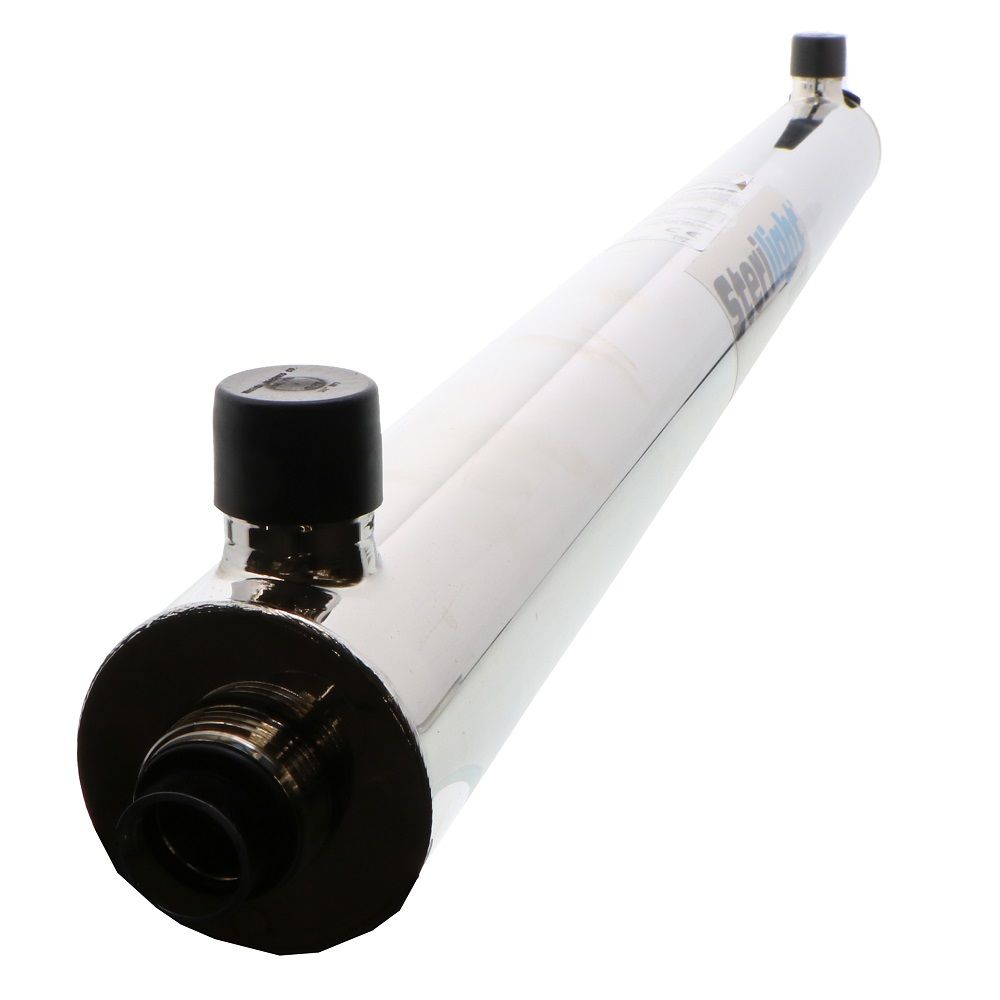

  • The SSM-37 is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with ¼" MPT connections

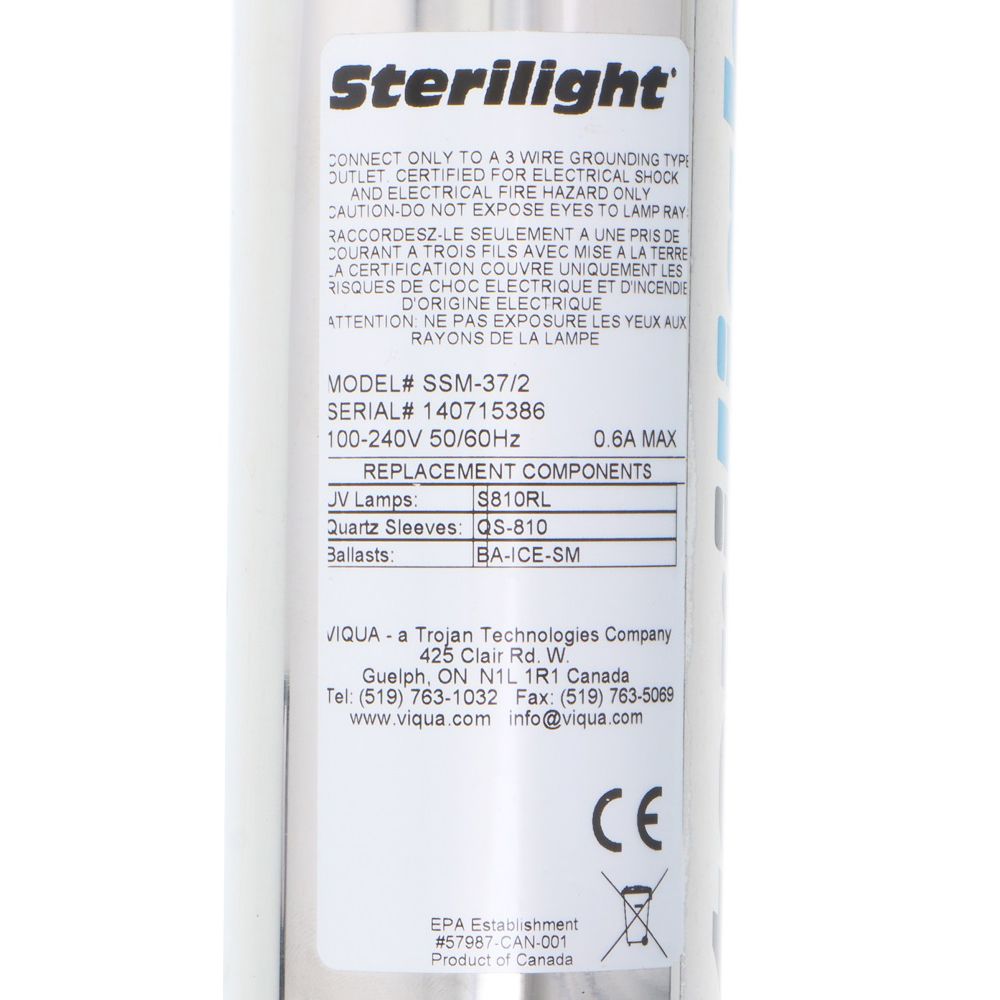

This system is compatible with the S810RL Sterilight Lamp and the QS-810 Quartz Sleeve.
Additional:
  • Sterilight Lamp (1): S810RL
  • Sterilight Quartz Sleeve (1): QS-810
  • Sterilight O-Rings (2): 410867

NOTE: 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


Weight & Dimensions

Approx Length (Inches)

35.4 Inches

Approx Weight

38 Watts

Power Supply Dimensions

11" x 4.5" x 2"

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit, 0°C to 60°C Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

2.6 Inches

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Flow Rate

10 Gallons Per Minute (30mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/4" MPT

Number Of Lamps

1

Operating Pressure Range

5-125 PSI

Power

39 Watts

Voltage

120 V

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
