Viqua

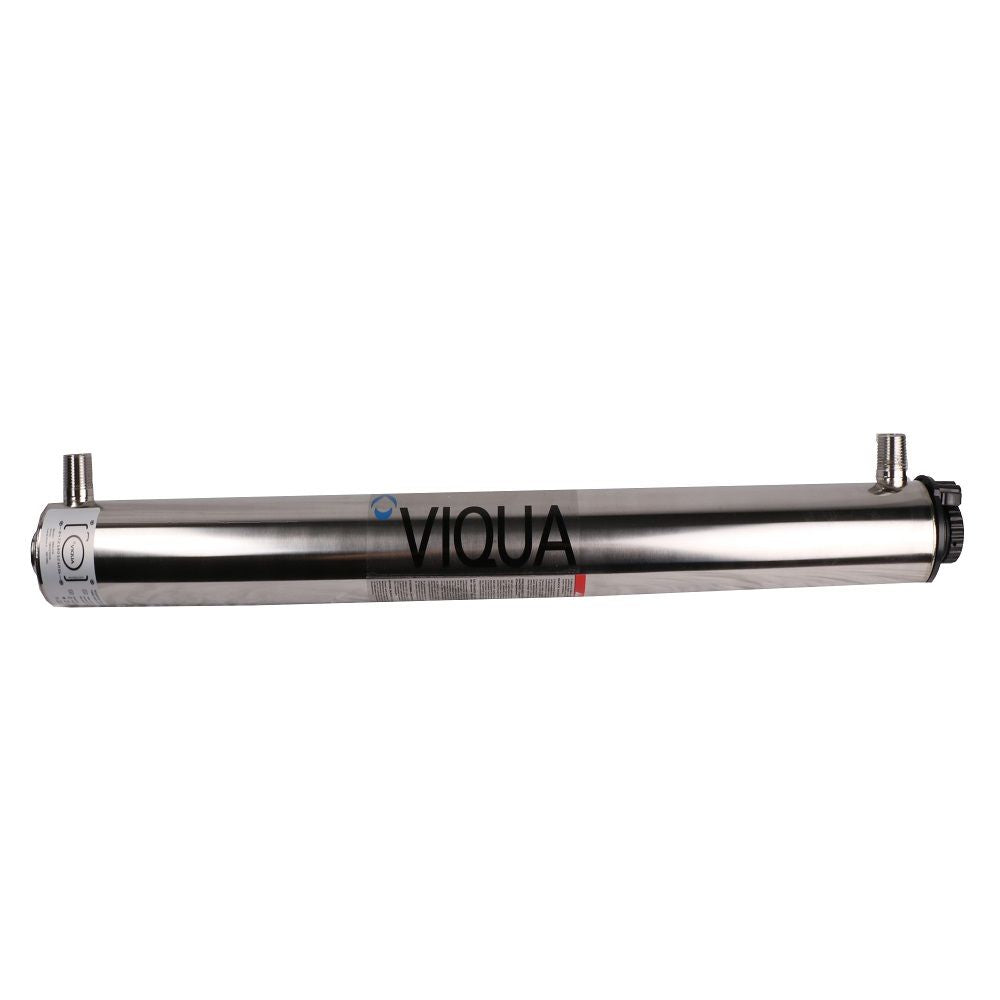

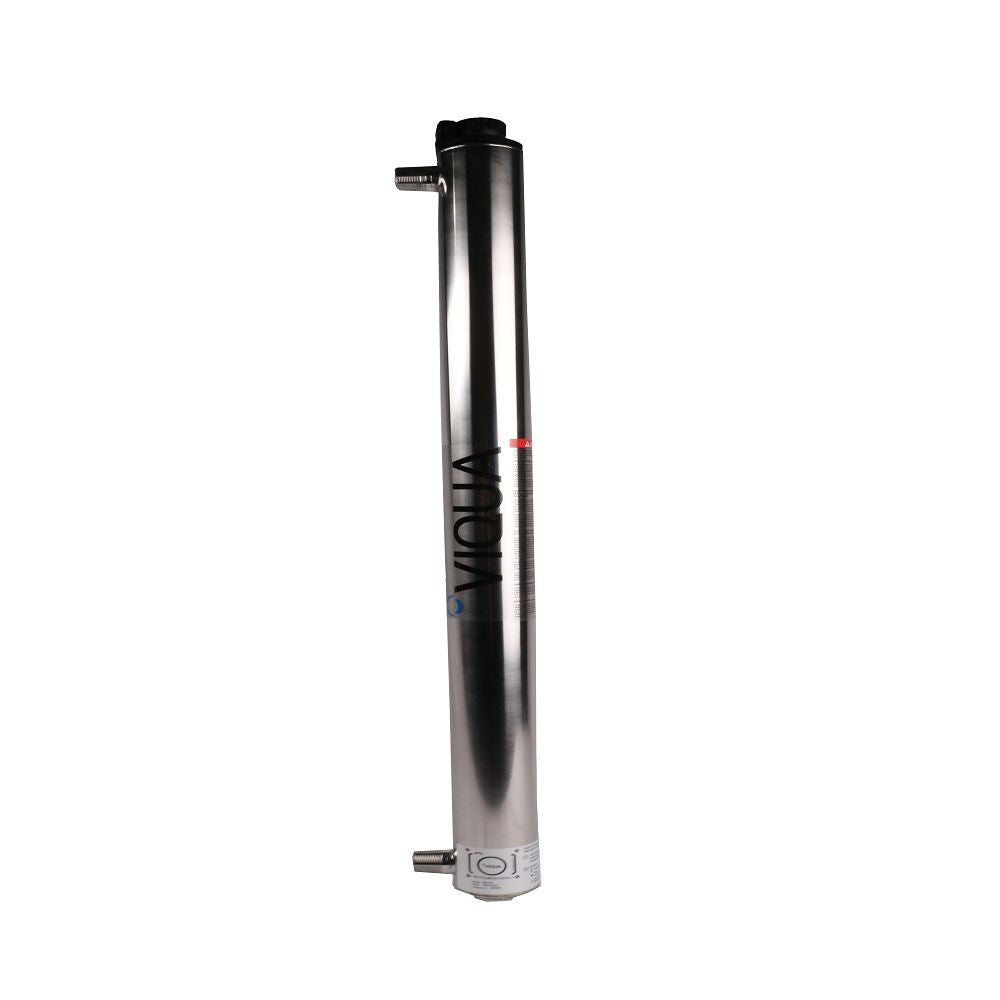

Viqua S8Q-PA Silver Series UV System Powered by Sterilight 10 gpm

Part Number: S8Q-PA

In Stock

out of stock

In Stock

$449.00


The Viqua S8Q-PA is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water. The Viqua S8Q-PA is suitable for whole-home disinfection and is ideal for the average size residence. The S8Q-PA is recommended for flow rates up to 10gpm.

Specifications:
  • Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
  • Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
  • Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
  • 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
  • Hard glass, low pressure mercury vapour lamps with high isolation pin design
  • Natures way to protect your water without the addition of harmful chemicals
  • Easy servicing - no need to disconnect water flow to change UV lamp
  • Seven year warranty on reactor chamber for unparalleled protection
  • Includes mounting clamp
  • CSA and CE compliant
NOTE: This system is compatible with the S810RL Sterilight Lamp and the QS-810 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S8Q includes:
  • Sterilight Lamp (1): S810RL
  • Sterilight Quartz Sleeve (1): QS-810
  • Sterilight O-Rings (2): 410867
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


Weight & Dimensions

Approx Length (Inches)

35.4 Inches

Power Supply Dimensions

7.3"x3.2"x2.5"

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

2.5 Inches

Features

Visual Power On

Flow Rate

20 Gallons Per Minute (16mJ/cm2 Dose); 10 Gallons Per Minute (30mJ/cm2 Dose); 7.7 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/4" MPT

Number Of Lamps

1

Operating Pressure Range

5-125 PSI

Power

46 Watts

Type

UVC

Voltage

100-240 V

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua





The Viqua S8Q-PA is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water. The Viqua S8Q-PA is suitable for whole-home disinfection and is ideal for the average size residence. The S8Q-PA is recommended for flow rates up to 10gpm.

Specifications:
  • Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
  • Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
  • Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
  • 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
  • Hard glass, low pressure mercury vapour lamps with high isolation pin design
  • Natures way to protect your water without the addition of harmful chemicals
  • Easy servicing - no need to disconnect water flow to change UV lamp
  • Seven year warranty on reactor chamber for unparalleled protection
  • Includes mounting clamp
  • CSA and CE compliant
NOTE: This system is compatible with the S810RL Sterilight Lamp and the QS-810 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S8Q includes:
  • Sterilight Lamp (1): S810RL
  • Sterilight Quartz Sleeve (1): QS-810
  • Sterilight O-Rings (2): 410867
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.

Weight & Dimensions

Approx Length (Inches)

35.4 Inches

Power Supply Dimensions

7.3"x3.2"x2.5"

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

2.5 Inches

Features

Visual Power On

Flow Rate

20 Gallons Per Minute (16mJ/cm2 Dose); 10 Gallons Per Minute (30mJ/cm2 Dose); 7.7 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/4" MPT

Number Of Lamps

1

Operating Pressure Range

5-125 PSI

Power

46 Watts

Type

UVC

Voltage

100-240 V

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
