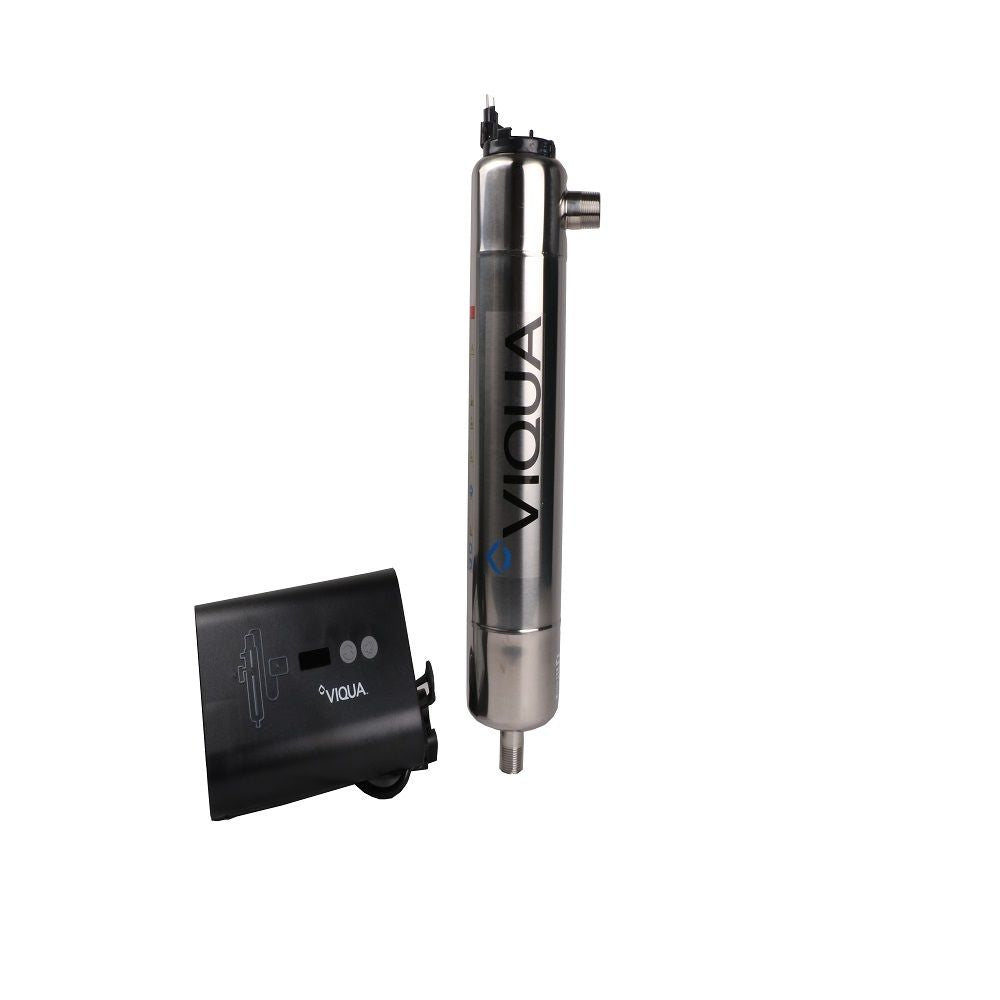

Viqua D4 Ultraviolet Water System Powered by UVMax 12 gpm

Part Number: 650694

Alt. Part Number: 650694 (120v), 650696 (230v), 650694-R

In Stock

out of stock

In Stock

$575.00


The quality of your drinking water can change with time and can become contaminated with harmful bacteria. The Viqua D4 Ultraviolet Disinfection System provides an economical, reliable, environmentally-safe and chemical-free alternative to chemical disinfection. Whether you are on municipal or private well water, the Viqua D4 Whole-House UV Disinfection System will be perfect for reducing harmful bacteria, viruses and microorganisms such as Giardia, Cryptosporidium, and E.Coli.


Weight & Dimensions

Approx Length (Inches)

20.5 Inches

Power Supply Dimensions

8.5"x6"

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

4 Inches

Flow Rate

23 Gallons Per Minute (16mJ/cm2 Dose), 12 Gallons Per Minute (30mJ/cm2 Dose), 9 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/4" MPT

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

50 Watts

Voltage

120 V

Warranty & Certifications

Certifications

CE Standards

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors
