Polaris Scientific UV

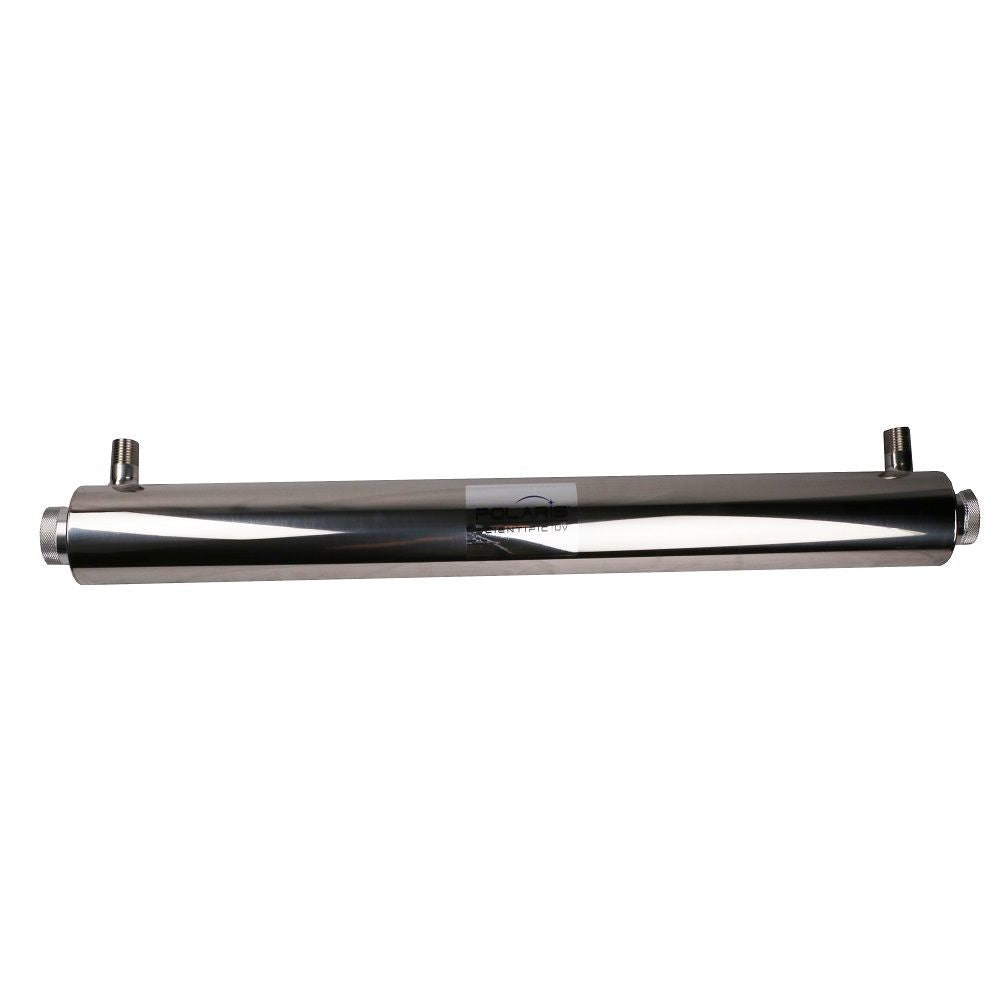

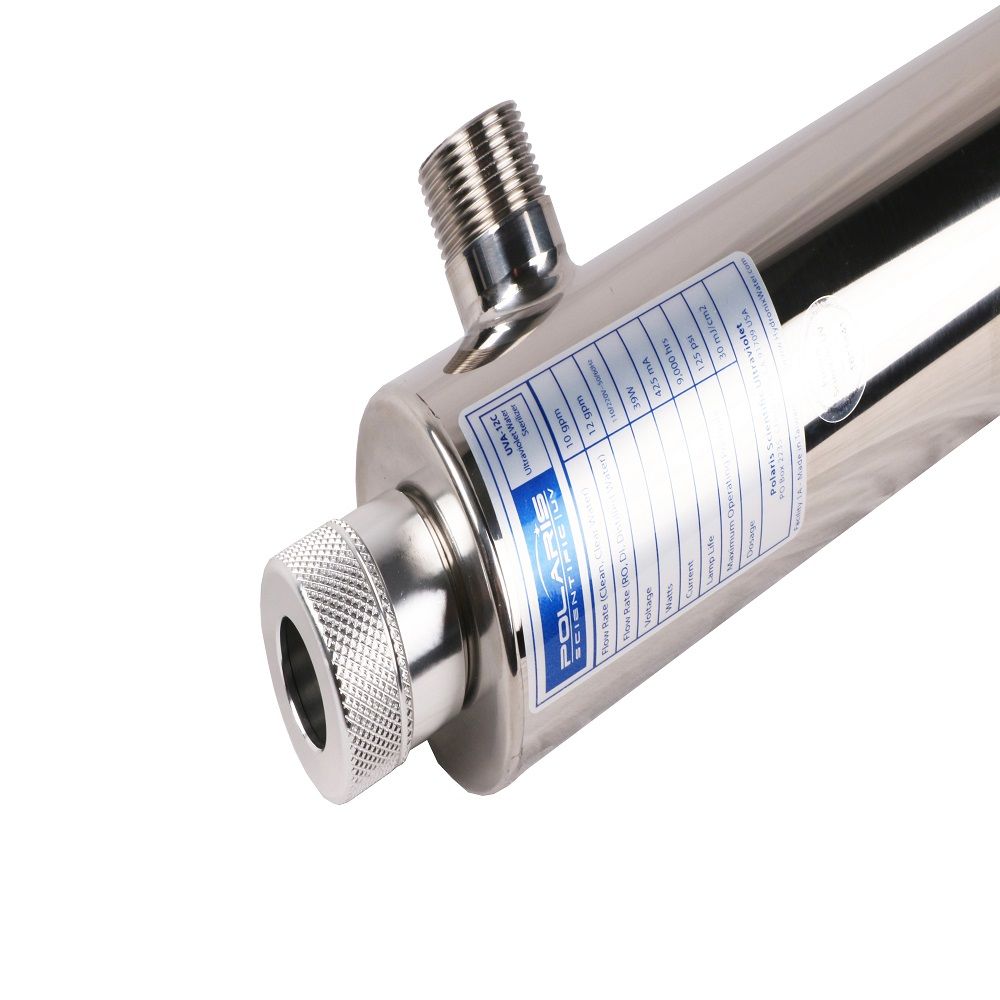

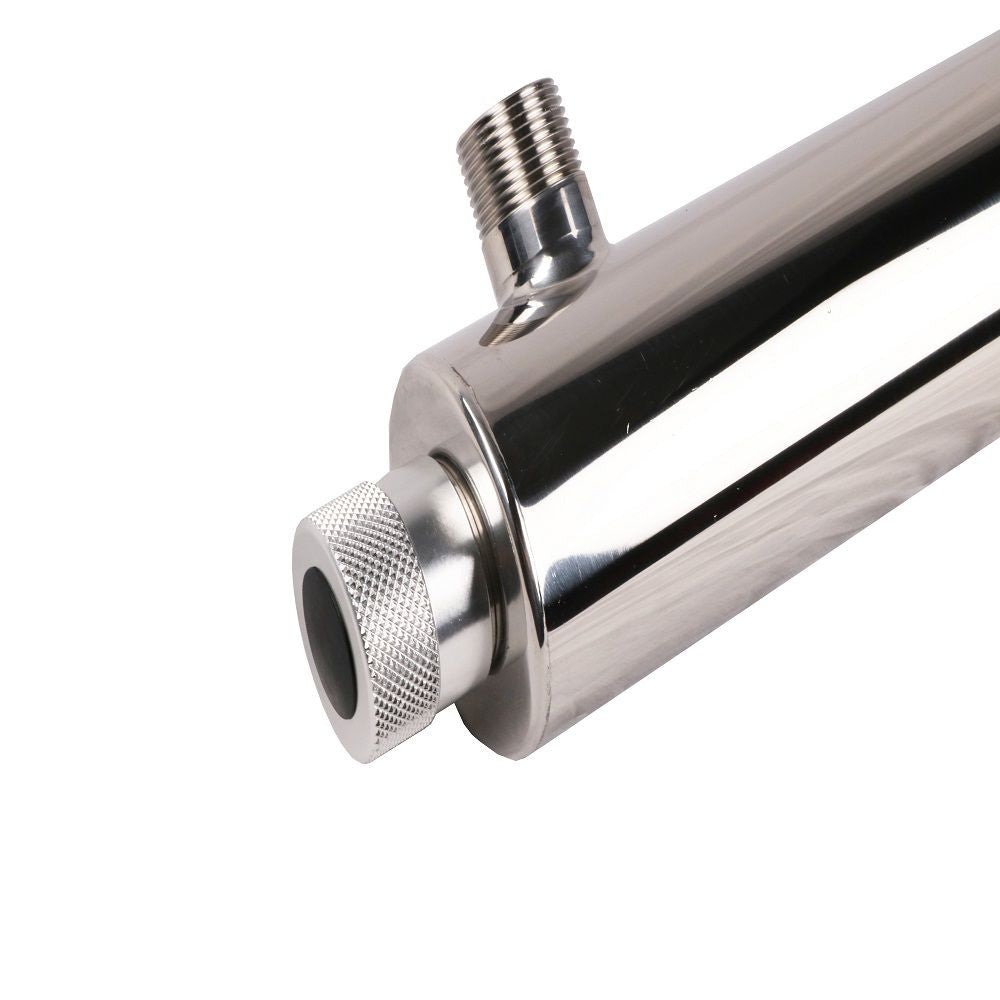

Polaris UVA-12C Ultraviolet Disinfection System 12 gpm

Part Number: PSUV-12C

In Stock

out of stock

In Stock

$348.58

The Polaris UVA-12C Ultraviolet Disinfection System features a polished 304 stainless steel reactor chamber making it suitable laboratory or medical use as well as residential applications. Installation is quick and easy, requiring only two water connections and one electrical connection. The UVA-12C has an audible alarm to alert you if the lamp has failed.

Applications:
  • Light Commercial RO Systems
  • Food Industry
  • Medical Facility Water
  • Cosmetic Proceses
  • Recirculation Loops
  • Water Vending Machines
  • Laboratory
  • Pharmaceutical
  • Final Electronic Rinsing
Features:
  • Polished 304 stainless steel UVA chamber
  • No toxic chemicals or by-products such as trihalomethanes (THM)
  • Audible lamp failure alarm on ballast
  • Inlet/Outlet: 3/4" MNPT
  • Flow Rate: 12 gpm




Weight & Dimensions

Height (inches)

4.5

Length (inches)

42

Weight (lbs)

8.45

Width (inches)

5.5

Details

Ambient Temperature Range

35-104 °F

Body Material

304 Stainless Steel

Contaminants Reduced

Bacteria

Diameter

2-1/2"

Features

Audible Lamp Failure

Flow Rate

12 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Inlet/Outlet Connection

3/4" MPT

Max Pressure (Psi)

125

Number Of Lamps

1

Power

39 W

Size

3/4"

System Class

Commercial Systems

Voltage

110 V

Warranty & Certifications

Warranty

UV Chamber: 5 years - Other components: 1 year


Polaris

Polaris




The Polaris UVA-12C Ultraviolet Disinfection System features a polished 304 stainless steel reactor chamber making it suitable laboratory or medical use as well as residential applications. Installation is quick and easy, requiring only two water connections and one electrical connection. The UVA-12C has an audible alarm to alert you if the lamp has failed.

Applications:
  • Light Commercial RO Systems
  • Food Industry
  • Medical Facility Water
  • Cosmetic Proceses
  • Recirculation Loops
  • Water Vending Machines
  • Laboratory
  • Pharmaceutical
  • Final Electronic Rinsing
Features:
  • Polished 304 stainless steel UVA chamber
  • No toxic chemicals or by-products such as trihalomethanes (THM)
  • Audible lamp failure alarm on ballast
  • Inlet/Outlet: 3/4" MNPT
  • Flow Rate: 12 gpm



Weight & Dimensions

Height (inches)

4.5

Length (inches)

42

Weight (lbs)

8.45

Width (inches)

5.5

Details

Ambient Temperature Range

35-104 °F

Body Material

304 Stainless Steel

Contaminants Reduced

Bacteria

Diameter

2-1/2"

Features

Audible Lamp Failure

Flow Rate

12 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Inlet/Outlet Connection

3/4" MPT

Max Pressure (Psi)

125

Number Of Lamps

1

Power

39 W

Size

3/4"

System Class

Commercial Systems

Voltage

110 V

Warranty & Certifications

Warranty

UV Chamber: 5 years - Other components: 1 year
