Viqua

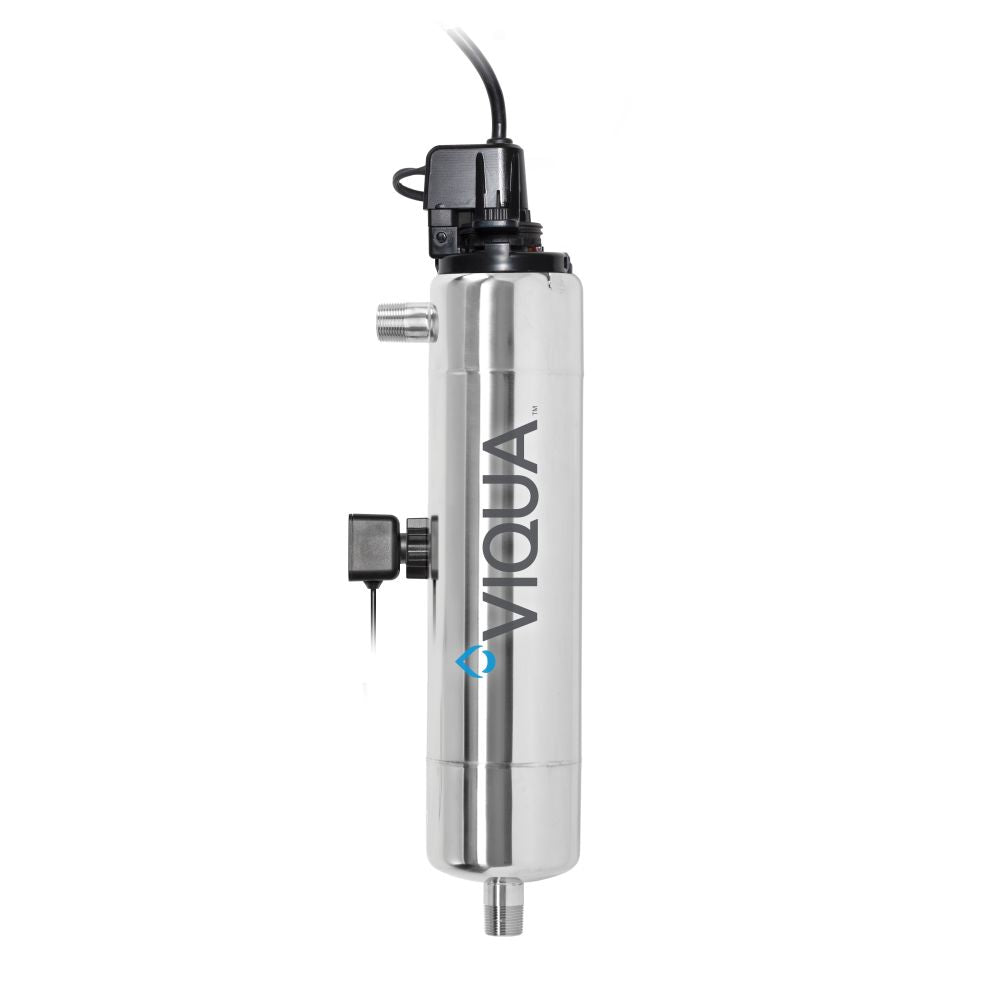

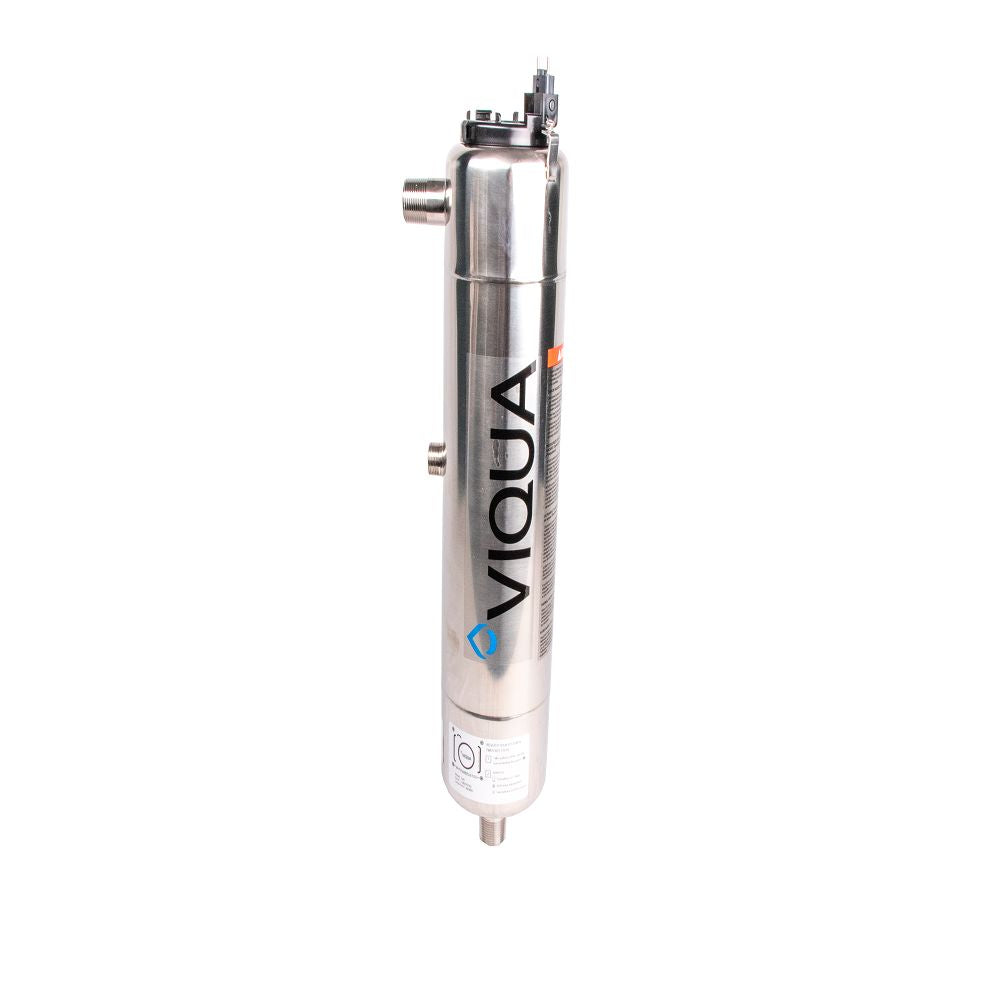

Viqua D4 Plus Ultraviolet Water System Powered by UVMax 12 gpm

Part Number: 650695

Alt. Part Number: 650695 (120v), 650697 (230v), 660089-R

In Stock

out of stock

In Stock

$995.00


Viqua D4 Plus Ultraviolet Water System is a whole house ultraviolet disinfection water treatment system that offers a 12 gpm water flow rate and removes harmful bacteria, virus, and microorganisms. The Viqua D4 Plus compact design, simple installation, and low cost of operation is ideal for small to medium size home. Drink confidently with Viqua D4 Plus for quality and reliability from its high-output ultraviolet water purification system.

Specifications:
  • Three-Year Warranty High-Output UV Lamp
  • Universal power input
  • UV intensity monitor with diagnostic test
  • Viqua controller with water-resistant case
  • LED display showing lamp replacement reminder
  • Indicator lights show the status of each system component

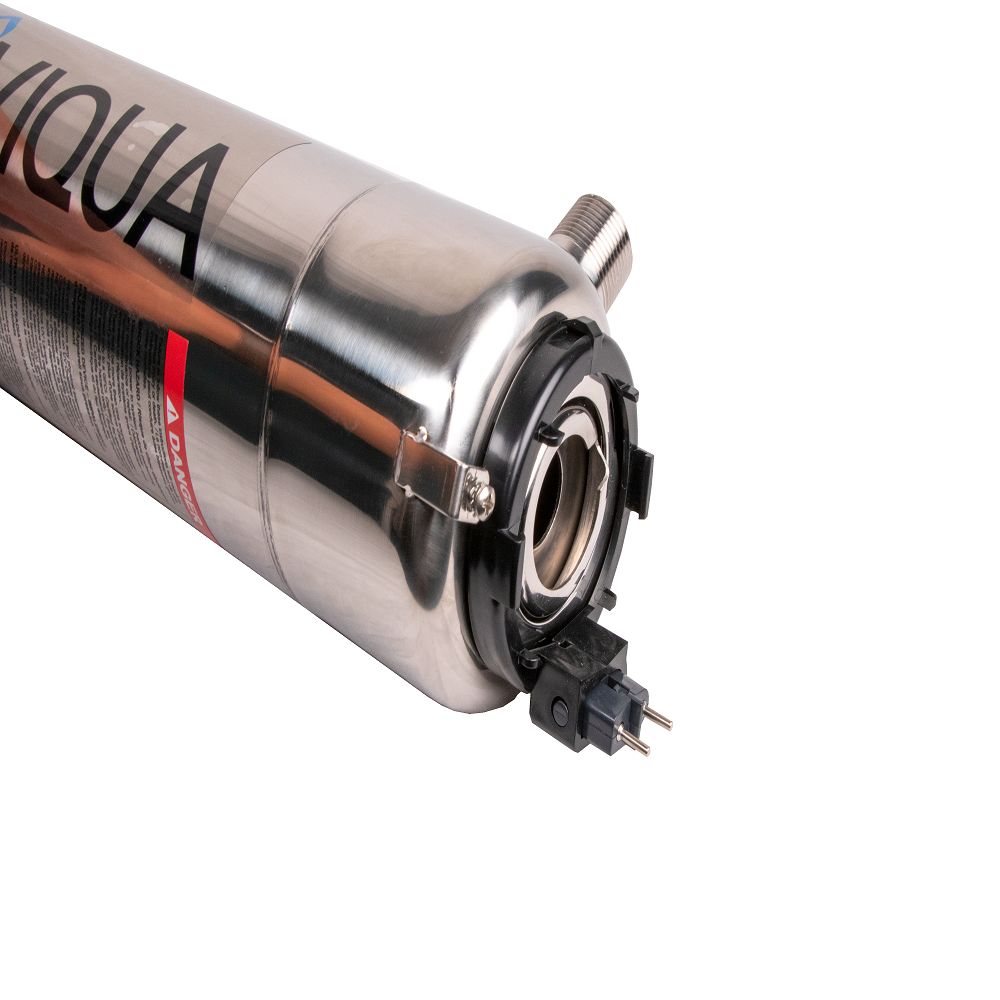

  • Stainless steel chamber with safety cap and special lamp plug
  • Lamp timer reset button and mute button to silence audio alarm
NOTE: This system is compatible with the 602805 Trojan Lamp and the 602732 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for D4 Plus includes:

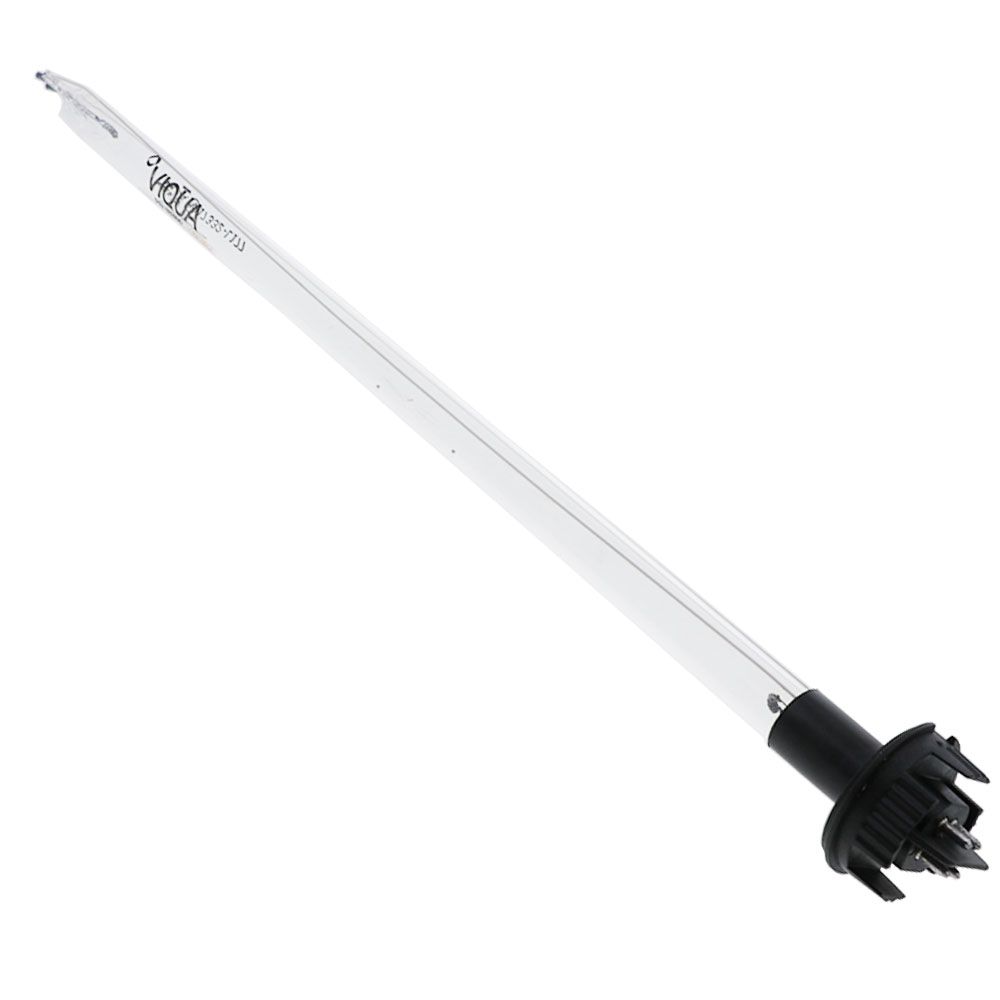

  • Trojan Lamp (1): 602805
  • Trojan Quartz Sleeve (1): 602732
  • Trojan O-Rings (2): 2045


Weight & Dimensions

Approx Length (Inches)

20.5 Inches

Power Supply Dimensions

8.5"x6"

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

4 Inches

Features

Audible Lamp Failure

Flow Rate

23 Gallons Per Minute (16mJ/cm2 Dose), 12 Gallons Per Minute (30mJ/cm2 Dose), 9 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/4" MPT

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

50 Watts

Voltage

120 V

Installation

Vertical

Warranty & Certifications

Certifications

CE Standards

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors


Viqua





Viqua D4 Plus Ultraviolet Water System is a whole house ultraviolet disinfection water treatment system that offers a 12 gpm water flow rate and removes harmful bacteria, virus, and microorganisms. The Viqua D4 Plus compact design, simple installation, and low cost of operation is ideal for small to medium size home. Drink confidently with Viqua D4 Plus for quality and reliability from its high-output ultraviolet water purification system.

Specifications:
  • Three-Year Warranty High-Output UV Lamp
  • Universal power input
  • UV intensity monitor with diagnostic test
  • Viqua controller with water-resistant case
  • LED display showing lamp replacement reminder
  • Indicator lights show the status of each system component
  • Stainless steel chamber with safety cap and special lamp plug
  • Lamp timer reset button and mute button to silence audio alarm
NOTE: This system is compatible with the 602805 Trojan Lamp and the 602732 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for D4 Plus includes:
  • Trojan Lamp (1): 602805
  • Trojan Quartz Sleeve (1): 602732
  • Trojan O-Rings (2): 2045

Weight & Dimensions

Approx Length (Inches)

20.5 Inches

Power Supply Dimensions

8.5"x6"

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

4 Inches

Features

Audible Lamp Failure

Flow Rate

23 Gallons Per Minute (16mJ/cm2 Dose), 12 Gallons Per Minute (30mJ/cm2 Dose), 9 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/4" MPT

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

50 Watts

Voltage

120 V

Installation

Vertical

Warranty & Certifications

Certifications

CE Standards

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors
