Viqua

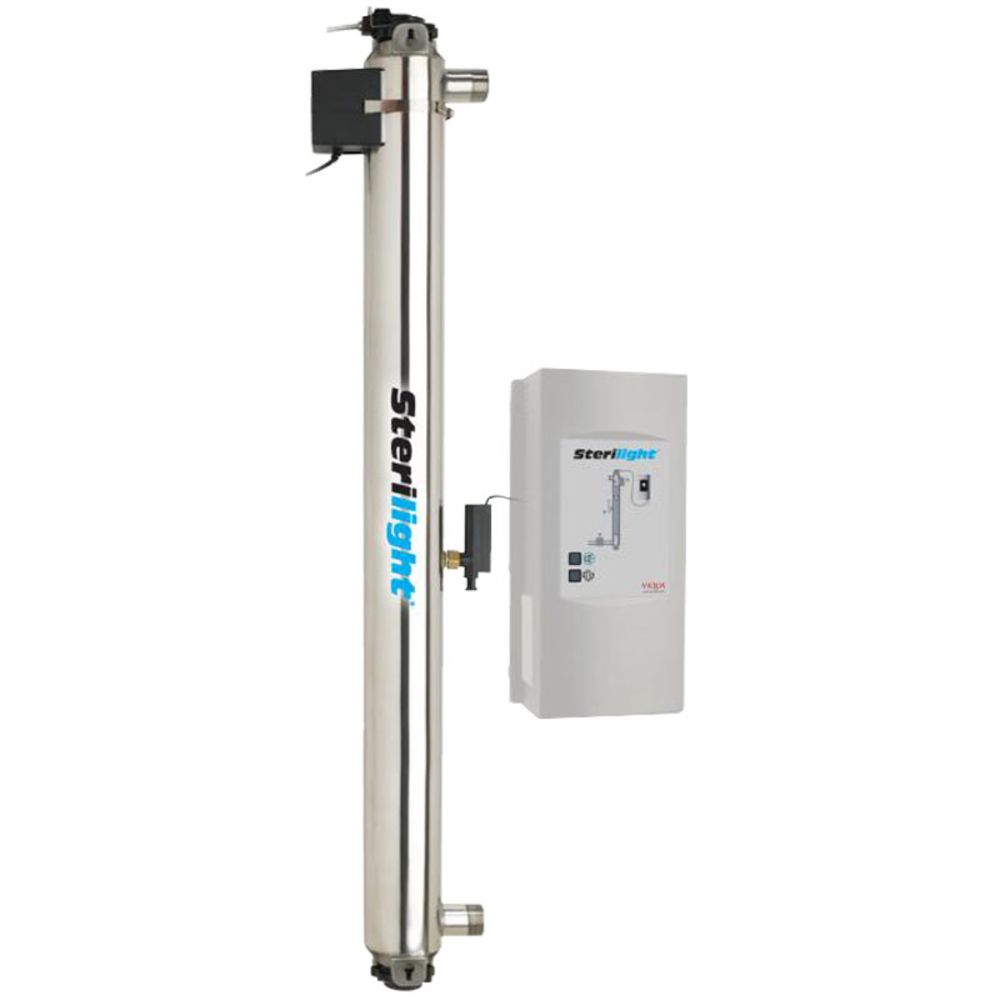

Viqua Sterilight SM80 Light Commercial UV Water Treatment System

Part Number: SM80

In Stock

out of stock

The Viqua Sterilight SM80 UV Water Treatment System utilizes Viqua's revolutionary lamp, giving the system twice the output of current high-output systems. The system significantly reduces water temperature, and does not waste any water.

Specifications:
  • Controller offers intuitive interface w/ alarm mute button, new lamp button, and UV intensity monitor w/ diagnostic test.
  • Type 316 stainless steel reactor
  • System delivers a 30 mJ/cm dose at end of lamp life
  • Cool Touch fan reduces elevated water temperatures
  • LP HO amalgam based UV lamp has a 2 year life
  • Color coded plug and play connections
  • Easy to read LED indicators for:
  • Lamp age
  • Lamp operation
  • Ballast operation
  • Solenoid operation
  • Fan operation
  • Sensor reading
This system is compatible with the S37RL-AM Sterilight Lamp and the QS-37 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SM80 includes:
  • Sterilight Lamp (1): S37RL-AM
  • Sterilight Quartz Sleeve (1): QS-37
  • Sterilight O-Ring (1): 2233




Weight & Dimensions

Approx Length (Inches)

41"

Power Supply Dimensions

13" x 6-1/2"

Weight (lbs)

31

Details

Ambient Temperature Range

32-104 °F

Body Material

316 Stainless Steel

Features

UV Intensity Monitor, Audible Lamp Failure

Frequency

50/60 Hz

Inlet/Outlet Connection

2" MPT

Max Pressure (Psi)

100

Min Pressure (Psi)

10

Number Of Lamps

1

Power

230 W

Size

2"

System Class

Commercial Systems

Connection Type

Male (MPT)

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Diameter

4"

Flow Rate

80 GPM (30mJ/cm2 Dose)

Type

Single UV System

Voltage

120 V

Warranty & Certifications

Certifications

CE Standards

Warranty

10 yr for chamber, 1 yr for lamps and UV intensity monitors, 5 yr on the power supply and all electrical components




The Viqua Sterilight SM80 UV Water Treatment System utilizes Viqua's revolutionary lamp, giving the system twice the output of current high-output systems. The system significantly reduces water temperature, and does not waste any water.

Specifications:
  • Controller offers intuitive interface w/ alarm mute button, new lamp button, and UV intensity monitor w/ diagnostic test.
  • Type 316 stainless steel reactor
  • System delivers a 30 mJ/cm dose at end of lamp life
  • Cool Touch fan reduces elevated water temperatures
  • LP HO amalgam based UV lamp has a 2 year life
  • Color coded plug and play connections
  • Easy to read LED indicators for:
  • Lamp age
  • Lamp operation
  • Ballast operation
  • Solenoid operation
  • Fan operation
  • Sensor reading
This system is compatible with the S37RL-AM Sterilight Lamp and the QS-37 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SM80 includes:
  • Sterilight Lamp (1): S37RL-AM
  • Sterilight Quartz Sleeve (1): QS-37
  • Sterilight O-Ring (1): 2233

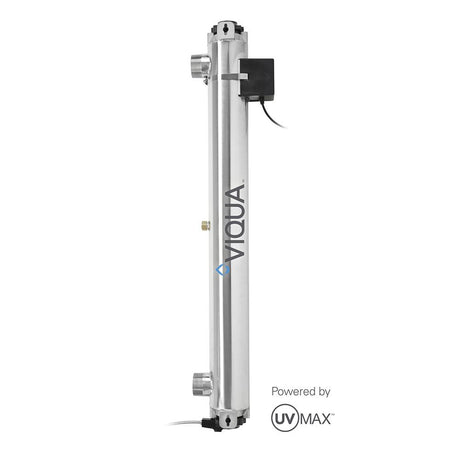

NOTE: This item is discontinued. We recommend the Viqua K Plus Monitored Ultraviolet Water System Powered by UVMax 80 gpm - 120 Volt as a substitute.

Weight & Dimensions

Approx Length (Inches)

41"

Power Supply Dimensions

13" x 6-1/2"

Weight (lbs)

31

Details

Ambient Temperature Range

32-104 °F

Body Material

316 Stainless Steel

Features

UV Intensity Monitor, Audible Lamp Failure

Frequency

50/60 Hz

Inlet/Outlet Connection

2" MPT

Max Pressure (Psi)

100

Min Pressure (Psi)

10

Number Of Lamps

1

Power

230 W

Size

2"

System Class

Commercial Systems

Connection Type

Male (MPT)

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Diameter

4"

Flow Rate

80 GPM (30mJ/cm2 Dose)

Type

Single UV System

Voltage

120 V

Warranty & Certifications

Certifications

CE Standards

Warranty

10 yr for chamber, 1 yr for lamps and UV intensity monitors, 5 yr on the power supply and all electrical components
