Viqua

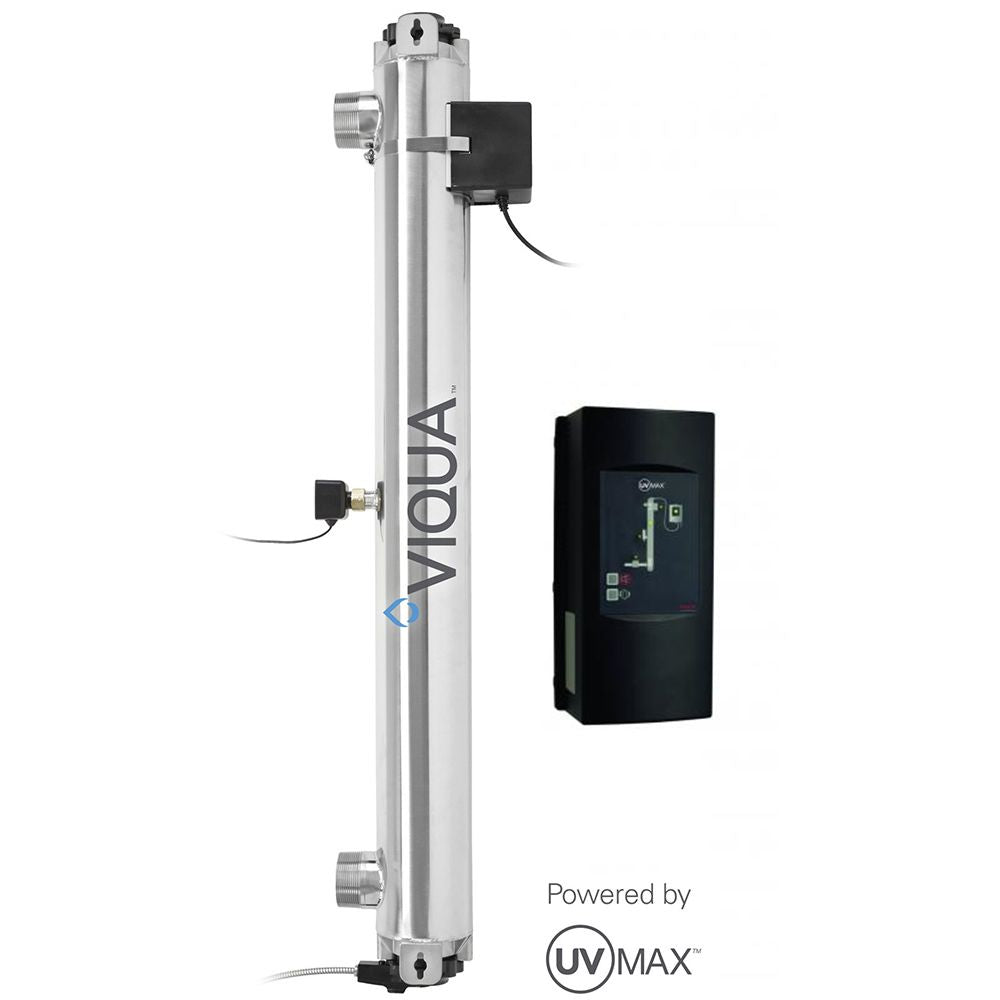

Viqua K Plus Monitored Ultraviolet Water System Powered by UVMax 80 gpm - 120 Volt

Part Number: 660002-R

In Stock

out of stock

In Stock

$4,839.00


The Viqua K Plus Ultraviolet (UV) water purification and disinfection system reduces harmful contaminants such as bacteria, virus and microorganisms from water, ensuring safe water. Drink confidently with Viqua's quality and reliability from its high-output water purification system, the Viqua K Plus Light Commercial UV System.
Features:
  • Type 316 stainless steel reactor

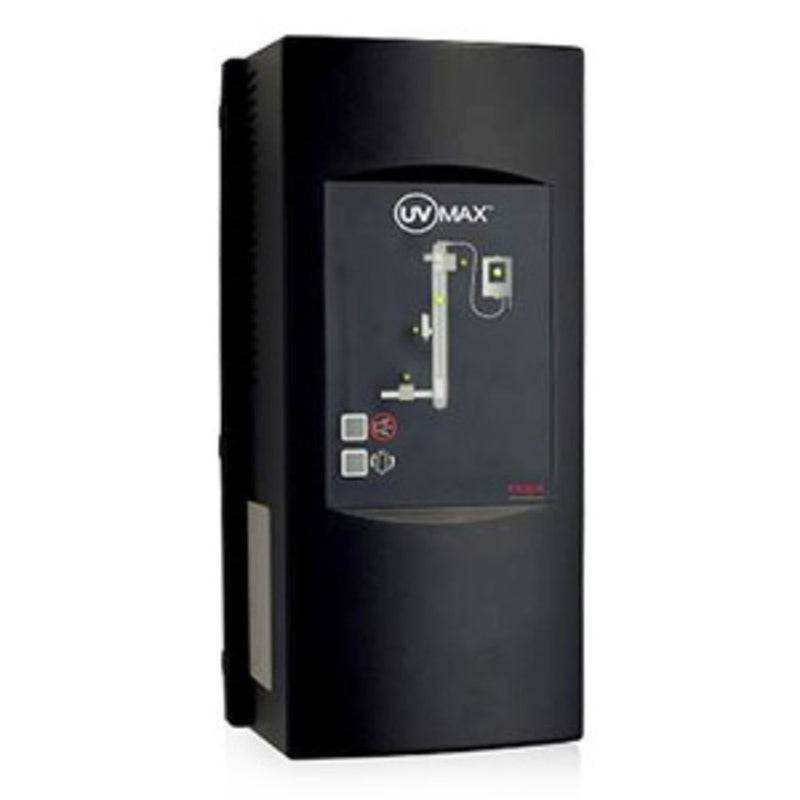

  • Controller offers intuitive interface w/ alarm mute button, new lamp button
  • Plus Series also features a UV intensity monitor with a diagnostic test.
  • System delivers a 30 mJ/cm dose at end of lamp life
  • Cool Touch fan reduces elevated water temperatures
  • LP HO amalgam based UV lamp has a 2 year life
  • Color coded plug and play connections
  • Easy to read LED indicators for:
  • Lamp age
  • Lamp operation
  • Ballast operation
  • Solenoid operation
  • Fan operation
  • Sensor reading

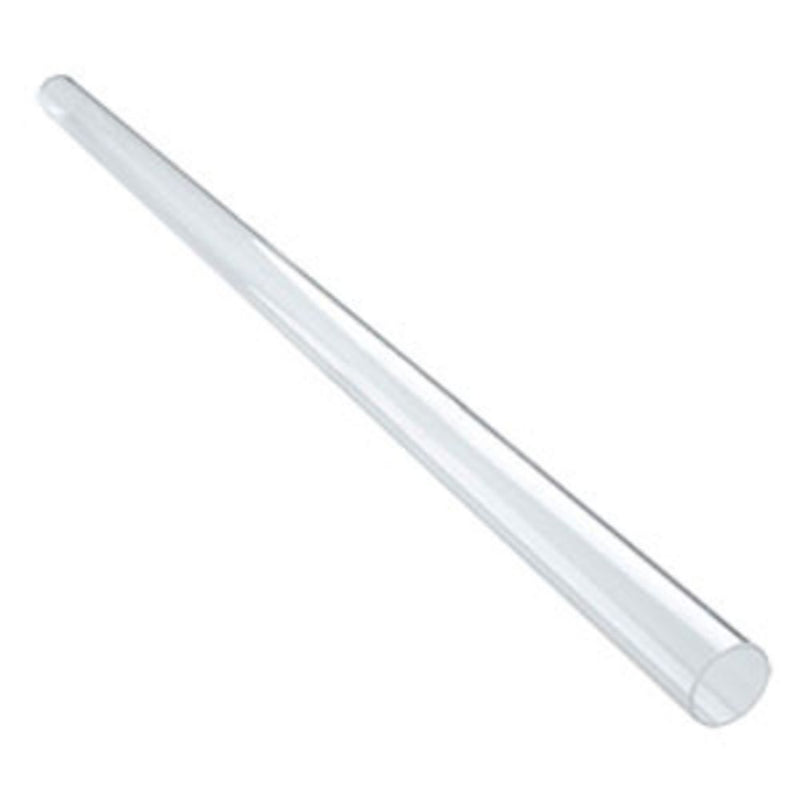

This system is compatible with the 602856 Trojan Lamp and the 602976 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for K Plus includes:
  • Trojan Lamp (1): 602856
  • Trojan Quartz Sleeve (1): 602976
  • Trojan O-Rings (2): 2233
Cost-Effective Alternative by Viqua

The Viqua Sterilight SM80 UV Water Treatment System utilizes Viqua's revolutionary lamp, giving the system twice the output of current high-output systems. The system significantly reduces water temperature, and does not waste any water.

Operating Parameters
 • Maximum operating pressure  100 PSI (689kPa)
 • Minimum operating pressure  4 PSI (27 kPa)
 • Maximum Ambient Air Temperature  104° F (40° C)
 • Maximum Humidity  100%
 • Maximum Hardness  120 PPM (7 grains per gallon)
 • Maximum Iron   0.3 PPM
 • Installation  Vertical Only
Other
 • Chamber Material  316L SST
 • Rated service life of lamp  2 Years
 • Rated Flow Dose (30 mJ/cm²)  Up to 80 GPM (265 LPM)
Electrical
 • Voltage  100-240V (50-60Hz)
 • Max Current  2.4 Amp
 • Max Power Consumption  230 Watts
 • Lamp Power Consumption  200 Watts
Port Size
 • Inlet & Outlet Connections  2" MPT
Flow Rates shown are at 95% UVT


Weight & Dimensions

Power Supply Dimensions

13" x 6.5"

Details

Body Material

316 Stainless Steel Reactor

Features

UV Intensity Monitor; Audible Lamp Failure

Flow Rate

80 Gallons Per Minute (30mJ/cm2 Dose); 60 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

2" MPT

Number Of Lamps

1

Operating Pressure Range

15-100 PSI

Type

UVC

Voltage

120 V

Installation

Vertical

Warranty & Certifications

Certifications

CE Standards
