Viqua

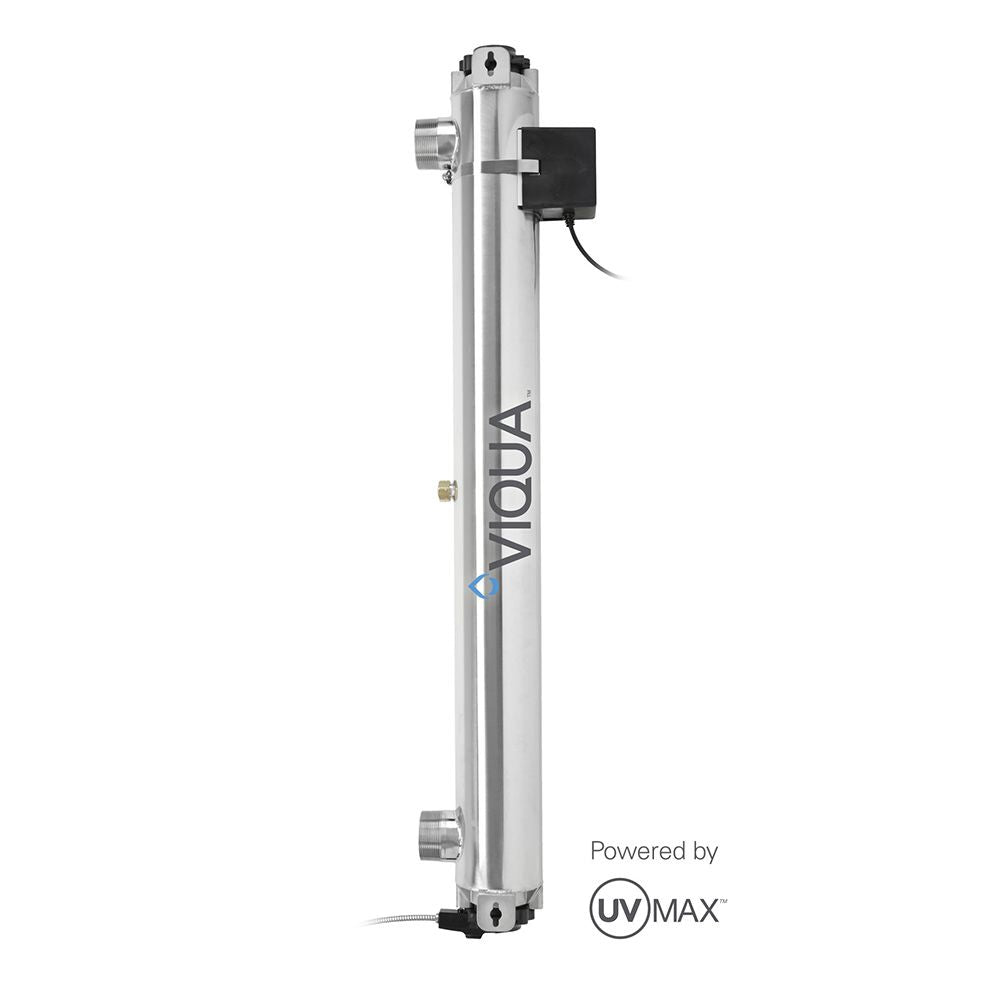

Viqua K Ultraviolet Water System Powered by UV Max 80 gpm - 120 Volt

Part Number: 660001-R

In Stock

out of stock

In Stock

$4,495.00


The Viqua K Ultraviolet water purification and disinfection system provides water free of microbial contamination. This system can be used for a variety of applications, including rural homes and cottages, hospitals, schools, hotels, and many more.
Features:
  • Type 316 stainless steel reactor
  • Controller offers intuitive interface w/ alarm mute button and new lamp button
  • System delivers a 30 mJ/cm dose at end of lamp life
  • Cool Touch fan reduces elevated water temperatures
  • LP HO amalgam based UV lamp has a 2 year life
  • Color coded plug and play connections
  • Easy to read LED indicators for:
  • Lamp age
  • Lamp operation
  • Ballast operation
  • Solenoid operation
  • Fan operation
  • Sensor reading

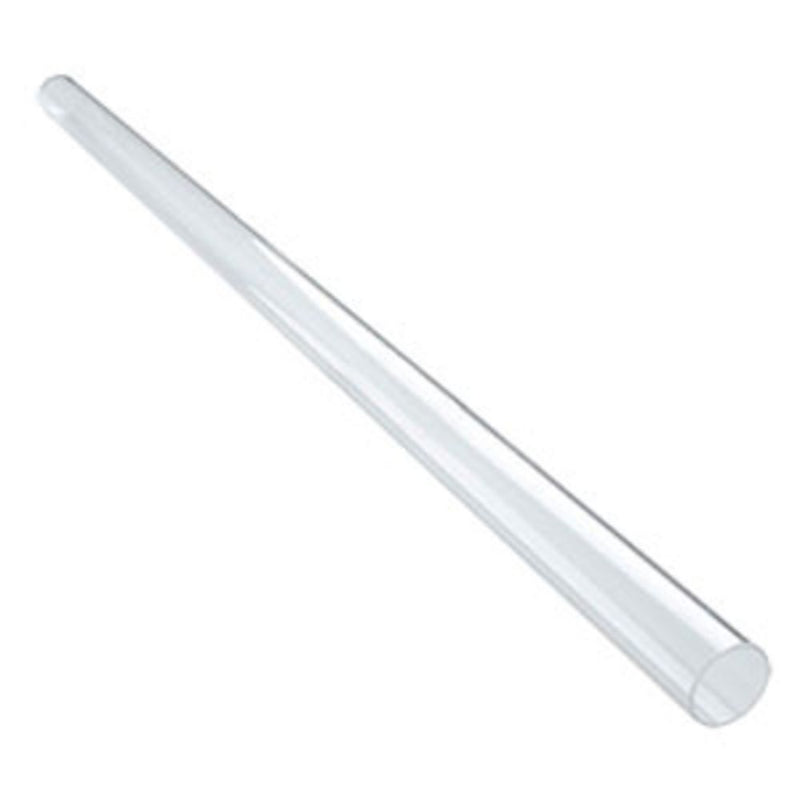

This system is compatible with the 602856 Trojan Lamp and the 602976 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for K includes:
  • Trojan Lamp (1): 602856
  • Trojan Quartz Sleeve (1): 602976

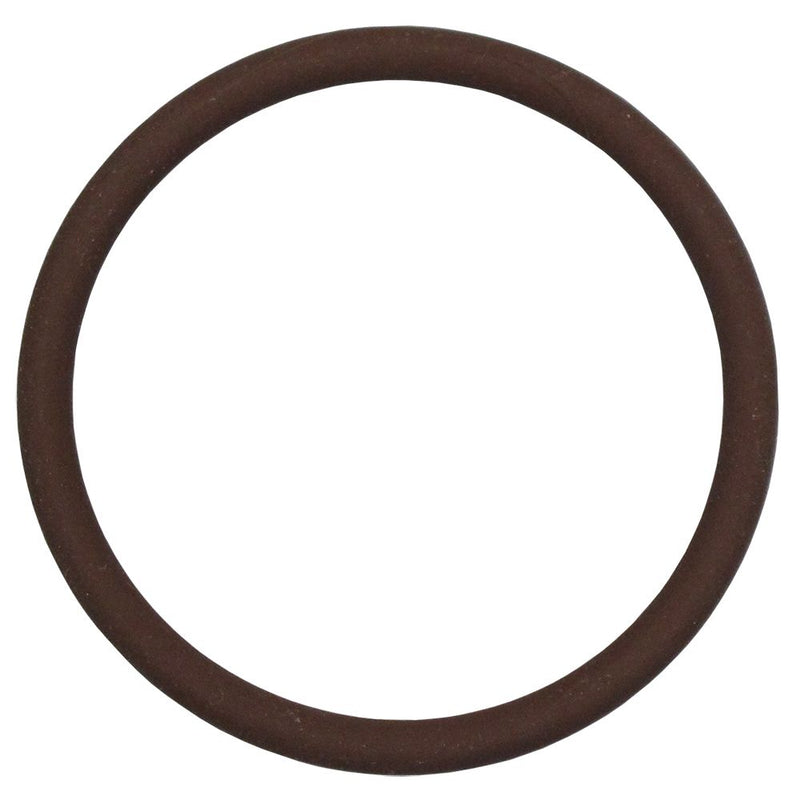

  • Trojan O-Rings (2): 2233

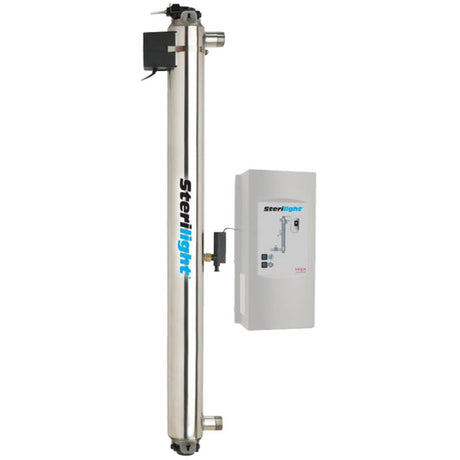

Cost-Effective Alternative by Viqua

The Viqua Sterilight SM80 UV Water Treatment System utilizes Viqua's revolutionary lamp, giving the system twice the output of current high-output systems. The system significantly reduces water temperature, and does not waste any water.



Operating Parameters
 • Maximum operating pressure  100 PSI (689kPa)
 • Minimum operating pressure  4 PSI (27 kPa)
 • Maximum Ambient Air Temperature  104° F (40° C)
 • Maximum Humidity  100%
 • Maximum Hardness  120 PPM (7 grains per gallon)
 • Maximum Iron   0.3 PPM
 • Installation  Vertical Only
Other
 • Chamber Material  316L SST
 • Rated service life of lamp  2 Years
 • Rated Flow Dose (30 mJ/cm²)  Up to 80 GPM (265 LPM)
Electrical
 • Voltage  100-240V (50-60Hz)
 • Max Current  2.4 Amp
 • Max Power Consumption  230 Watts
 • Lamp Power Consumption  200 Watts
Port Size
 • Inlet & Outlet Connections  2" MPT
Flow Rates shown are at 95% UVT


Weight & Dimensions

Power Supply Dimensions

13" x 6.5"

Details

Body Material

316 Stainless Steel Reactor

Features

UV Intensity Monitor, Audible Lamp Failure

Flow Rate

80 Gallons Per Minute (30mJ/cm2 Dose), 60 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

2" MPT

Number Of Lamps

1

Operating Pressure Range

15-100 PSI

Voltage

230 V

Installation

Vertical

Warranty & Certifications

Certifications

CE Standards
