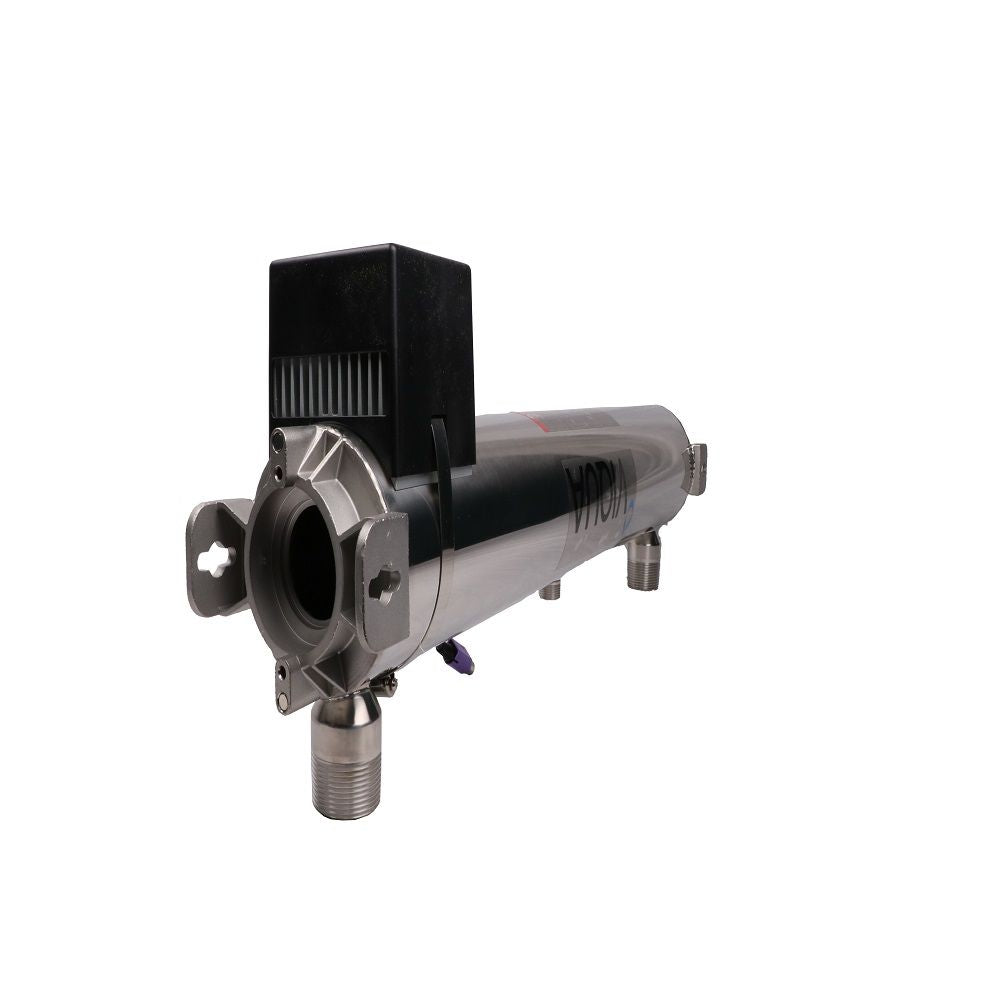

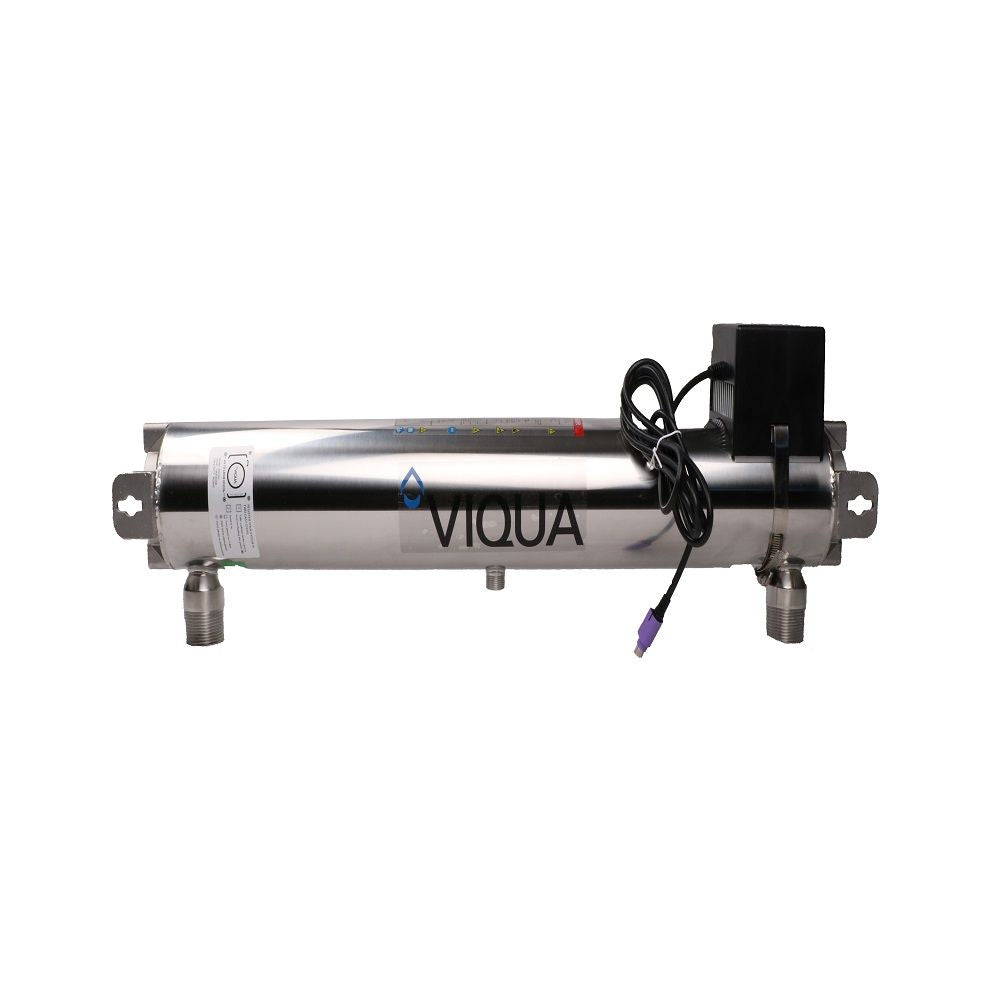

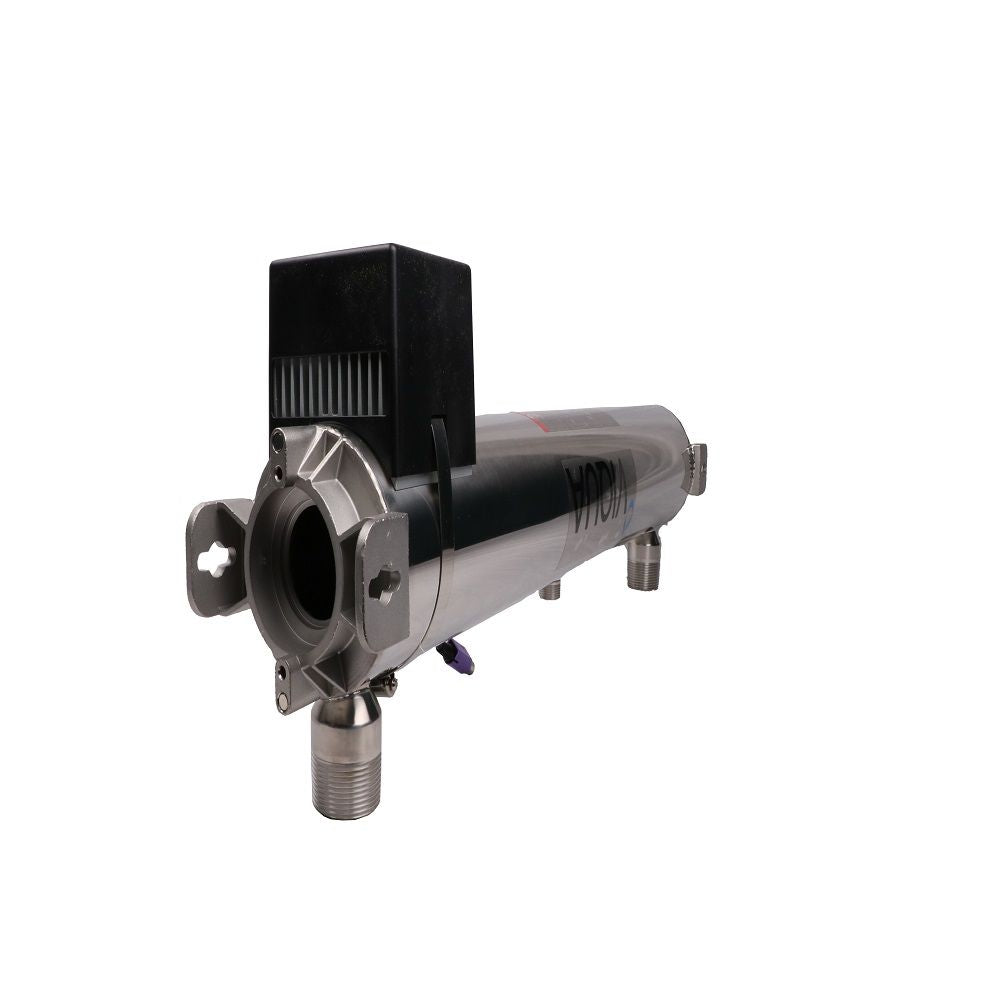

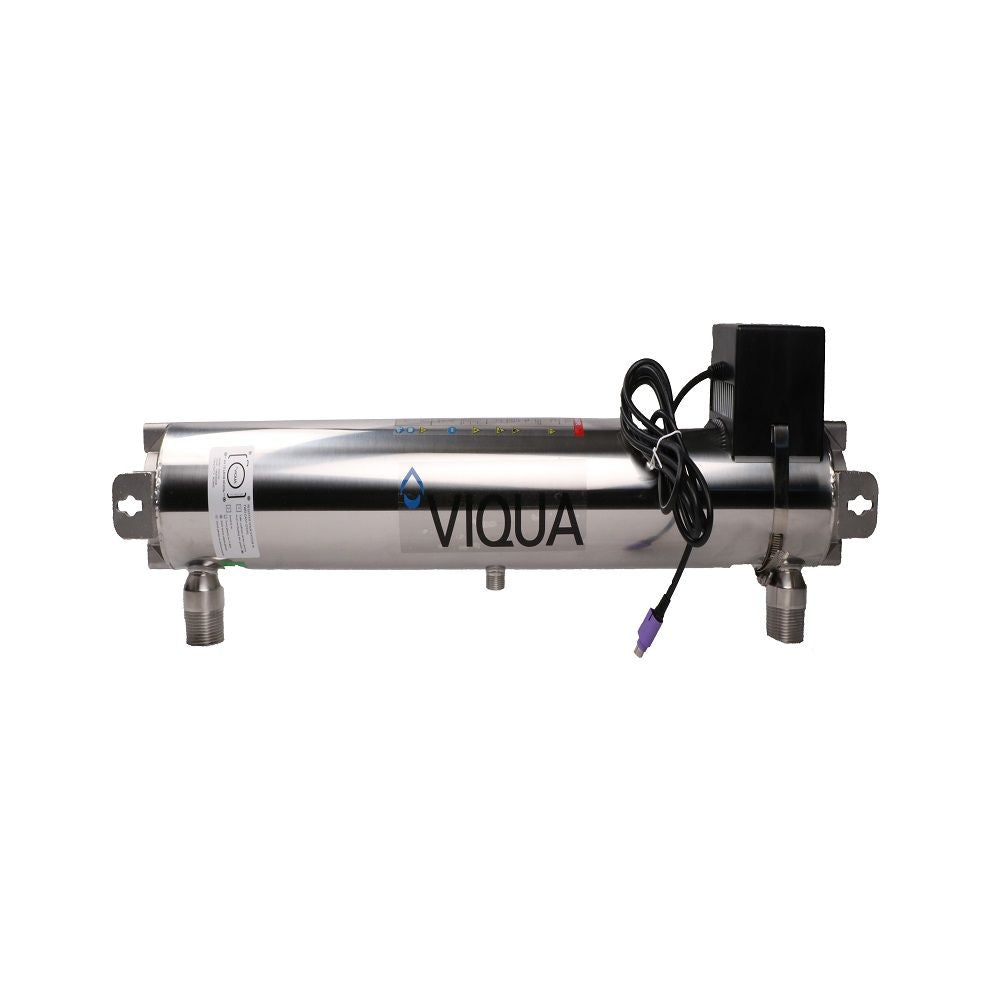

Viqua Pro20 NSF Class A Monitored UV System Powered by UVMax 20 gpm
Part Number: 650653
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Type 316 stainless steel reactor
- Color coded plug and play connections
- UV lamp has twice the output of current high-output lamps, & lasts two years, reducing maintenance requirements
- UV intensity monitor with diagnostic test
- CoolTouch fan significantly reduces water temperature, and doesn't waste any water
- Solenoid Valve Kit w/ manual override for shocking the water lines is also available

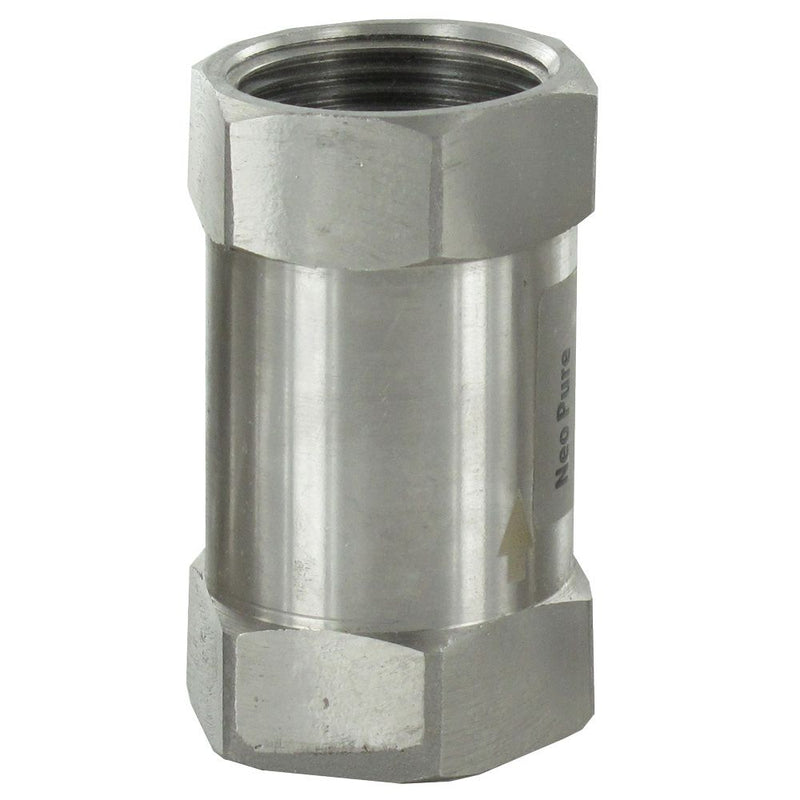

- Dynamic flow restrictor
- Fully NSF certified to NSF/ANSI Standard 55 Class A
- Full 5 year warranty
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.

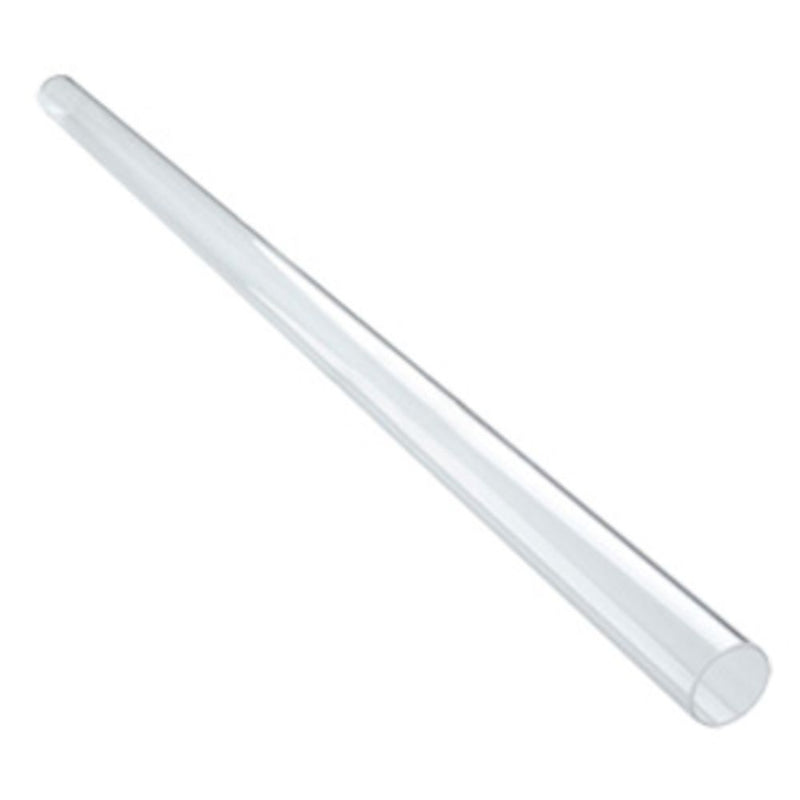

This system is compatible with the 602855 Trojan Lamp and the 602975 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for Pro20 includes:
- Trojan Lamp (1): 602855
- Trojan Quartz Sleeve (1): 602975
- Trojan O-Rings (2): 2233
Compatible with:
UVMax | Trojan Pro20 |
Product Details | |
---|---|
Ambient Temperature Range | 32-104 °F |
Body Material | 316 Stainless Steel |
Features | UV Intensity Monitor Audible Lamp Failure Visual Power On Lamp Timer Flow Pacing - Sensor Diagnostic Check Flow Restrictor |
Frequency Rate | 50/60 Hz |
Inlet Connection | 1-1/4" MPT 1" FPT |
Max Pressure (Psi) | 100 |
Min Pressure (Psi) | 10 |
Number Of Lamps | 1 |
Outlet Connection | 1-1/4" MPT 1" FPT |
Power | 160 Watts |
Size | 1-1/4" 1" |
System Class | Commercial Systems |
Connection Type | Male (MPT) Female (FPT) |
Contaminants Reduced | Bacteria Heavy Metals Cysts |
Diameter | 4" |
Flow Rate | 20 GPM |
Type | Single UV System |
Voltage | 120 V,230 V |
Warranty & Certifications | |
Certifications | NSF/ANSI Standard 55, Class A, CE Standards |
Shipping Dimensions | |
Shipping Length | 39 in. |
Shipping Width | 7.75 in. |
Shipping Height | 15.25 in. |
Product Weight & Dimensions | |
Power Supply Dimensions | 13" x 6-1/2" |
Product Height | 15.25 in. |
Product Length | 39 in. |
Product Width | 7.75 in. |
Product Weight (lbs) | 28.8 |
Product Details | |
---|---|
Ambient Temperature Range | 32-104 °F |
Body Material | 316 Stainless Steel |
Features | UV Intensity Monitor Audible Lamp Failure Visual Power On Lamp Timer Flow Pacing - Sensor Diagnostic Check Flow Restrictor |
Frequency Rate | 50/60 Hz |
Inlet Connection | 1-1/4" MPT 1" FPT |
Max Pressure (Psi) | 100 |
Min Pressure (Psi) | 10 |
Number Of Lamps | 1 |
Outlet Connection | 1-1/4" MPT 1" FPT |
Power | 160 Watts |
Size | 1-1/4" 1" |
System Class | Commercial Systems |
Connection Type | Male (MPT) Female (FPT) |
Contaminants Reduced | Bacteria Heavy Metals Cysts |
Diameter | 4" |
Flow Rate | 20 GPM |
Type | Single UV System |
Voltage | 120 V,230 V |
Warranty & Certifications | |
Certifications | NSF/ANSI Standard 55, Class A, CE Standards |
Shipping Dimensions | |
Shipping Length | 38.5 in. |
Shipping Width | 14.75 in. |
Shipping Height | 7.5 in. |
Product Weight & Dimensions | |
Power Supply Dimensions | 13" x 6-1/2" |
Product Height | 7.5 in. |
Product Length | 38.5 in. |
Product Width | 14.75 in. |
Product Weight (lbs) | 29 |
Specifications:
- Type 316 stainless steel reactor
- Color coded plug and play connections
- UV lamp has twice the output of current high-output lamps, & lasts two years, reducing maintenance requirements
- UV intensity monitor with diagnostic test
- CoolTouch fan significantly reduces water temperature, and doesn't waste any water
- Solenoid Valve Kit w/ manual override for shocking the water lines is also available
- Dynamic flow restrictor
- Fully NSF certified to NSF/ANSI Standard 55 Class A
- Full 5 year warranty
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
This system is compatible with the 602855 Trojan Lamp and the 602975 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for Pro20 includes:
- Trojan Lamp (1): 602855
- Trojan Quartz Sleeve (1): 602975
- Trojan O-Rings (2): 2233
Compatible with:
UVMax | Trojan Pro20 |
Product Details | |
---|---|
Ambient Temperature Range | 32-104 °F |
Body Material | 316 Stainless Steel |
Features | UV Intensity Monitor Audible Lamp Failure Visual Power On Lamp Timer Flow Pacing - Sensor Diagnostic Check Flow Restrictor |
Frequency Rate | 50/60 Hz |
Inlet Connection | 1-1/4" MPT 1" FPT |
Max Pressure (Psi) | 100 |
Min Pressure (Psi) | 10 |
Number Of Lamps | 1 |
Outlet Connection | 1-1/4" MPT 1" FPT |
Power | 160 Watts |
Size | 1-1/4" 1" |
System Class | Commercial Systems |
Connection Type | Male (MPT) Female (FPT) |
Contaminants Reduced | Bacteria Heavy Metals Cysts |
Diameter | 4" |
Flow Rate | 20 GPM |
Type | Single UV System |
Voltage | 120 V,230 V |
Warranty & Certifications | |
Certifications | NSF/ANSI Standard 55, Class A, CE Standards |
Shipping Dimensions | |
Shipping Length | 39 in. |
Shipping Width | 7.75 in. |
Shipping Height | 15.25 in. |
Product Weight & Dimensions | |
Power Supply Dimensions | 13" x 6-1/2" |
Product Height | 15.25 in. |
Product Length | 39 in. |
Product Width | 7.75 in. |
Product Weight (lbs) | 28.8 |
Product Details | |
---|---|
Ambient Temperature Range | 32-104 °F |
Body Material | 316 Stainless Steel |
Features | UV Intensity Monitor Audible Lamp Failure Visual Power On Lamp Timer Flow Pacing - Sensor Diagnostic Check Flow Restrictor |
Frequency Rate | 50/60 Hz |
Inlet Connection | 1-1/4" MPT 1" FPT |
Max Pressure (Psi) | 100 |
Min Pressure (Psi) | 10 |
Number Of Lamps | 1 |
Outlet Connection | 1-1/4" MPT 1" FPT |
Power | 160 Watts |
Size | 1-1/4" 1" |
System Class | Commercial Systems |
Connection Type | Male (MPT) Female (FPT) |
Contaminants Reduced | Bacteria Heavy Metals Cysts |
Diameter | 4" |
Flow Rate | 20 GPM |
Type | Single UV System |
Voltage | 120 V,230 V |
Warranty & Certifications | |
Certifications | NSF/ANSI Standard 55, Class A, CE Standards |
Shipping Dimensions | |
Shipping Length | 38.5 in. |
Shipping Width | 14.75 in. |
Shipping Height | 7.5 in. |
Product Weight & Dimensions | |
Power Supply Dimensions | 13" x 6-1/2" |
Product Height | 7.5 in. |
Product Length | 38.5 in. |
Product Width | 14.75 in. |
Product Weight (lbs) | 29 |
