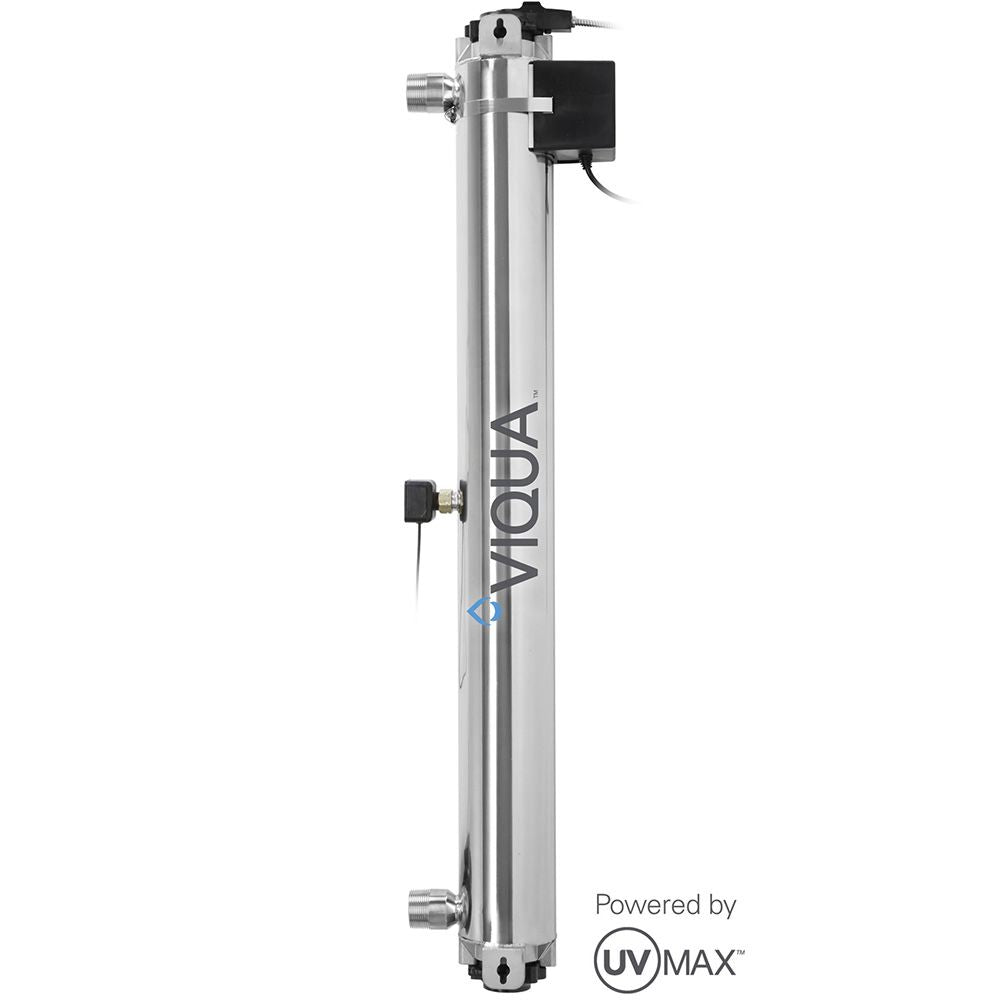

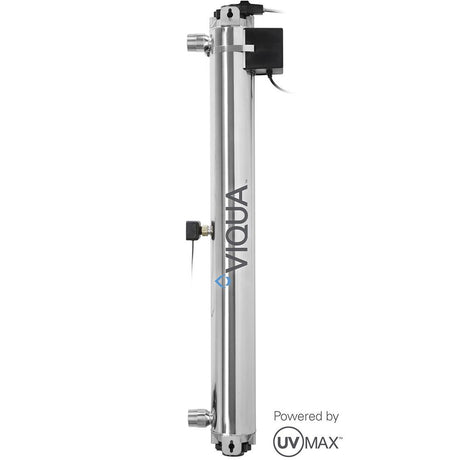

Viqua Pro30 NSF Class A Monitored UV System Powered by UVMax 30 gpm - 120 Volt

Part Number: 650659

In Stock

out of stock

In Stock

$3,095.00


The Viqua Pro30 UV System offers a unique combination of brains and brawn, with twice the raw power of other UV systems and the intelligence to provide a real-time measure of the delivered dose. A solenoid valve kit, sold separately, can be added to the Viqua Pro30 UV system, which is equipped with a manual override to make shocking the water lines easy.
Features:
  • Type 316 stainless steel reactor
  • Color coded plug and play connections
  • UV lamp has twice the output of current high-output lamps. Lamp last two years, reducing maintenance requirements
  • UV intensity monitor with diagnostic test
  • CoolTouch fan significantly reduces water temperature, and doesn't waste any water
  • Solenoid Valve Kit w/ manual override for shocking the water lines is also available
  • Dynamic flow restrictor
  • Fully NSF certified to NSF/ANSI Standard 55 Class A
  • Full 5 year warranty
NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.

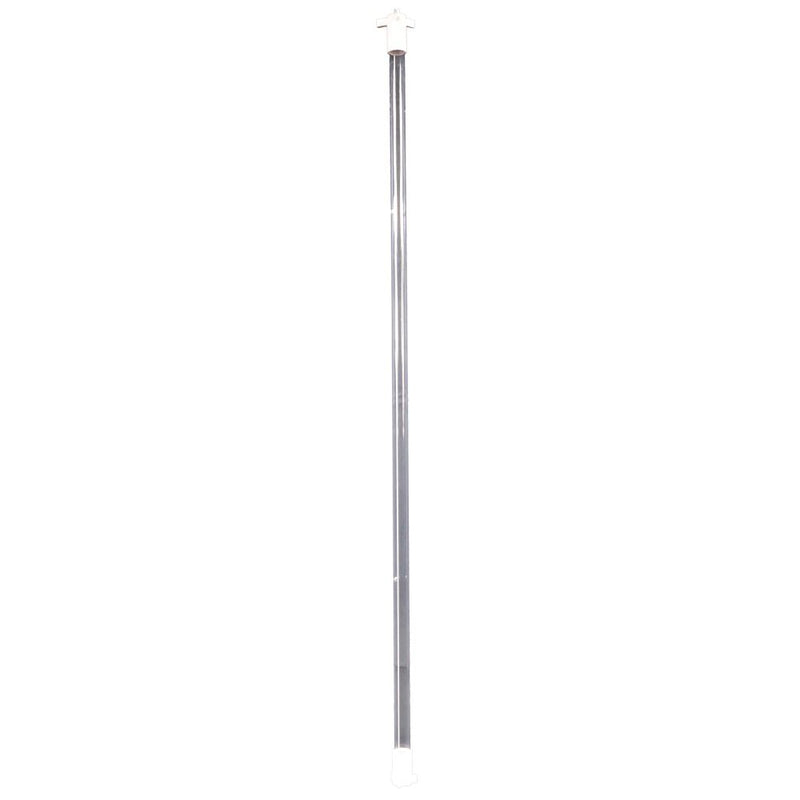

Trojan Lamp (1): 602856

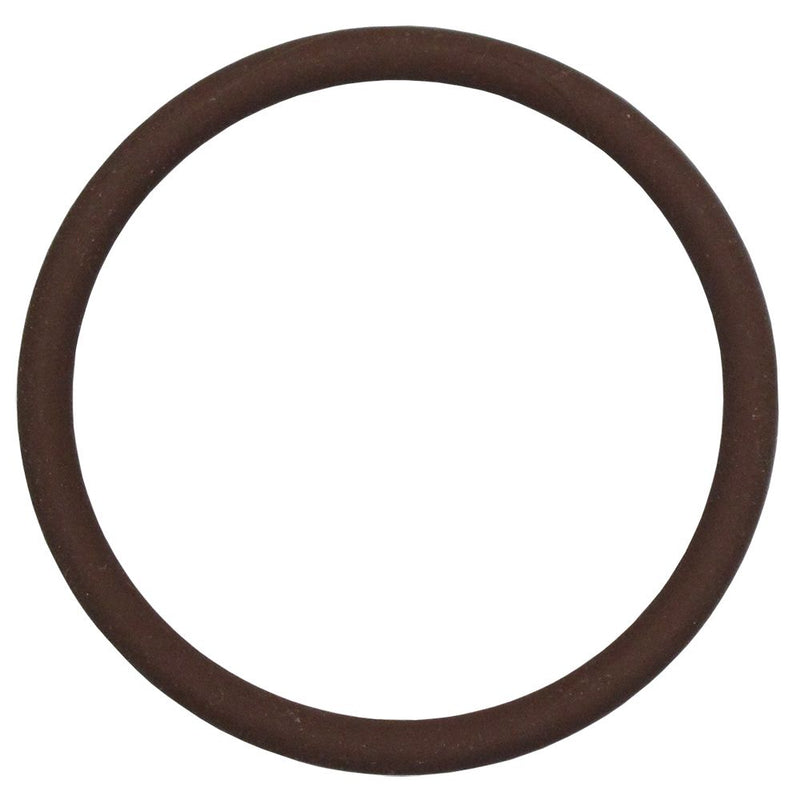

Trojan Quartz Sleeve (1): 602976 Trojan O-Rings (2): 2233


Weight & Dimensions

Power Supply Dimensions

13" x 6.5"

Details

Body Material

316 Stainless Steel Reactor

Features

UV Intensity Monitor; Audible Lamp Failure

Flow Rate

30 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

1-1/4" MPT, 1" FPT Combo

Number Of Lamps

1

Operating Pressure Range

15-100 PSI

Type

UVC

Voltage

230 V

Installation

Vertical

Warranty & Certifications

Certifications

NSF/ANSI Standard 55, Class A; CE Standards
