Neo-Pure

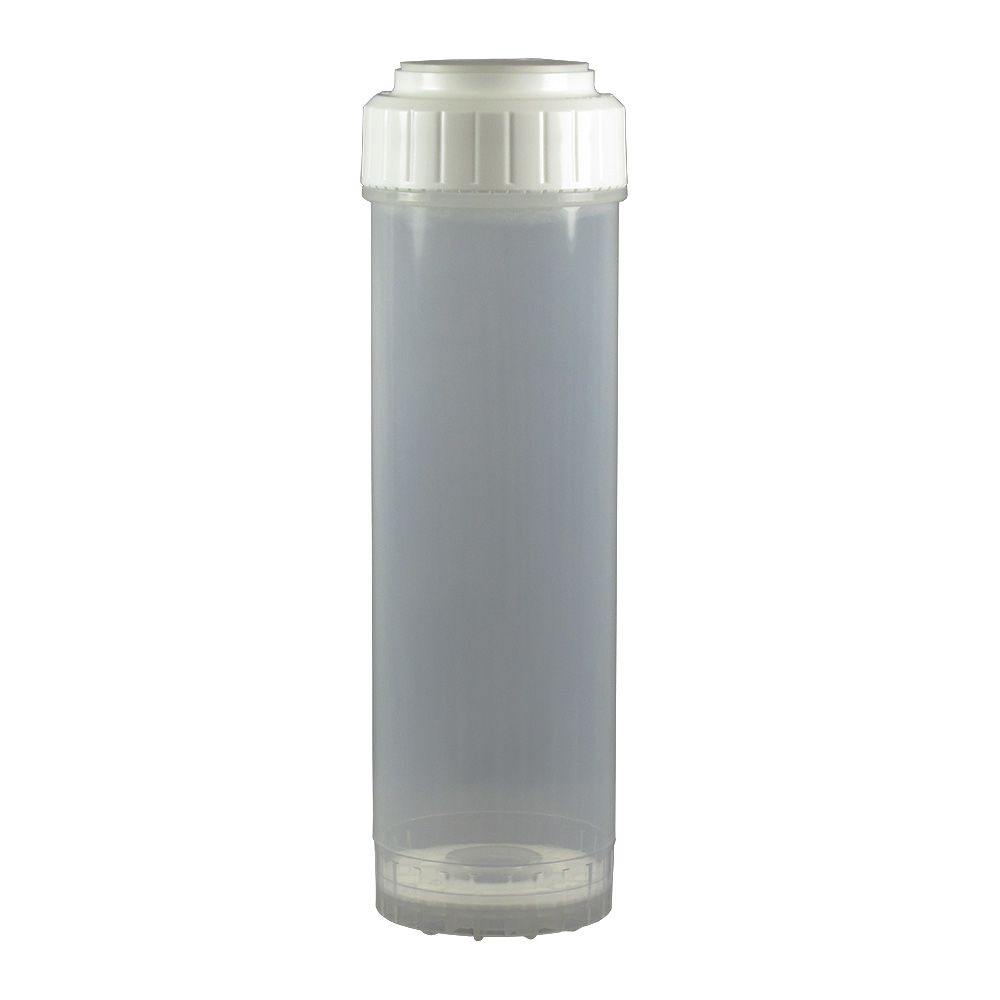

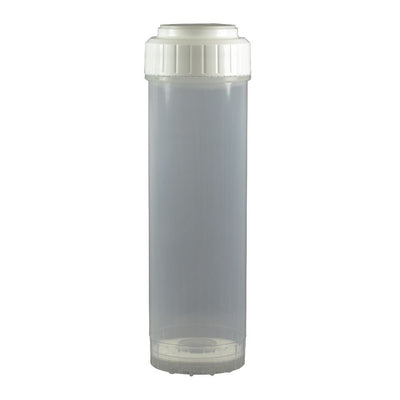

TAC-2510 10" x 2.5" Anti-Scale Replacement Cartridge for ScaleNet/OneFlow

Part Number: TAC-2510

Alt. Part Number: SNC2510

In Stock

out of stock

In Stock

$39.99


Calcium creates scale in pipes, on appliances and heating elements. This leads to higher heating and energy costs and expensive repairs to appliances, such as tankless water heaters, washing machines, and dishwashers.
The TAC Salt Free Water Conditioning System's Template Assisted Crystallization, or TAC process transforms Calcium ions into Calcium crystals, which are stable and cannot attach to pipes, surfaces, hardware or heat exchanger components. The crystals are so small they are easily rinsed away by the water flow.
This new media technology is also sold and marketed under a variety of other brand names like Next, Filtersorb as well as ScaleNet.

Benefits:
  • Scale is virtually eliminated
  • Aids in removing existing scale
  • No costly repairs to appliances due to scale
  • No salt
  • Saves water
  • No electricity
  • Replace cartridge every 2 years

Hard water is made up of calcium ions (Ca2+), magnesium ions (Mg2+), and bicarbonate ions (HCO3-). This anti-scale filter uses a template assisted crystallization process, or TAC process which transforms these dissolved ions into non-charged, neutral chemical bonds, of calcium and magnesium crystals. These microscopic crystals of scale quickly form in treated water and cannot attach to pipes or any surface, and are rinsed away downstream in a colloidal suspension by the water flow. These crystals are heat resistant and are unable to revert to it's dissolved state.   For well water applications, please contact our technical support staff.


Weight & Dimensions

Approx Length (Inches)

10 Inches

Approx Weight

650 g/l

Details

Capacity

1 liter per 3.0 gallons of flow (minimum); 2 years based on hardness and chlorine levels

Cartridge Style

Drop-in

Filter Application

Anti-Scale

Flow Rate

1 Gallons Per Minute

Max Operating Temperature

140 Degrees Fahrenheit

Outer Diameter

2.5 Inches

Chlorine Reduction

<3 Parts per Million

Ph Range

6 to 9 (effective range)

Density

1.1 to 1.2 lbs. per cubic foot

Hardness

75 grains (1300 ppm CaCO3) Grains per Gallon

Matrix

Ceramic Coated Polymer

Max Copper Content

1.3 mg/l

Max Iron Content

0.3 mg/l

Max Manganese Content

0.05 mg/l

Max Silica Content

10 Parts per Million

Min Operating Temperature

40 Degrees Fahrenheit

Oil & H2s

None Allowed

Polyphosphate

None Allowed




Calcium creates scale in pipes, on appliances and heating elements. This leads to higher heating and energy costs and expensive repairs to appliances, such as tankless water heaters, washing machines, and dishwashers.
The TAC Salt Free Water Conditioning System's Template Assisted Crystallization, or TAC process transforms Calcium ions into Calcium crystals, which are stable and cannot attach to pipes, surfaces, hardware or heat exchanger components. The crystals are so small they are easily rinsed away by the water flow.
This new media technology is also sold and marketed under a variety of other brand names like Next, Filtersorb as well as ScaleNet.

Benefits:
  • Scale is virtually eliminated
  • Aids in removing existing scale
  • No costly repairs to appliances due to scale
  • No salt
  • Saves water
  • No electricity
  • Replace cartridge every 2 years

Hard water is made up of calcium ions (Ca2+), magnesium ions (Mg2+), and bicarbonate ions (HCO3-). This anti-scale filter uses a template assisted crystallization process, or TAC process which transforms these dissolved ions into non-charged, neutral chemical bonds, of calcium and magnesium crystals. These microscopic crystals of scale quickly form in treated water and cannot attach to pipes or any surface, and are rinsed away downstream in a colloidal suspension by the water flow. These crystals are heat resistant and are unable to revert to it's dissolved state.   For well water applications, please contact our technical support staff.

Weight & Dimensions

Approx Length (Inches)

10 Inches

Approx Weight

650 g/l

Details

Capacity

1 liter per 3.0 gallons of flow (minimum); 2 years based on hardness and chlorine levels

Cartridge Style

Drop-in

Filter Application

Anti-Scale

Flow Rate

1 Gallons Per Minute

Max Operating Temperature

140 Degrees Fahrenheit

Outer Diameter

2.5 Inches

Chlorine Reduction

<3 Parts per Million

Ph Range

6 to 9 (effective range)

Density

1.1 to 1.2 lbs. per cubic foot

Hardness

75 grains (1300 ppm CaCO3) Grains per Gallon

Matrix

Ceramic Coated Polymer

Max Copper Content

1.3 mg/l

Max Iron Content

0.3 mg/l

Max Manganese Content

0.05 mg/l

Max Silica Content

10 Parts per Million

Min Operating Temperature

40 Degrees Fahrenheit

Oil & H2s

None Allowed

Polyphosphate

None Allowed
