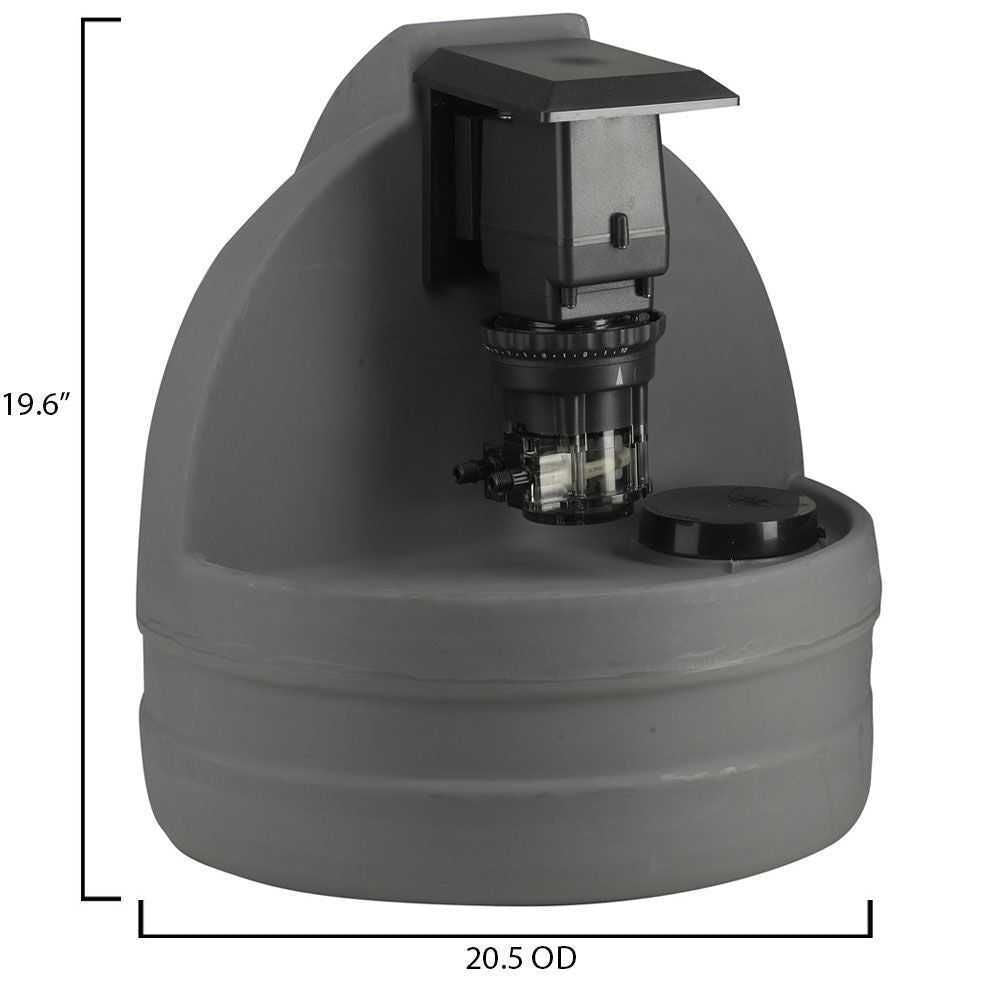

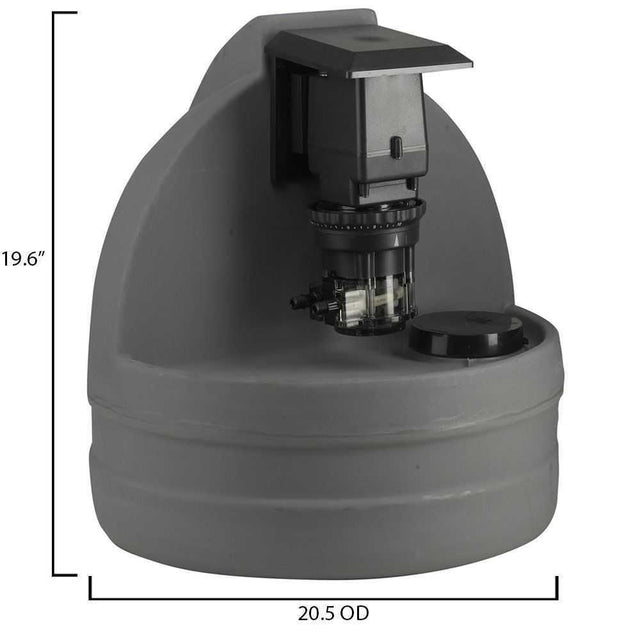

Stenner Single Head Fixed Output Pump with 30 Gallon Tank #2 Tube 10 GPD System

Part Number: S3G45MFH2B2S

In Stock

out of stock

In Stock

$428.29

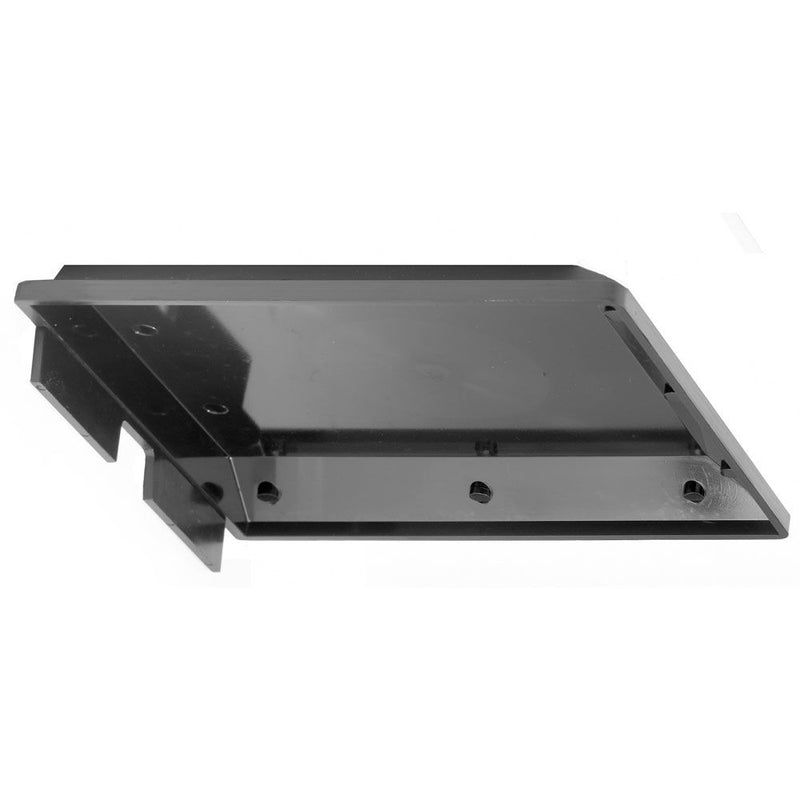

The Stenner S3G45MFH2B2S Single Head Fixed Output Pump with 30 gallon tank features the Stenner Classic 45MPHP10 Series peristaltic pump. These pumps remain the most popular pump with installers. The tank features a childproof lid and rain-roof. The tank is constructed from Polyethylene and is NSF 61 & 372 certified.

Stenner S3G45MFH2B2S Pumps are small but powerful. The Stenner S3G45MHF2B2S can be utilized for proportional dosing.
Stenner S3G45MFH2B2S 30-Gallon Tank is safe and UV resistant. The Stenner S3G45MFH2B2S 30-Gallon Tank is a gray UV resistant tank that features a child resistant lid. This tank is constructed of Polyethylene which is critical for potable water.

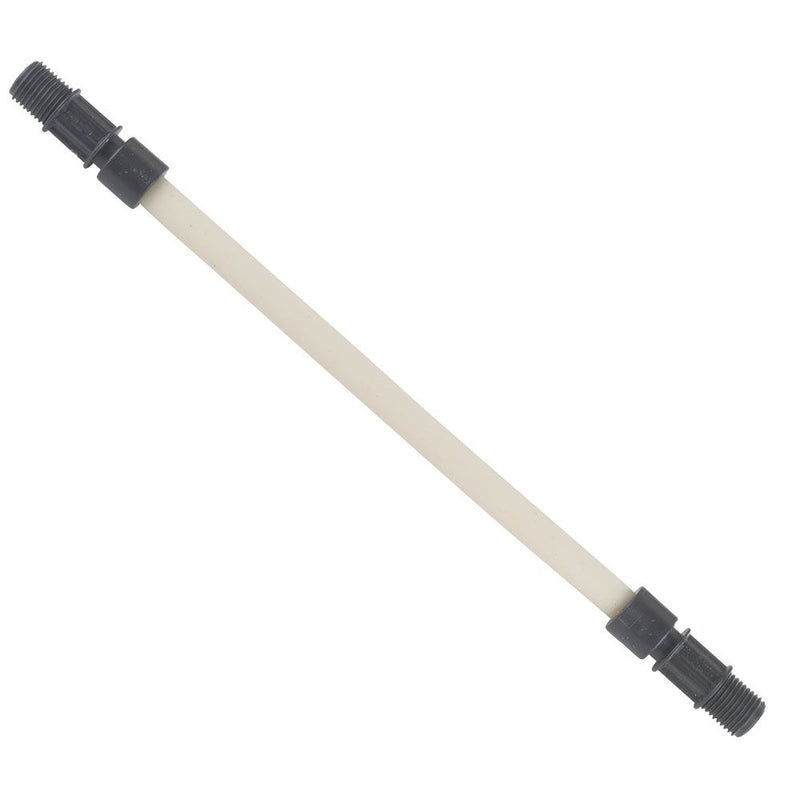

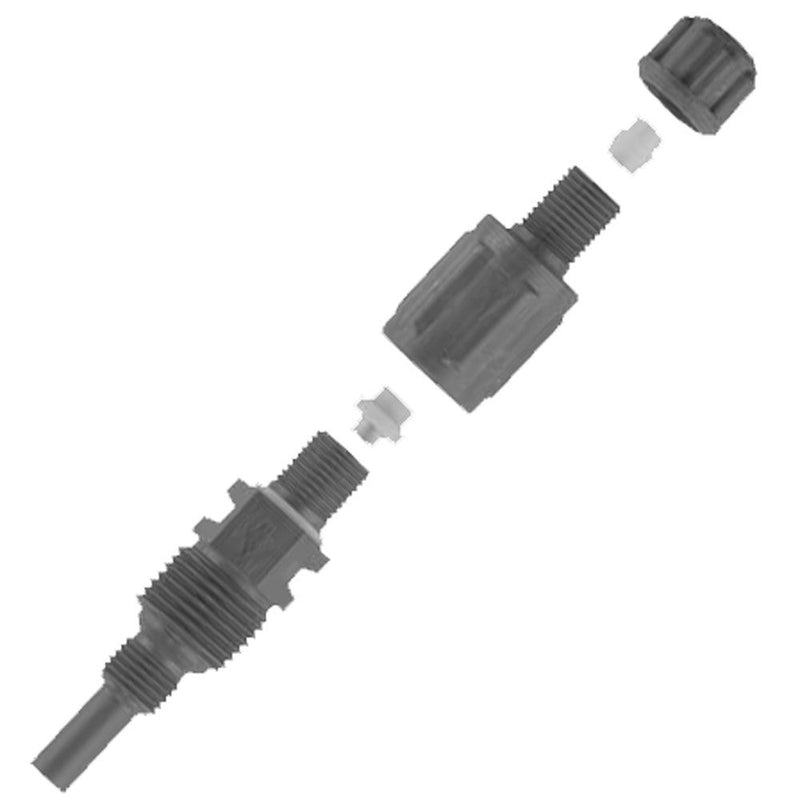

Stenner Accessory Kit is shipped with each pump. The accessory kit includes 3 connecting nuts (1/4"), 3 ferrules (1/4"), 1 injection check valve, 1 weighted suction line strainer (1/4"), 1 twenty foot roll suction/discharge tubing (1/4" UV Black), 1 additional pump tube, and manual.
Specifications:
  • Motor Voltage: 220V
  • Pump Capacity: 10 gpd
  • Max Temperature: 104°F
  • Cord Length: 10 foot cord
  • Tube Material: Santoprene
  • Tank Material: Polyethylene
  • Working Pressure: 26-100 psi
  • Classic Series: 45MPHP10 Single head fixed output
  • Tank Certification: NSF 61 & 372 approved


Details

Ambient Temperature Range

Up to 125 Degrees Fahrenheit

Amps

0.17 Amps

Flow Rate

10 GPD

Housing Material

PC (pump), HDPE (tank)

Max Operating Pressure

100 PSI

Type

Peristaltic

Valve Type

Santoprene

Motor Rpm

26 Rotations Per Minute

Suction Lift

Self prime up to 25 ft.
