Stenner Pumps

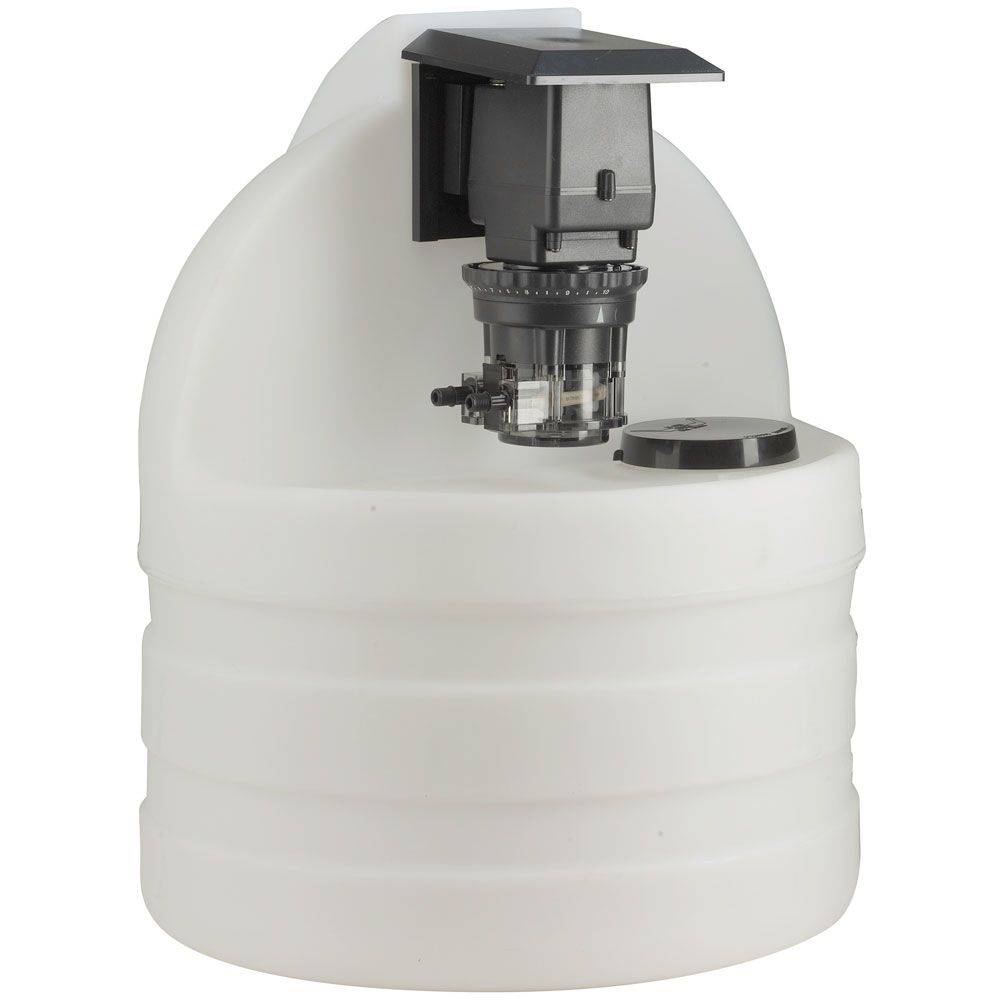

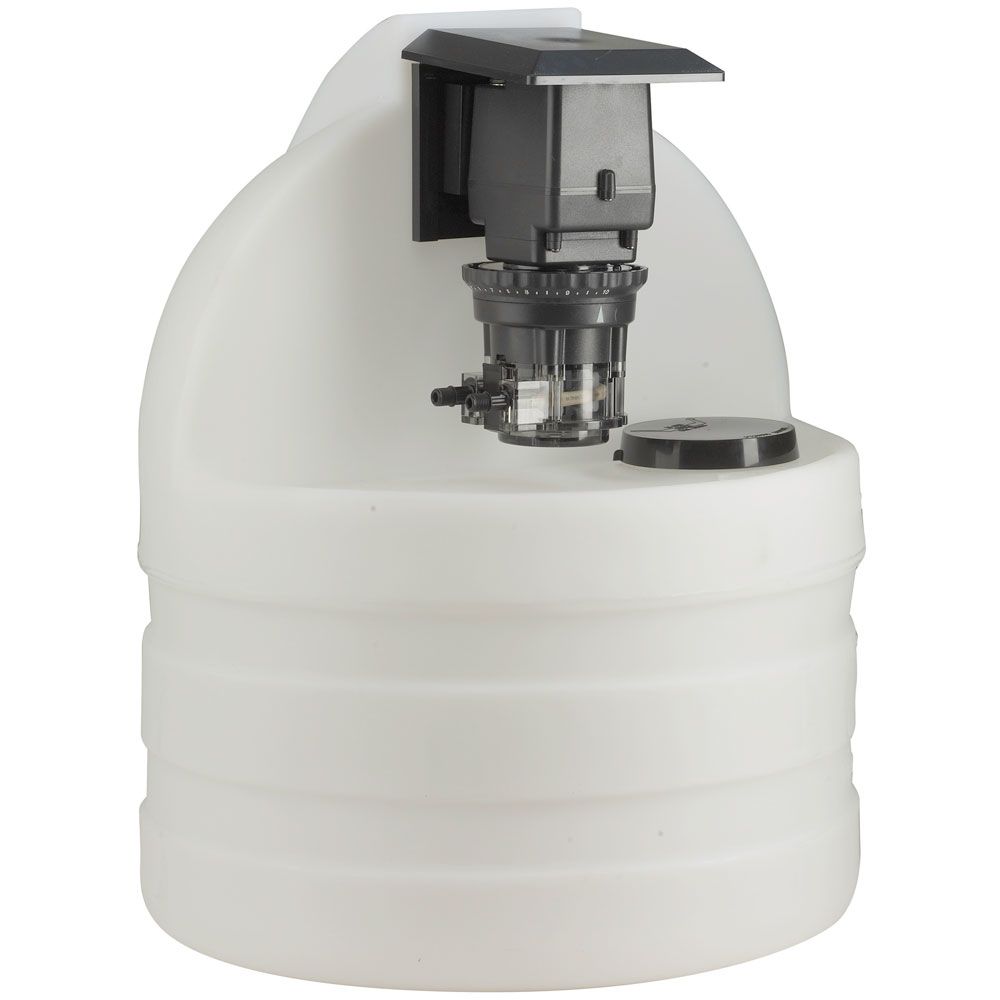

Stenner Single Head Adjustable Pump with 15 Gallon Tank #2 Tube 0.5 - 10 GPD System - 120 volt

Part Number: S1N45MJH2A1S

In Stock

out of stock

In Stock

$526.99


Stenner S1N45MJH2A1S single head adjustable pump system is perfect for accurate and repeat injection of chemicals or liquid. This pump is built with three detachable components: the motor, feed rate control and pump head. All Stenner pumps have a 3-point roller design in the pump head, which acts as check valve to prevent back flow or loss of prime. The motor rotates at a fixed RPM which drives the adjustable feed rate control to intermittently engage the roller assembly within the pump head. The chemical solution in the pump tube is captured between the rollers as they rotate and compress the tube. As the rollers advance, the squeezed tube section regains its original form and generates a vacuum, creating the self-priming feature that delivers a constant flow unaffected by the outlet. This system comes pre-assembled for quick and easy installation.

Features:
  • Tube Size: #2
  • Stenner Pump System includes:
  • 45M2 Series Adjustable Stenner Pump
  • 15 gallon tank system
  • Accessory kit


Specifications:

Pump
  • Series: 45M2 Series Classic Single Head Adjustable Pump
  • Pump Capacity: 0.5 to 10 gpd
  • Suction and Discharge Tubing: 1/4" UV Black
  • Connections: 1/4" ferrules
  • Max Working Pressure: 100 psi
  • Max Temperature: 125°F
  • Housing Material: Polycarbonate
  • Tube Material: Santoprene
  • Pump Head Rollers: HDPE
  • Self-priming, can run dry without damage
  • UL Listed
Tank
  • Capacity: 15 gallons
  • Tank Material: Polyethylene
  • Grommets: Viton
  • Screws: Stainless steel
  • Childproof Lid: Polypropylene
  • Color: Translucent white
  • Includes rain roof to protect motor
  • NSF 61 certified
Accessory Kit
  • 1/4" connecting nuts (3)
  • 1/4" ferrules (3)
  • Injection check valve 100 psi
  • 1/4" weighted suction line strainer
  • 20' roll suction/discharge tubing 1/4"
  • Additional pump tube
  • Additional Latches (2)
  • Mounting bracket
  • Manual


Weight & Dimensions

Approx Height (Inches)

6.0 Inches

Approx Length (Inches)

10.6 Inches

Approx Width (Inches)

5.2 Inches

Details

Drawdown Volume

0.5- 10 GPD

Housing Material

Polycarbonate

Liquid Temperature

125 Degrees Fahrenheit

Max Operating Pressure

100 PSI

Valve Type

Rigid PVC

Voltage

120VAC

Motor Rpm

26 Rotations Per Minute

Suction Lift

25 ft Max

Warranty & Certifications

Certifications

UL Listed


Stenner

Stenner

Stenner





Stenner S1N45MJH2A1S single head adjustable pump system is perfect for accurate and repeat injection of chemicals or liquid. This pump is built with three detachable components: the motor, feed rate control and pump head. All Stenner pumps have a 3-point roller design in the pump head, which acts as check valve to prevent back flow or loss of prime. The motor rotates at a fixed RPM which drives the adjustable feed rate control to intermittently engage the roller assembly within the pump head. The chemical solution in the pump tube is captured between the rollers as they rotate and compress the tube. As the rollers advance, the squeezed tube section regains its original form and generates a vacuum, creating the self-priming feature that delivers a constant flow unaffected by the outlet. This system comes pre-assembled for quick and easy installation.

Features:
  • Tube Size: #2
  • Stenner Pump System includes:
  • 45M2 Series Adjustable Stenner Pump
  • 15 gallon tank system
  • Accessory kit


Specifications:

Pump
  • Series: 45M2 Series Classic Single Head Adjustable Pump
  • Pump Capacity: 0.5 to 10 gpd
  • Suction and Discharge Tubing: 1/4" UV Black
  • Connections: 1/4" ferrules
  • Max Working Pressure: 100 psi
  • Max Temperature: 125°F
  • Housing Material: Polycarbonate
  • Tube Material: Santoprene
  • Pump Head Rollers: HDPE
  • Self-priming, can run dry without damage
  • UL Listed
Tank
  • Capacity: 15 gallons
  • Tank Material: Polyethylene
  • Grommets: Viton
  • Screws: Stainless steel
  • Childproof Lid: Polypropylene
  • Color: Translucent white
  • Includes rain roof to protect motor
  • NSF 61 certified
Accessory Kit
  • 1/4" connecting nuts (3)
  • 1/4" ferrules (3)
  • Injection check valve 100 psi
  • 1/4" weighted suction line strainer
  • 20' roll suction/discharge tubing 1/4"
  • Additional pump tube
  • Additional Latches (2)
  • Mounting bracket
  • Manual

Weight & Dimensions

Approx Height (Inches)

6.0 Inches

Approx Length (Inches)

10.6 Inches

Approx Width (Inches)

5.2 Inches

Details

Drawdown Volume

0.5- 10 GPD

Housing Material

Polycarbonate

Liquid Temperature

125 Degrees Fahrenheit

Max Operating Pressure

100 PSI

Valve Type

Rigid PVC

Voltage

120VAC

Motor Rpm

26 Rotations Per Minute

Suction Lift

25 ft Max

Warranty & Certifications

Certifications

UL Listed
