Stenner Pumps

Stenner Econ FP Series Pump with 7.5 Gallon Tank #F Tube 4.5 GPD System - 120 volt

Part Number: S7NE20PHF81S

In Stock

out of stock

In Stock

$395.50

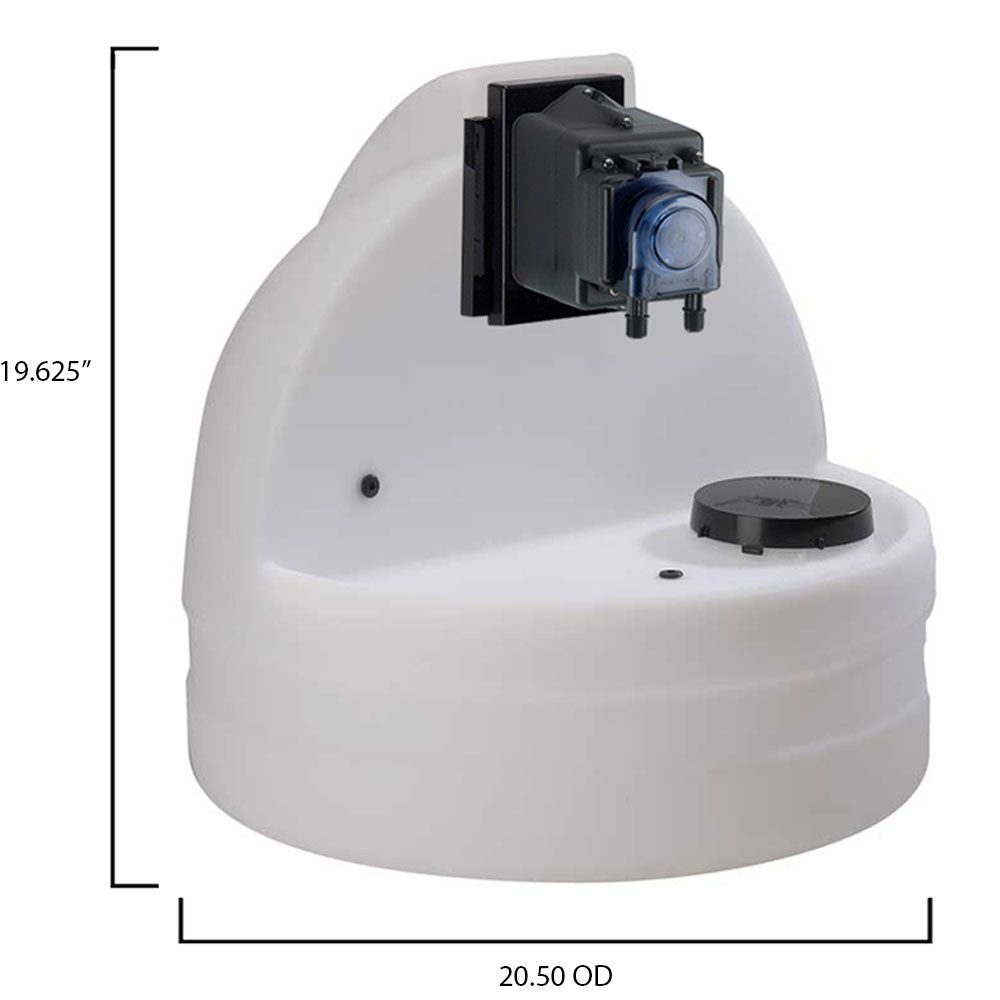

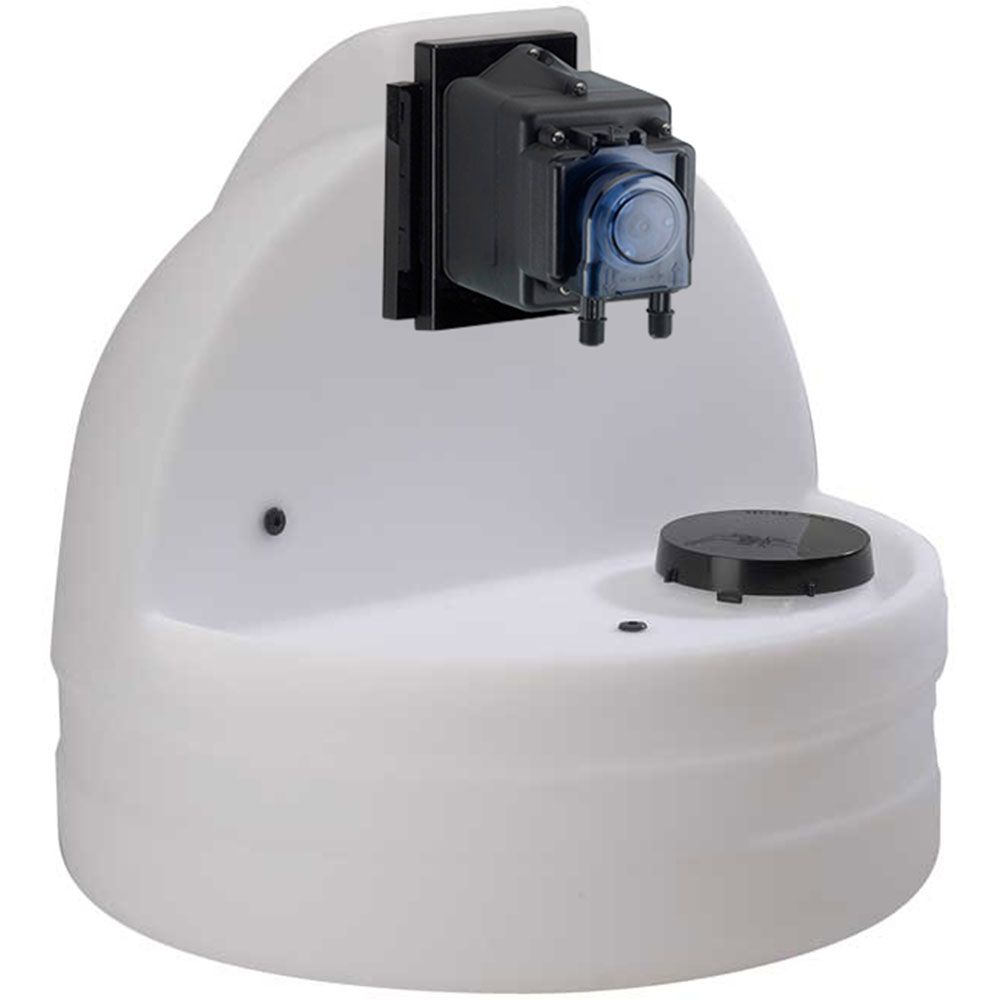

The Stenner S7NE20PHF81S Econ FP Pump with 7.5 gallon tank features a flow activated pump which is specifically designed to interface with a dry contact water meter, dry contact flow switch, or a 12-24 VAC/VDC signal from any control equipment. This flow activated pump can be used with meter systems or other control systems that respond to flow. The tank features a childproof lid and rain-roof. The tank is constructed from Polyethylene and NSF 61 & 372 certified.

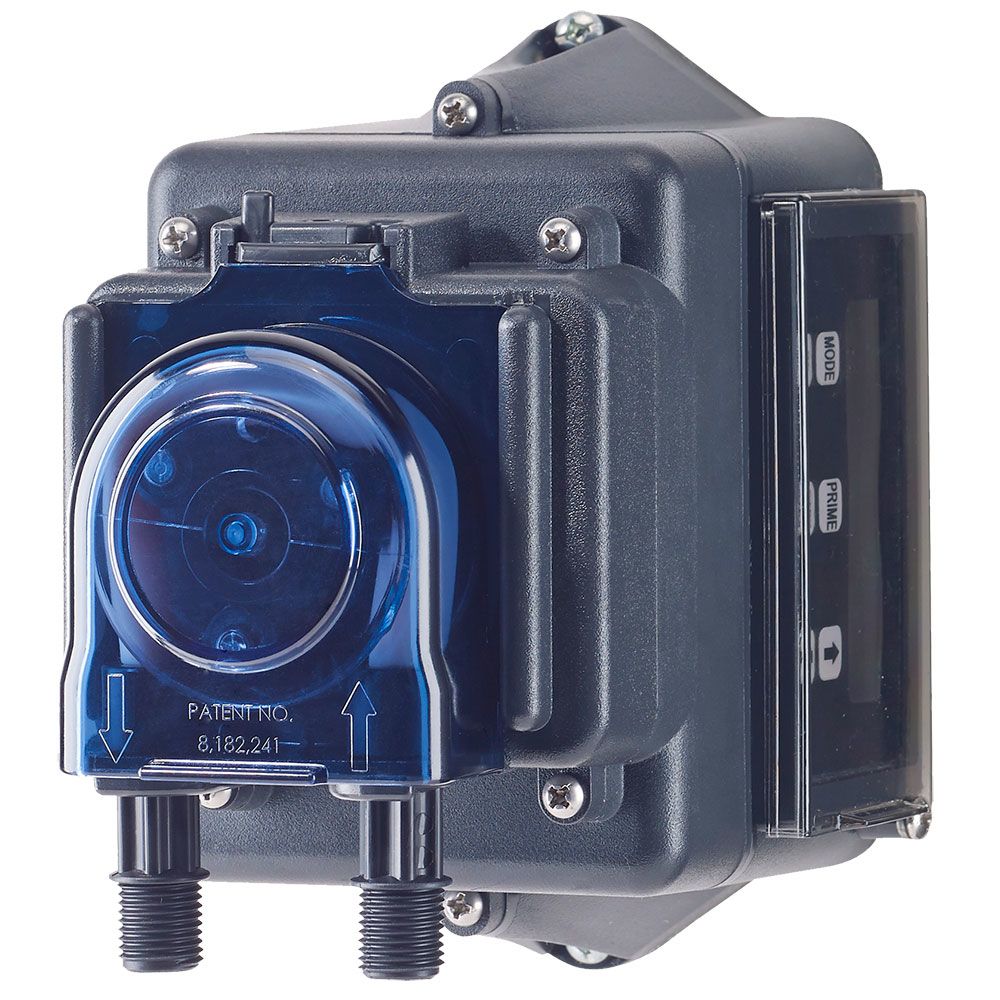

Stenner Econ FP Series Pumps are small but powerful. The Stenner S7NE20PHF81S features the Econ FP Series Pump. This pump is built with three operating modes: seconds, flow switch, and Auxiliary. The flow rate for this pump is 4.5 Gallons per day.
Stenner Econ 7.5-Gallon Tank is lightweight and UV resistant. The Stenner Econ 7.5-Gallon Tank is a white UV resistant tank that features a child resistant lid. This tank is constructed of Polyethylene and is lightweight.
Stenner Accessory Kit is shipped with each pump. The accessory kit includes 3 connecting nuts (1/4"), 3 ferrules (1/4"), 1 injection check valve, 1 weighted suction line strainer (1/4"), 1 twenty foot roll suction/discharge tubing (1/4"), 1 additional pump tube, and manual.
Specifications:
  • Pump Capacity: 4.5 gpd
  • Max Temperature: 104°F
  • Cord Length: 10 foot
  • Tube Material: Santoprene
  • Tank Material: Polyethylene
  • Max Working Pressure: 80 psi
  • Series: FP flow activated pump
  • Tank Certification: NSF 61 & 372 approved


Details

Ambient Temperature Range

Up to 104 Degrees Fahrenheit

Amps

0.17 Amps

Flow Rate

4.5 GPD

Housing Material

PC (pump), HDPE (tank)

Max Operating Pressure

80 PSI

Voltage

120VAC

Motor Rpm

60 Rotations Per Minute

Suction Lift

Self prime up to 25 ft.


Stenner

Stenner

Stenner





The Stenner S7NE20PHF81S Econ FP Pump with 7.5 gallon tank features a flow activated pump which is specifically designed to interface with a dry contact water meter, dry contact flow switch, or a 12-24 VAC/VDC signal from any control equipment. This flow activated pump can be used with meter systems or other control systems that respond to flow. The tank features a childproof lid and rain-roof. The tank is constructed from Polyethylene and NSF 61 & 372 certified.

Stenner Econ FP Series Pumps are small but powerful. The Stenner S7NE20PHF81S features the Econ FP Series Pump. This pump is built with three operating modes: seconds, flow switch, and Auxiliary. The flow rate for this pump is 4.5 Gallons per day.
Stenner Econ 7.5-Gallon Tank is lightweight and UV resistant. The Stenner Econ 7.5-Gallon Tank is a white UV resistant tank that features a child resistant lid. This tank is constructed of Polyethylene and is lightweight.
Stenner Accessory Kit is shipped with each pump. The accessory kit includes 3 connecting nuts (1/4"), 3 ferrules (1/4"), 1 injection check valve, 1 weighted suction line strainer (1/4"), 1 twenty foot roll suction/discharge tubing (1/4"), 1 additional pump tube, and manual.
Specifications:
  • Pump Capacity: 4.5 gpd
  • Max Temperature: 104°F
  • Cord Length: 10 foot
  • Tube Material: Santoprene
  • Tank Material: Polyethylene
  • Max Working Pressure: 80 psi
  • Series: FP flow activated pump
  • Tank Certification: NSF 61 & 372 approved

Details

Ambient Temperature Range

Up to 104 Degrees Fahrenheit

Amps

0.17 Amps

Flow Rate

4.5 GPD

Housing Material

PC (pump), HDPE (tank)

Max Operating Pressure

80 PSI

Voltage

120VAC

Motor Rpm

60 Rotations Per Minute

Suction Lift

Self prime up to 25 ft.
