Stenner Pumps

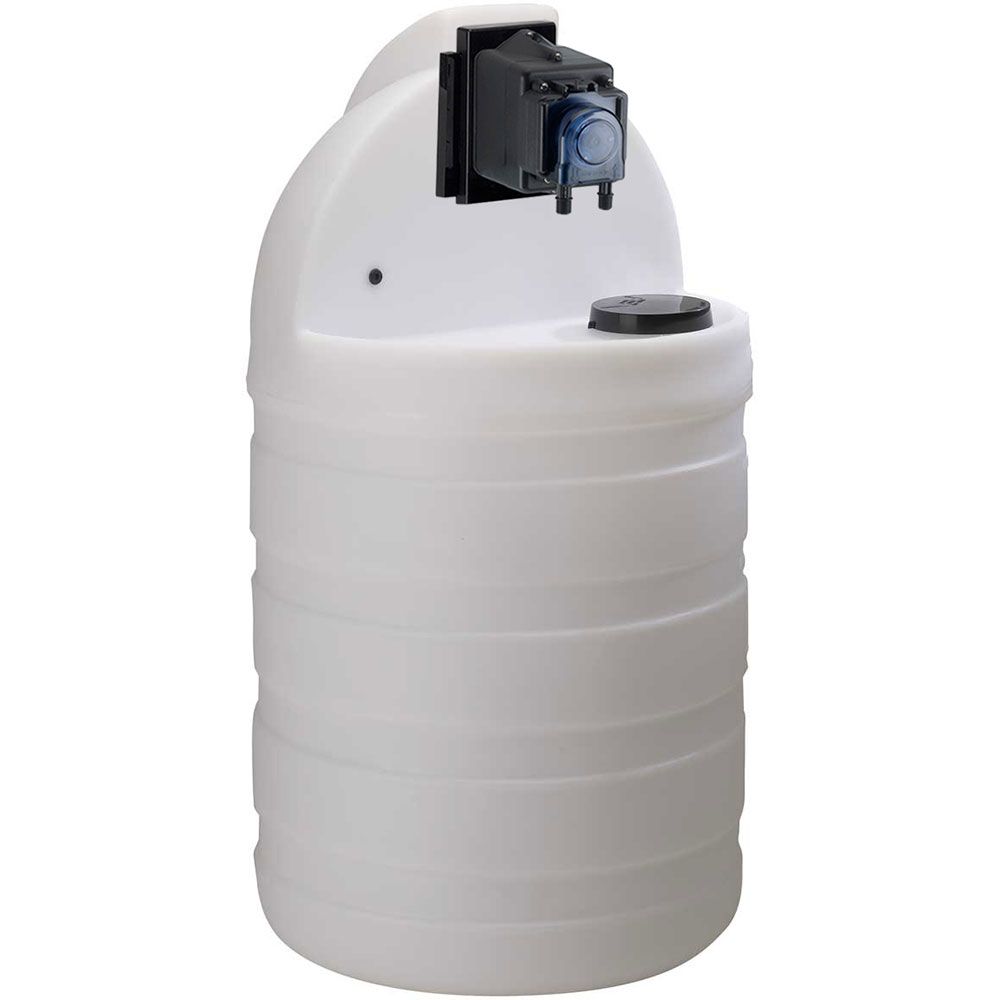

Stenner Econ FP Series Pump with 30 Gallon Tank #F Tube 4.5 GPD System - 120 volt

Part Number: S3NE20PHF81S

In Stock

out of stock

In Stock

$433.43


The Stenner S3NE20PHF81S Econ FP Pump with 30 gallon tank features a flow activated pump which is specifically designed to interface with a dry contact water meter, dry contact flow switch, or a 12-24 VAC/VDC signal from any control equipment. This flow activated pump can be used with meter systems or other control systems that respond to flow. The tank features a childproof lid and rain-roof. The tank is constructed from Polyethylene and is NSF 61 & 372 certified.

Features:

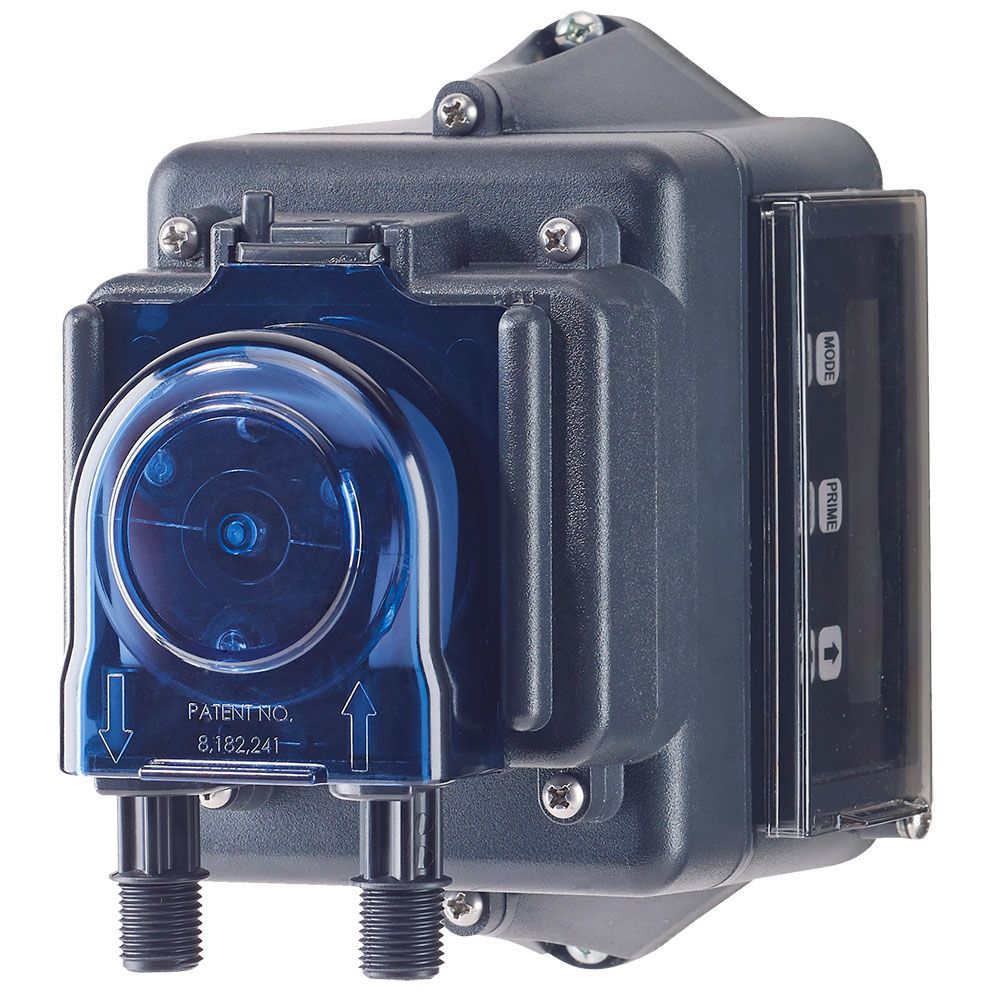

  • Stenner Econ FP Series Pumps are small but powerful. The Stenner S3NE20PHF81S features the Econ FP Series Pump. This pump is built with three operating modes: seconds, flow switch and auxiliary. The flow rate for this pump is 4.5 gallons per day.
  • Stenner Econ 30 Gallon Tank is lightweight and UV resistant. The Stenner Econ 30 Gallon Tank is a white UV resistant tank that features a child resistant lid. This tank is constructed of Polyethylene and is lightweight.
  • Stenner Accessory Kit is shipped with each pump. The accessory kit includes 3 connecting nuts (1/4"), 3 ferrules (1/4"), 1 injection check valve, 1 weighted suction line strainer (1/4"), 1 twenty foot roll suction/discharge tubing (1/4"), 1 additional pump tube, and manual.
Additional Specifications:
  • Pump Capacity: 4.5 gpd
  • Max Temperature: 104°F
  • Cord Length: 10 foot
  • Tube Material: Santoprene
  • Tank Material: Polyethylene
  • Max Working Pressure: 80 psi
  • Series: FP flow activated pump
  • Tank Certification: NSF 61 & 372 approved

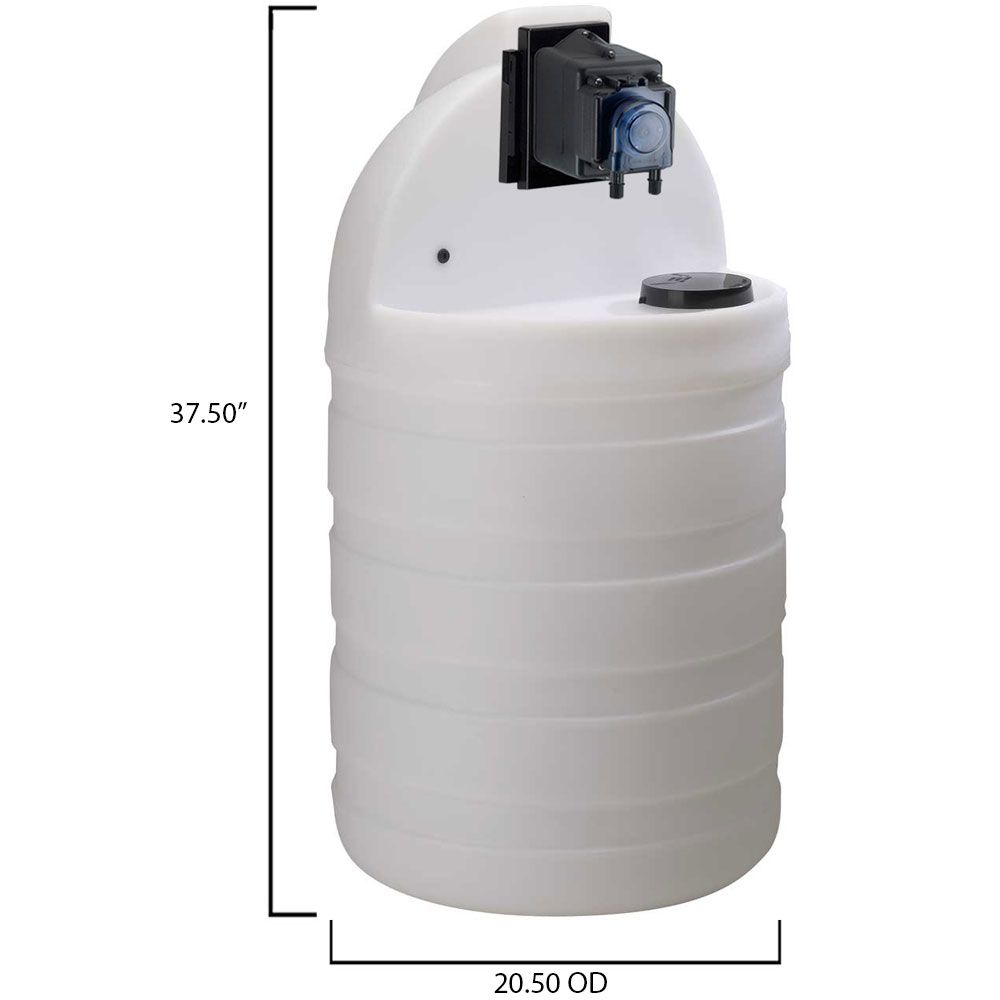

Weight & Dimensions

Cord Length

10 foot Inches

Details

Ambient Temperature Range

Up to 104 Degrees Fahrenheit

Amps

0.17 Amps

Flow Rate

4.5 GPD

Housing Material

PC (pump), HDPE (tank)

Max Operating Pressure

80 PSI

Type

Peristaltic

Valve Type

Santoprene

Voltage

120VAC

Suction Lift

Self prime up to 25 ft.

Warranty & Certifications

Certifications

NSF 61 & 372 approved


Stenner

Stenner

Stenner





The Stenner S3NE20PHF81S Econ FP Pump with 30 gallon tank features a flow activated pump which is specifically designed to interface with a dry contact water meter, dry contact flow switch, or a 12-24 VAC/VDC signal from any control equipment. This flow activated pump can be used with meter systems or other control systems that respond to flow. The tank features a childproof lid and rain-roof. The tank is constructed from Polyethylene and is NSF 61 & 372 certified.

Features:
  • Stenner Econ FP Series Pumps are small but powerful. The Stenner S3NE20PHF81S features the Econ FP Series Pump. This pump is built with three operating modes: seconds, flow switch and auxiliary. The flow rate for this pump is 4.5 gallons per day.
  • Stenner Econ 30 Gallon Tank is lightweight and UV resistant. The Stenner Econ 30 Gallon Tank is a white UV resistant tank that features a child resistant lid. This tank is constructed of Polyethylene and is lightweight.
  • Stenner Accessory Kit is shipped with each pump. The accessory kit includes 3 connecting nuts (1/4"), 3 ferrules (1/4"), 1 injection check valve, 1 weighted suction line strainer (1/4"), 1 twenty foot roll suction/discharge tubing (1/4"), 1 additional pump tube, and manual.
Additional Specifications:
  • Pump Capacity: 4.5 gpd
  • Max Temperature: 104°F
  • Cord Length: 10 foot
  • Tube Material: Santoprene
  • Tank Material: Polyethylene
  • Max Working Pressure: 80 psi
  • Series: FP flow activated pump
  • Tank Certification: NSF 61 & 372 approved

Weight & Dimensions

Cord Length

10 foot Inches

Details

Ambient Temperature Range

Up to 104 Degrees Fahrenheit

Amps

0.17 Amps

Flow Rate

4.5 GPD

Housing Material

PC (pump), HDPE (tank)

Max Operating Pressure

80 PSI

Type

Peristaltic

Valve Type

Santoprene

Voltage

120VAC

Suction Lift

Self prime up to 25 ft.

Warranty & Certifications

Certifications

NSF 61 & 372 approved
