Additional specifications:
- 1.5 GPM flow rate
- Demand Switch
- 45psi internal bypass
- Can run dry without damage
- Self priming up 8 vertical feet
- 3/8" NPT female ports
- Santoprene diaphragm
- Built-in check valve
- UL Recognized Component
- NSF and CSA listed
This demand pump replaces part number 32505 for the Pure Water Mega Classic and A-12 distillers.
Applications:
- Water delivery
Weight & Dimensions
Approx Height (Inches) | 4.08 Inches |
Approx Length (Inches) | 7.56 Inches |
Approx Width (Inches) | 3.28 Inches |
Details
Series | 8000 |
Amps | 0.31 (0 psi) - 0.54 (60 psi) Amps |
Diaphragm Materials | Santoprene |
Flow Rate | 1.5 GPM |
Housing Material | Zinc Plated Steel |
Liquid Temperature | 170 Degrees Fahrenheit |
Pressure Switch | Adjustable Shut-off (Range 40-60 psi), Factory Set@60 psi, Turn on 45 psi +/- 5 psi |
Size | 3/8" |
Voltage | 115VAC |
Inlet Pressure | 30 PSI |
Power Source | No Cord |
Suction Lift | Self prime up to 11 ft |
Psi Bypass | 45 PSI |
Inlet/Outlet Connection | 3/8" | FPT |

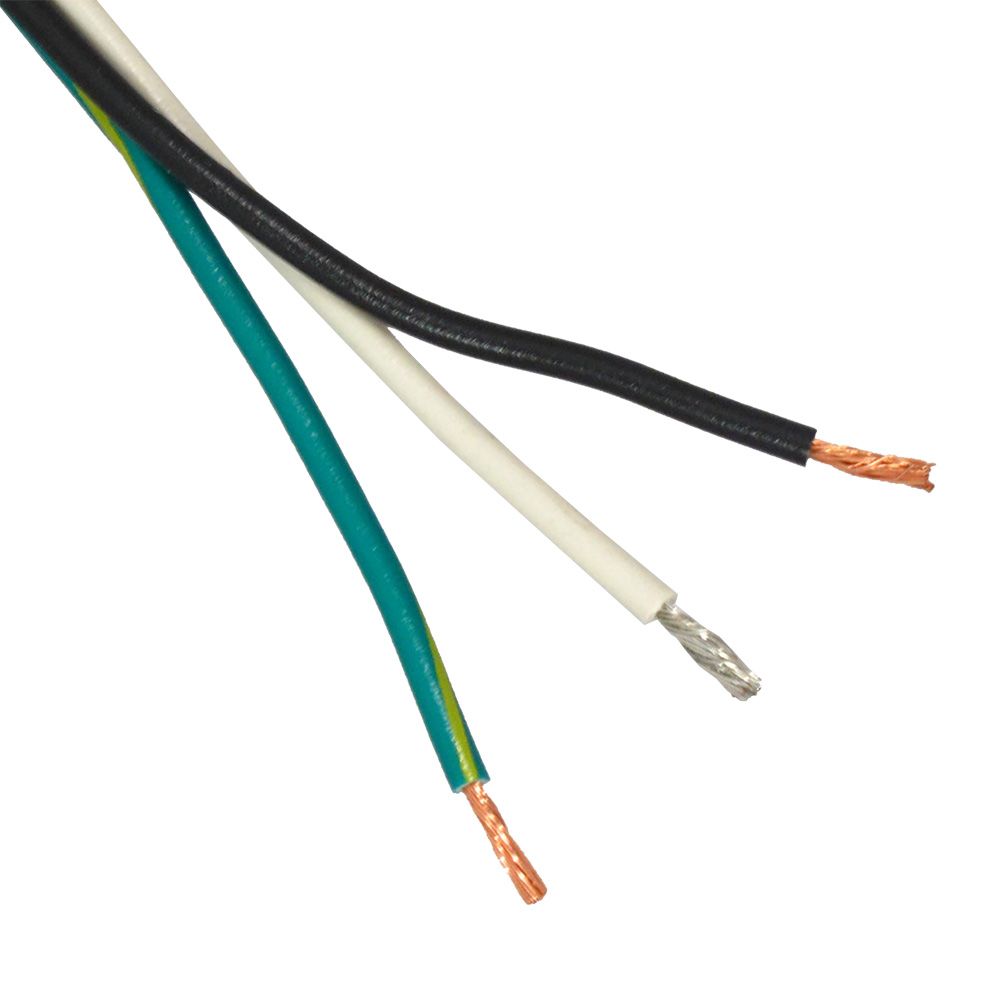

Wire Option | Bare Wire |
Warranty & Certifications
Certifications | NSF |

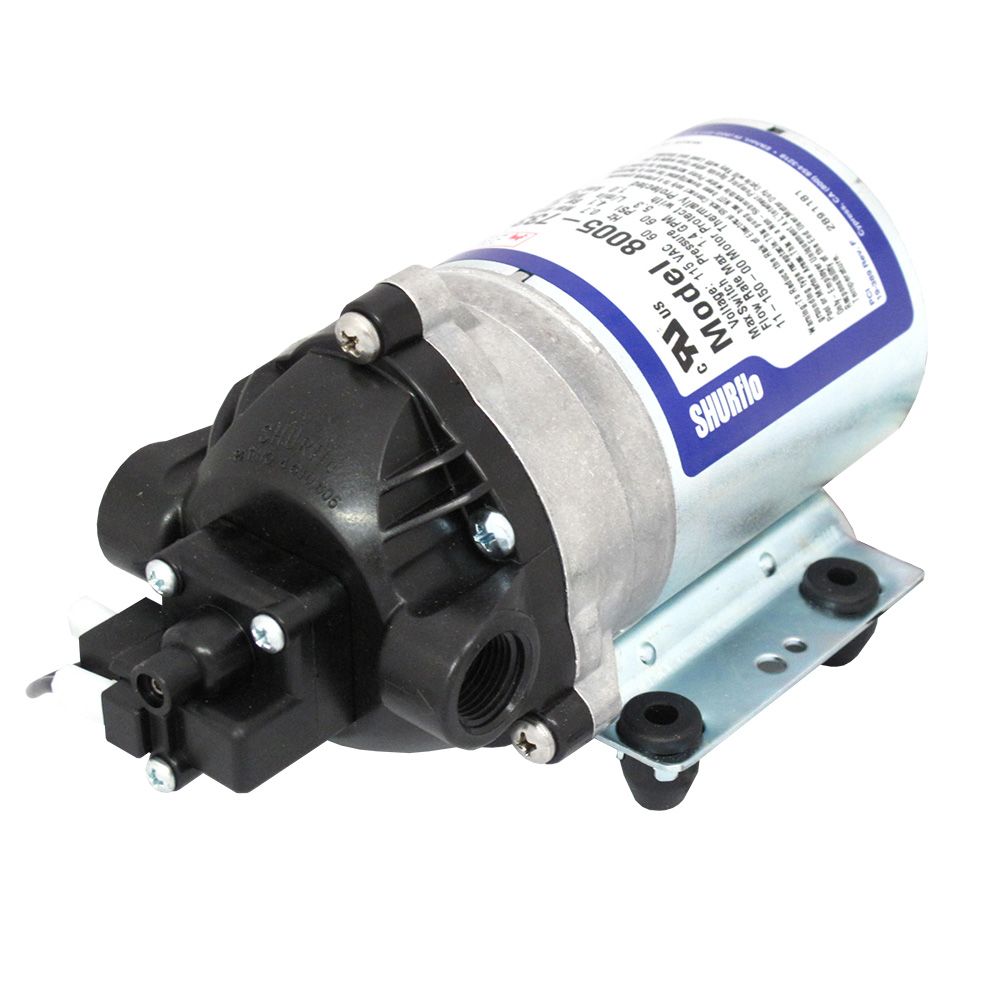

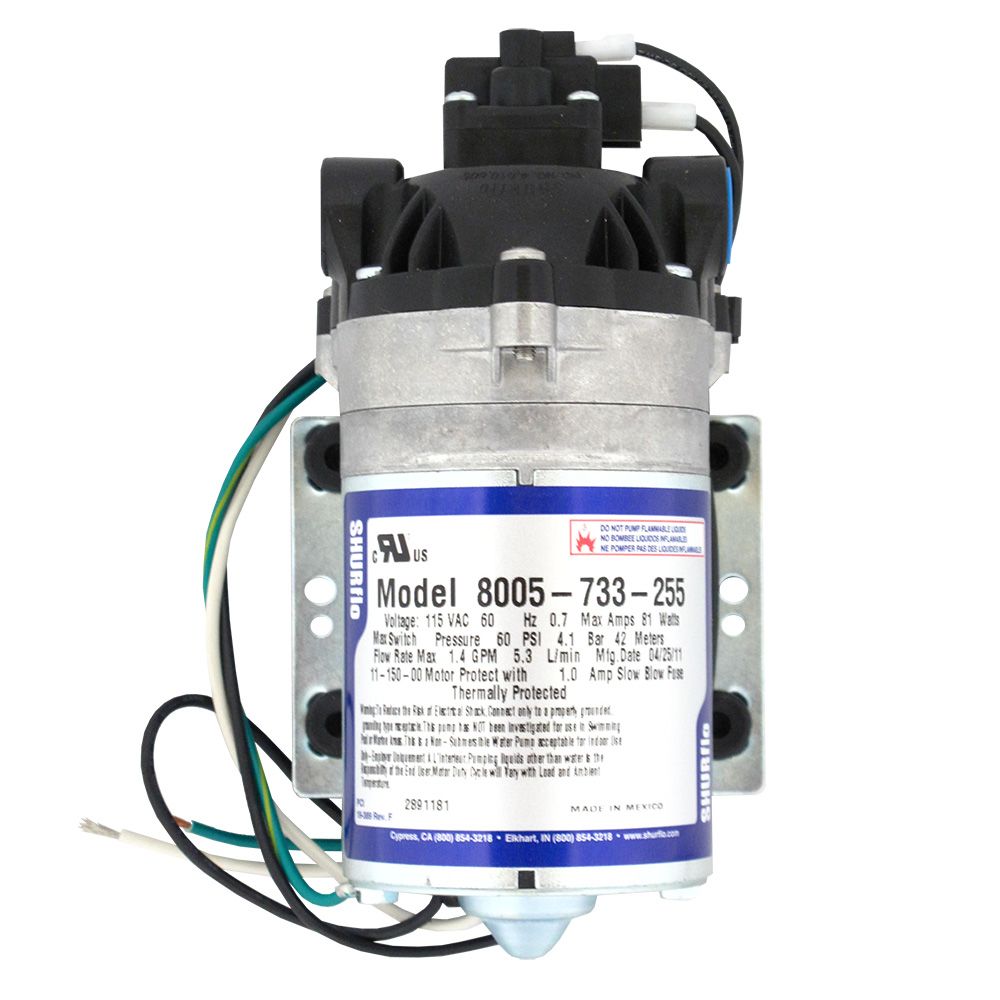

The SHURflo 8005-733-255 Demand Pump is ideal in applications that require high pressure and a flow rate of 1.5 GPM. The pump can be mounted in any position, is compact and is designed for long trouble-free life.
Additional specifications:
- 1.5 GPM flow rate
- Demand Switch
- 45psi internal bypass
- Can run dry without damage
- Self priming up 8 vertical feet
- 3/8" NPT female ports
- Santoprene diaphragm
- Built-in check valve
- UL Recognized Component
- NSF and CSA listed
This demand pump replaces part number 32505 for the Pure Water Mega Classic and A-12 distillers.
Applications:
- Water delivery
Weight & Dimensions
Approx Height (Inches) | 4.08 Inches |
Approx Length (Inches) | 7.56 Inches |
Approx Width (Inches) | 3.28 Inches |
Details
Series | 8000 |
Amps | 0.31 (0 psi) - 0.54 (60 psi) Amps |
Diaphragm Materials | Santoprene |
Flow Rate | 1.5 GPM |
Housing Material | Zinc Plated Steel |
Liquid Temperature | 170 Degrees Fahrenheit |
Pressure Switch | Adjustable Shut-off (Range 40-60 psi), Factory Set@60 psi, Turn on 45 psi +/- 5 psi |
Size | 3/8" |
Voltage | 115VAC |
Inlet Pressure | 30 PSI |
Power Source | No Cord |
Suction Lift | Self prime up to 11 ft |
Psi Bypass | 45 PSI |
Inlet/Outlet Connection | 3/8" | FPT |
Wire Option | Bare Wire |
Warranty & Certifications
Certifications | NSF |
