Features:
- 3-chamber construction
- Closed impervious diaphragm
- Asymmetrical manifold
- Integral switch or bypass
- Highest structural integrity
- Seven point clamping
- Engineered composite plastics
- Corrosion resistant metal
- Multiple porting options
- Adjustable switch and bypass settings
- Self-priming, auto-purging
- Near silent operation at lower flows
- Highly efficient
- Minimal pulsations
- 7 year design life
- Runs dry without damage
Weight & Dimensions
Approx Height (Inches) | 3.6 Inches |
Approx Length (Inches) | 8.46 Inches |
Approx Width (Inches) | 4 Inches |
Details
Amps | 0.4 @ 60 psi Amps |
Diaphragm Materials | Santoprene |
Flow Rate | 0.9 @ 60 psi PSI |
Housing Material | Polypropylene |
Inlet Size | 3/8" QC |
Liquid Temperature | 140 max Degrees Fahrenheit |
Outlet Size | 3/8" QC |
Pressure Switch | 60 PSI |
Type | Demand |
Valve Type | EPDM |
Voltage | 115VAC |

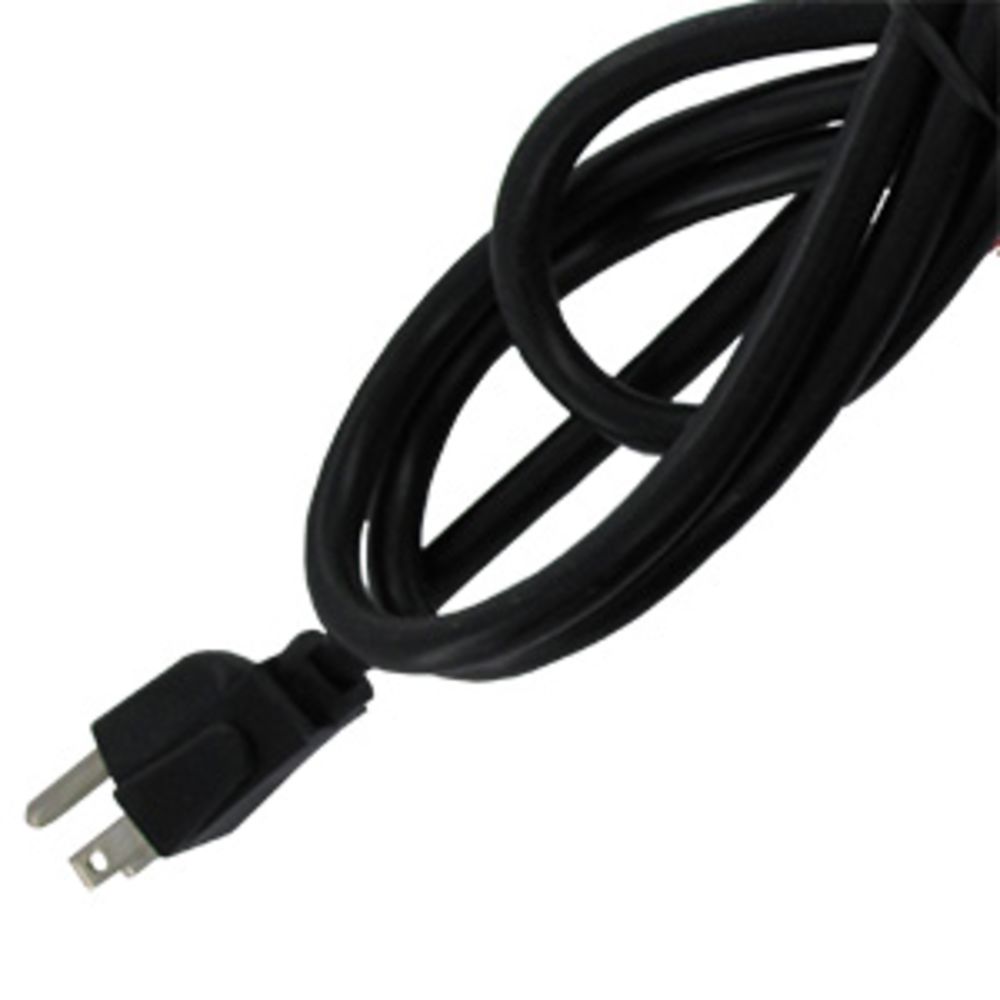

Power Source | Cord/Pressure Switch Wires |
Motor Rpm | 1200 Rotations Per Minute |
Warranty & Certifications
Certifications | NSF 58 |
Warranty | 1 year |

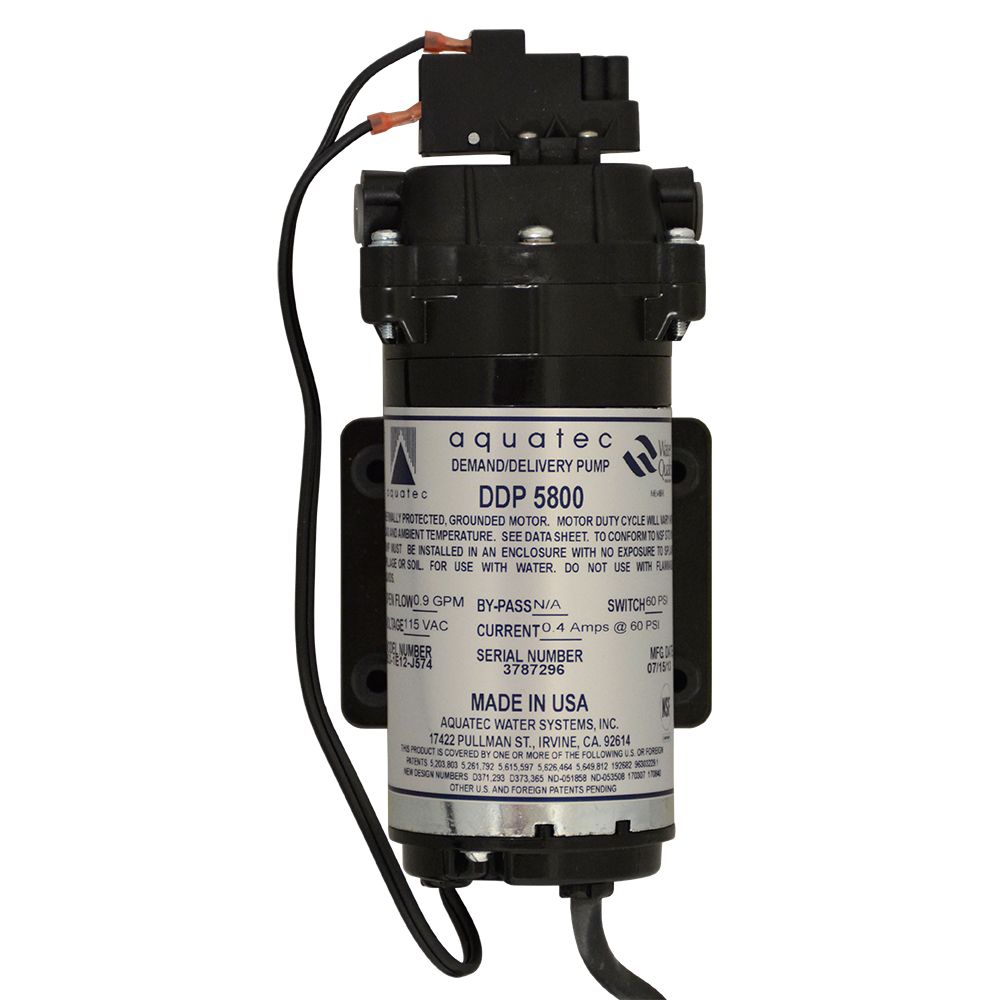

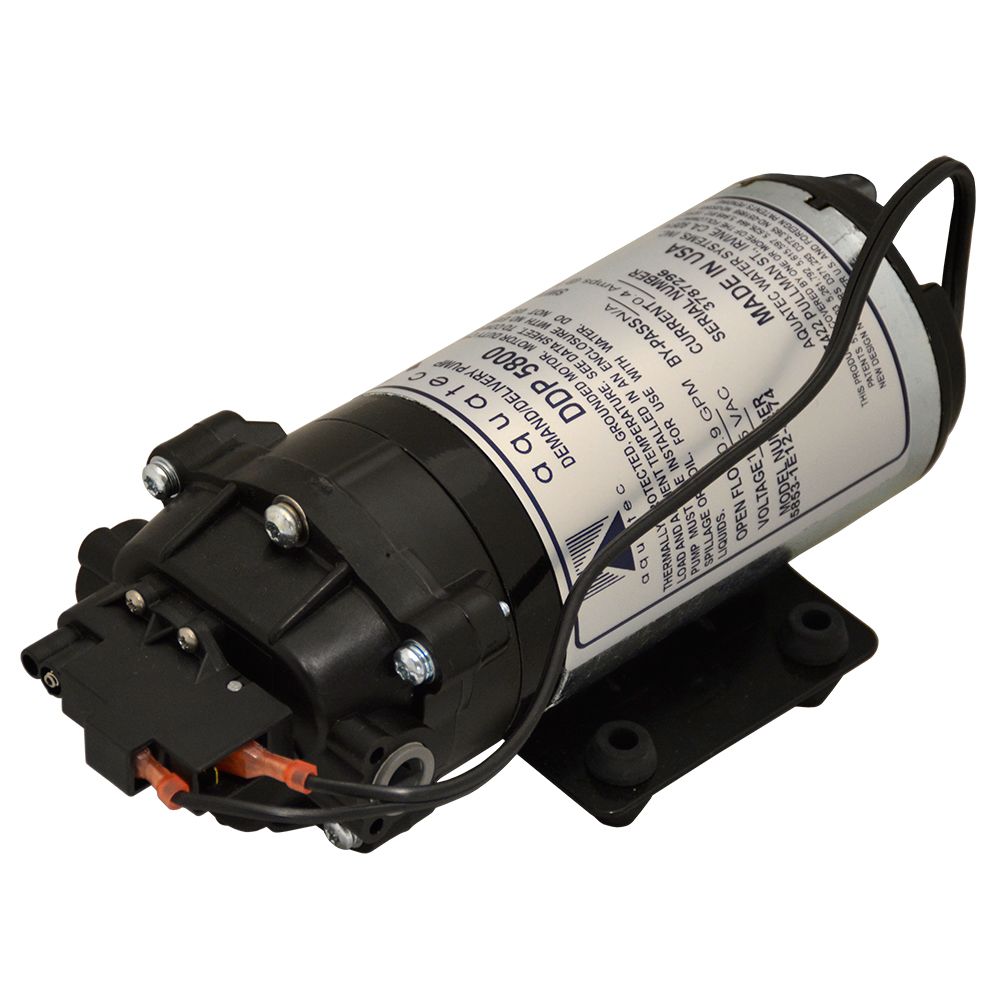

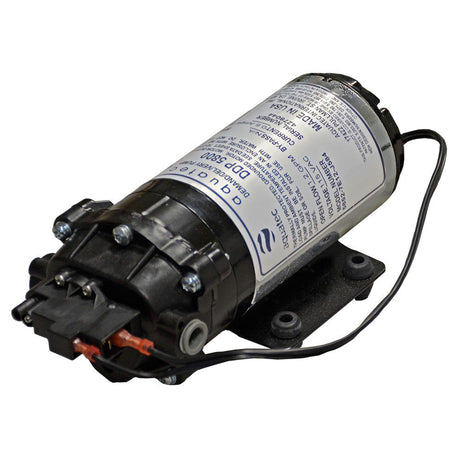

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.
Features:
- 3-chamber construction
- Closed impervious diaphragm
- Asymmetrical manifold
- Integral switch or bypass
- Highest structural integrity
- Seven point clamping
- Engineered composite plastics
- Corrosion resistant metal
- Multiple porting options
- Adjustable switch and bypass settings
- Self-priming, auto-purging
- Near silent operation at lower flows
- Highly efficient
- Minimal pulsations
- 7 year design life
- Runs dry without damage
Weight & Dimensions
Approx Height (Inches) | 3.6 Inches |
Approx Length (Inches) | 8.46 Inches |
Approx Width (Inches) | 4 Inches |
Details
Amps | 0.4 @ 60 psi Amps |
Diaphragm Materials | Santoprene |
Flow Rate | 0.9 @ 60 psi PSI |
Housing Material | Polypropylene |
Inlet Size | 3/8" QC |
Liquid Temperature | 140 max Degrees Fahrenheit |
Outlet Size | 3/8" QC |
Pressure Switch | 60 PSI |
Type | Demand |
Valve Type | EPDM |
Voltage | 115VAC |
Power Source | Cord/Pressure Switch Wires |
Motor Rpm | 1200 Rotations Per Minute |
Warranty & Certifications
Certifications | NSF 58 |
Warranty | 1 year |
