Aquatec 5853-1E12-J524 Pump 1.5 GPM, 3/8"JG, 115V

Part Number: 5853-1E12-J524

In Stock

out of stock

In Stock

$123.75

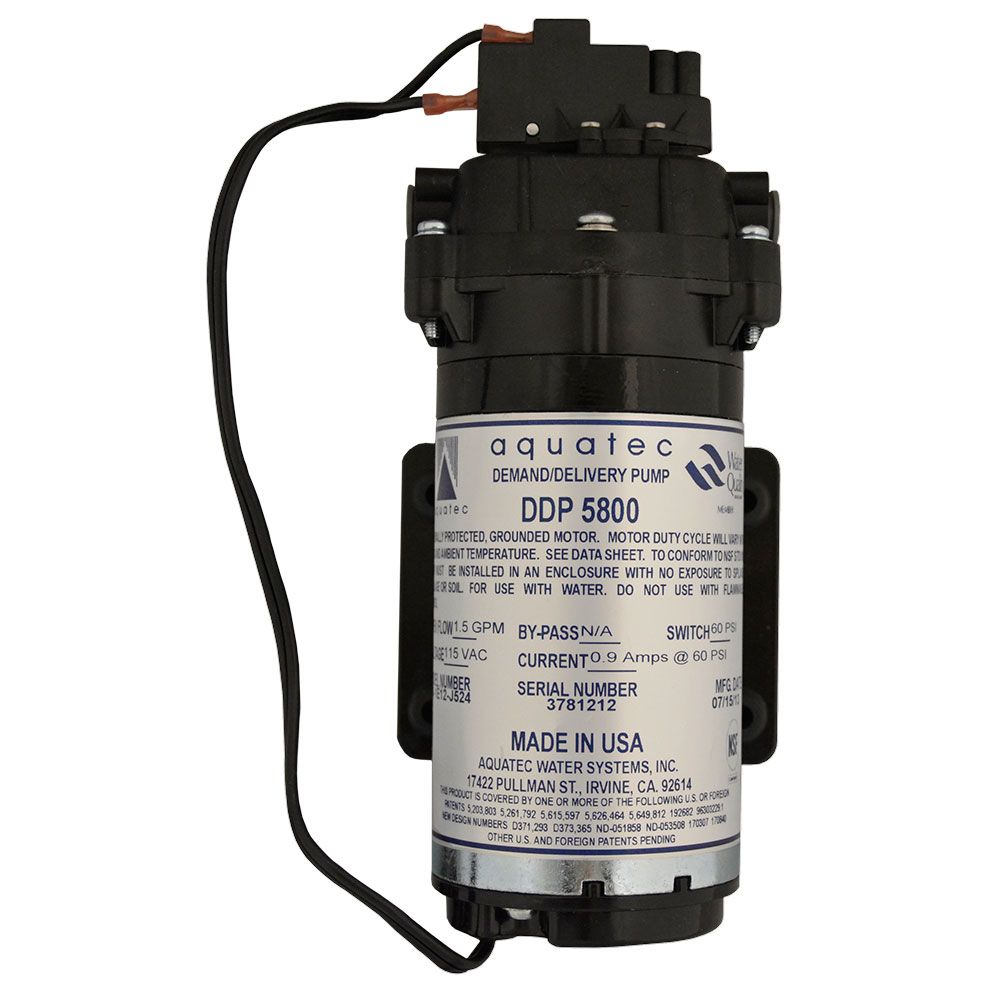

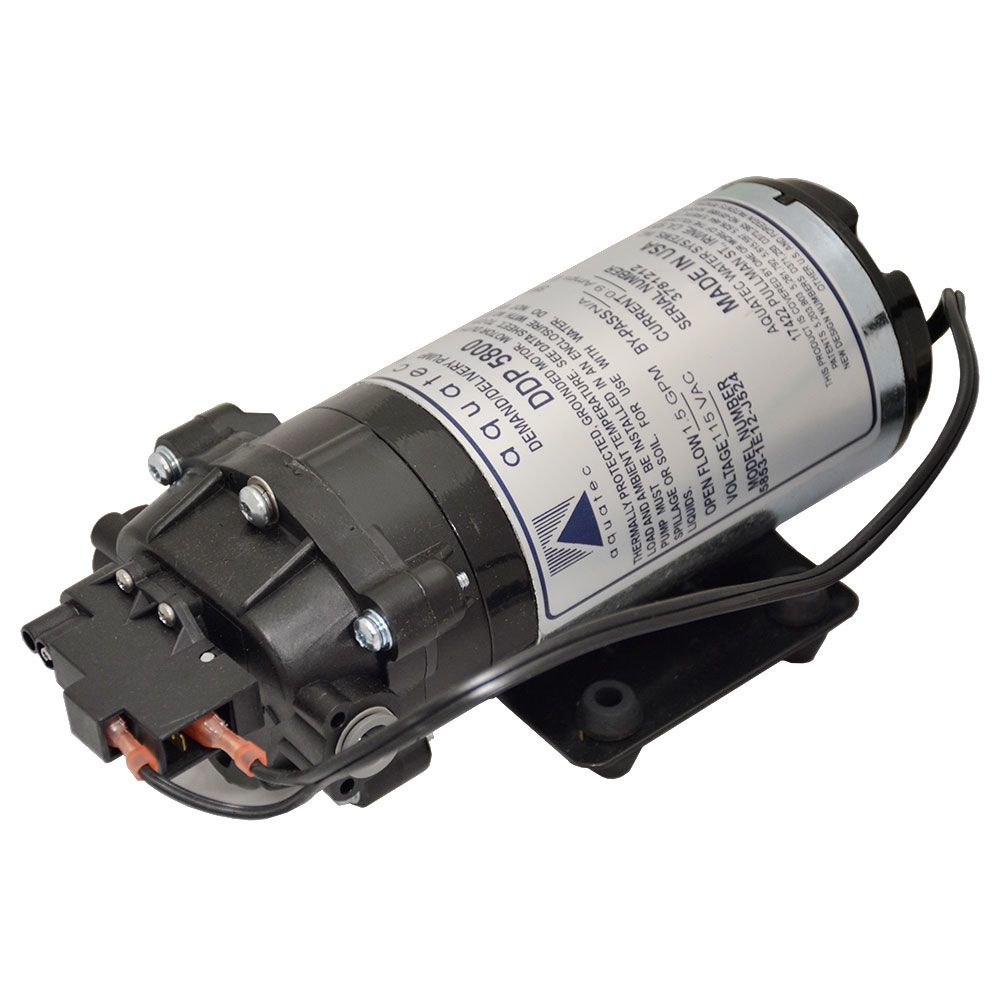

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Multiple porting options
Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage


Weight & Dimensions

Approx Height (Inches)

3.6 Inches

Approx Length (Inches)

8.46 Inches

Approx Width (Inches)

4 Inches

Details

Amps

0.9 @ 60 psi Amps

Diaphragm Materials

Santoprene

Flow Rate

1.7 @ 60 psi Gallons Per Minute

Housing Material

Polypropylene

Inlet Size

3/8" QC

Liquid Temperature

140 Max Degrees Fahrenheit

Origin

Made in USA

Outlet Size

3/8" QC

Pressure Switch

60 PSI

Voltage

115VAC

Power Source

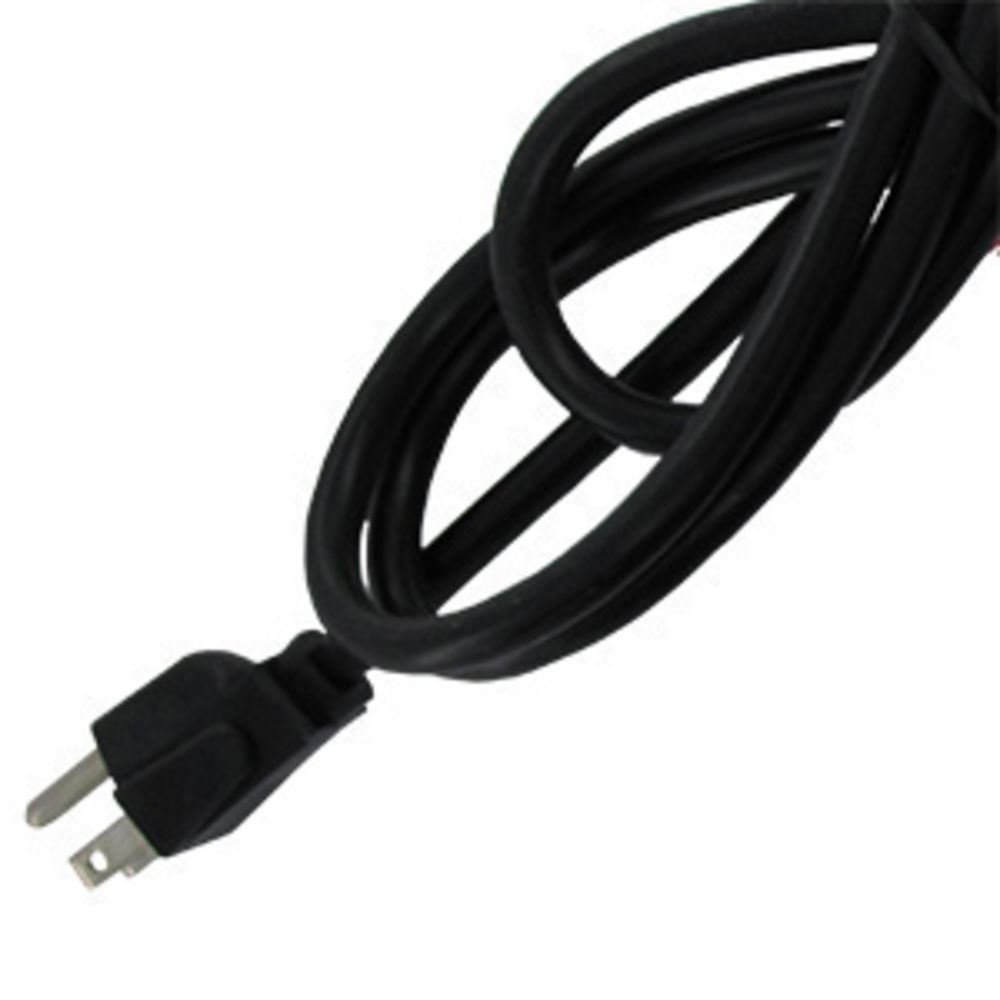

Cord/Pressure Switch Wires

Motor Rpm

2100 Rotations Per Minute

Warranty & Certifications

Certifications

NSF 58

Warranty

1 year
