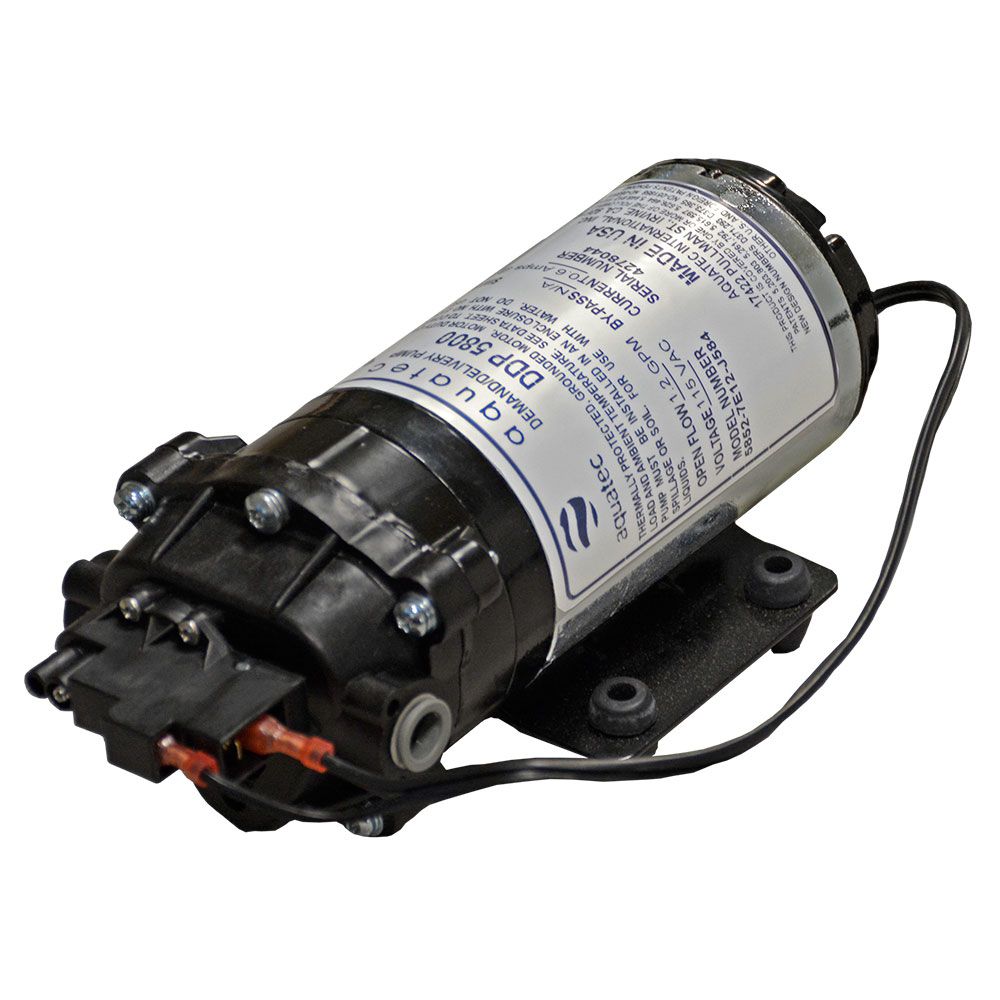

Aquatec 5852-7E12-J584 Pump 1.2 GPM, 3/8"JG, 115V

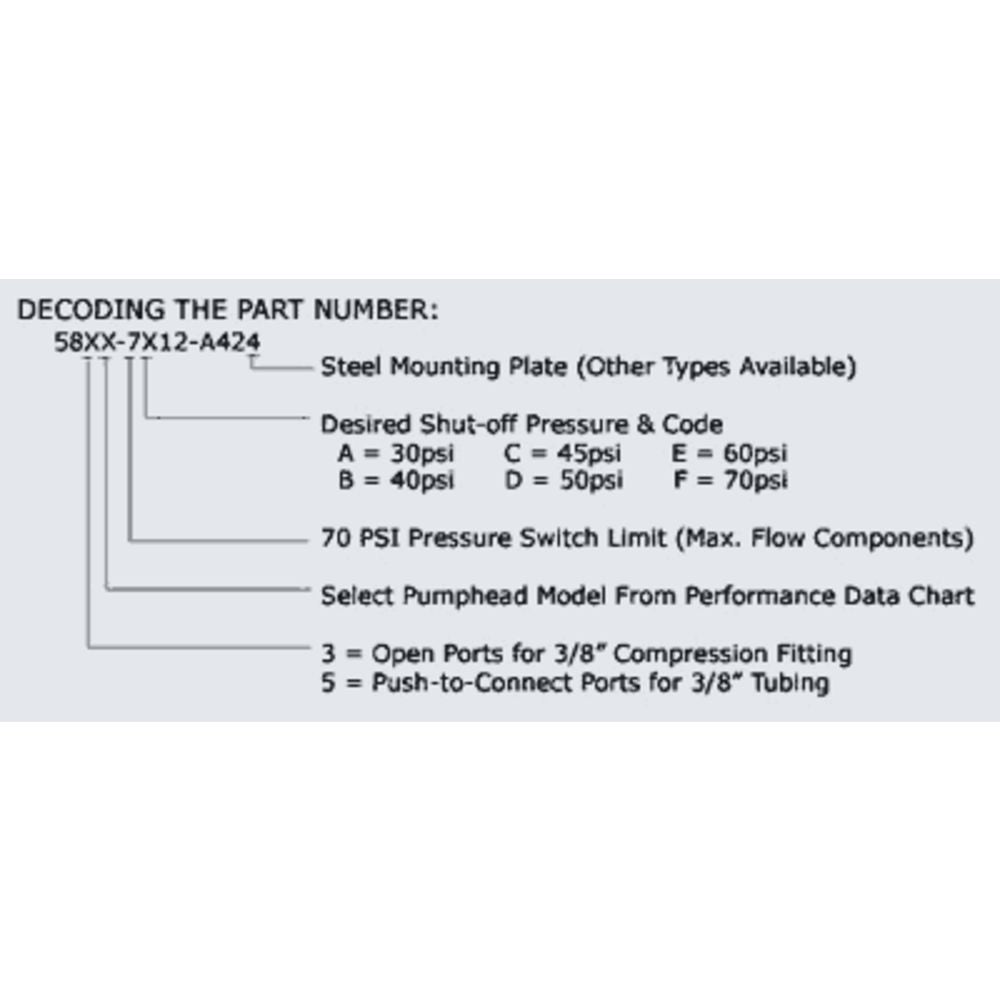

Part Number: 5852-7E12-J584

Alt. Part Number: DDP5800-12, PDP5852

In Stock

out of stock

In Stock

$109.99


The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.
Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage

Features:
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal


Weight & Dimensions

Approx Height (Inches)

3.6 Inches

Approx Length (Inches)

8.46 Inches

Approx Width (Inches)

4 Inches

Details

Amps

0.6 @ 60 psi Amps

Diaphragm Materials

Santoprene

Flow Rate

1.2 @ 60 psi Gallons Per Minute

Housing Material

Polypropylene

Inlet Size

3/8" QC

Liquid Temperature

140 max Degrees Fahrenheit

Origin

Made in USA

Outlet Size

3/8" QC

Pressure Switch

60 PSI

Voltage

115VAC

Power Source

Cord/Pressure Switch Wires

Motor Rpm

1600 Rotations Per Minute

Suction Lift

Self prime up to 7 ft

Warranty & Certifications

Certifications

NSF 58

Warranty

1 year


Aquatec

Aquatec





The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.
Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage

Features:
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal

Weight & Dimensions

Approx Height (Inches)

3.6 Inches

Approx Length (Inches)

8.46 Inches

Approx Width (Inches)

4 Inches

Details

Amps

0.6 @ 60 psi Amps

Diaphragm Materials

Santoprene

Flow Rate

1.2 @ 60 psi Gallons Per Minute

Housing Material

Polypropylene

Inlet Size

3/8" QC

Liquid Temperature

140 max Degrees Fahrenheit

Origin

Made in USA

Outlet Size

3/8" QC

Pressure Switch

60 PSI

Voltage

115VAC

Power Source

Cord/Pressure Switch Wires

Motor Rpm

1600 Rotations Per Minute

Suction Lift

Self prime up to 7 ft

Warranty & Certifications

Certifications

NSF 58

Warranty

1 year
