Polaris Scientific UV

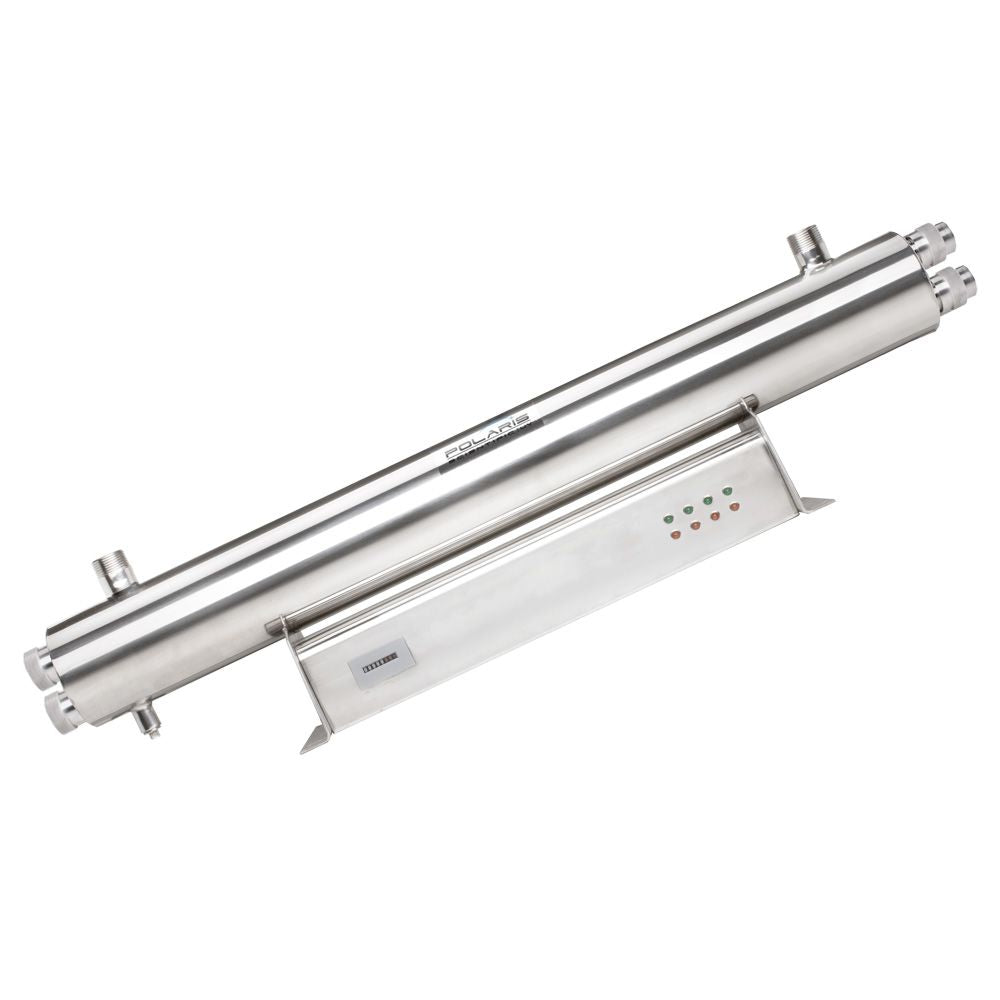

Polaris UVA-50B Ultraviolet Disinfection System 50 gpm

Part Number: PSUV-50B

In Stock

out of stock

In Stock

$1,462.79


The Polaris UVA-50B Ultraviolet Disinfection System features a polished 304 stainless steel reactor chamber making it suitable laboratory or medical use as well as residential applications. Installation is quick and easy, requiring only two water connections and one electrical connection. The UVA-50B has an audible alarm to alert you if the lamp has failed.

Specifications:
  • Polished 304 stainless steel UVA chamber
  • No toxic chemicals or by-products such as trihalomethanes (THM)
  • Audible lamp failure alarm on ballast
  • Includes lamp timer to remind you when to replace lamp
  • Number of lamps: 4
  • Inlet/Outlet: 1-1/2" MNPT
  • Flow Rate: 50 gpm
Applications:
  • Light Commercial RO Systems
  • Food Industry
  • Medical Facility Water
  • Cosmetic Proceses
  • Recirculation Loops
  • Water Vending Machines
  • Laboratory
  • Pharmaceutical
  • Final Electronic Rinsing


Weight & Dimensions

Approx Length (Inches)

36.93 Inches

Details

Ambient Temperature Range

35 - 104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

5.5 Inches

Features

Audible Lamp Failure; Lamp Timer

Flow Rate

50 Gallons Per Minute (30mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

1-1/2" MPT

Number Of Lamps

4

Operating Pressure Range

Max 125 PSI

Power

156 Watts

Type

UVC

Voltage

110 V

Warranty & Certifications

Warranty

UV Chamber: 5 years - Other components: 1 year
