Colder Products

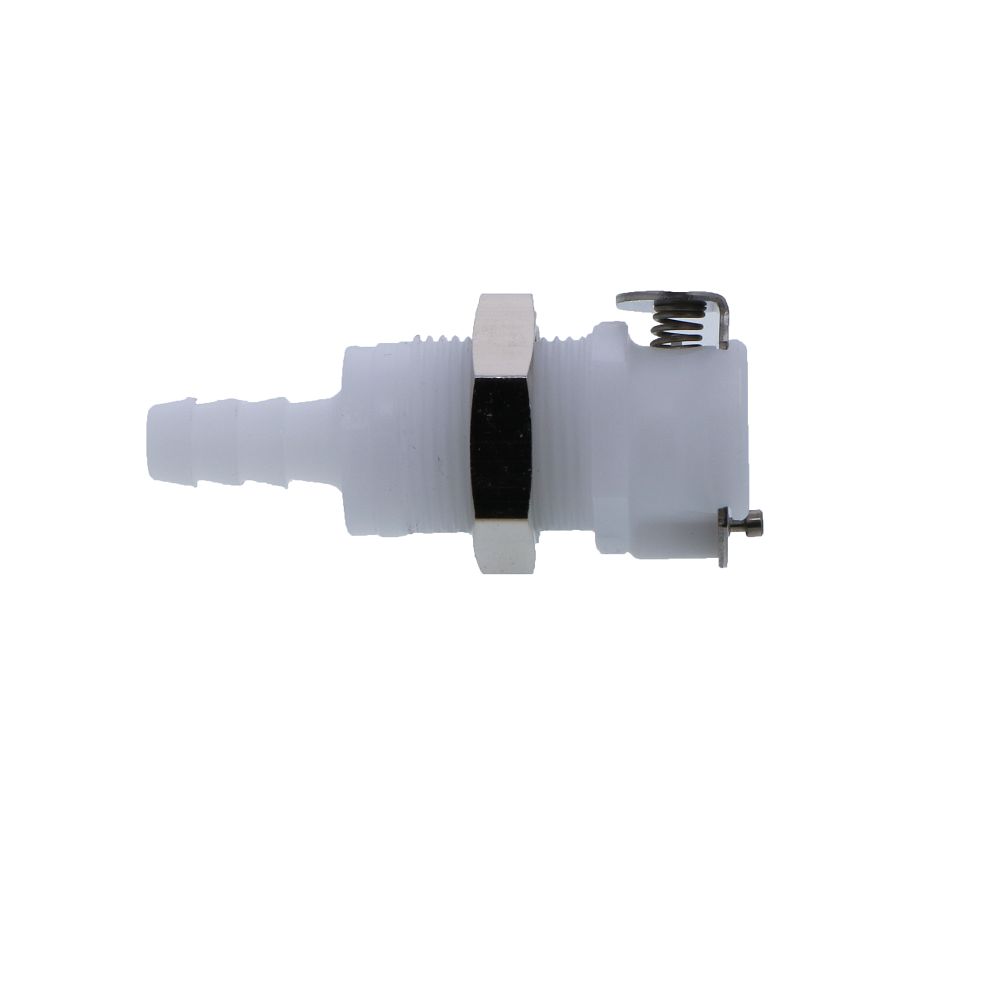

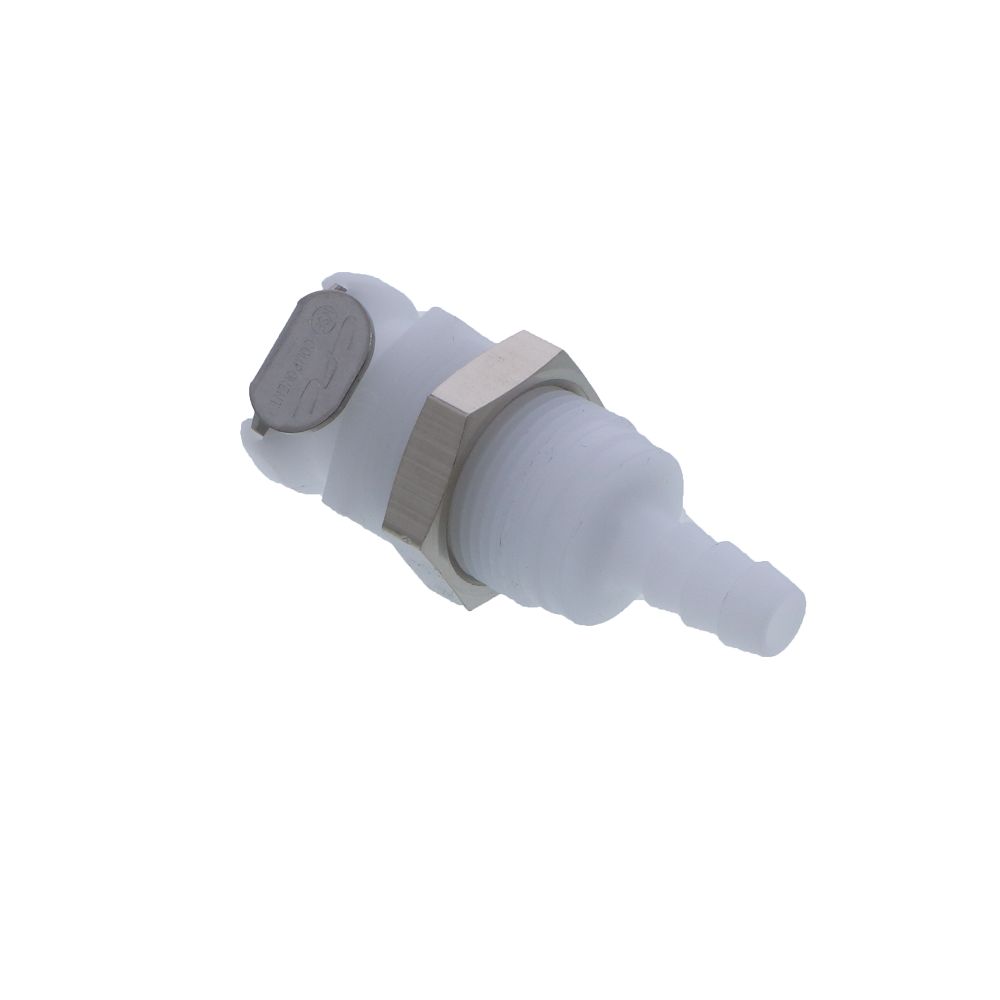

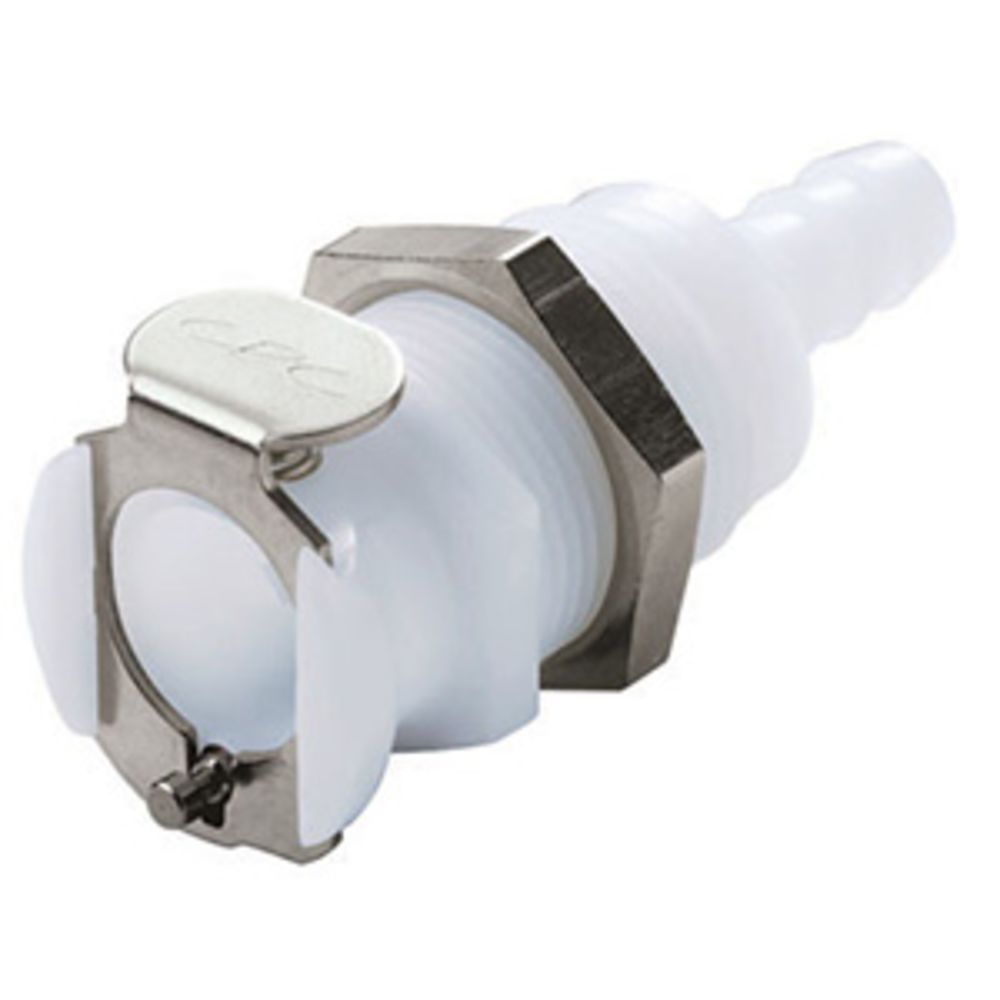

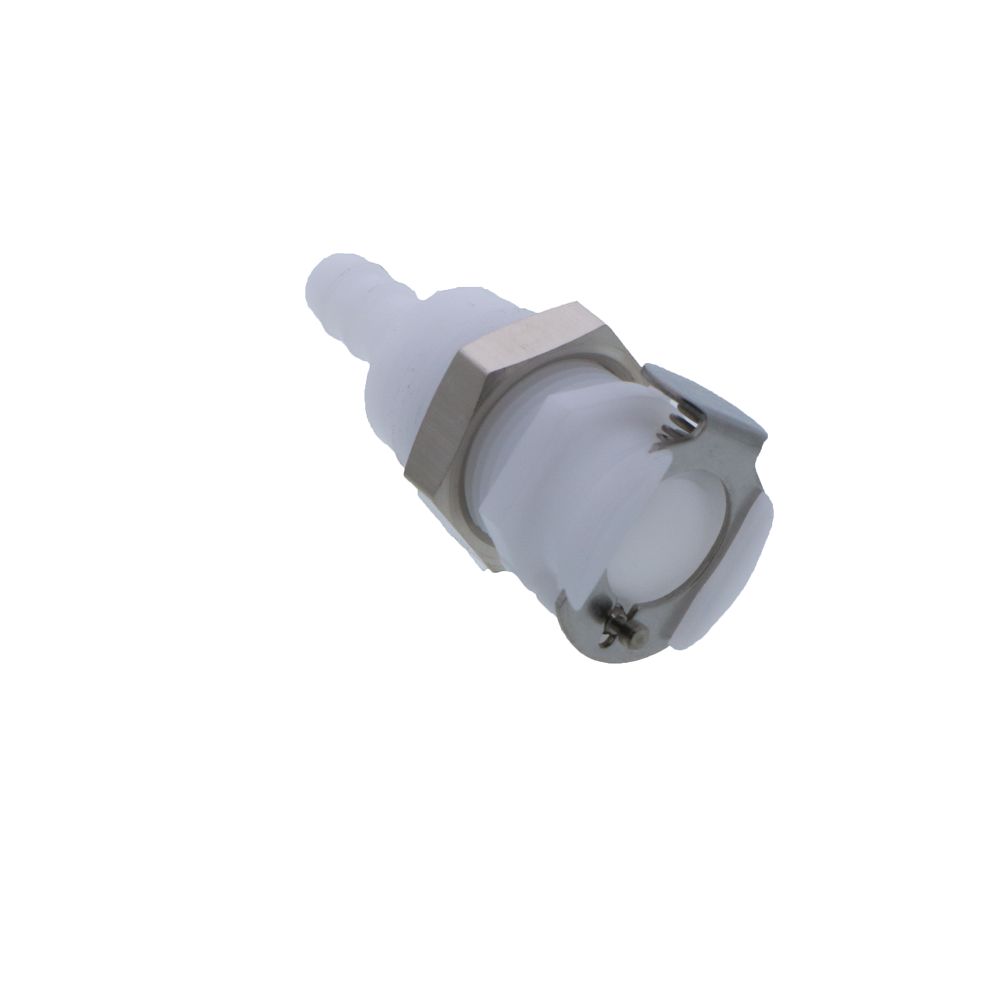

PLCD16004 Valved Panel Mount Hose Barb Coupling Body 1/4 ID Barb

Part Number: PLCD16004

In Stock

out of stock

In Stock

$11.66

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 21100)




Details

Series

PLC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

1/4" ID

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Panel Mount

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved


PLCD16004




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 21100)



Details

Series

PLC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

1/4" ID

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Panel Mount

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved

Documentation
PLCD16004
