Colder Products

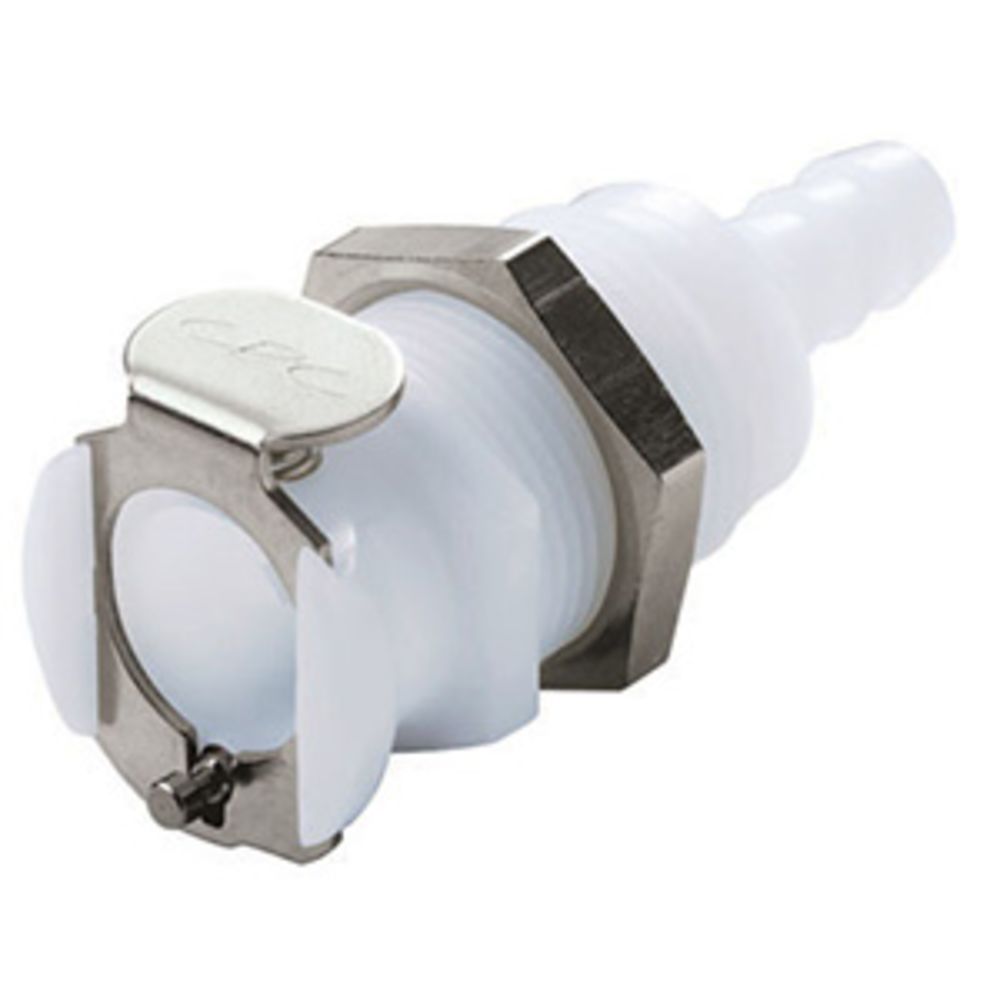

PLCD16004 NSF Valved Panel Mount Hose Barb Coupling Body 1/4 ID Barb

Part Number: 21100

Alt. Part Number: PLCD16004

In Stock

out of stock

In Stock

$13.14

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: FDA Buna-N
  • Available in Bags of 25 units
  • NSF Listed
NOTE: This specialty item from Colder has a minimum quantity order of 25 fittings.



Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Barb Size

1/4" ID

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Seal Material

FDA Buna-N

Series

PLC

Spring

316 Stainless Steel

Thumb Latch

Stainless steel

Valve Type

Valved

Color / Finish

White, Orange

Type

Coupling Body

Warranty & Certifications

Certifications

NSF 169


PLCD16004




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: FDA Buna-N
  • Available in Bags of 25 units
  • NSF Listed
NOTE: This specialty item from Colder has a minimum quantity order of 25 fittings.


Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Barb Size

1/4" ID

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Seal Material

FDA Buna-N

Series

PLC

Spring

316 Stainless Steel

Thumb Latch

Stainless steel

Valve Type

Valved

Color / Finish

White, Orange

Type

Coupling Body

Warranty & Certifications

Certifications

NSF 169

Documentation
PLCD16004
