Colder Products

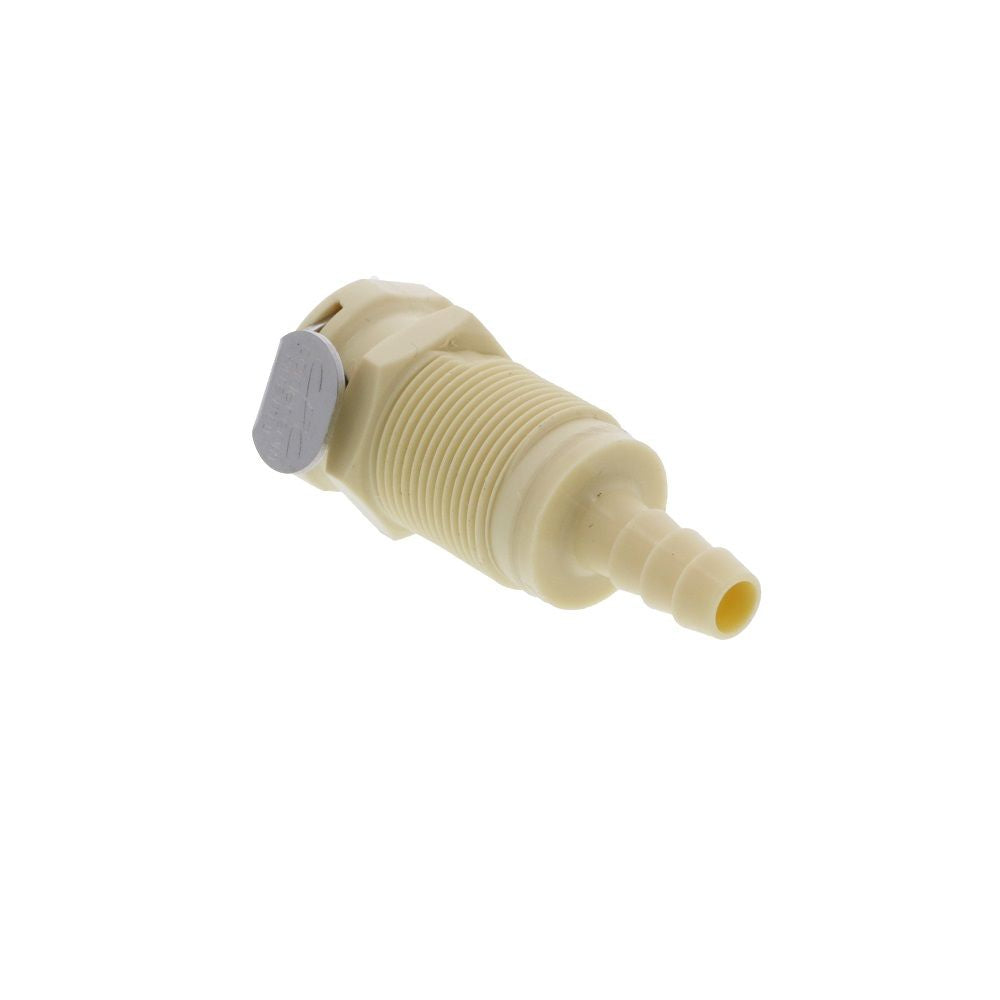

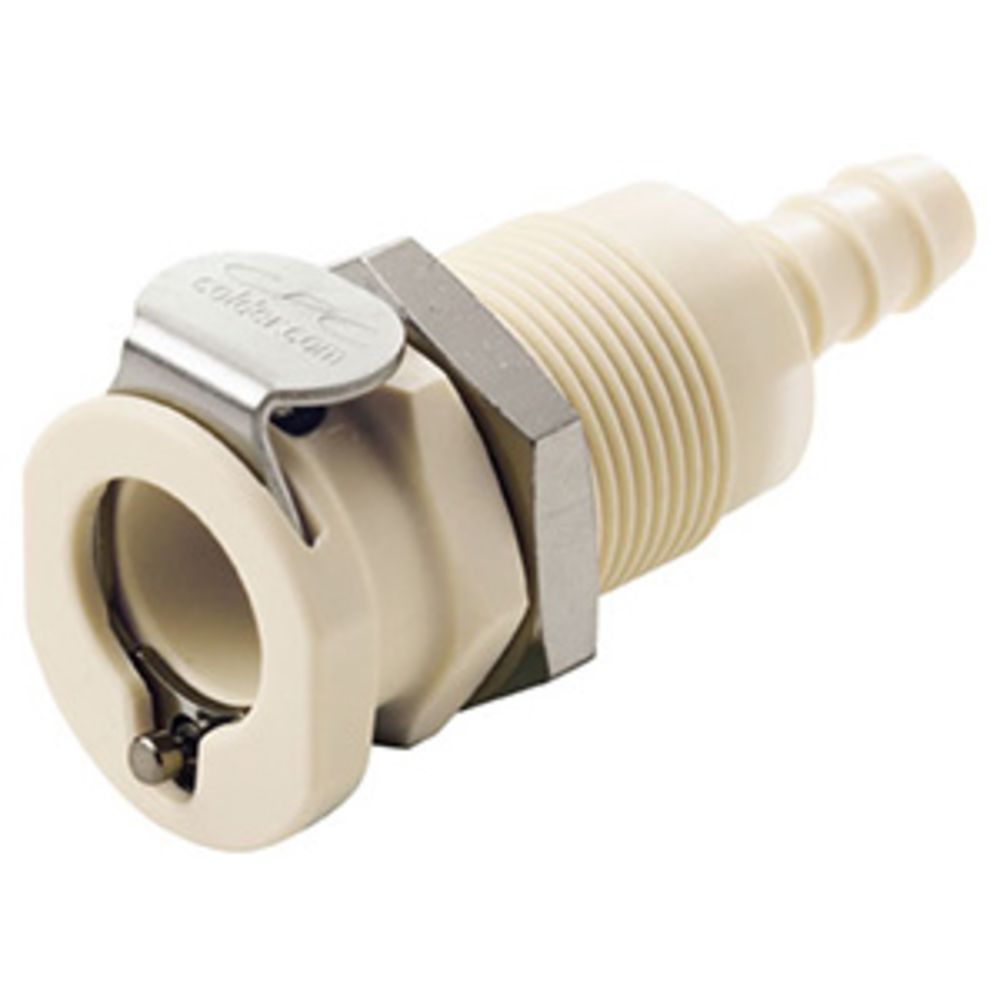

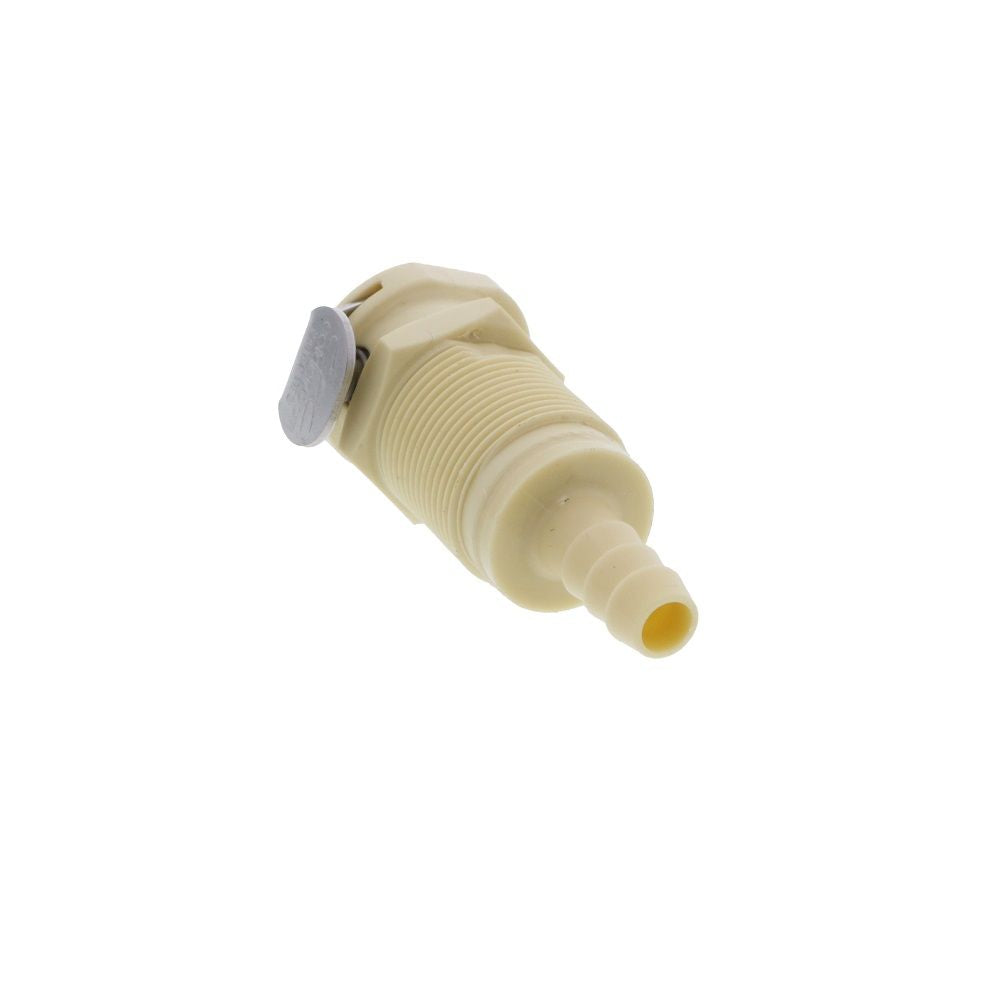

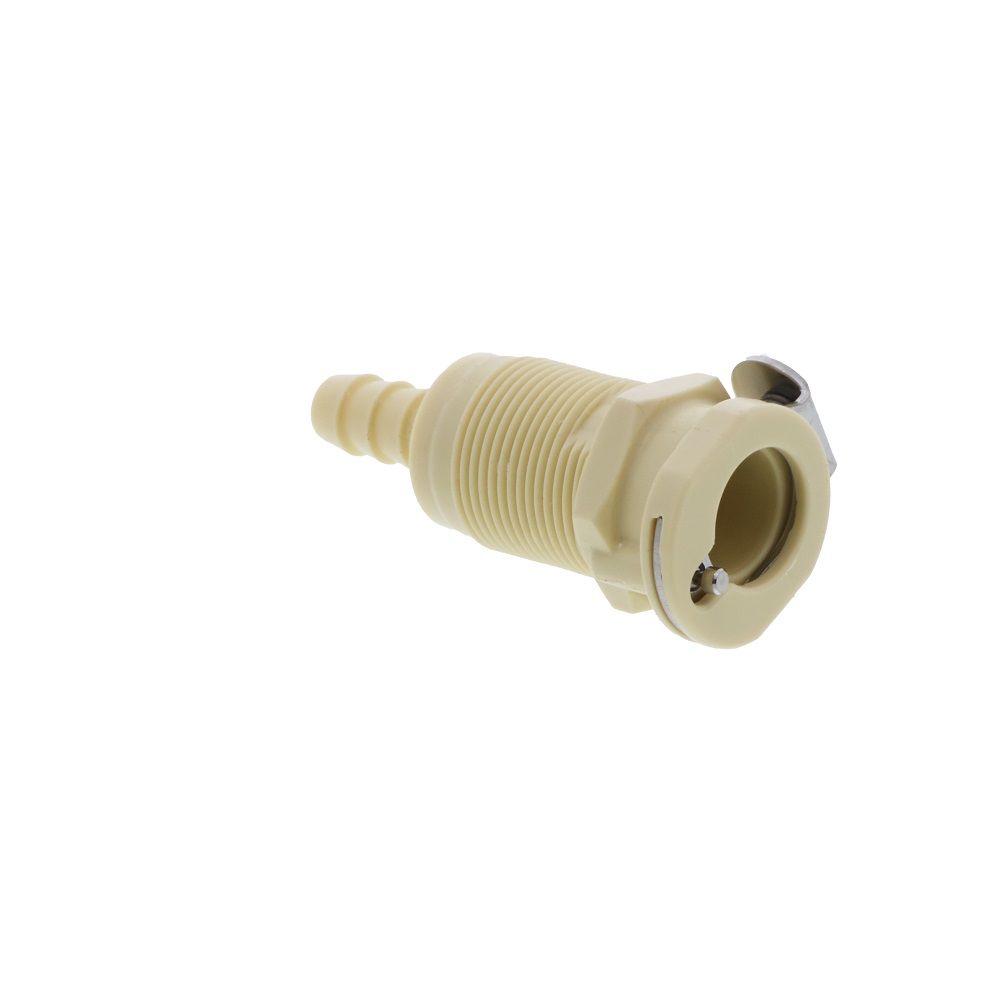

PLCD1600412 Valved Panel Mount Hose Barb Coupling Body 1/4 ID Barb

Part Number: PLCD1600412

In Stock

out of stock

In Stock

$13.12


The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units


Details

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Panel Mount

O Rings

EPDM

Operating Pressure Range

120 PSI; Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Origin

USA

Seal Material

EPDM

Size

1/4"

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved

External Springs And Pin

Stainless steel

Thumb Latch

Stainless steel


PLCD1600412





The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units

Details

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Panel Mount

O Rings

EPDM

Operating Pressure Range

120 PSI; Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Origin

USA

Seal Material

EPDM

Size

1/4"

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved

External Springs And Pin

Stainless steel

Thumb Latch

Stainless steel

Documentation
PLCD1600412
