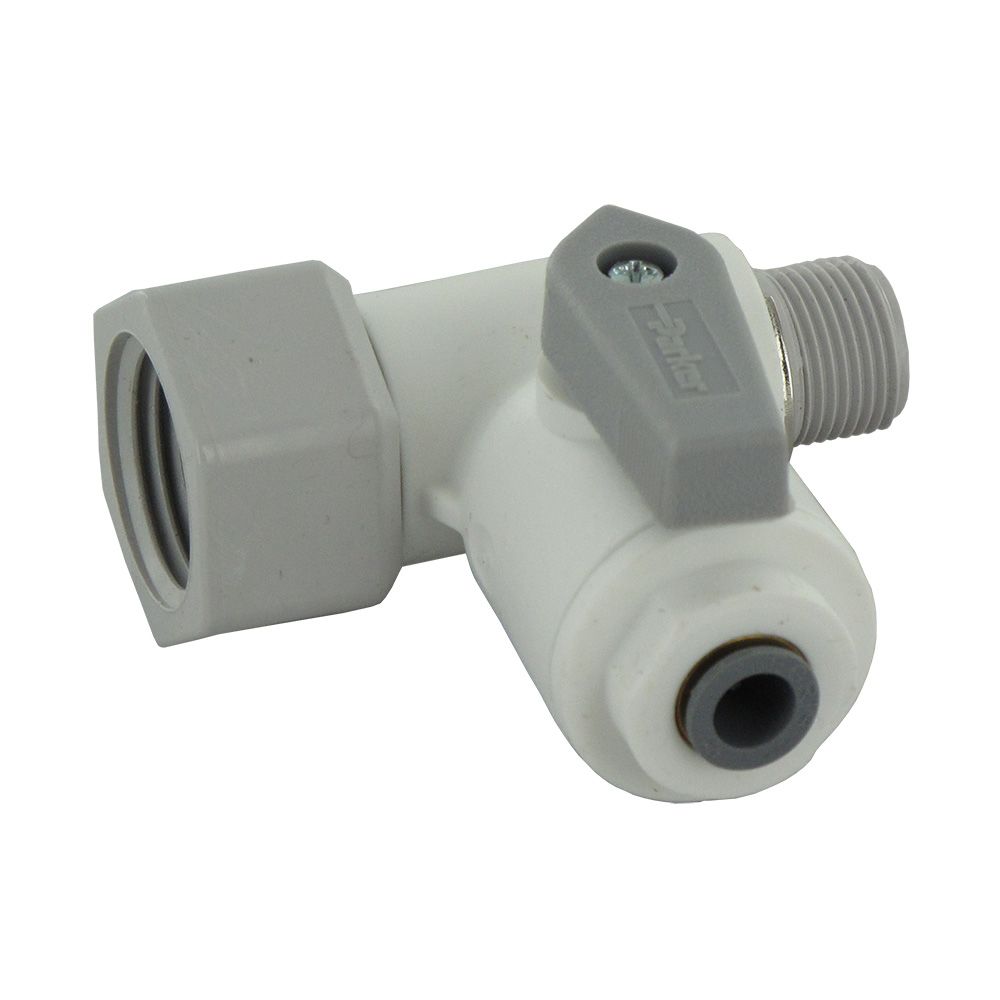

Parker LIQUIfit LFPP6VAS8 Angle Stop Adapter Valve 3/8 x 1/2 x 3/8

Part Number: LFPP6VAS8

In Stock

out of stock

In Stock

Closeout sale item with limited availability.

$8.72 Regular price $9.91 (12% Off)

The Parker LIQUIfit angle stop adapter valve is designed to allow the quick addition of connections for a filtration, reverse osmosis, coffee or ice maker system between your existing water supply valve and supply line. By combining Parker's LIQUIfit connection technology with proven TrueSeal ball valve construction, the LFPP6VAS8 is designed for superior performance and reliability.

Features:
  • Full flow design reduces pressure drop across the valve
  • Valve body rotates for easy tube routing
  • Removable clip for changing the handle orientation
  • 3/8" male compression x 1/2-14 NPSM female thread
  • 3/8" OD quick connect

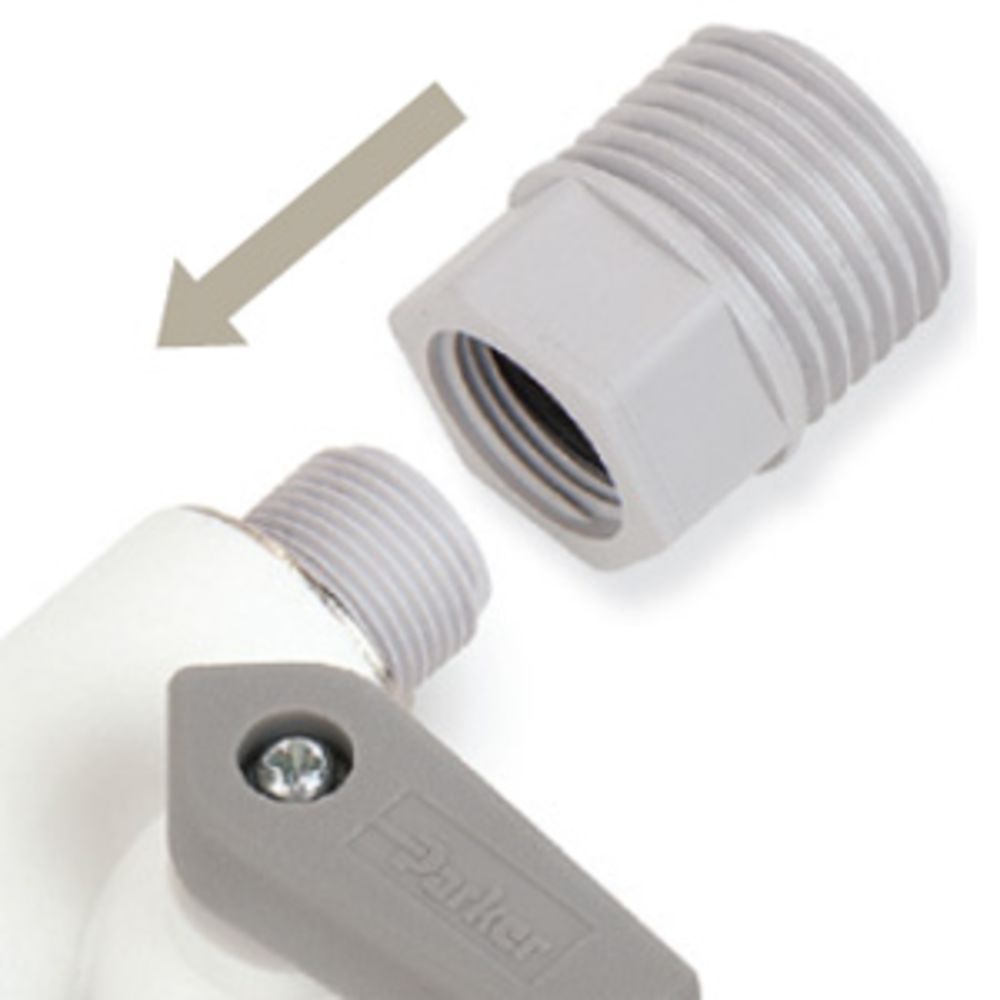

  • Includes Banjo Bolt Adapter (part # U8TVA6)
  • Adapter is 1/2-14 NPSM male x 3/8 female compression thread
  • Banjo Bolt Adapter can be used on either threaded side
  • Good choice if you are unsure which size angle stop you have.

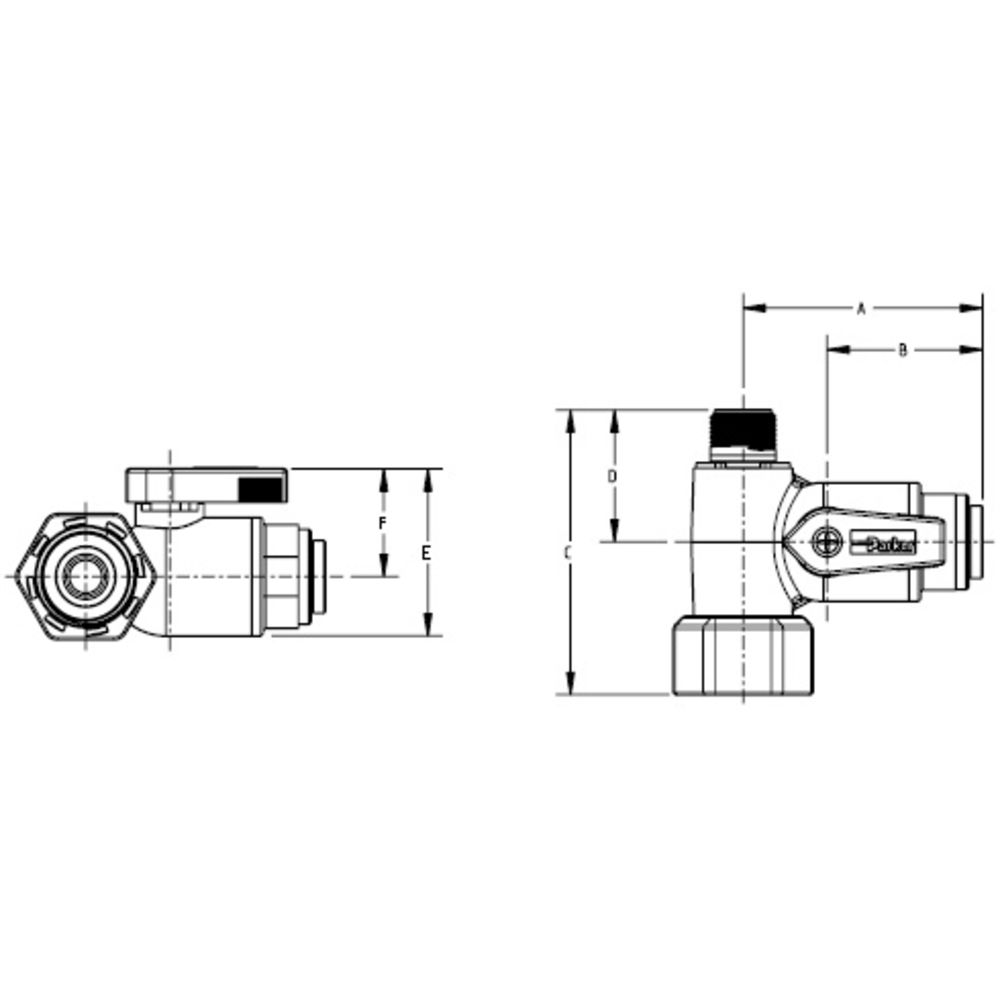

Part Number A B C D E F
LFPP6VAS8 2.02" 1.31" 2.40" 1.11" 1.41" .91"


Weight & Dimensions

Weight (lbs)

0.072

Details

Series

LIQUIFit

Max Temp (°F)

225

Max Pressure (Psi)

150

Min Temp (°F)

0

Min Pressure (Psi)

0

Push-In Size

3/8" OD

Application

Water Supply, Fluids, Food/Beverage

Body Material

Polypropylene

Color / Finish

White

O-Rings

EPDM

Size

3/8", 1/2"

Inlet/Outlet Connection

1/2" FPT, 3/8" MPT

Warranty & Certifications

Certifications

NSF 51; FDA


Parker




The Parker LIQUIfit angle stop adapter valve is designed to allow the quick addition of connections for a filtration, reverse osmosis, coffee or ice maker system between your existing water supply valve and supply line. By combining Parker's LIQUIfit connection technology with proven TrueSeal ball valve construction, the LFPP6VAS8 is designed for superior performance and reliability.

Features:
  • Full flow design reduces pressure drop across the valve
  • Valve body rotates for easy tube routing
  • Removable clip for changing the handle orientation
  • 3/8" male compression x 1/2-14 NPSM female thread
  • 3/8" OD quick connect
  • Includes Banjo Bolt Adapter (part # U8TVA6)
  • Adapter is 1/2-14 NPSM male x 3/8 female compression thread
  • Banjo Bolt Adapter can be used on either threaded side
  • Good choice if you are unsure which size angle stop you have.


Part Number A B C D E F
LFPP6VAS8 2.02" 1.31" 2.40" 1.11" 1.41" .91"

NOTE: Closeout sale item with limited availability.

Weight & Dimensions

Weight (lbs)

0.072

Details

Series

LIQUIFit

Max Temp (°F)

225

Max Pressure (Psi)

150

Min Temp (°F)

0

Min Pressure (Psi)

0

Push-In Size

3/8" OD

Application

Water Supply, Fluids, Food/Beverage

Body Material

Polypropylene

Color / Finish

White

O-Rings

EPDM

Size

3/8", 1/2"

Inlet/Outlet Connection

1/2" FPT, 3/8" MPT

Warranty & Certifications

Certifications

NSF 51; FDA
