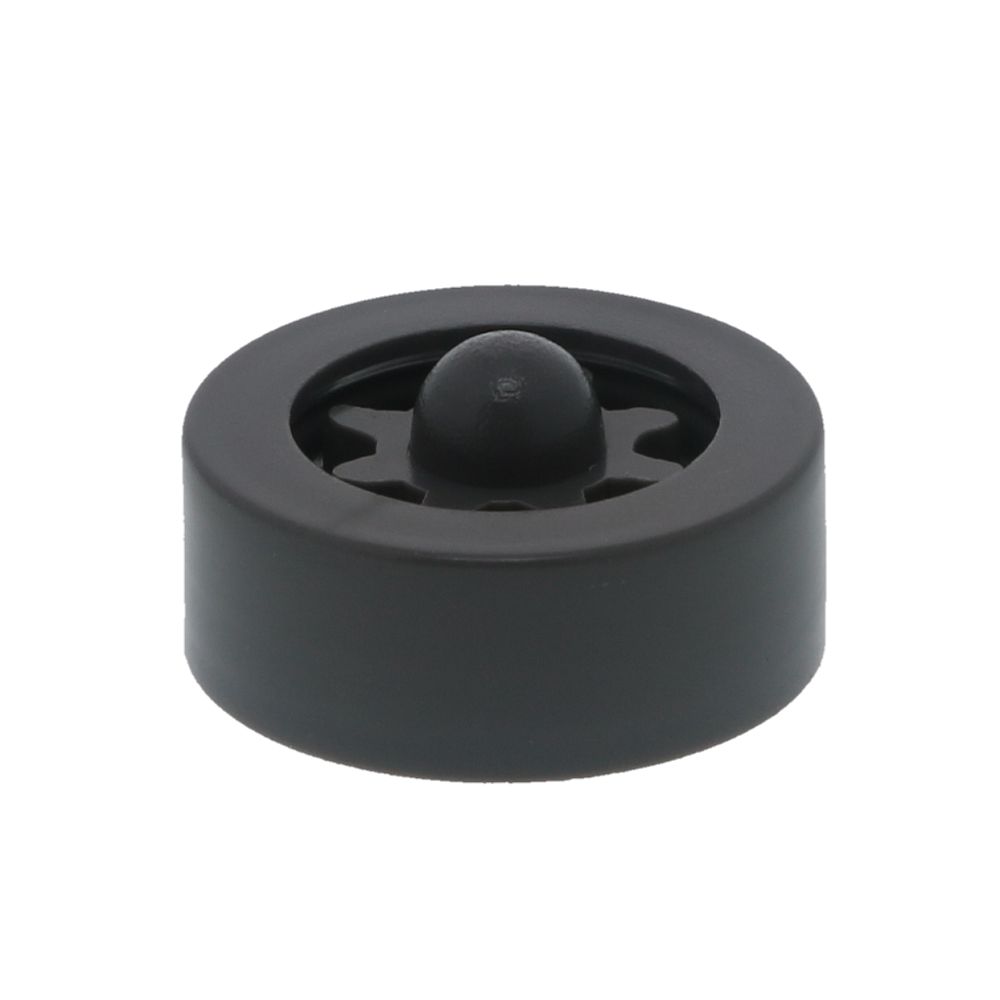

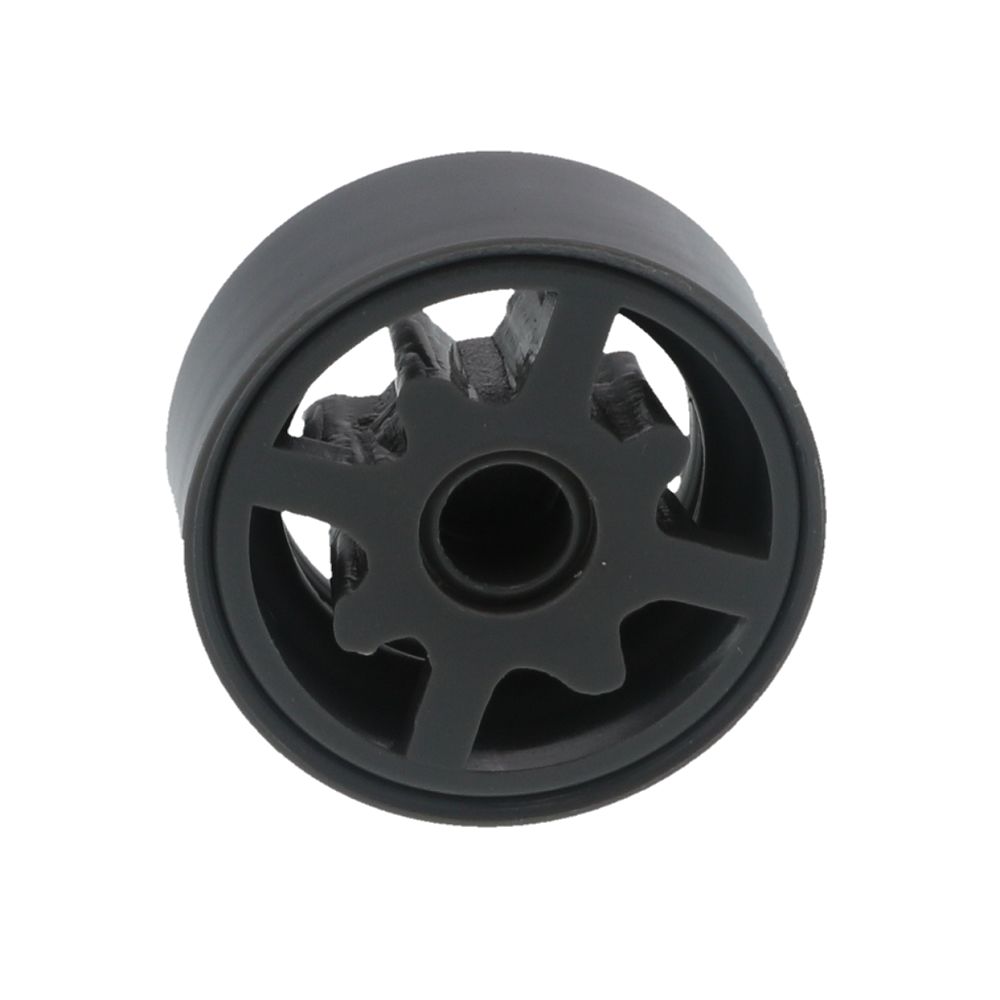

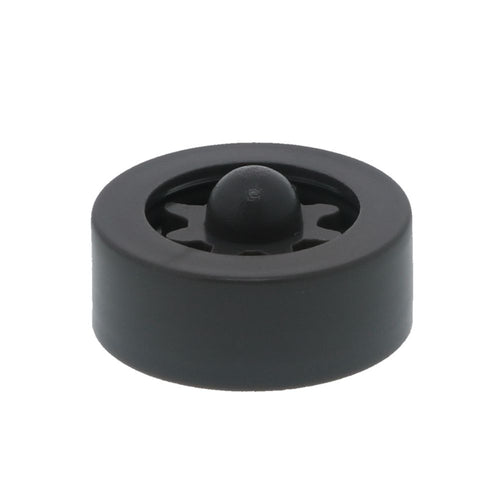

Neoperl Pressure Compensating Flow Regulator 3/4" OD - 12.1 gpm

Part Number: 58.7292.1

In Stock

out of stock

In Stock

$2.10


The Neoperl 3/4" 12.1 gpm Pressure Compensating Flow Regulator will operate as a flexible orifice to ensure a predefined constant flow rate is maintained independent of the prevailing line pressure. These regulators are pressure compensating, meaning they will compensate automatically for pressure variations between 15 and 100 psi. The press-fit design means no retainer is needed, and helps meet the 8 lb pull-out force requirement.

These high quality regulators will operate noise and trouble free for many years. We offer a wide variety of sizes and styles from a large range of flow rates so you can find one for your specific needs.    Applications:
  • Faucets
  • Showerheads
  • Handles
  • Instantaneous water heaters
  • Filters and appliances
  • Special applications
Specifications:
  • Body: Acetal
  • Core: Acetal
  • O-Ring: EPDM
  • Medium: Clear water only
  • Tested and certified to NSF/ANSI Standard 61
  • Wetted surface area: 1373.28 mm²


Details

Body Material

Acetal

Color / Finish

Black

O Rings

EPDM

Valve Type

Acetal

Warranty & Certifications

Certifications

NSF 61




The Neoperl 3/4" 12.1 gpm Pressure Compensating Flow Regulator will operate as a flexible orifice to ensure a predefined constant flow rate is maintained independent of the prevailing line pressure. These regulators are pressure compensating, meaning they will compensate automatically for pressure variations between 15 and 100 psi. The press-fit design means no retainer is needed, and helps meet the 8 lb pull-out force requirement.

These high quality regulators will operate noise and trouble free for many years. We offer a wide variety of sizes and styles from a large range of flow rates so you can find one for your specific needs.    Applications:
  • Faucets
  • Showerheads
  • Handles
  • Instantaneous water heaters
  • Filters and appliances
  • Special applications
Specifications:
  • Body: Acetal
  • Core: Acetal
  • O-Ring: EPDM
  • Medium: Clear water only
  • Tested and certified to NSF/ANSI Standard 61
  • Wetted surface area: 1373.28 mm²

Details

Body Material

Acetal

Color / Finish

Black

O Rings

EPDM

Valve Type

Acetal

Warranty & Certifications

Certifications

NSF 61
