Neo-Pure NP5-Z1 UV Disinfection and Water Purification System - 8 GPM

Part Number: NP5-Z1

In Stock

out of stock

In Stock

$939.99

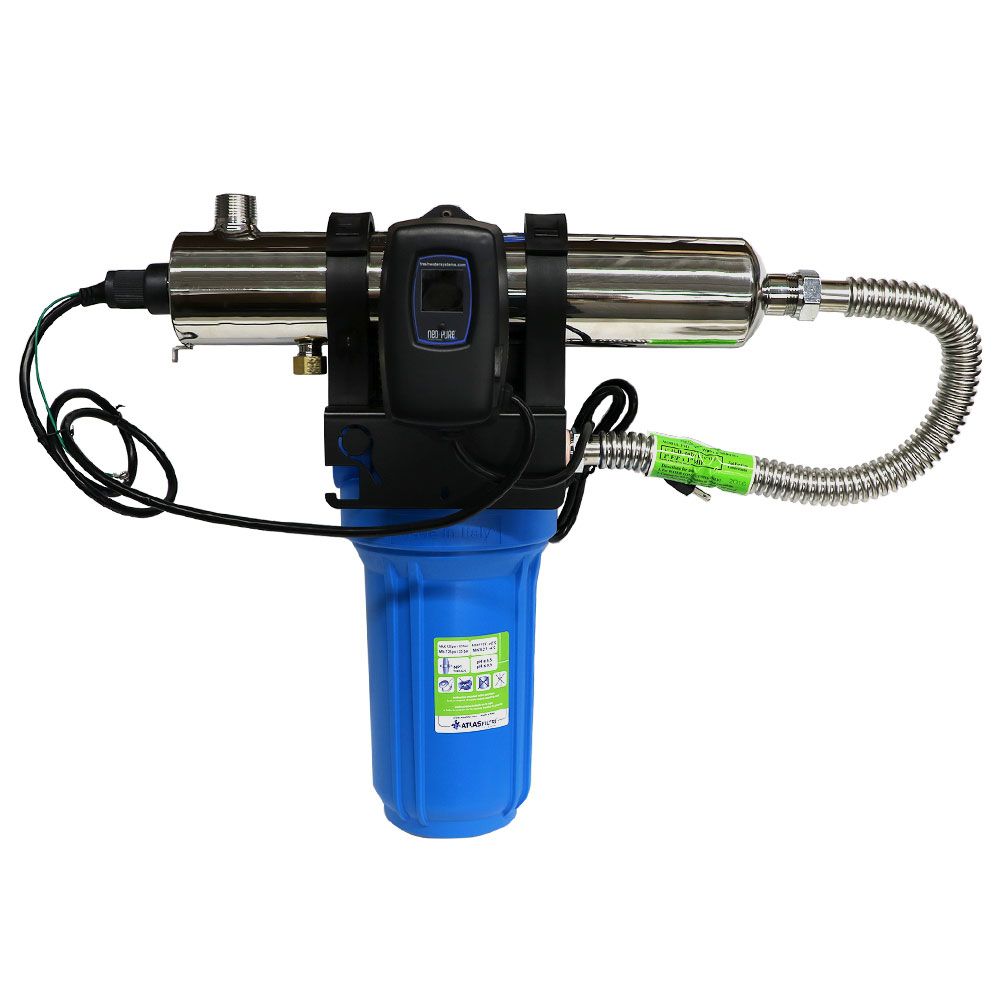

The Neo-Pure NP5-Z1 UV Disinfection and Water Purification System is designed to ensure safe drinking water for your family despite the presence of harmful bacteria. This rack unit combines the critical disinfection of a UV System with an added value of a Water Purification Unit. Ultraviolet light neutralizes the DNA of harmful viruses and bacteria, such as Cryptosporidium, Giardia, and E-Coli while the sediment filter removes the heavy dirt and particulates that may be found in the water especially for those using well water. This NSF Class B Certified system is rated at 8 gallon-per-minute (GPM) and is ideal for small residences with 2 to 3 bathrooms. Other applications may use this system as well, including large RV campers, condos, cottages, large boats, and other light commercial applications. This point-of-entry (POE) System connects directly to the water supply coming into your home safeguarding all the water entering your residence.

System Features:
  • Axial Flow Stainless Steel Reactor

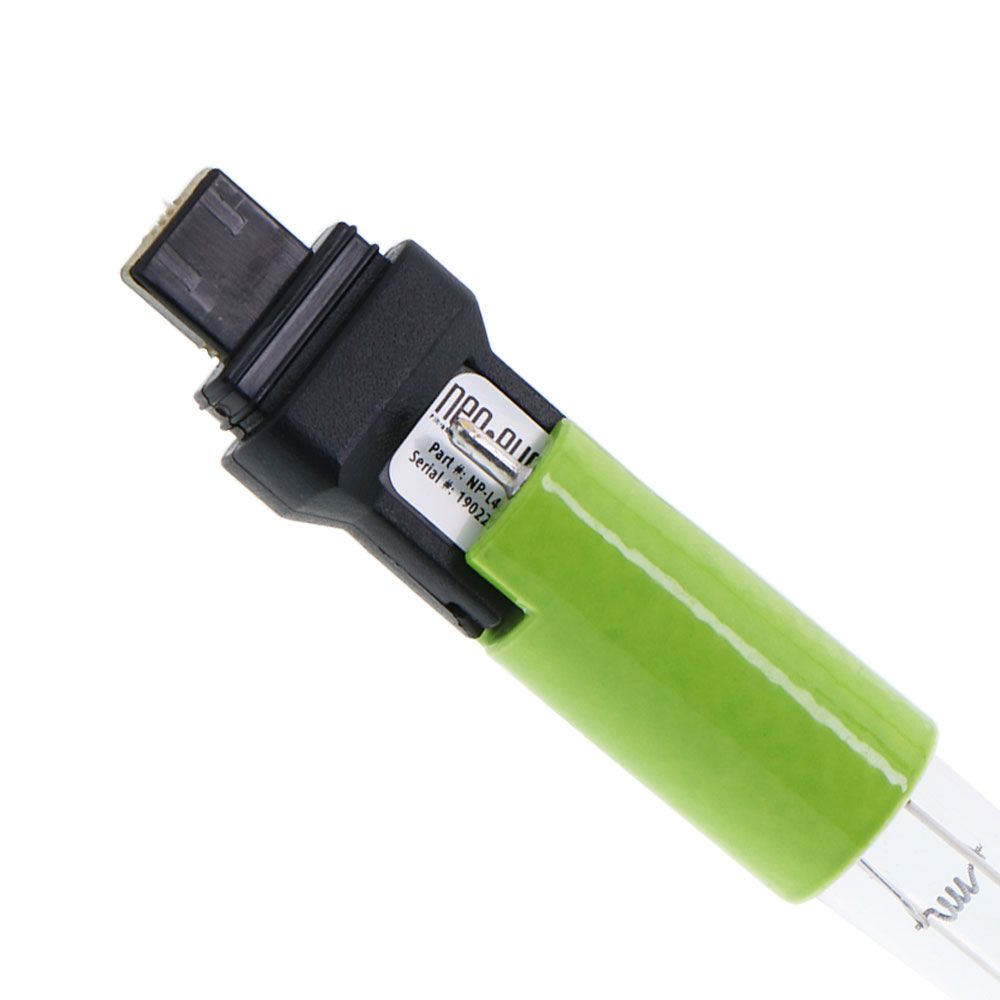

  • 1/4 Turn Lamp Connector for easy maintenance

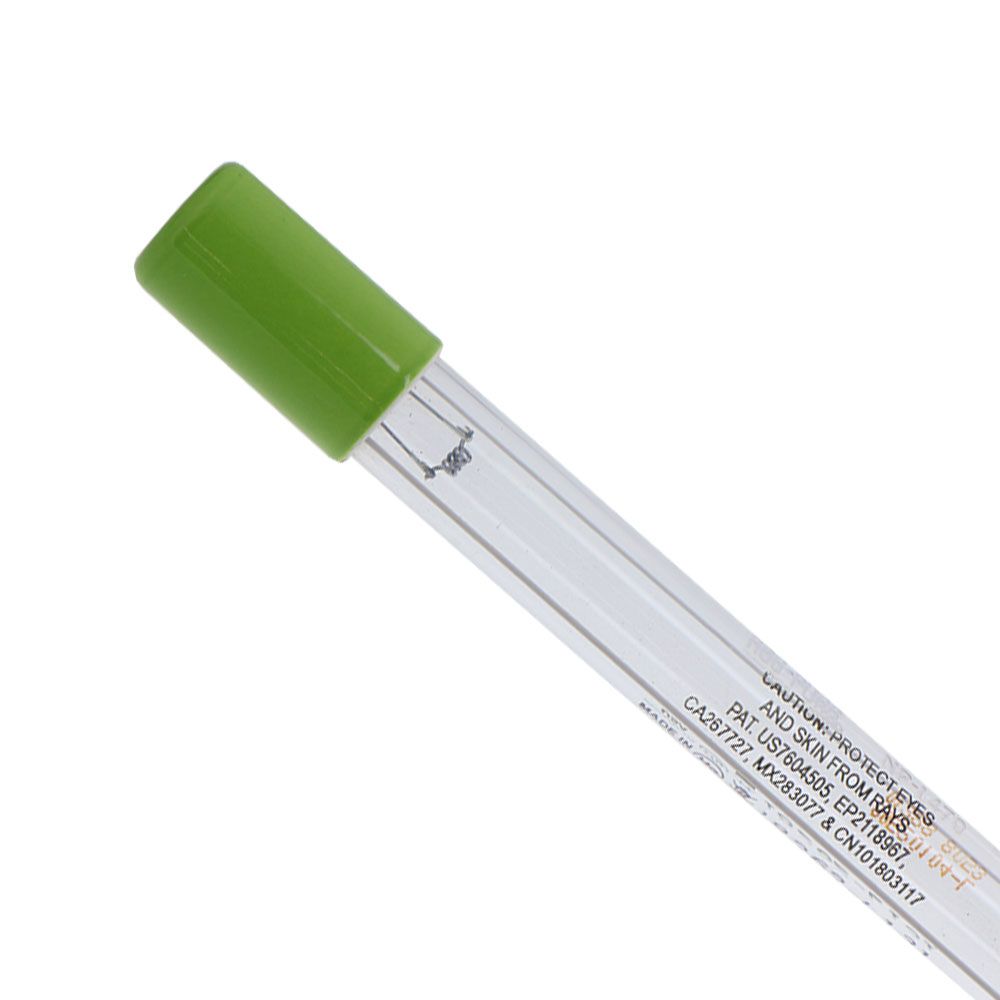

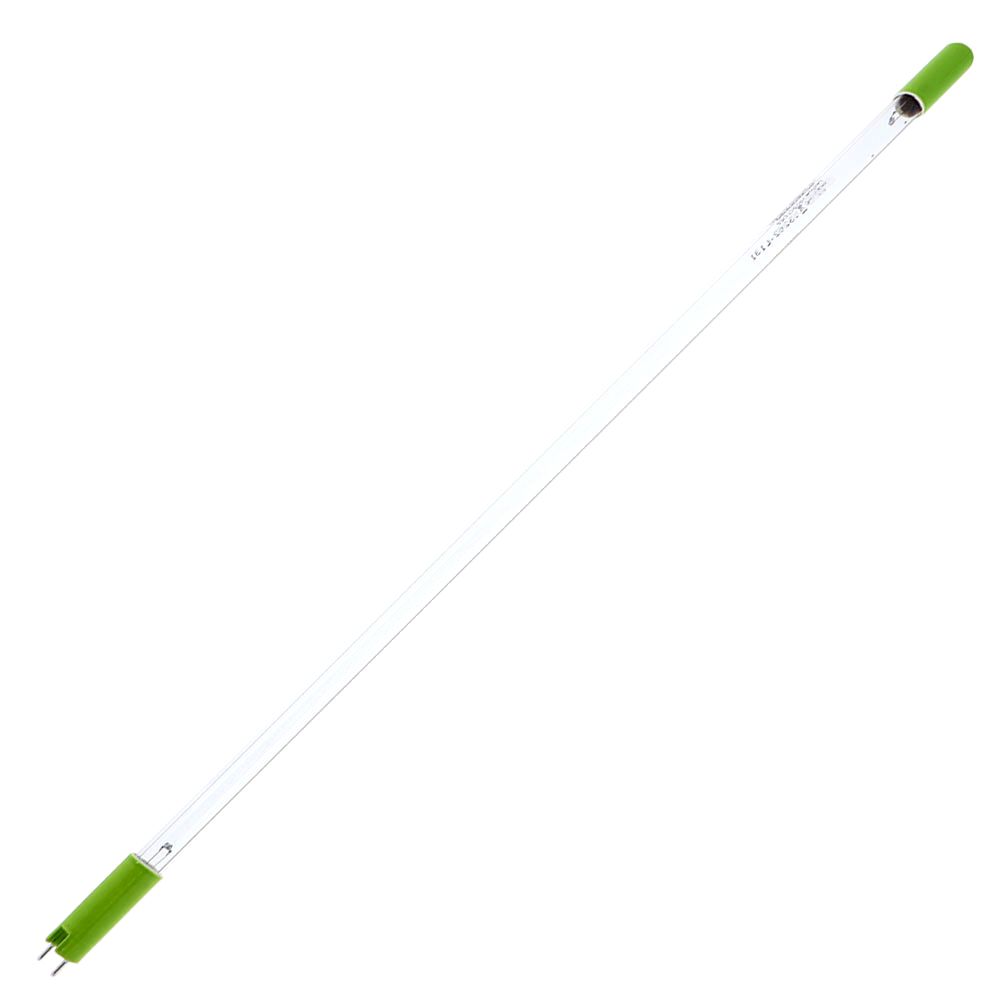

  • Industry Proven Low Pressure Coated UV Lamp for Long Lamp Life
  • Constant Current Electronic Controller with Splash Proof Casings
  • 8 GPM LP System with Monitoring and Sediment Removal

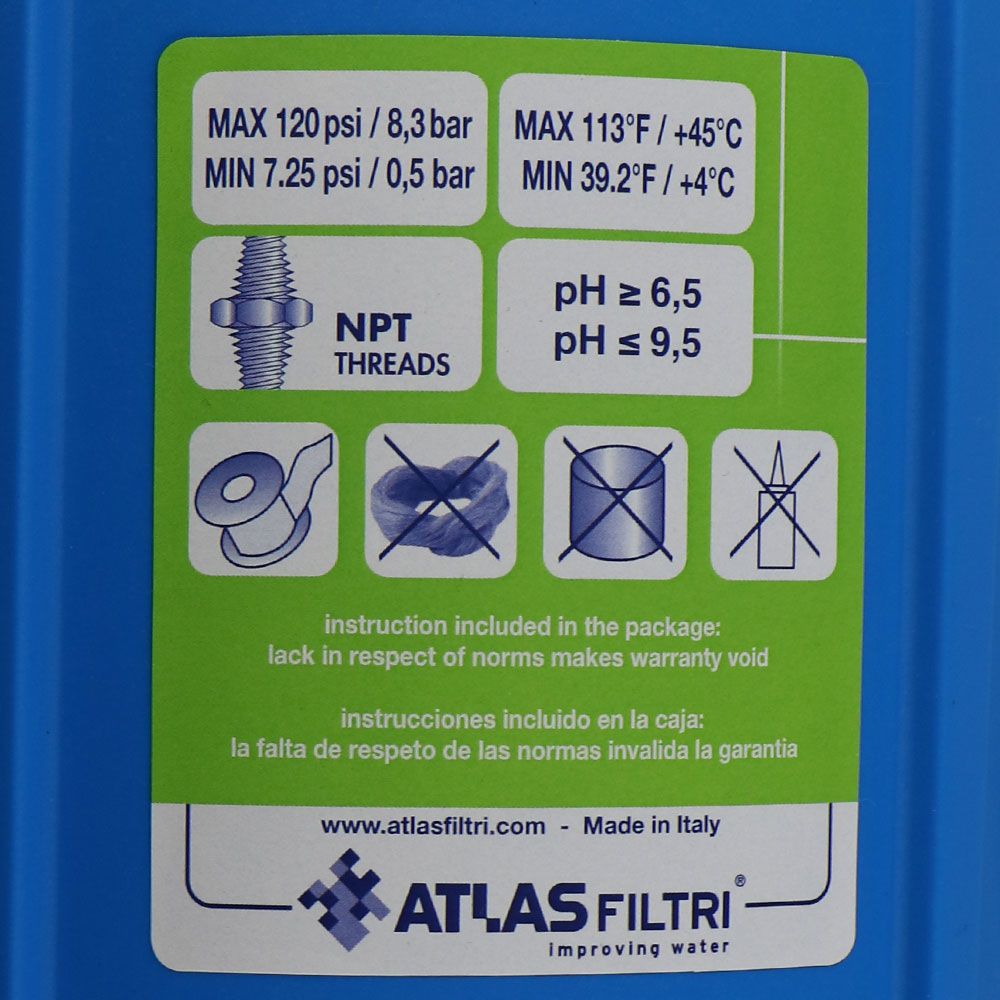

  • 10" Filter Housing

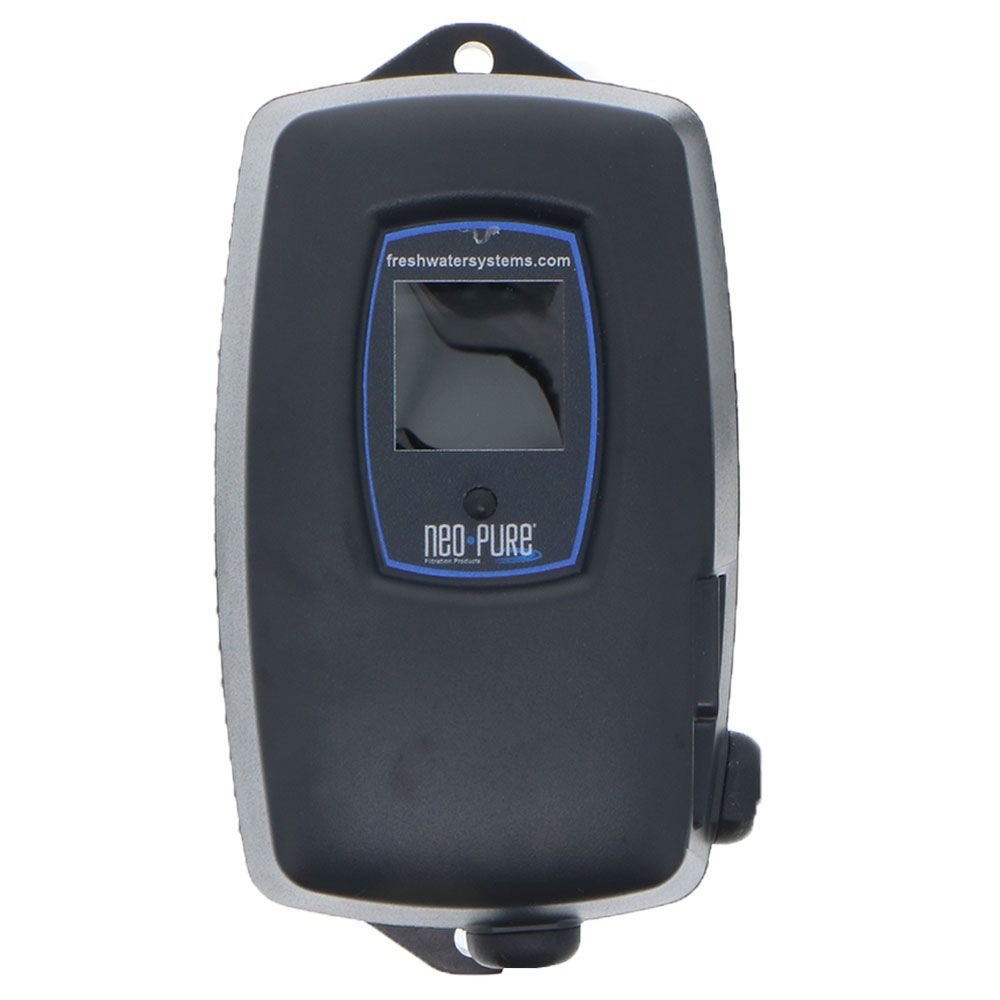

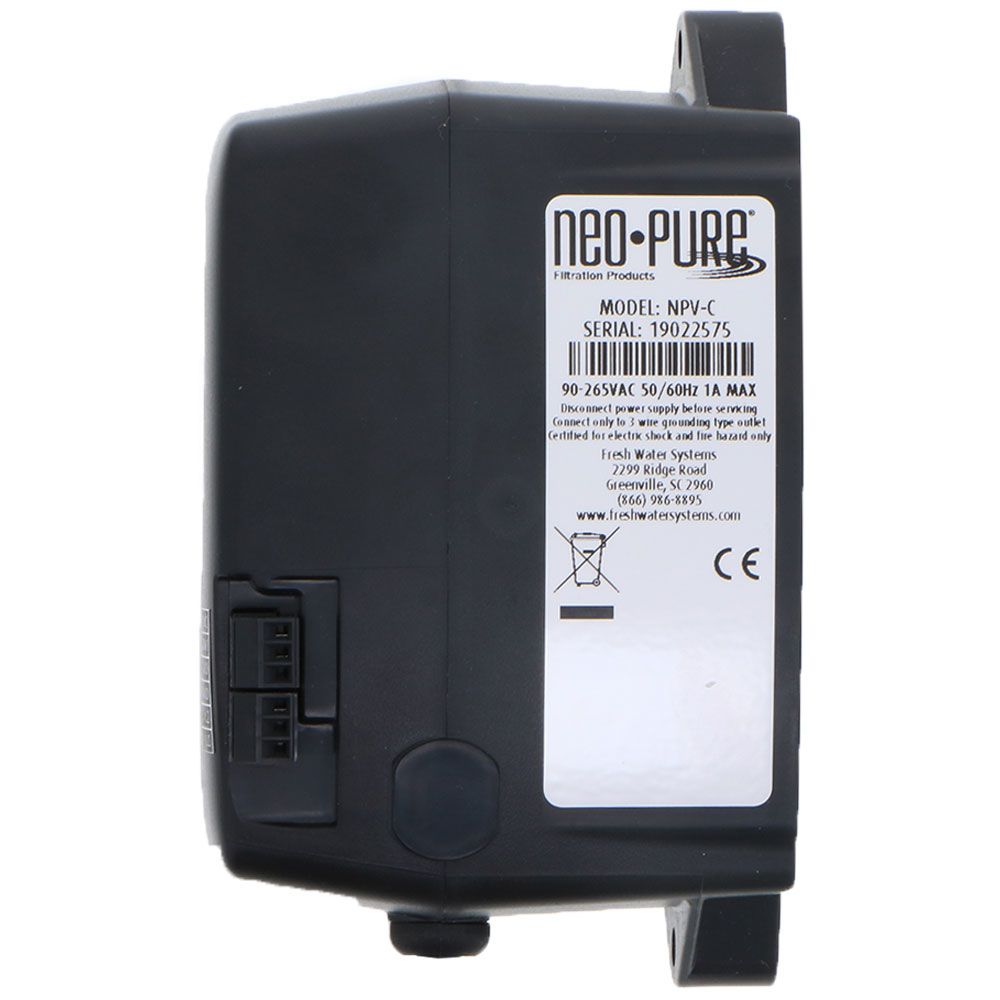

The Neo-Pure NP5-Z1 unit receives our Premium LED controller standard. This premium controller features new technology designed to eliminate the guesswork out of UV system maintenance. Older systems require a manual reset that, if performed incorrectly, would lead to UV lamp failure without the user’s knowledge. The Neo-Pure UV System uses a state-of-the-art encrypted lamp key which is required for the system to run. When the UV Bulb reaches its limit the unit will shut down, and the LED display will notify the user that the UV lamp needs to be replaced.  The new lamp comes with a new encrypted key that brings the unit safely back online and ensures safe drinking water for your home. The controller has many other helpful screens to keep the user posted on on-going maintenance and parts replacement.

Monitor Features:
  • Lamp Life Remaining Screen
  • Lamp Expiration Screen
  • QR Code Screen for Immediate Information
  • Lamp Failure Monitor
  • Incorrect Lamp Usage Indicator
  • Maintenance Parts Guide for Correct Replacement Ordering
  • Missing Port Key or Invalid Key Indicator
  • Fresh Water Systems Contact Information


Filter Purification Features:
  • 25/1 Dual Gradient Polypropylene Sediment Cartridge with a 25 micron rating
  • Material Requirement Test to NSF Standard 42
  • Reduces: Dirt, Rust, Sediment and Particulates






Weight & Dimensions

Dimensions

3.5” D x 20.0” L (8.9 x 50.8 cm)

Shipping Weight

17.6 lbs

Details

Amps

1 Amps

Body Material

304 Stainless Steel

Flow Rate

8 GPM (30mJ/cm2 @ 95% UVT)

Power

Lamp-20W, Lamp-23W

Size

1"

Inlet/Outlet Connection

1" MPT

Warranty & Certifications

Certifications

NSF Class B Standard 55
