Features:
- Long filter life
- 100% pure polypropylene
- Exceptional dirt-holding capacity
- FDA approved materials
- Fits most filter housings that use 20" x 2.5" filters
- Reduces: Sediment, dirt, rust
- NSF/ANSI Certified Standard 42
Compatible with:
| Aqua Sun International | SWS-20 |
| Aqua-Pure™/3M Purification | AP110-2C |
| Bunn | ED-S-2 |
| Cornelius | COR205, COR220 |
| EcoLab® | 9320-1143 |
| GE Water | 93047, PX05-20, 1193047 |
| Graver Technologies | STC20-20NN |
| Hague® | 200144 |
| Hydronix | SDC-25-2005 |
| Ice House America® | IHA - X00424 |
| Ideal H2O™ | 738355 |
| Liquatec | SDF-25-2005 |
| Nu-Calgon | 4621-43 |
| Pentek | P5-20, 155016-43 |
| PURA | 252-050, 33003033 |
| Pura UV Lamps & Filters | 252-050, 33003033 |
| PureMark | PFS205 |
| Selecto | 101-233 |
| Shurflo | 15-052-03 |
| Sterilight | SW5-2 |
| Valuetrex | 1227868-V, VX05-20 |
| Watts | FPMB5-20 |
Weight & Dimensions
Approx Length (Inches) | 20" (50.8 cm) |
Case Quantity | 25 |
Height (inches) | 2.5 |
Length (inches) | 20 |
Weight (lbs) | 0.0375 |
Width (inches) | 2.5 |
Details
Efficiency | 0.8 |
Initial Pressure Drop | <1 psi typical PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Outer Diameter | 2-1/2" |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 5 µm |
Product Length | 20" |
Warranty & Certifications
Certifications | NSF/ANSI 42; FDA CFR-21 |

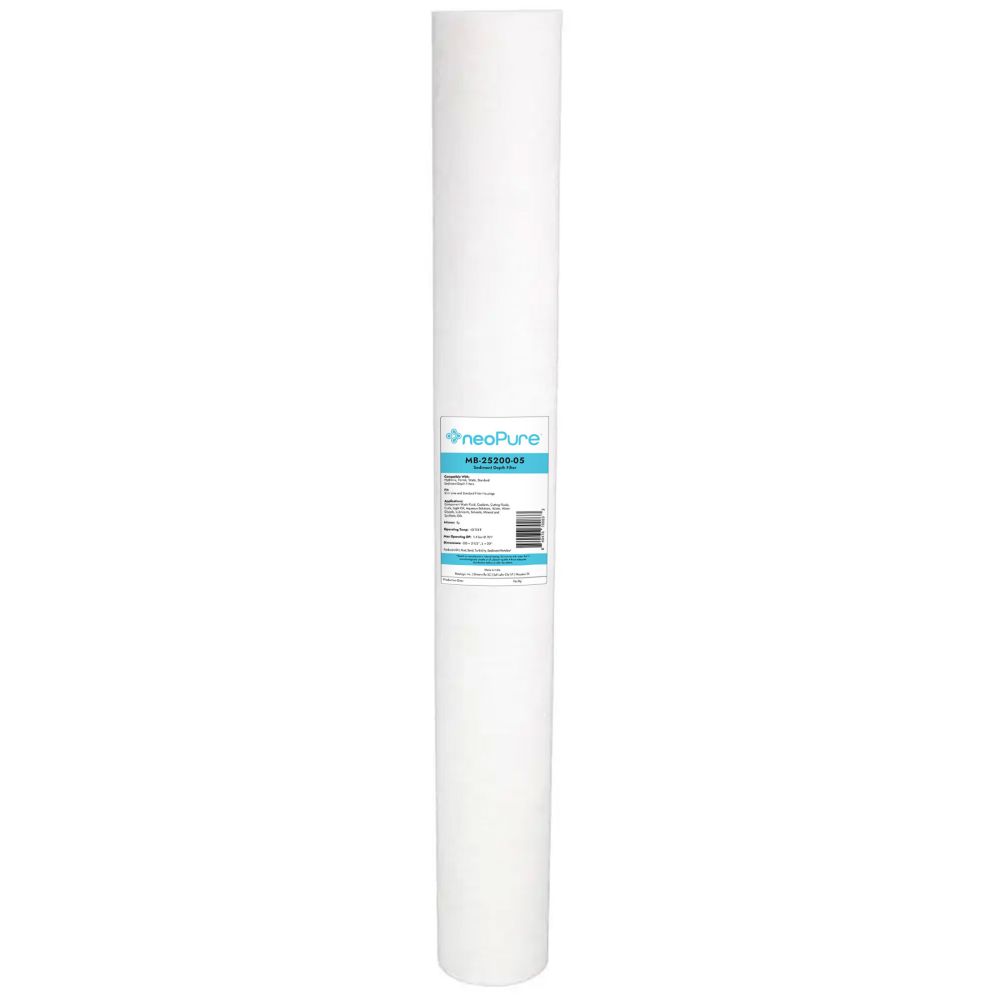

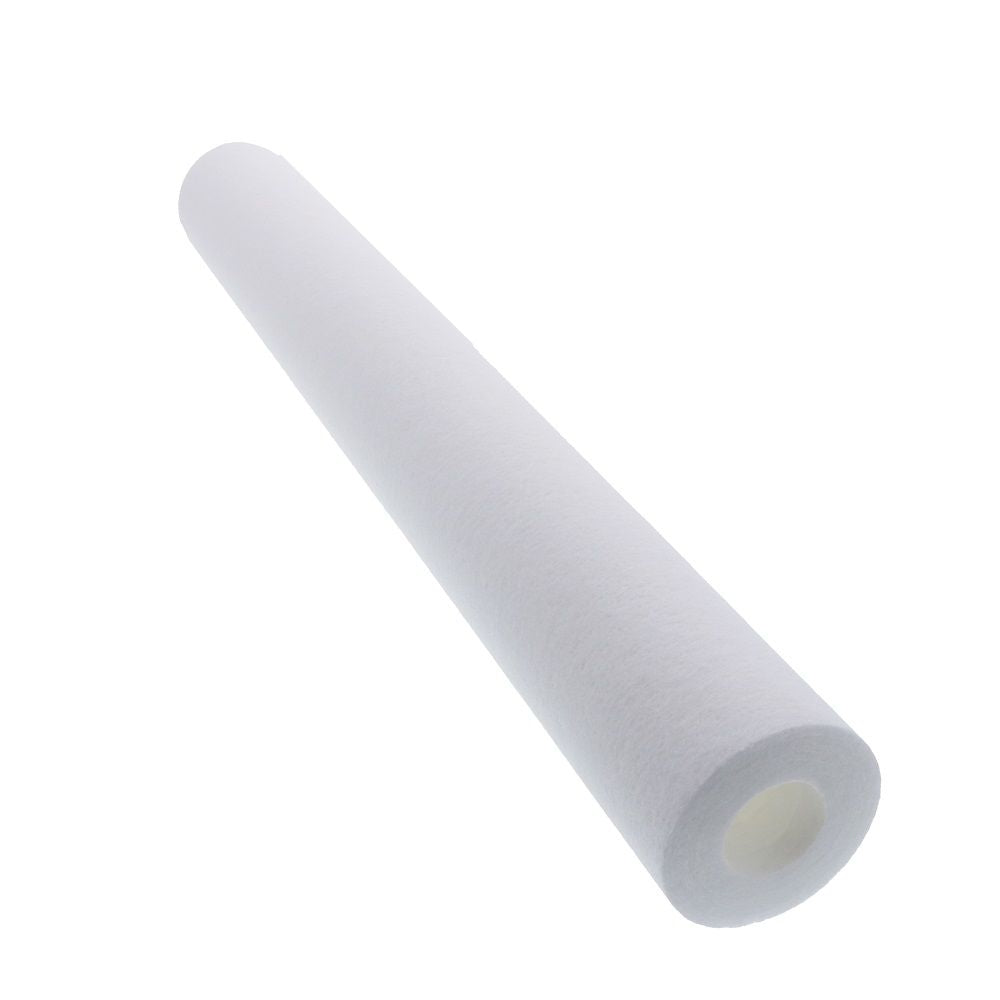

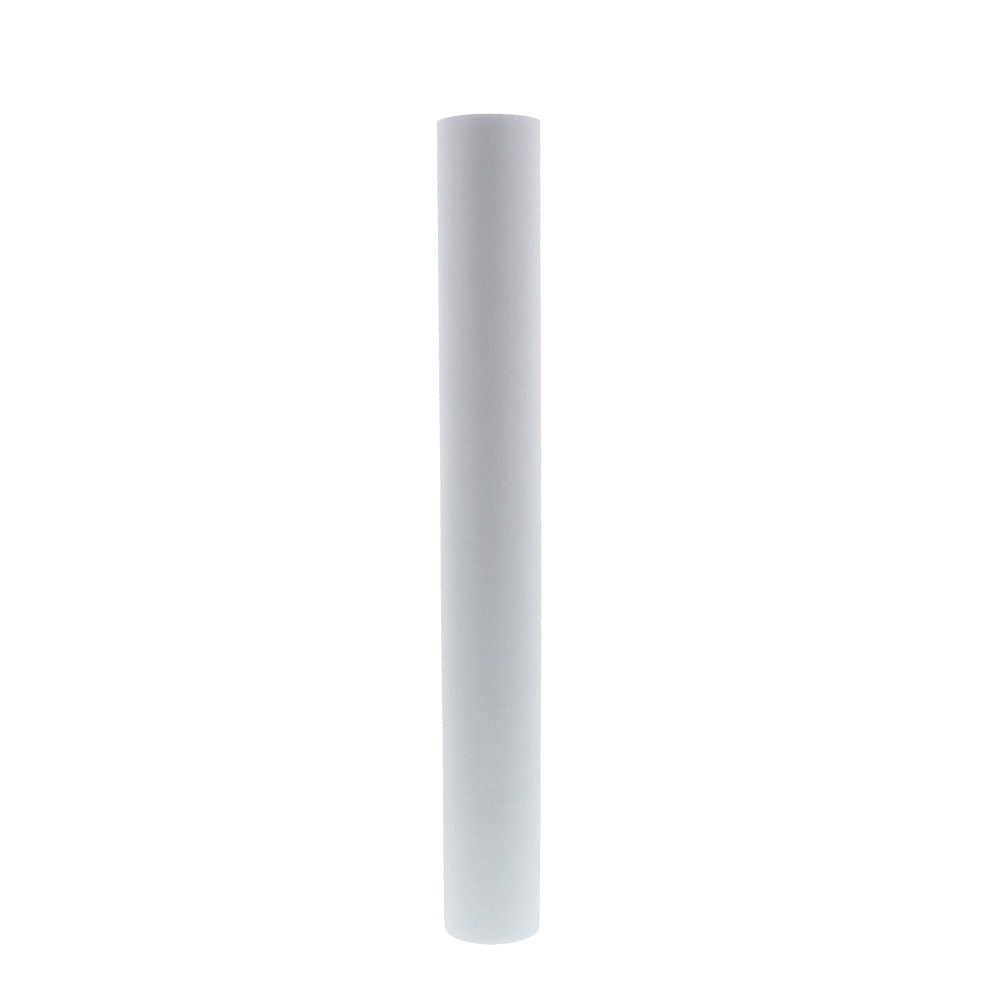

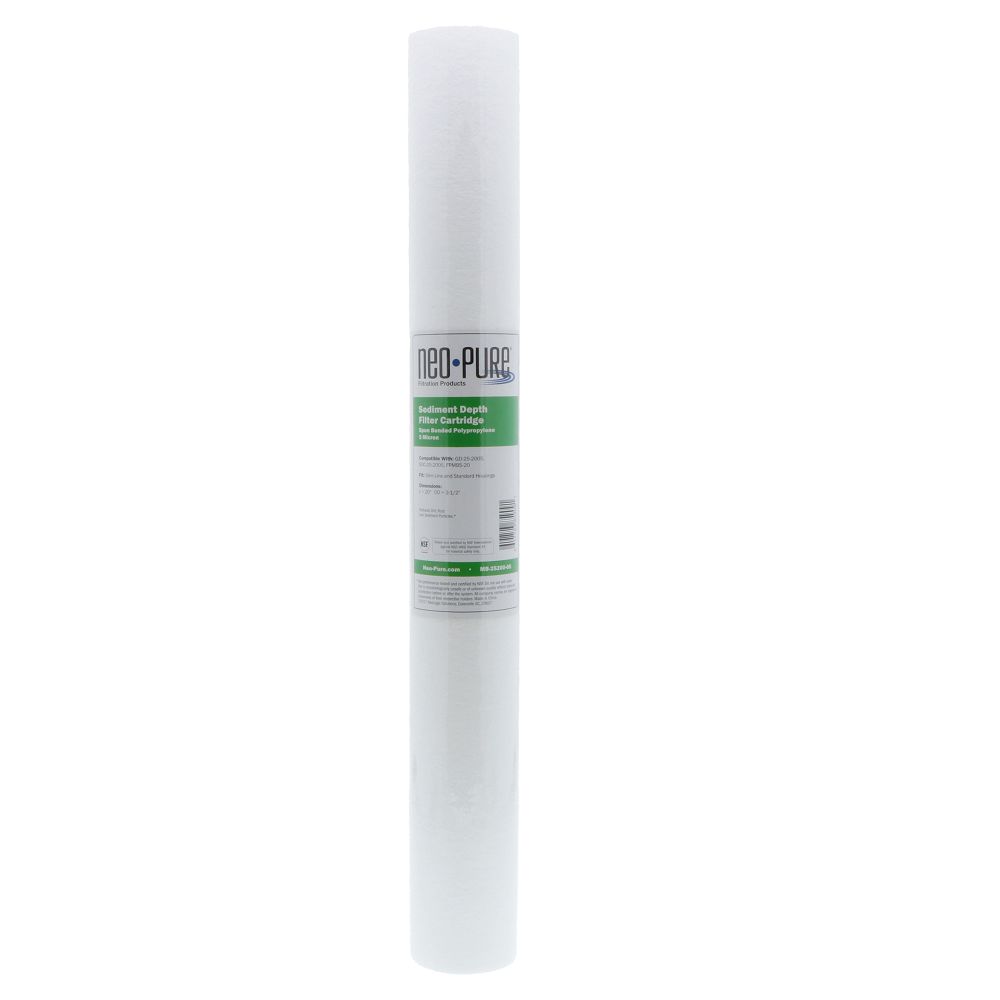

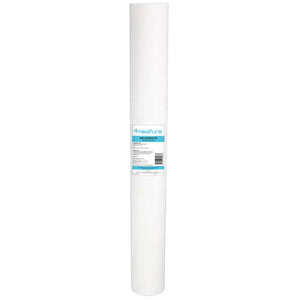

The Neo-Pure MB-25200-05 is a High Efficiency 20" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 20" sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-25200-05 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.
Features:
- Long filter life
- 100% pure polypropylene
- Exceptional dirt-holding capacity
- FDA approved materials
- Fits most filter housings that use 20" x 2.5" filters
- Reduces: Sediment, dirt, rust
- NSF/ANSI Certified Standard 42
Compatible with:
| Aqua Sun International | SWS-20 |
| Aqua-Pure™/3M Purification | AP110-2C |
| Bunn | ED-S-2 |
| Cornelius | COR205, COR220 |
| EcoLab® | 9320-1143 |
| GE Water | 93047, PX05-20, 1193047 |
| Graver Technologies | STC20-20NN |
| Hague® | 200144 |
| Hydronix | SDC-25-2005 |
| Ice House America® | IHA - X00424 |
| Ideal H2O™ | 738355 |
| Liquatec | SDF-25-2005 |
| Nu-Calgon | 4621-43 |
| Pentek | P5-20, 155016-43 |
| PURA | 252-050, 33003033 |
| Pura UV Lamps & Filters | 252-050, 33003033 |
| PureMark | PFS205 |
| Selecto | 101-233 |
| Shurflo | 15-052-03 |
| Sterilight | SW5-2 |
| Valuetrex | 1227868-V, VX05-20 |
| Watts | FPMB5-20 |
Weight & Dimensions
Approx Length (Inches) | 20" (50.8 cm) |
Case Quantity | 25 |
Height (inches) | 2.5 |
Length (inches) | 20 |
Weight (lbs) | 0.0375 |
Width (inches) | 2.5 |
Details
Efficiency | 0.8 |
Initial Pressure Drop | <1 psi typical PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Outer Diameter | 2-1/2" |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 5 µm |
Product Length | 20" |
Warranty & Certifications
Certifications | NSF/ANSI 42; FDA CFR-21 |
