Specifications:
- Long filter life
- 100% pure polypropylene
- Exceptional dirt-holding capacity
- FDA approved materials
- Fits in most water filter housings that use 20" x 2.5" filters
- Tested and certified by NSF to NSF/ANSI Standard 42
Compatible with:
| GE Water | 93045, PX20-20, 1193045 |
| Graver Technologies | STC20-20NN |
| Hobart | 20 mic sediment filter for FA-SS-CB-TW-20 |
| Hydronix | SDC-25-2020 |
| Liquatec | SDF-25-2020 |
| Pentek | P25-20, 155226-43 |
| Valuetrex | 1227872-V, VX25-20 |
| Watts | FPMB20-20 |
Weight & Dimensions
Approx Length (Inches) | 20" (50.8 cm) |
Case Quantity | 25 |
Height (inches) | 2.5 |
Length (inches) | 20 |
Weight (lbs) | 0.634 |
Width (inches) | 2.5 |
Details
Efficiency | 0.8 |
Initial Pressure Drop | <1 psi typical PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 20 µm |
Min Temp (°F) | 40 |
Outer Diameter | 2-1/2" |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 20 µm |
Product Length | 20" |
Warranty & Certifications
Certifications | NSF/ANSI 42; FDA CFR-21 |

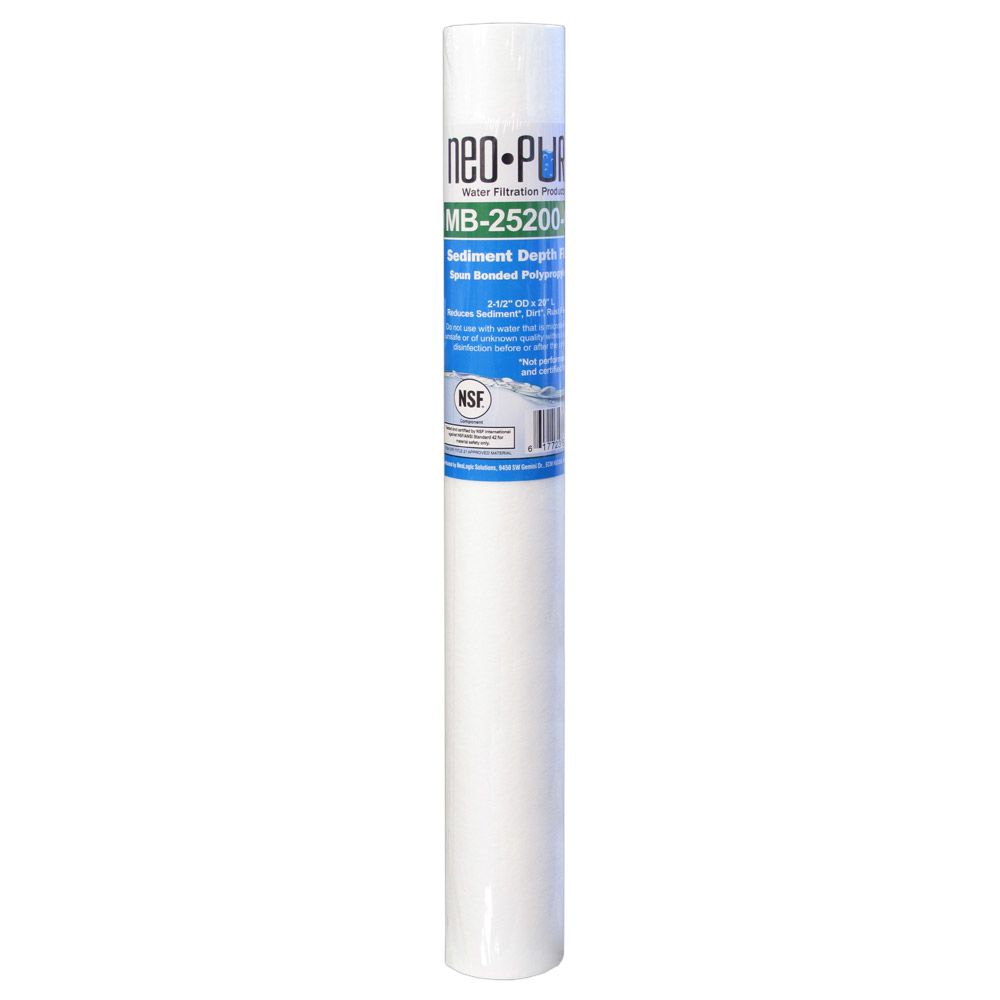

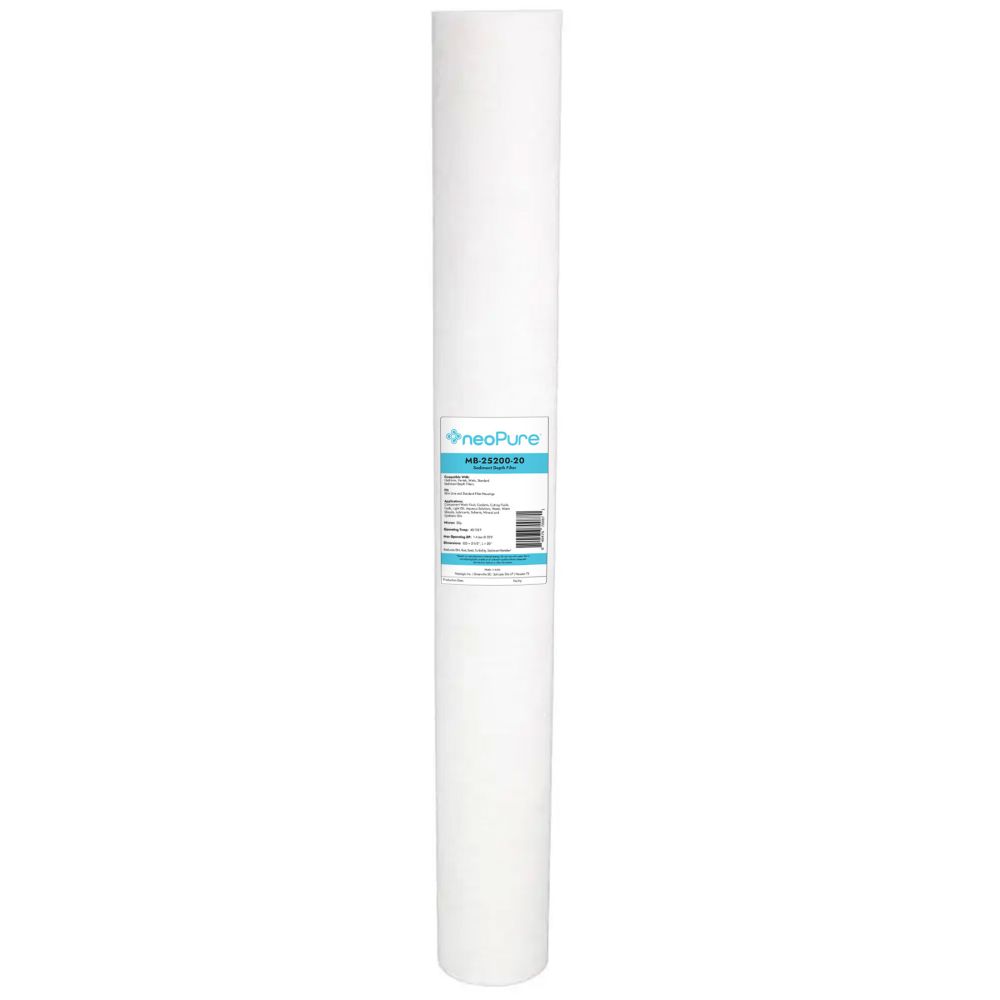

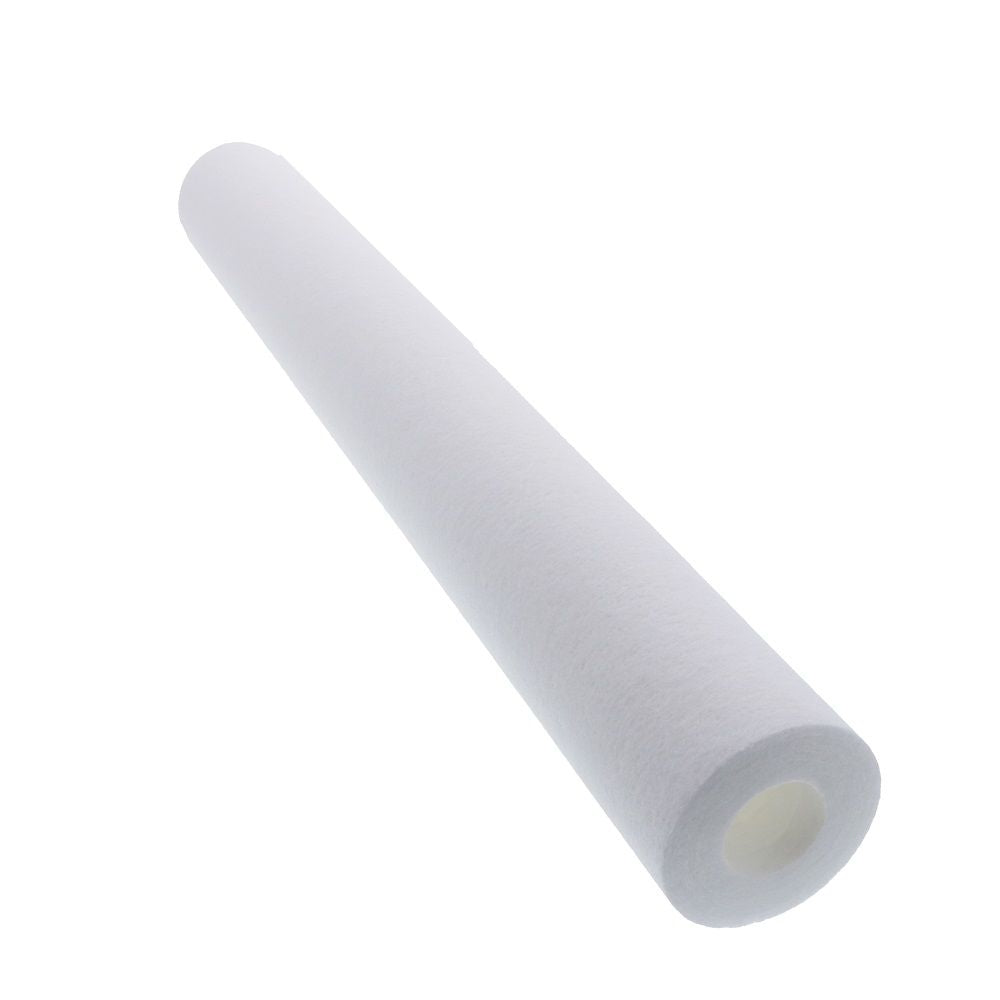

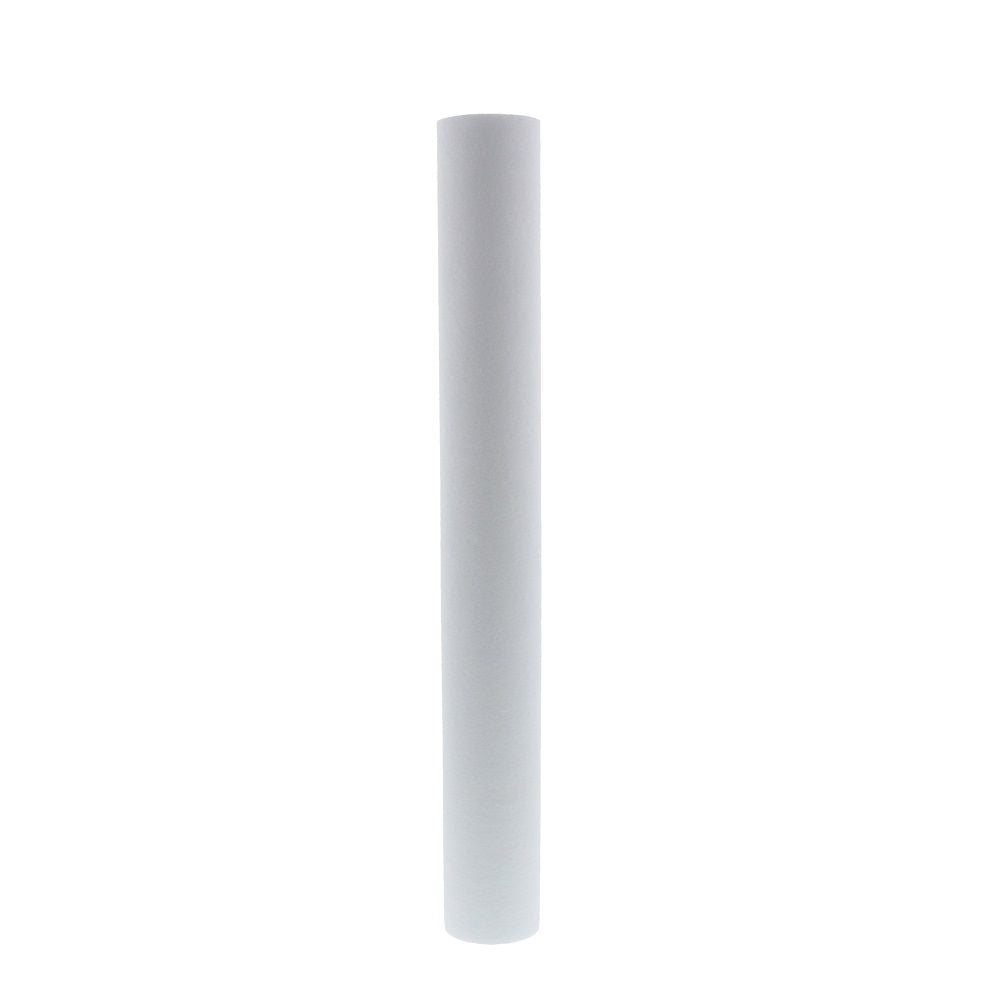

The Neo-Pure MB-25200-20 is a High Efficiency 20" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 20" sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-25200-20 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.
Specifications:
- Long filter life
- 100% pure polypropylene
- Exceptional dirt-holding capacity
- FDA approved materials
- Fits in most water filter housings that use 20" x 2.5" filters
- Tested and certified by NSF to NSF/ANSI Standard 42
Compatible with:
| GE Water | 93045, PX20-20, 1193045 |
| Graver Technologies | STC20-20NN |
| Hobart | 20 mic sediment filter for FA-SS-CB-TW-20 |
| Hydronix | SDC-25-2020 |
| Liquatec | SDF-25-2020 |
| Pentek | P25-20, 155226-43 |
| Valuetrex | 1227872-V, VX25-20 |
| Watts | FPMB20-20 |
Weight & Dimensions
Approx Length (Inches) | 20" (50.8 cm) |
Case Quantity | 25 |
Height (inches) | 2.5 |
Length (inches) | 20 |
Weight (lbs) | 0.634 |
Width (inches) | 2.5 |
Details
Efficiency | 0.8 |
Initial Pressure Drop | <1 psi typical PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 20 µm |
Min Temp (°F) | 40 |
Outer Diameter | 2-1/2" |
Psid@Flow Rate | < 1 psi typical |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown |
Filter Type | Sediment Depth |
Media Type | Polypropylene |
Micron Rating | 20 µm |
Product Length | 20" |
Warranty & Certifications
Certifications | NSF/ANSI 42; FDA CFR-21 |
