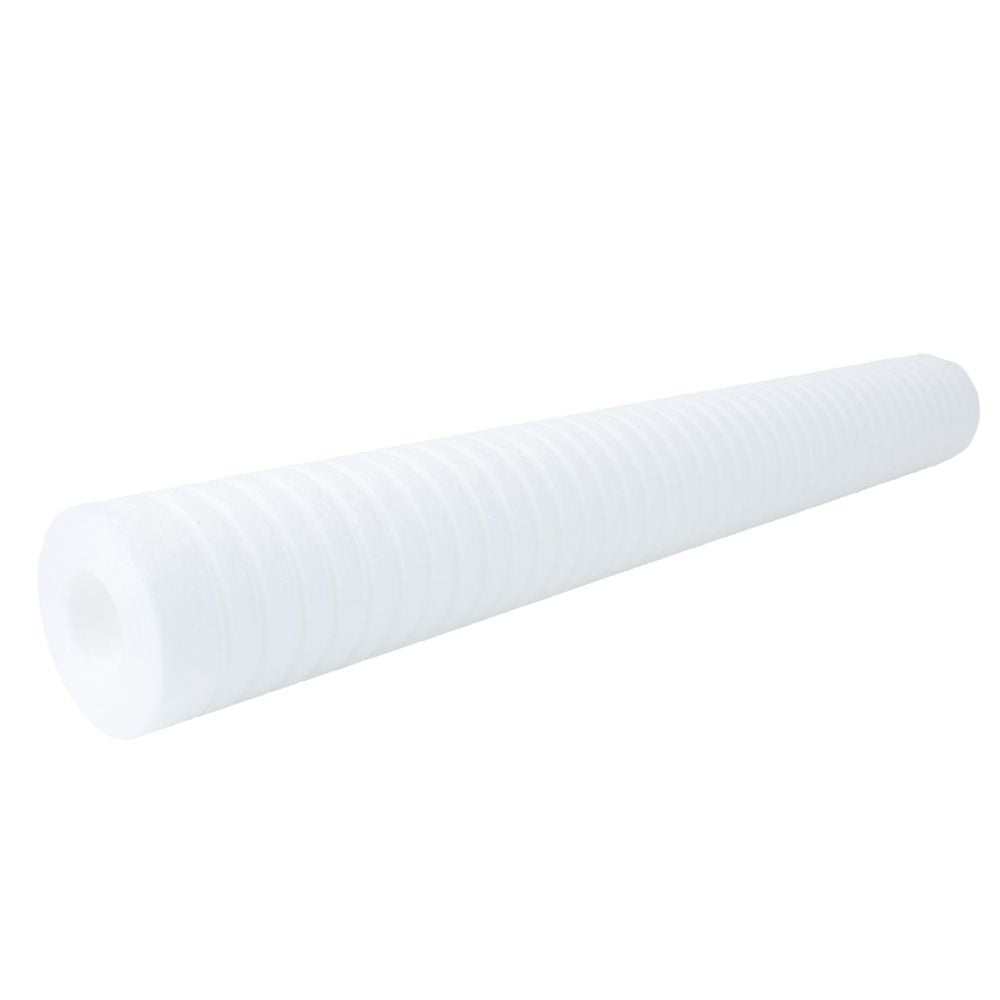

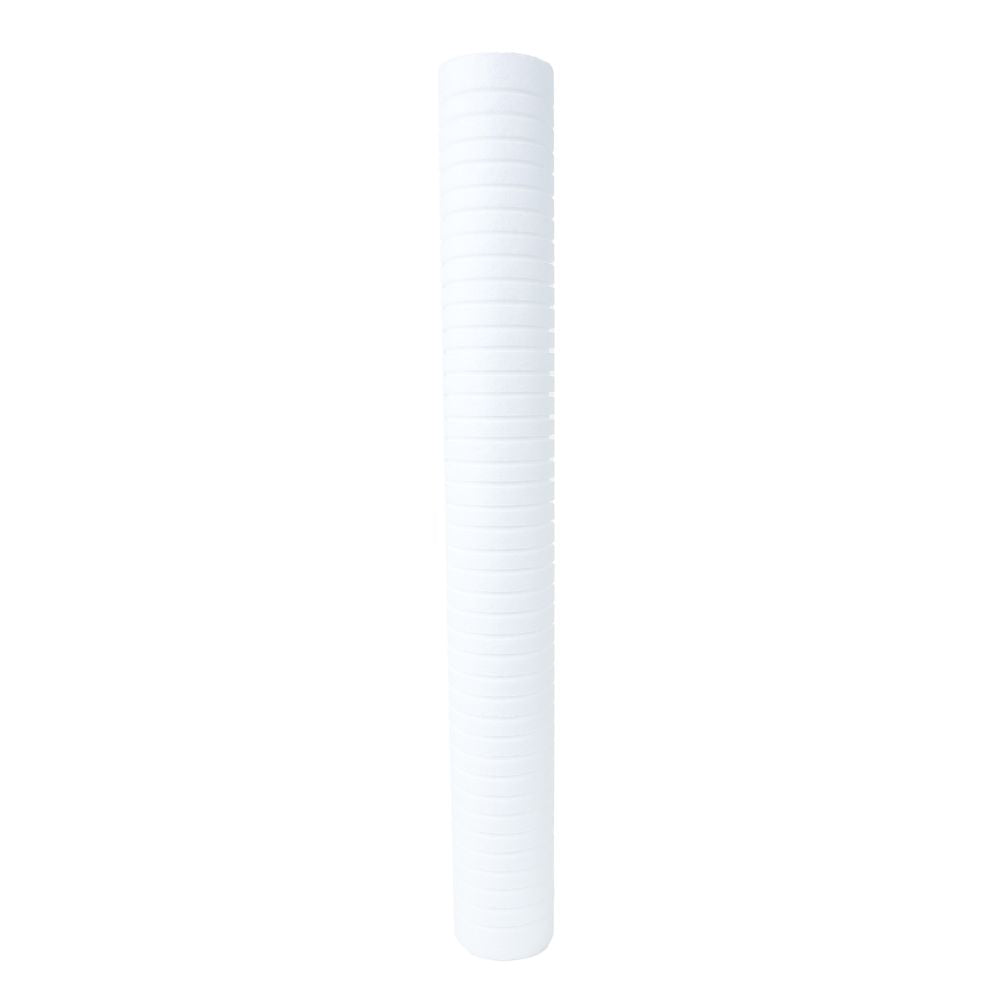

Neo-Pure MBG-25200-05 2-1/2" x 20" Sediment Depth Grooved Filter - 5 mic

Part Number: MBG-25200-05

Alt. Part Number: MBG-25200-05

One-time purchase

Subscription Subscribe

Subscription details

Your price:

Choose

Single

Case of 20

Quantity

similar items

The Neo-Pure MBG-25200-05 is a High Efficiency 20" x 2.5" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. Ideal applications range from, SDI (service deionization) systems, and CDI (continuous deionization) systems, to reverse osmosis systems. The 20" x 2.5" sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MBG-25200-05 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Features:

NSF/ANSI 42 Tested and Certified. The MBG-25200-05 filter meets NSF/ANSI 42 standards for material safety.
Meltblown Polypropylene Filter Media. A meltblown polypropylene filter does not require any glues or additives ensuring no foaming, discoloration, or other undesirable effects in your drinking water. Also, polypropylene has a high level of chemical resistance meaning water with less chemical contaminants.
Grooved Sediment Filter. Grooves in the filter membrane creates a greater surface area for high dirt holding capacity and an extended cartridge life.
Fine 5 Micron Filter Rating. The 5 micron nominal rating filter ensures that extra fine dirt and particles will be removed to provide the cleanest water possible.
Used for a Wide Variety of Applications. The MBG-25200-05 can be utilized for potable water, beverages, pre-filtration for reverse osmosis, removing fine chemicals, and more!

Compatible with:

Graver Technologies	COAX5-20NN
Hydronix	SBC-25-2005
Liquatec	SBD-25-2005
Pentek	PD-5-20, 155756-43
Pura	33003117, 33003117-1
Pura UV20 1, 2, 3 Accessories	33003117, 33003117-1

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Max Temp (°F)	150
Micron Rating (Nominal)	5 µm
Min Temp (°F)	35
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Type	Sediment Depth
Media Type	Polypropylene
Micron Rating	5 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42, FDA CFR-21, NSF/ANSI 372
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	2.5 in.
Shipping Height	2.5 in.
Product Weight & Dimensions
Freight_Out_Pallet_Dims	48x40x90
Freight_Out_Pallet_Qty	720
Freight_Out_Pallet_Weight	513
Product Height	2.5
Product Length	20"
Product Width	2.5
Product Weight (lbs)	0.575

Product Details
Max Temp (°F)	150
Micron Rating (Nominal)	5 µm
Min Temp (°F)	35
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Type	Sediment Depth
Media Type	Polypropylene
Micron Rating	5 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42, FDA CFR-21, NSF/ANSI 372
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	13 in.
Shipping Height	13 in.
Product Weight & Dimensions
Product Length	20"
Product Weight (lbs)	13.25
