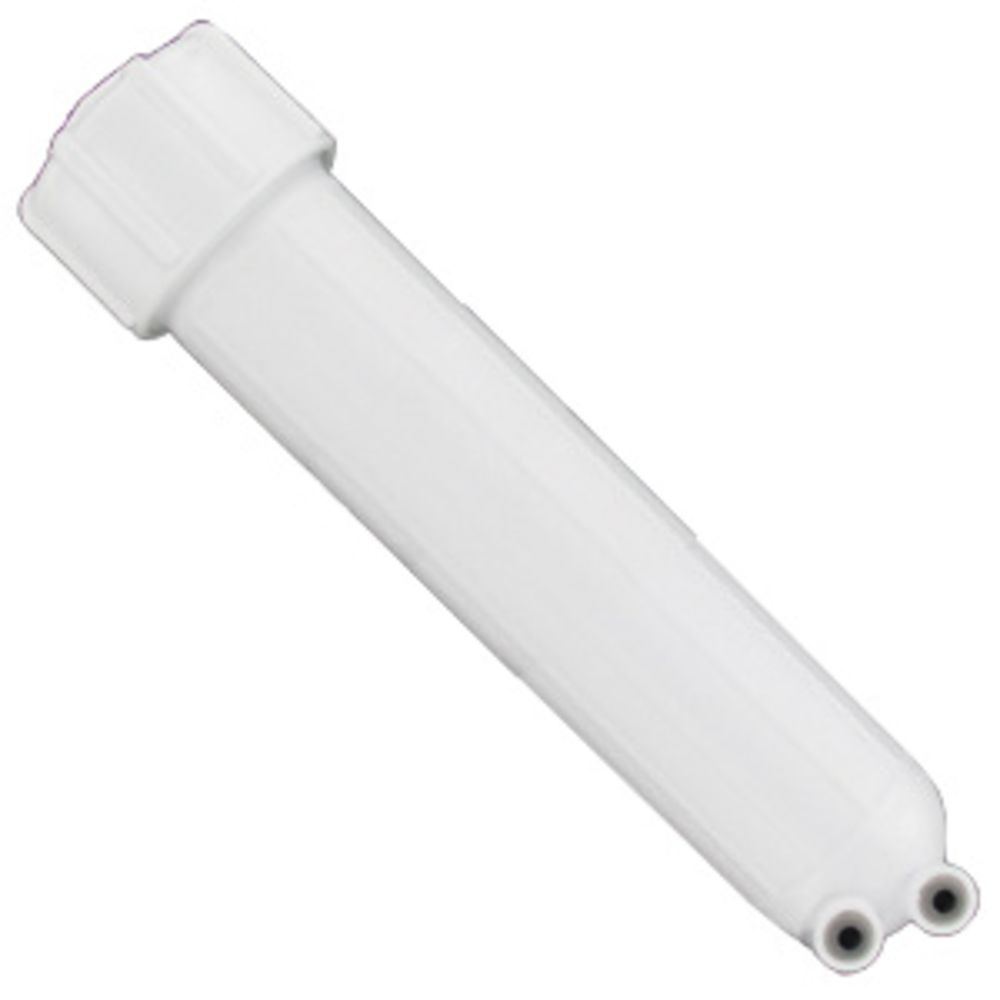

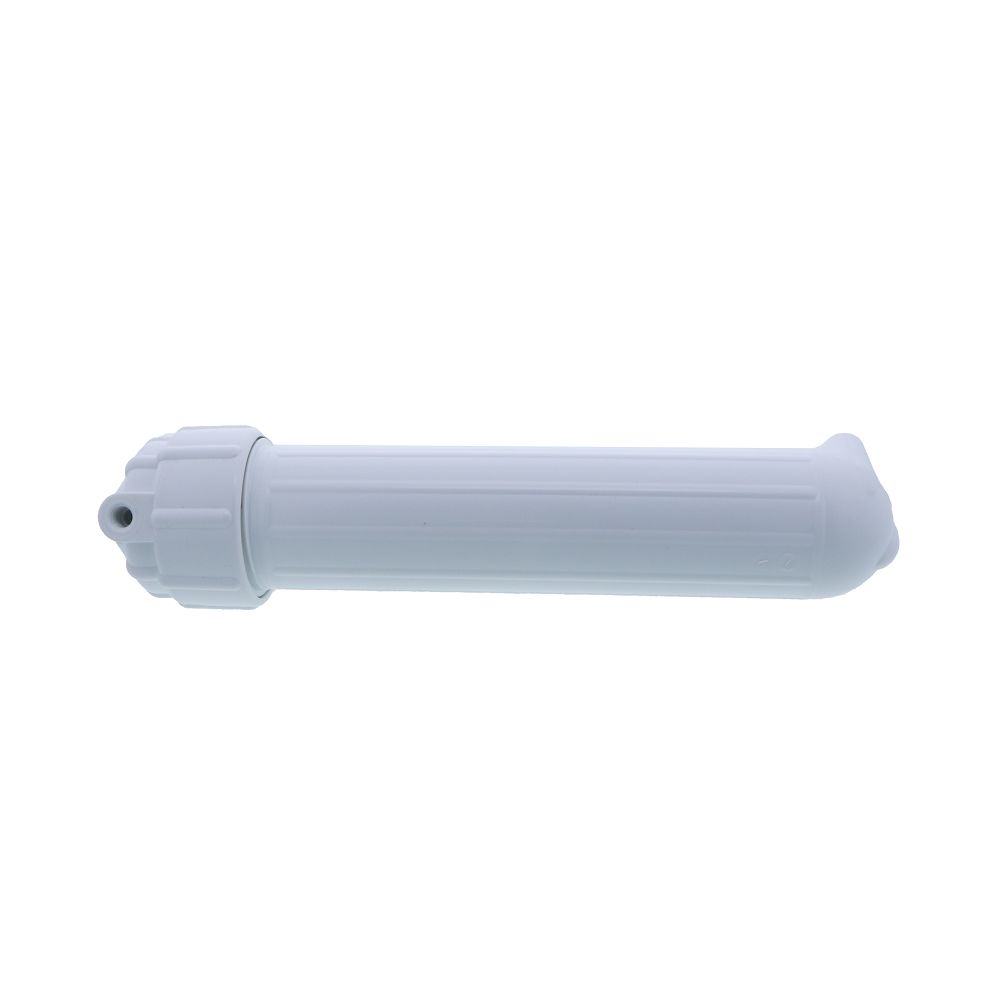

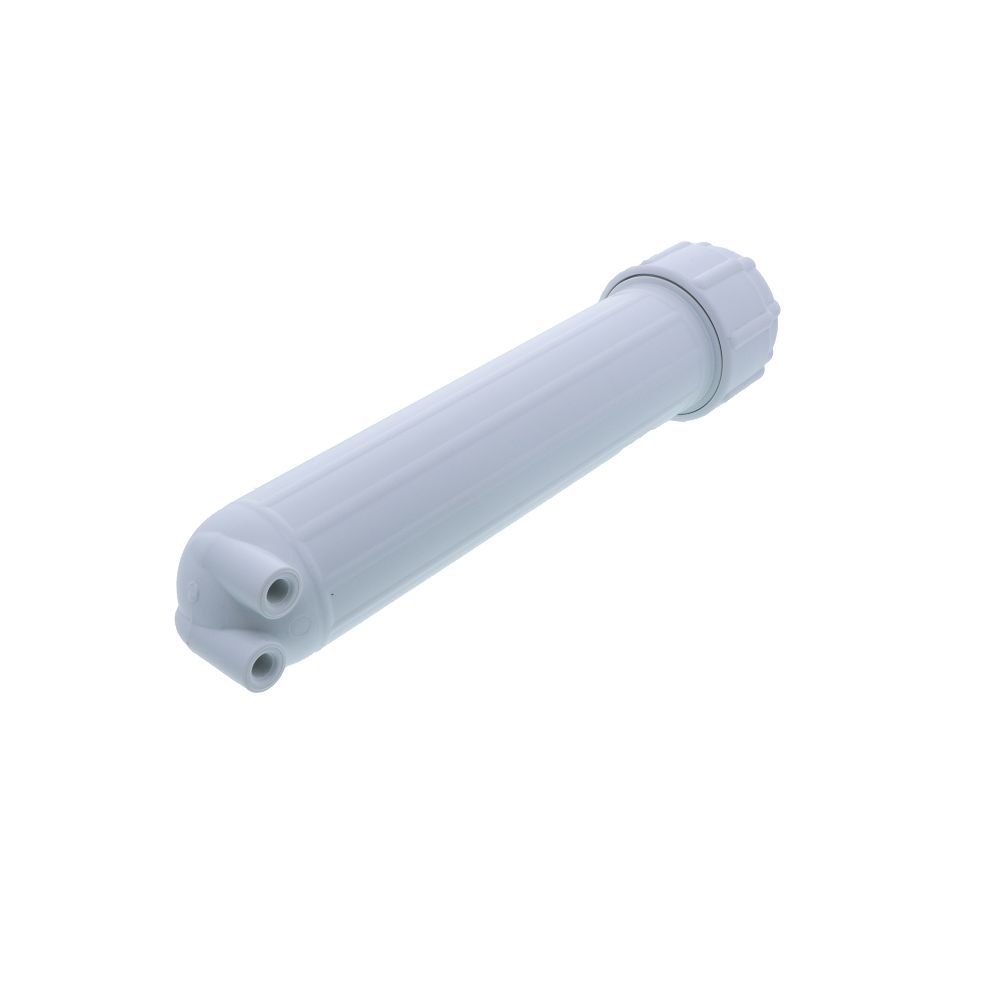

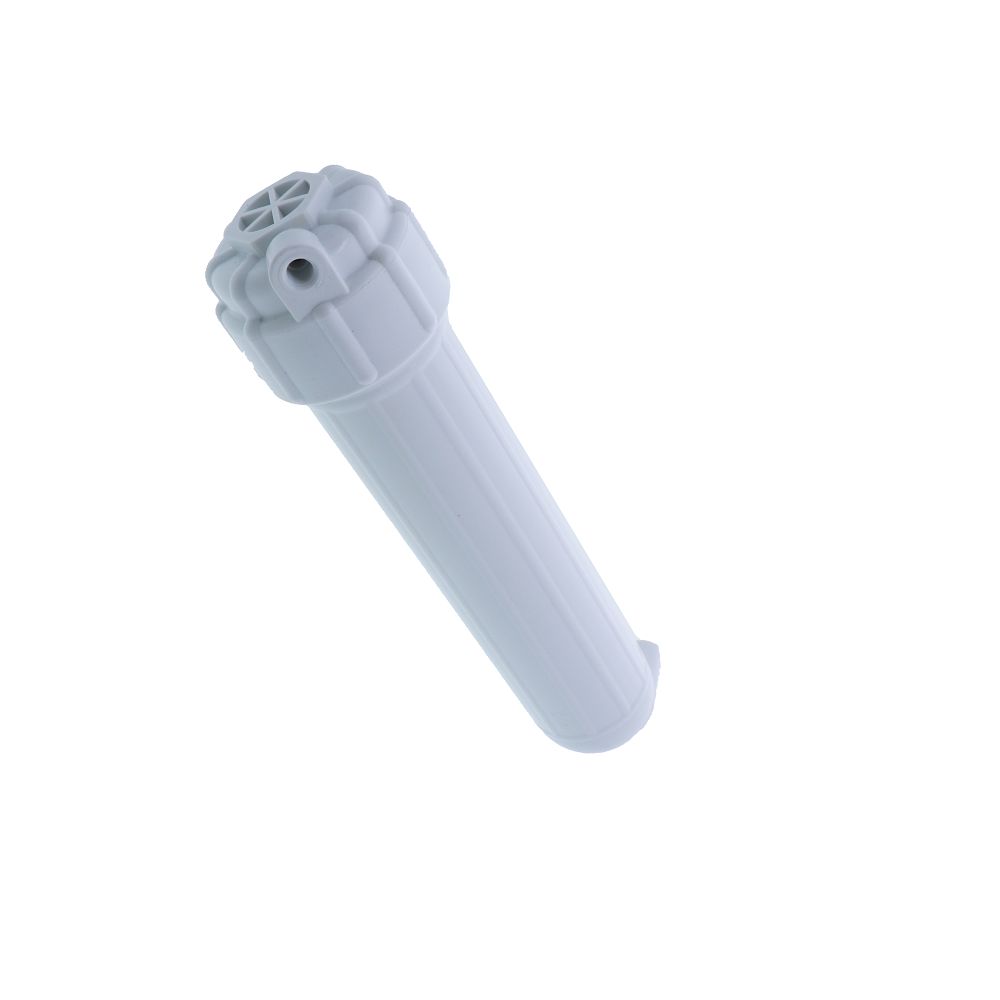

Membrane Housing with 1/4 Push-In Fittings, NO Check

Part Number: EH2501KHCW

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Housing for Standard 12" Membrane Size 1/8" Permeate as a substitute.


Reverse Osmosis Membrane housing accepts all 12" standard size membranes and are manufactured using the highest quality NSF listed, FDA grade polyproylene, WQA validated. The RO Membrane Housing Inlet/Outlet ports are  built-in John Guest® fittings. The Drain (brine) and Product (permeate) ports are equipped with (2) 90°outlets with built-in John Guest® fittings, eliminating the need for additional elbows.

Brine port requires an external flow control (flow restrictor) that is sized to the membrane capacity, typically a 3:1 ratio (located off center of the 2 outlet double ends) Permeate (RO or Product water) port requires an external inline check valve (located center port of the 2 outlet double ends).
Use O-Ring # OR-2 for EH series housings.


Compatible with:
MarloEH-2500KW

Weight & Dimensions

Weight (lbs)

1.5

Details

Cap Color

White




Reverse Osmosis Membrane housing accepts all 12" standard size membranes and are manufactured using the highest quality NSF listed, FDA grade polyproylene, WQA validated. The RO Membrane Housing Inlet/Outlet ports are  built-in John Guest® fittings. The Drain (brine) and Product (permeate) ports are equipped with (2) 90°outlets with built-in John Guest® fittings, eliminating the need for additional elbows.

Brine port requires an external flow control (flow restrictor) that is sized to the membrane capacity, typically a 3:1 ratio (located off center of the 2 outlet double ends) Permeate (RO or Product water) port requires an external inline check valve (located center port of the 2 outlet double ends).
Use O-Ring # OR-2 for EH series housings.


Compatible with:
MarloEH-2500KW

NOTE: This item is discontinued. We recommend the Housing for Standard 12" Membrane Size 1/8" Permeate as a substitute.
