Payne

Housing for Standard 12" Membrane Size 1/8" Permeate

Part Number: PPV-111W

Alt. Part Number: EH2501KHCW

In Stock

out of stock

In Stock

$10.95

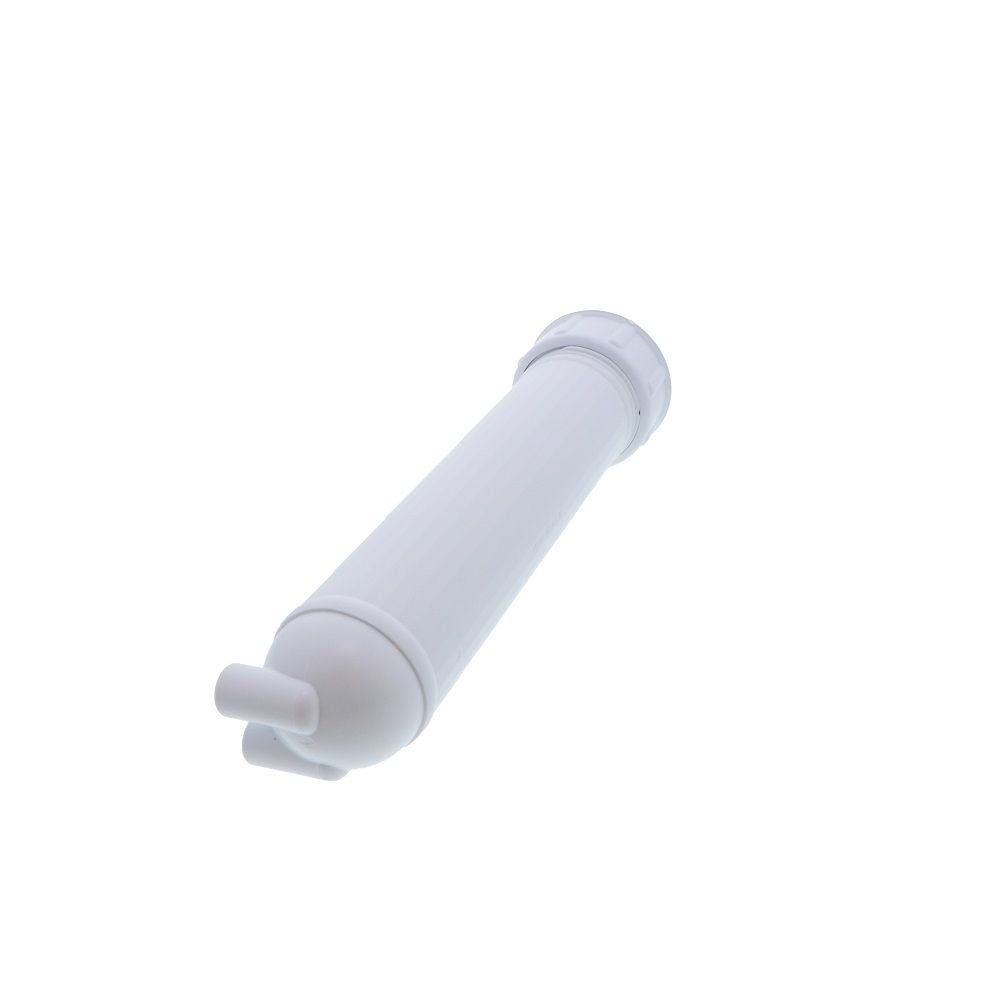

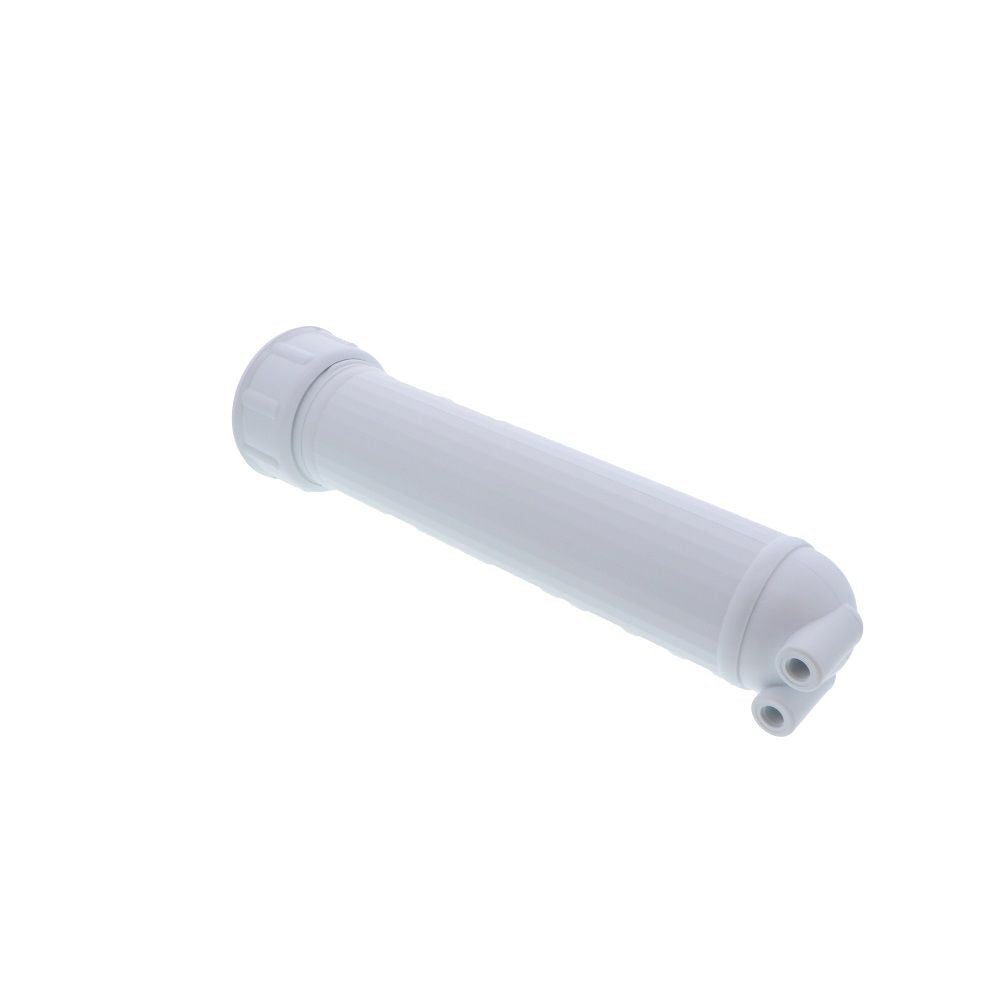

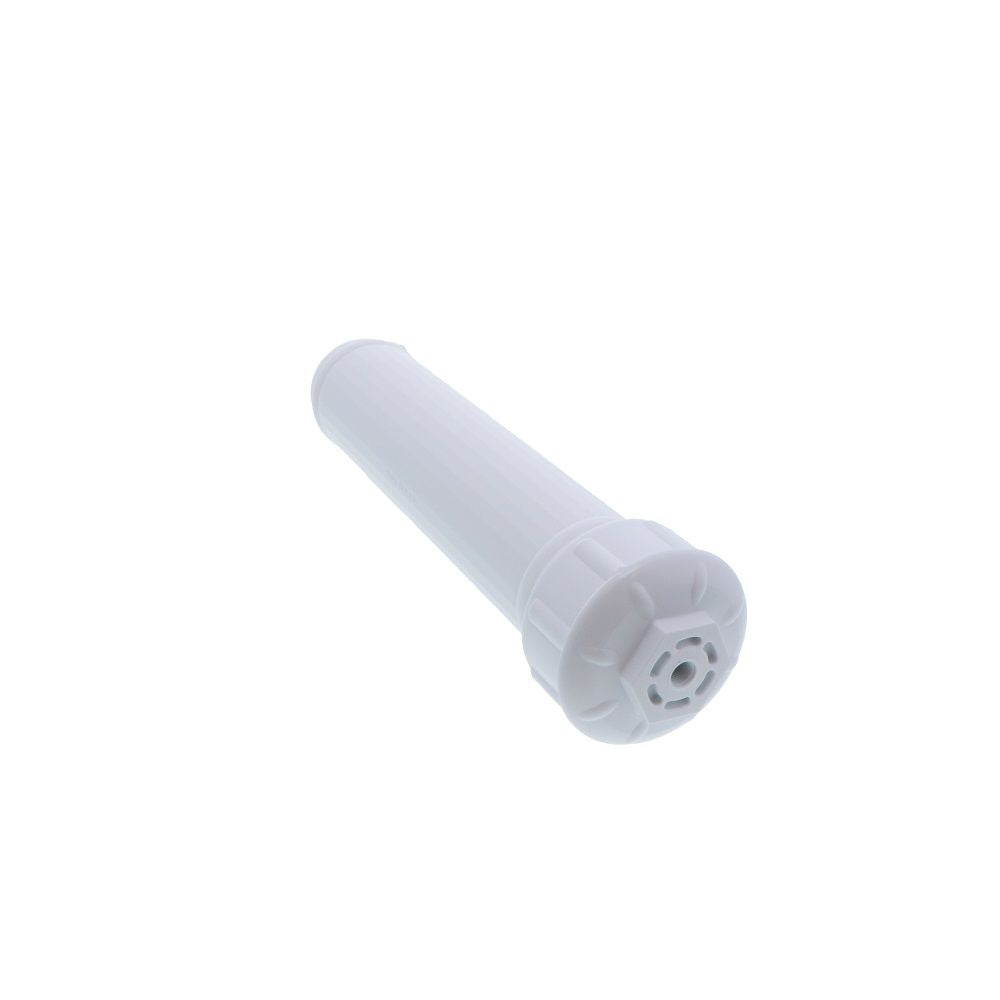

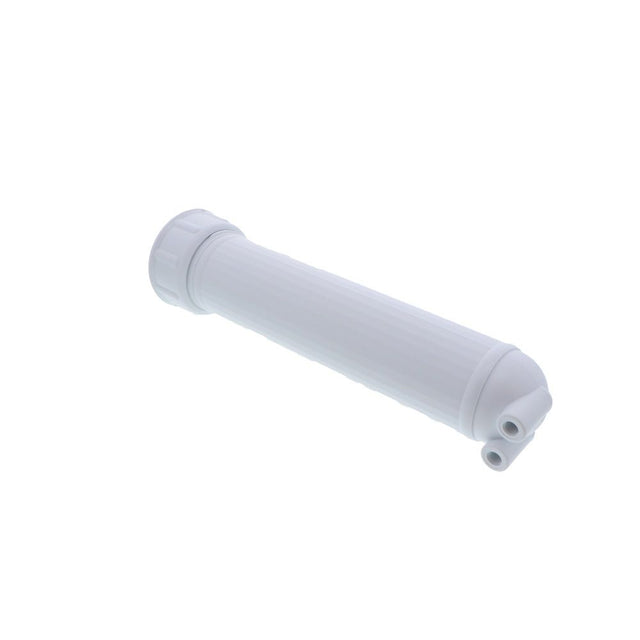

The PPV-111W Reverse Osmosis Membrane Housing accepts all 12" standard size membranes and is manufactured using the highest quality FDA grade polypropylene. The RO membrane housing inlet/outlet ports are 1/8" FPT. The drain (brine) and product (permeate) ports exit at 90°.

Specifications:
  • Material: Polypropylene
  • Inlet Port: 1/8" FPT
  • Brine Out: 1/8" FPT
  • Permeate Out: 1/8" FPT
NOTE: Brine port requires an external flow control (flow restrictor) that is sized to the membrane capacity, typically a 3:1 ratio.
Permeate (RO or Product water) port requires an external inline check valve.



Compatible with:
AXEON/RO Ultratec200507
Pentek144376, 020-MVH90
WattsEH2501W

Weight & Dimensions

Weight (lbs)

1.5

Approx Length (Inches)

2-1/2"

Details

Diameter

1/8"

Housing Material

Polypropylene

O-Rings

Buna-N

Membrane Size

12"

Port Size

1/8"



The PPV-111W Reverse Osmosis Membrane Housing accepts all 12" standard size membranes and is manufactured using the highest quality FDA grade polypropylene. The RO membrane housing inlet/outlet ports are 1/8" FPT. The drain (brine) and product (permeate) ports exit at 90°.

Specifications:
  • Material: Polypropylene
  • Inlet Port: 1/8" FPT
  • Brine Out: 1/8" FPT
  • Permeate Out: 1/8" FPT
NOTE: Brine port requires an external flow control (flow restrictor) that is sized to the membrane capacity, typically a 3:1 ratio.
Permeate (RO or Product water) port requires an external inline check valve.



Compatible with:
AXEON/RO Ultratec200507
Pentek144376, 020-MVH90
WattsEH2501W

Weight & Dimensions

Weight (lbs)

1.5

Approx Length (Inches)

2-1/2"

Details

Diameter

1/8"

Housing Material

Polypropylene

O-Rings

Buna-N

Membrane Size

12"

Port Size

1/8"
