Colder Products

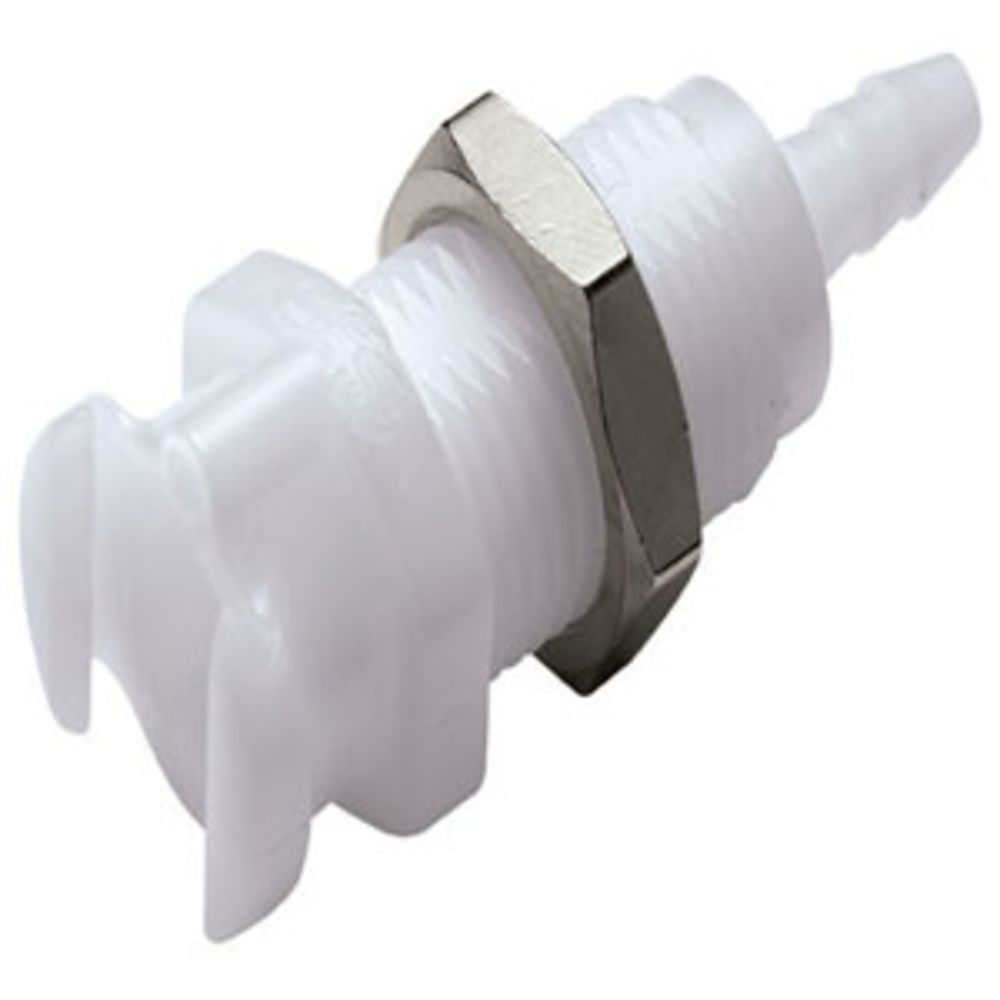

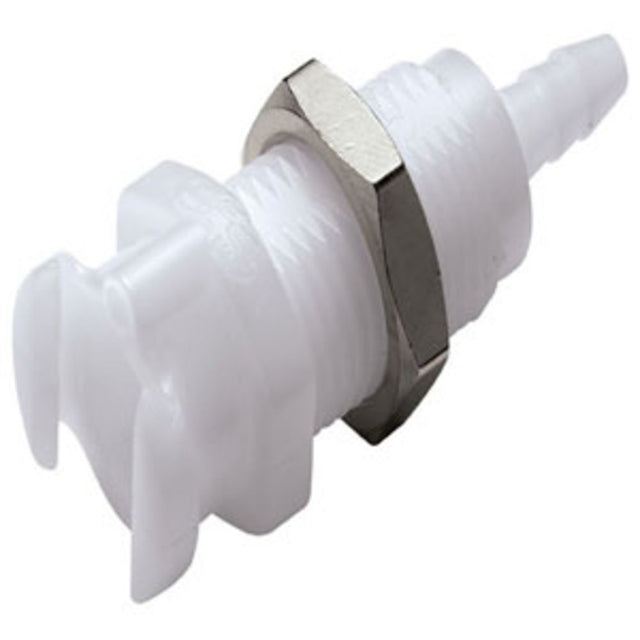

LMD12004 Multi-Mount Valved Coupling Body 1/4 PTF

Part Number: LMD12004

In Stock

out of stock

In Stock

$25.34


Multi-Mount couplings provide one easy-to-use coupling for connecting three to five lines at one time. Multi-mounts are available in either acetal or chrome plated brass and are keyed to prevent mismatched connections.

Specifications:
  • Material: Brass
  • Material Finish: Nickel
  • Color: Chrome
  • Valve Option: Valved
  • Mounting Option: Panel Mount
  • Pressure Range: 500psi / no. of stations
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)


Details

Series

Multi-Mount, LM

Max Temp (°F)

180

Max Pressure (Psi)

500

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Panel Mount

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

1/4" FPT


LMD12004





Multi-Mount couplings provide one easy-to-use coupling for connecting three to five lines at one time. Multi-mounts are available in either acetal or chrome plated brass and are keyed to prevent mismatched connections.

Specifications:
  • Material: Brass
  • Material Finish: Nickel
  • Color: Chrome
  • Valve Option: Valved
  • Mounting Option: Panel Mount
  • Pressure Range: 500psi / no. of stations
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)

Details

Series

Multi-Mount, LM

Max Temp (°F)

180

Max Pressure (Psi)

500

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Panel Mount

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

1/4" FPT
