- Patented Push-to-connect Design
- Chemical Resistance
- UV Resistance
- FDA Compliant
- Chemical Processing/Storage
- Fluid Handling
- Semiconductor Equipment
- DI Water Systems
- High Purity
- Aquariums
 | |||||||
| Kynar w/Viton Seal |

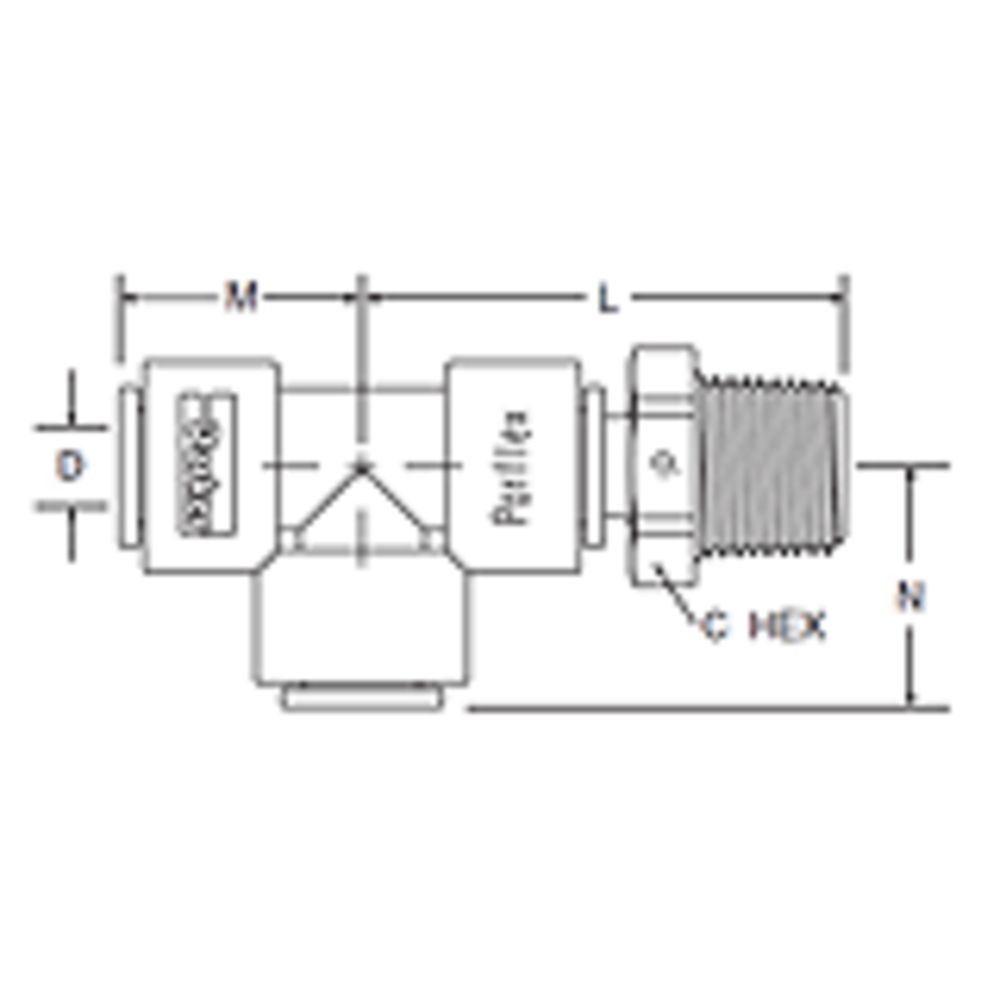

Tube O.D. | NPTF Thread |
C Hex |
L | M | N | D |
| F4MRS2 | 1/4 | 1/8 |
9/16 | 1.55 | 0.81 | 0.85 |
.175 |
| F4MRS4 | 1/4 | 1/4 | 11/16 | 1.67 | 0.81 | 0.85 | .175 |
| F6MRS4 | 3/8 | 1/4 | 13/16 | 1.90 | 1.02 | 1.02 | .250 |
| F6MRS6 | 3/8 | 3/8 | 13/16 | 1.90 | 1.02 | 1.02 | .250 |
Details
Application | Water, Air, Beverage, Beer, Wine, Soft Drinks, Dyes |
Body Material | Kynar |
Inlet/Outlet Connection | 1/4" MPT |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 275 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 0 |
Mounting Options | Thread |
Push-In Size | 1/4" OD |
Seal Material | FKM (Viton) |
Series | TrueSeal |
Size | 1/4" |
Color / Finish | White |
Connection Type | Male (MPT) |
Origin | USA |
Sub-Type | Swivel Run Tee |
Type | Tee |
Warranty & Certifications
Certifications | NSF 51 |
Features:
- Patented Push-to-connect Design
- Chemical Resistance
- UV Resistance
- FDA Compliant
- Chemical Processing/Storage
- Fluid Handling
- Semiconductor Equipment
- DI Water Systems
- High Purity
- Aquariums
| |||||||
| Kynar w/Viton Seal |
Tube O.D. | NPTF Thread |
C Hex |
L | M | N | D |
| F4MRS2 | 1/4 | 1/8 |
9/16 | 1.55 | 0.81 | 0.85 |
.175 |
| F4MRS4 | 1/4 | 1/4 | 11/16 | 1.67 | 0.81 | 0.85 | .175 |
| F6MRS4 | 3/8 | 1/4 | 13/16 | 1.90 | 1.02 | 1.02 | .250 |
| F6MRS6 | 3/8 | 3/8 | 13/16 | 1.90 | 1.02 | 1.02 | .250 |
Details
Application | Water, Air, Beverage, Beer, Wine, Soft Drinks, Dyes |
Body Material | Kynar |
Inlet/Outlet Connection | 1/4" MPT |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 275 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 0 |
Mounting Options | Thread |
Push-In Size | 1/4" OD |
Seal Material | FKM (Viton) |
Series | TrueSeal |
Size | 1/4" |
Color / Finish | White |
Connection Type | Male (MPT) |
Origin | USA |
Sub-Type | Swivel Run Tee |
Type | Tee |
Warranty & Certifications
Certifications | NSF 51 |
