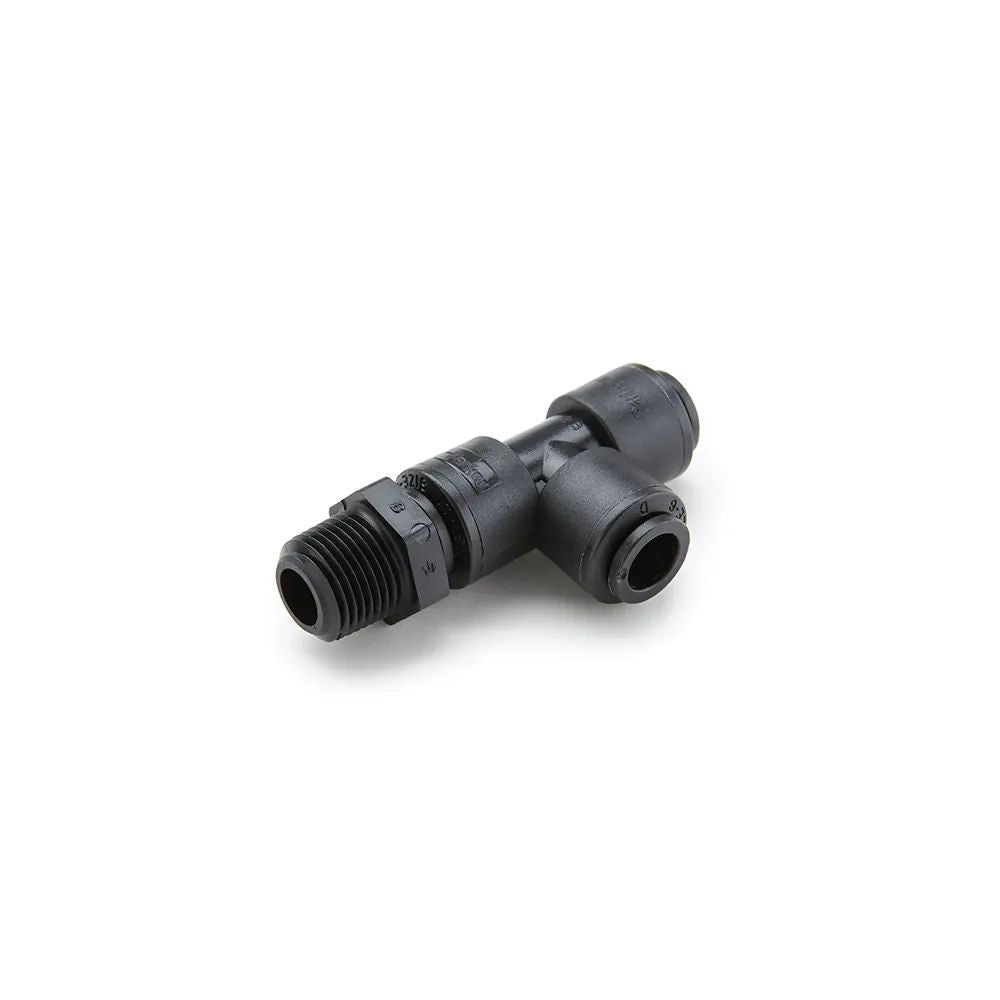

Black Kynar PVDF Male Run Swivel Tee - 1/4 x 1/4 NPTF

Parker’s TrueSeal thermoplastic push fit fittings are lightweight, field attachable and quickly connect to tubing without the use of tools. TrueSeal is a robust push-to-connect fitting ideal for water treatment and harsh chemical environments. Available in Acetal, Polypropylene and Kynar, TrueSeal fittings offer FDA and NSF 51 compliance; NSF 61 compliance in gray Acetal. TrueSeal in Acetal and Polypropylene has an EPDM seal, Kynar has a fluorocarbon seal. The gripping ring in TrueSeal is available with either a stainless-steel bite edge or an engineered thermoplastic bite edge.

Applications for Kynar Fittings

Chemical Processing/Storage
Fluid Handling
Semiconductor Equipment
DI Water Systems
High Purity
Aquariums

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Air Beverage Beer Wine Soft Drinks Dyes
Body Material	Kynar
Inlet Connection	1/4" MPT
Max Pressure (Psi)	250
Max Temp (°F)	275
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Thread
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Seal Material	FKM (Viton)
Series	TrueSeal
Size	1/4"
Color / Finish	Black
Connection Type	Male (MPT)
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51

Product Details
Application	Water Air Beverage Beer Wine Soft Drinks Dyes
Body Material	Kynar
Inlet Connection	1/4" MPT
Max Pressure (Psi)	250
Max Temp (°F)	275
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Thread
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Seal Material	FKM (Viton)
Series	TrueSeal
Size	1/4"
Color / Finish	Black
Connection Type	Male (MPT)
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
