Pentek

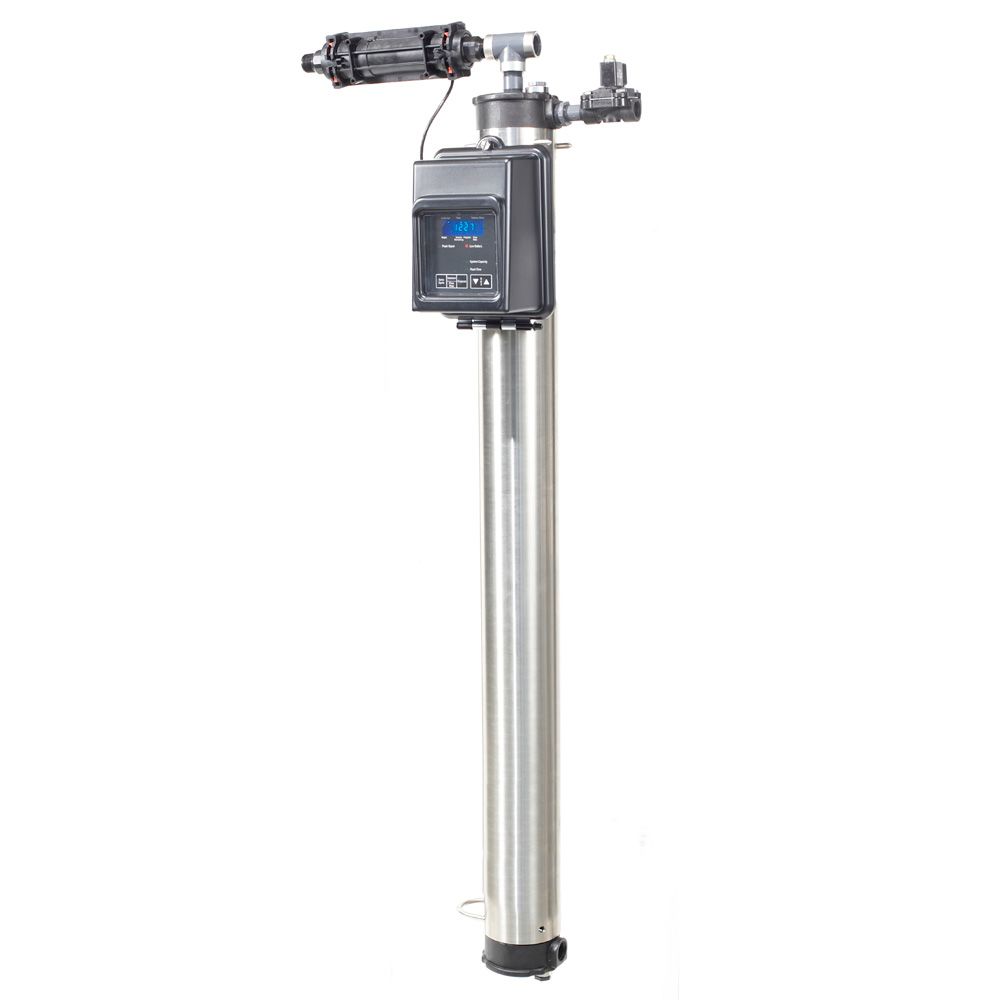

FreshPoint 61788-01 U440 Ultrafiltration System w/ Electronic Metered Controller

Part Number: 61788-01

Alt. Part Number: 160380

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Specifications:
  • Removes turbidity, cysts, and other particles down to 0.025 micron in size
  • Multi-bore membrane structure combines seven single capillaries into one resistant structure to maximize membrane integrity virtually eliminating the potential for fiber breakage
  • Requires only normal line pressure to operate
  • Protects during power outages or intermittent power
  • Retains natural mineral content of the water
  • High surface area and tolerance to plugging
  • Low pressure drop / High flow rates
  • Forward-flush and back-flushing can provide extended filter life in a wide range of applications
Features:
  • Metered self-cleaning cycle flushes only when needed, using less than 7 gallons per flush cycle
  • Day override feature module daily with fresh water when system is not in use
  • Suitable for indoor or outdoor applications
  • All parameters are adjusted via timer programming and can be modified at any time
  • Regeneration lockout input is available
  • 9V battery backup maintains time of day
  • Diagnostic display for Totalized Flow, Instantaneous Flow Rate, Days Since Last Flush, Prior Service Volume, Previous Days Water Usage
  • Programmable auxiliary relay
NOTE: We recommend installing a step down sediment before the FreshPoint System, such as the 140 mesh Rusco Sediment or Sand Trapper filter followed by a 5 micron 20" BB pleated or graded density filter .  Filtering out larger sediment and particulates prior to the Ultrafiltration membrane extends the life of Hollow Fiber Membrane (UF) and conserves water with reduced flush cycles.





Weight & Dimensions

Weight (lbs)

50

Details

Accuracy

1-50 gpm +/- 5%

Active Area

51 sq. ft.

Features

With Meter

Filter Application

Cyst Reduction; Sediment/Dirt/Rust

Frequency

50/60 Hz

Housing Material

Stainless Steel

Inlet/Outlet Connection

3/4" MPT

Max Flow Rate

Muni Water: 1.2 GPM; Well Water: 3 GPM

Max Pressure (Psi)

120

Membrane Type

Polyethersulfone, modified (PESM)

Micron Rating (Absolute)

0.065 µm

Micron Rating (Nominal)

0.025 µm

Size

3/4"

Volume

1-9999


FreshPoint

FreshPoint

FreshPoint

FreshPoint




Specifications:
  • Removes turbidity, cysts, and other particles down to 0.025 micron in size
  • Multi-bore membrane structure combines seven single capillaries into one resistant structure to maximize membrane integrity virtually eliminating the potential for fiber breakage
  • Requires only normal line pressure to operate
  • Protects during power outages or intermittent power
  • Retains natural mineral content of the water
  • High surface area and tolerance to plugging
  • Low pressure drop / High flow rates
  • Forward-flush and back-flushing can provide extended filter life in a wide range of applications
Features:
  • Metered self-cleaning cycle flushes only when needed, using less than 7 gallons per flush cycle
  • Day override feature module daily with fresh water when system is not in use
  • Suitable for indoor or outdoor applications
  • All parameters are adjusted via timer programming and can be modified at any time
  • Regeneration lockout input is available
  • 9V battery backup maintains time of day
  • Diagnostic display for Totalized Flow, Instantaneous Flow Rate, Days Since Last Flush, Prior Service Volume, Previous Days Water Usage
  • Programmable auxiliary relay
NOTE: We recommend installing a step down sediment before the FreshPoint System, such as the 140 mesh Rusco Sediment or Sand Trapper filter followed by a 5 micron 20" BB pleated or graded density filter .  Filtering out larger sediment and particulates prior to the Ultrafiltration membrane extends the life of Hollow Fiber Membrane (UF) and conserves water with reduced flush cycles.




NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Weight (lbs)

50

Details

Accuracy

1-50 gpm +/- 5%

Active Area

51 sq. ft.

Features

With Meter

Filter Application

Cyst Reduction; Sediment/Dirt/Rust

Frequency

50/60 Hz

Housing Material

Stainless Steel

Inlet/Outlet Connection

3/4" MPT

Max Flow Rate

Muni Water: 1.2 GPM; Well Water: 3 GPM

Max Pressure (Psi)

120

Membrane Type

Polyethersulfone, modified (PESM)

Micron Rating (Absolute)

0.065 µm

Micron Rating (Nominal)

0.025 µm

Size

3/4"

Volume

1-9999
