Flexeon

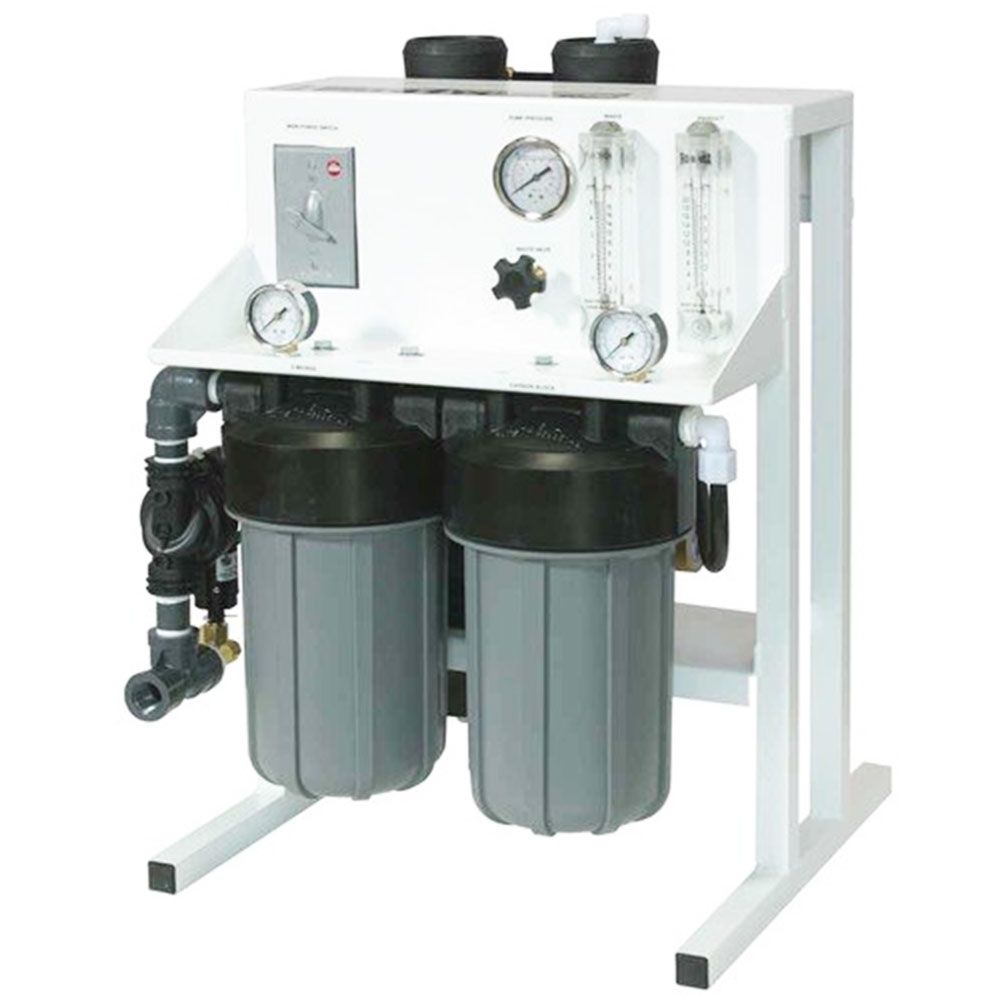

Flexeon AT-500 Commercial Reverse Osmosis System 500 gpd

Part Number: 200029

In Stock

out of stock

In Stock

$1,949.99


The Flexeon AT-500 Commercial RO System is made in the USA with high quality components. The Flexeon 200029 is pre-plumbed, wired and assembled on a convenient powder coated aluminum frame. Designed for easy maintenance and servicing. Available in three different packages to suit your specific needs, the AT-500 also gives the benefit of low operation and maintenance costs.
Features:
  • Permeate Flow Rate: 500 gpd
  • Manual on/off control switch
  • Includes Fluid-O-Tech rotary vane high pressure pump
  • ODP high efficiency carbonator motor
  • Standard systems utilize Axeon HF1 membranes, while advanced and premier systems use Axeon HF4 membranes
  • Uses Axeon PVC Pressure Vessels
  • Flow meters installed on permeate and concentrate lines
  • Low pressure switch installed on feed line
  • Ships LTL, pallet approx 38x31x36 @ 120 lbs approx.
  • Made in the USA
  • 1 year limited warranty
Applications:
  • Aquarium
  • Beverage Production
  • Bottled Water
  • Electronics
  • Drinking Water
  • Food Processing
  • Food and Ice Preparation
  • Misting
  • Pharmaceutical
  • Spot-Free Rinse
Formerly known as Titan 500 A-series commercial reverse osmosis system by RO Ultratec and Crystal Quest CQE-CO-02024 commercial reverse osmosis system.

Models AT-500
Standard Advanced Premier
Frame
White Powder Coated Aluminum Frame X X X
Controls
Manual On and Off Control Switch X
Minitrol Computer Controller X
Minitrol IF Computer Controller X
Pre-Treatment Lockout X X
Tank Level Input X X
LED Controller Display X X
Feed Solenoid Valve with Manual Bypass X X X
Concentrate Recycle Valve X X
Feed Low Pressure Switch 15-30 psi X X X
Instrumentation
Permeate Flow Meter X X X
Concentrate Flow Meter X X X
Concentrate Recycle Flow Meter X X
316 Stainless Steel Concentrate Valve X X X
0-100 psi Pre-Filter In Pressure Gauge X X X
0-100 psi Pre-Filter Out Pressure Gauge X X X
0-300 psi Pump Pressure Gauge X X X
HM Digital PS-100 Permeate TDS Controller X
HM Digital PS-202 Dual Permeate and Feed TDS Controller X
Features
Feed Flush X
5 Micron Sediment Pre-Filter X X X
10 Micron Carbon Block Pre-Filter X X X
Double O-Ring Filter Housings X X X
Axeon HF1 Low Energy RO Membranes X
Axeon HF4 Extra Low Energy RO Membranes X X
Axeon PVC Membrane Housings X X X
Fluid-O-Tech Brass Rotary Vane Pump X X
Fluid-O-Tech Stainless Steel Rotary Vane Pump X
ODP Carbonator Motor X X X


Weight & Dimensions

Prefilter Length

4.5" x 10"

Approx Weight

65 Lbs

Dimensions

14" x 20" x 27"

Details

Feed Water Source

City Water, Well Water

Configuration

Single Pass

Max Hardness

15 Grains per Gallon

Standard Recovery Rate

26 Percent

Ambient Temperature Range

35-120 Degrees Fahrenheit

Application

Aquarium, Beverage Production, Bottled Water, Electronics, Drinking Water, Food Processing, Food & Ice Preparation, Misting, Pharmaceutical, Spot-Free Rinse

Capacity

500 Gallons per day

Filter Application

5µm Sediment Filter, 10µm Carbon Block

Flow Rate

0.35 Gallons Per Minute, 1.5-3 Gallons Per Minute

Inlet Size

1" FNPT

Liquid Temperature

40-105 Degrees Fahrenheit

Max Operating Pressure

150 PSI

Origin

Made in the USA

Power

1/3 Horse Power

Voltage

110V 60Hz

Average Nacl Rejection

98.5 Percent

Cleaning Ph Range

2-12

Contaminants Reduced

1 Nephelometric Turbidity Units

Inlet Pressure

35-85 PSI

Rating

<3 Silt Density Index

Ph Range

3-11

Membrane Size

2.5" x 21"

Max Chlorine Content

0 Parts per Million Free Chlorine

Max Tds Content

2000 Parts per Million

Min Flow Rate

1 Gallons Per Minute

Membrane Quantity

2, 1

Warranty & Certifications

Warranty

1 year
